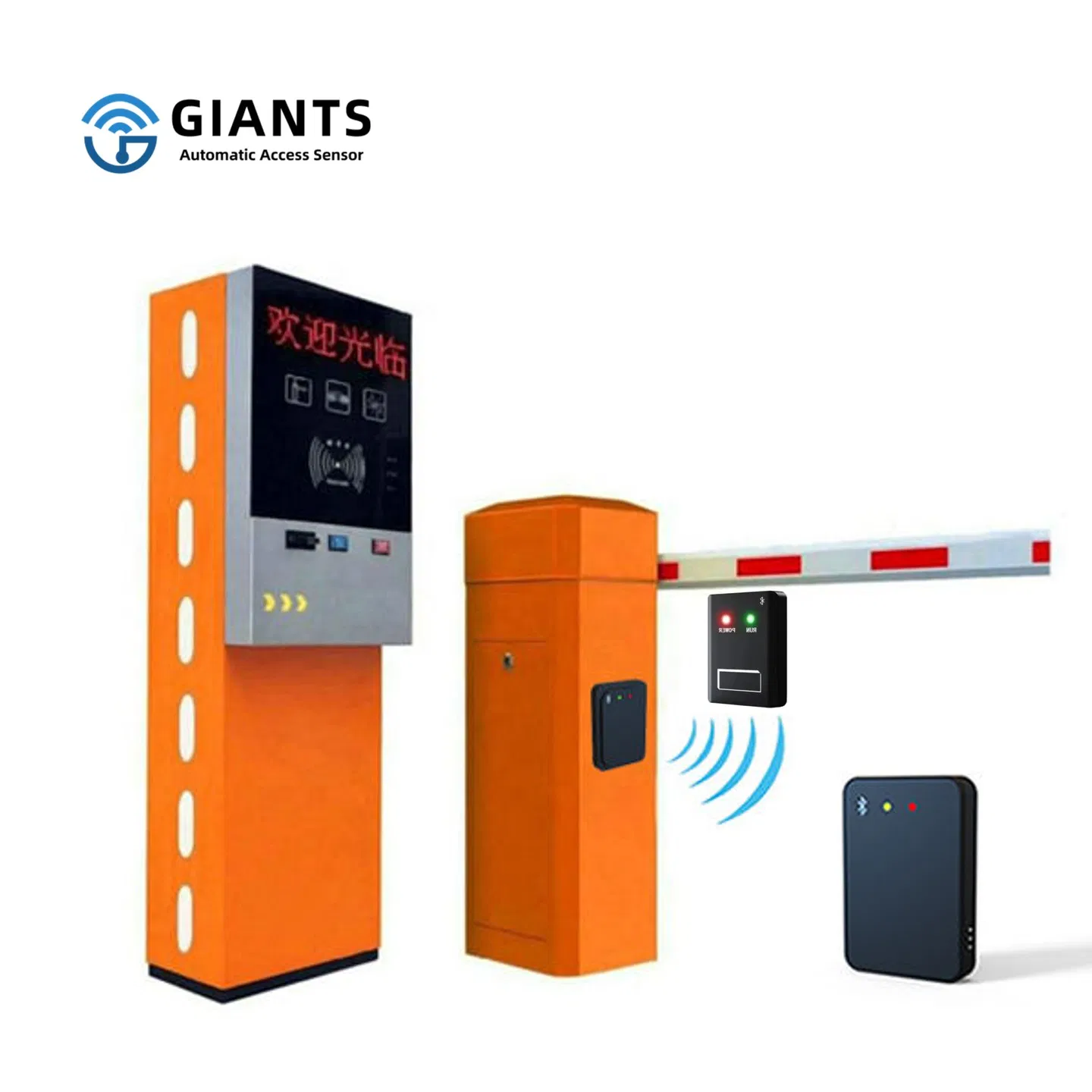

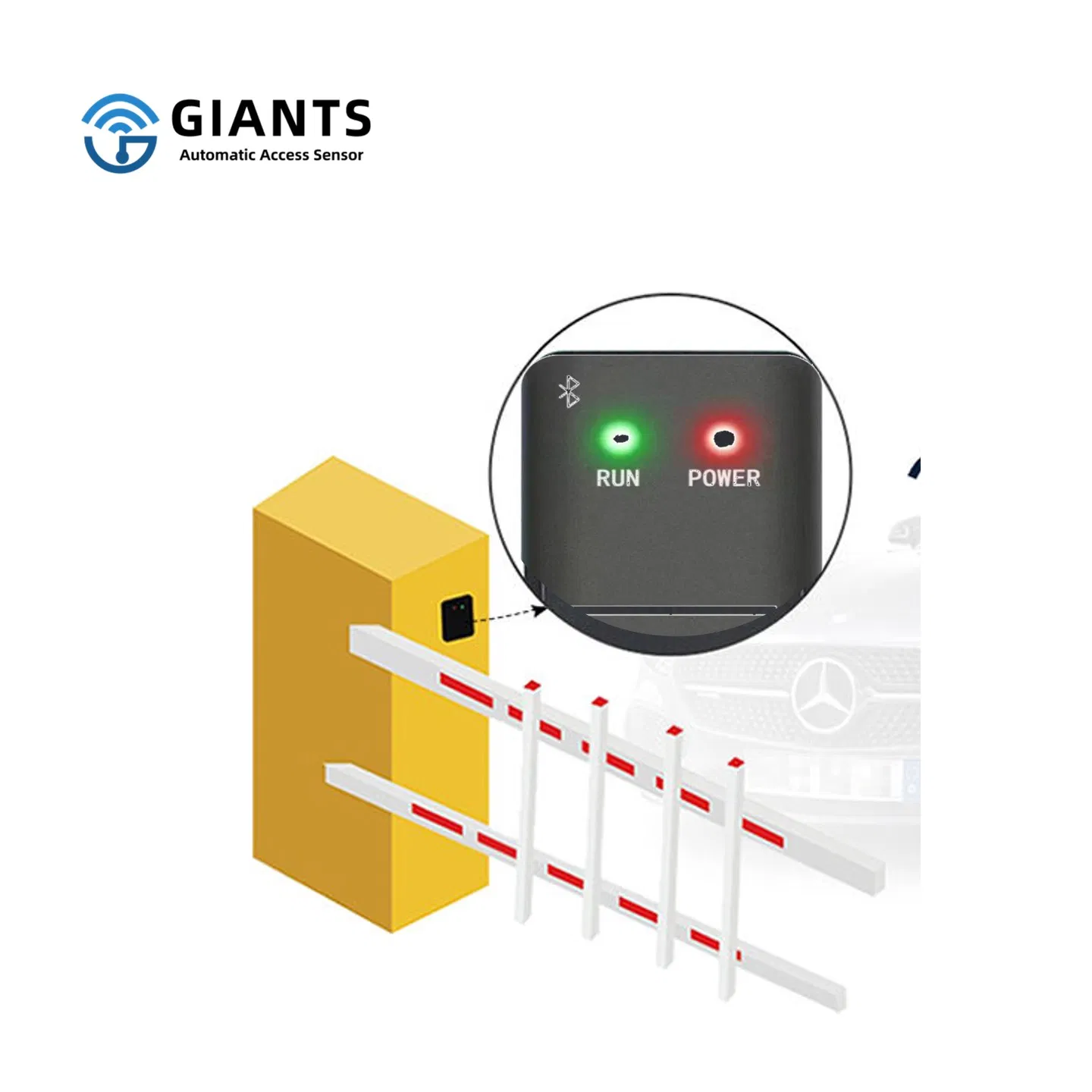

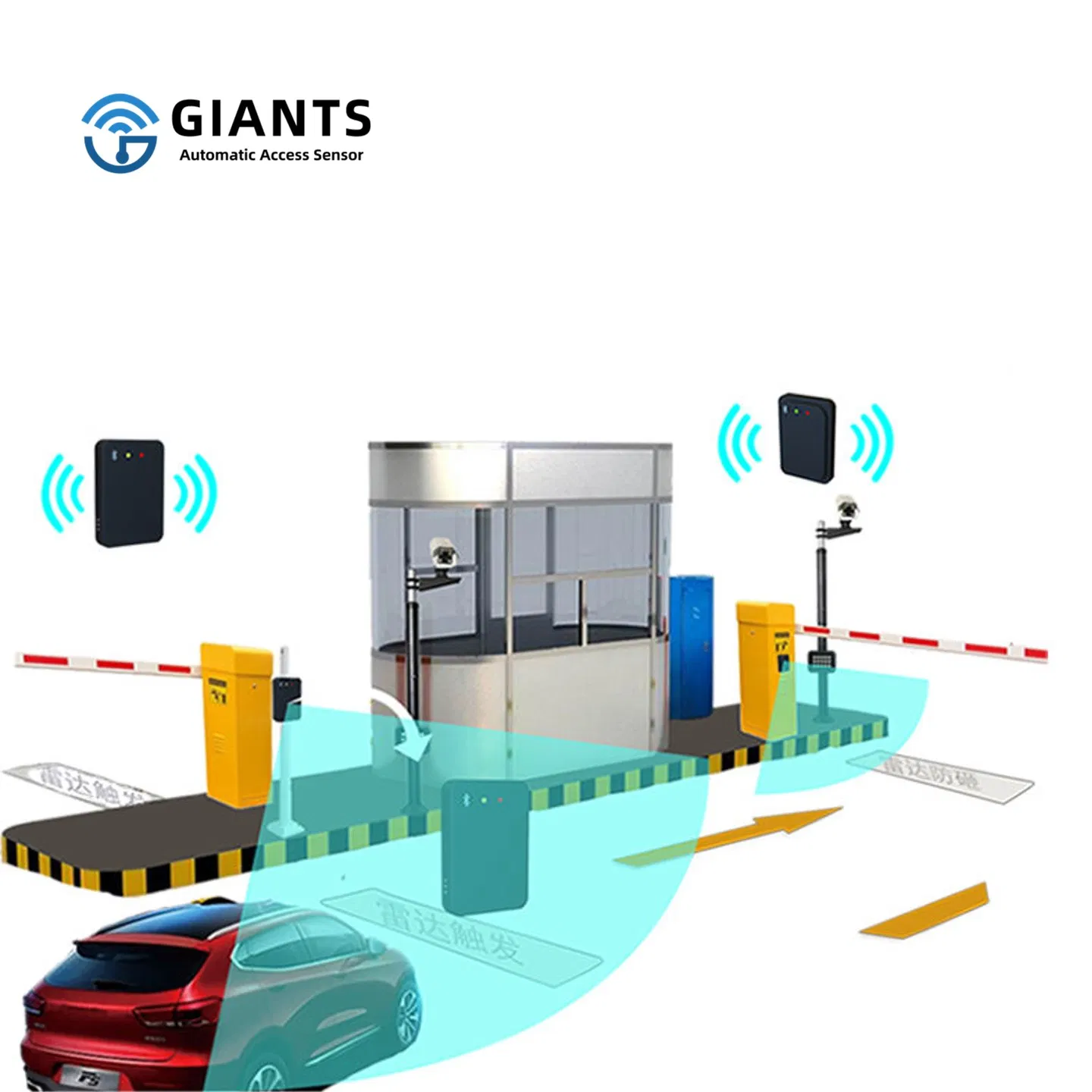

MW80 millimeter wave channel gate radar sensor, equipped with 80GHz high frequency technology, designed specifically for parking lot entrance and gate barrier scenarios. It detects the distance, angle, and speed of obstacles in real-time through precise transmission and reception of electromagnetic waves, enabling intelligent distinction between people and vehicles, effectively preventing accidents such as being hit by the gate falling.

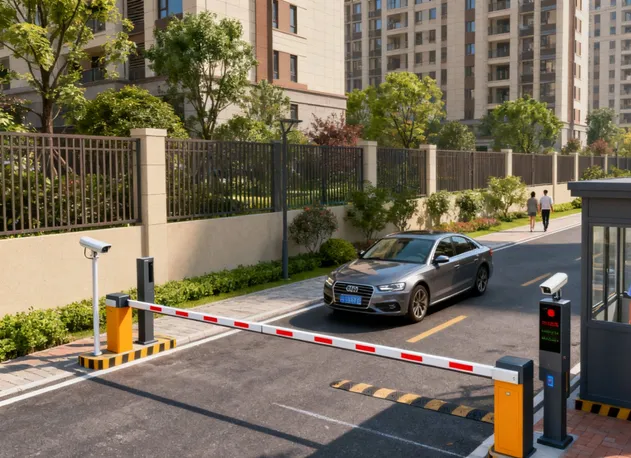

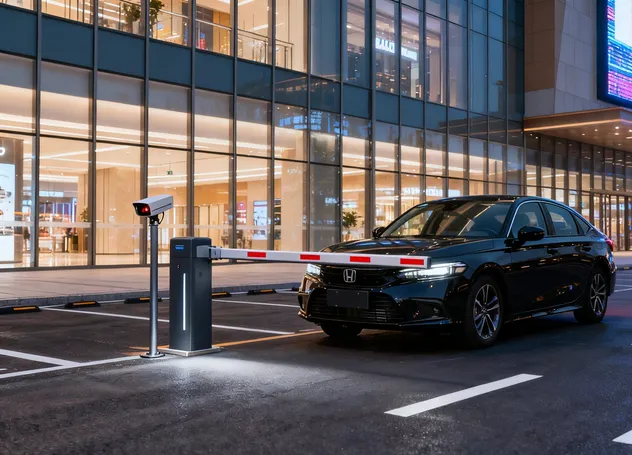

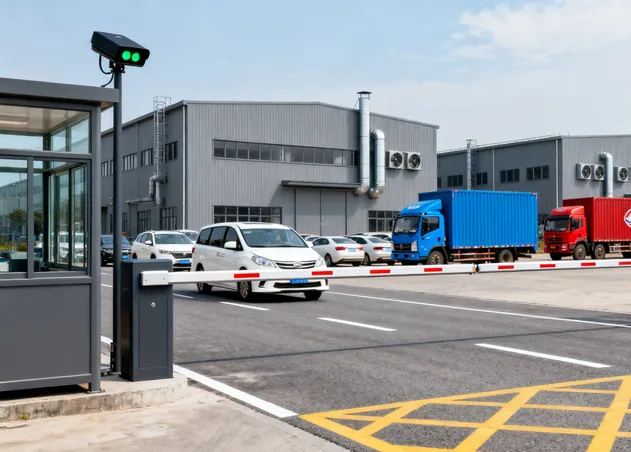

The product has IP66 high waterproof grade and a wide working temperature range of -40℃~85℃, compatible with complex outdoor environments such as rain, snow, high temperatures, and smog, and can be quickly installed without cutting the ground. It provides stable and efficient safety protection support for various gate systems such as straight poles, fence gates, advertising gates, and parachute gates.
| Specifications Sheet | |||
|---|---|---|---|
| Frequency Band | 80Ghz | Size | 107.9 * 73.6 * 17.2mm |
| Waterproof Level | IP66 | Net Weight | 132.4g |
| Work Temperature | -40℃ ~ 85℃ | Voltage | 10 ~ 24V DC |
| Sense Range (Lateral) | 0.5 ~ 1.5m left/right | Power Consumption | 2.5W |
| Sense Range (Distance) | 1 ~ 6m distance | Connect Port | 485 port |
| Response Time | 100ms | Data Adjust | Mobile bluetooth |
| Comparison Dimension | Traditional Loop Detector | Infrared Sensor | Ultrasonic Sensor | MW80 Millimeter Wave Radar |
|---|---|---|---|---|
| Pedestrian-Vehicle Distinction | None | None | None | Supported (Accurate Identification) |

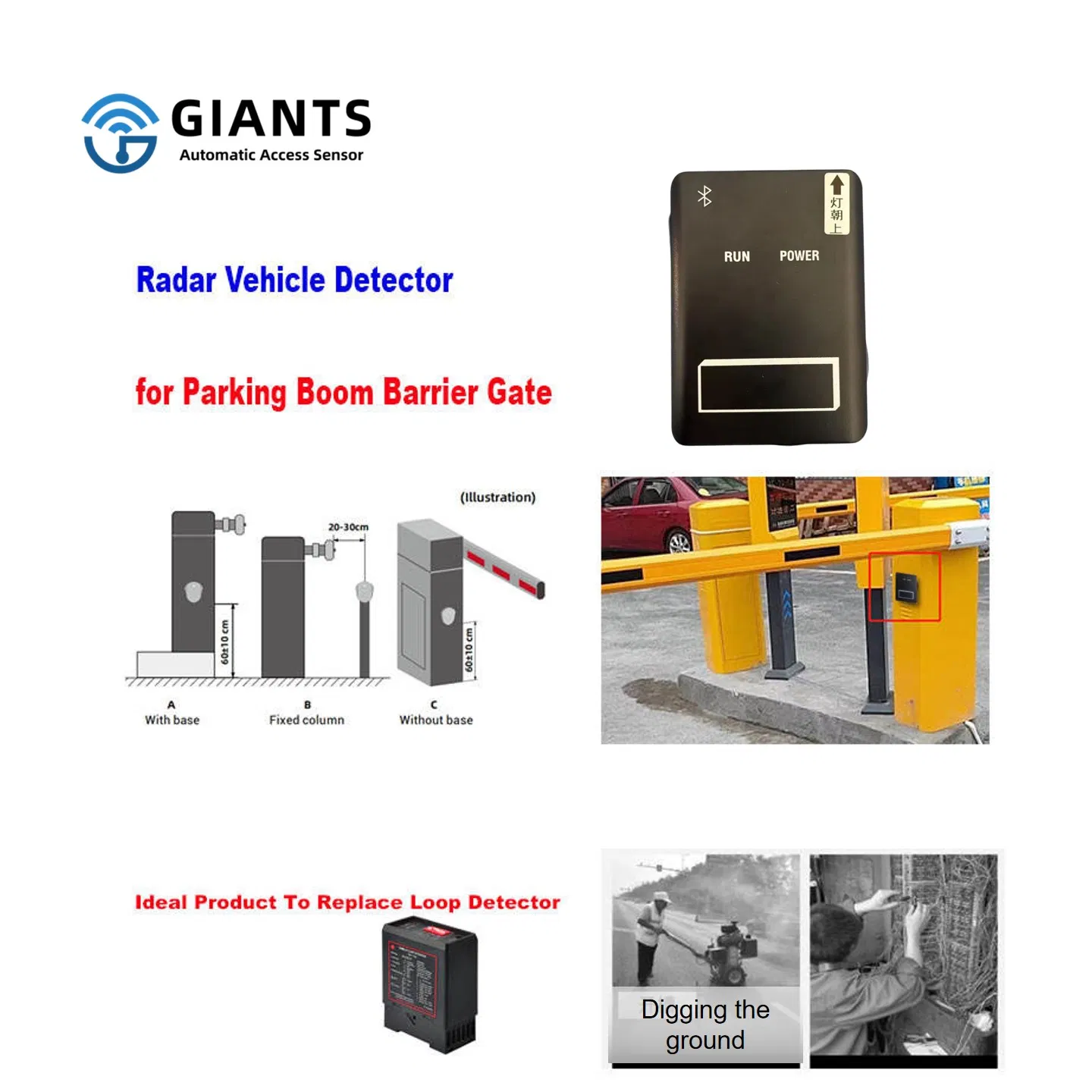

| Installation Difficulty | Complex (Requires Ground Cutting) | Tedious (Needs Wire Alignment on Both Sides) | Simple | Extremely Simple (Completed in 5-8 Minutes, No Ground Breaking) |
| Service Life | 1-2 Years | 3-5 Years | 3-5 Years | 3-5 Years (Higher Stability) |
| Maintenance Cost | Time-Consuming and Labor-Intensive (Requires Re-Ground Breaking) | Needs Repeated Wire Adjustment | Simple | Extremely Simple (Repairable by Disassembly) |
| Environmental Adaptability | Susceptible to Electromagnetic Interference, Fails on Complex Ground | Fails in Rain, Snow, Fog, and Dust | Fails in Rain, Snow, and Fog, Short Detection Distance | Adaptable to All Environments, Stable Performance |
| Technical Parameter | 24GHz Radar | MW80 Radar |
|---|---|---|
| Frequency Band Status | Gradually Obsolete | Mainstream High-Frequency Band |
| Bandwidth | 200MHz | 4GHz |
| Wavelength | 1.25cm (Centimeter Wave) | 3.9mm (Millimeter Wave) |
| Resolution | 75cm | 4cm (20 Times Higher) |
| Detection Accuracy | Low | High (3 Times Higher) |
| Penetrating Power | Weak | Strong |
| Antenna & Size | Long Antenna, Large Volume | Compact Antenna, Slim Body (107.9 * 73.2 * 18mm, Only 132.4g) |

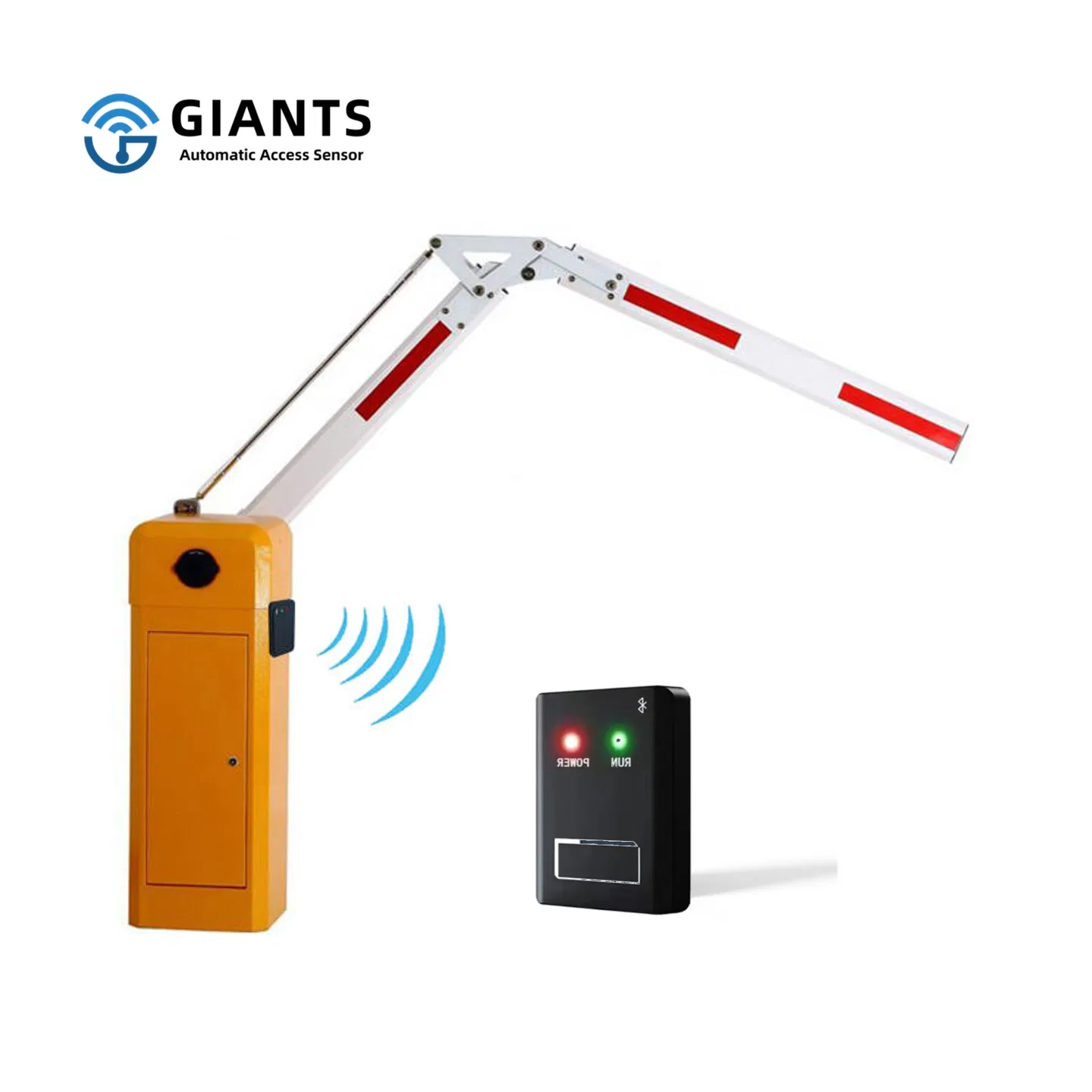

| Barrier Gate Adaptability | Only Supports Simple Straight-Bar Gates, Prone to False Triggers | Adapts to All Barrier Gate Types (Straight-Bar/Advertising/Fence/Drop-Arm Gates) |
| Detection Distance | Short | Long (Stable Coverage of 1~6 Meters) |
| Chip Configuration | Ordinary Chip | MW80 Equipped with TI Chip |
|---|---|---|
| Antenna Design | 1Tx 2Rx / 2Tx 3Rx | 2Tx 4Rx (Stronger Signal, More Accurate Detection) |
| Resolution | Large Deviation | Accurate, No Deviation |
| Scene Adaptability | Only Supports Straight-Bar Gates, Fails in Corner Scenarios | Adapts to All Barrier Gates + Complex Corner Scenarios |
| Algorithm Maturity | Immature | Self-Developed Mature Algorithm |
The manufacturing process complies with the strict standards of Quality Management Systems GB/T19001-2016 / ISO 9001:2015, and GJB 9001C-2017, alongside SGS-CSTC certification.
The products have obtained global credentials including CE and RoHS. They fully meet safety requirements outlined by EN16005, EN61000, EN60825, EN 55014, and IEC62321. Additionally, the technology is secured by multiple patents, including utility model patents, design patents, and copyright patents.
Are you a factory or manufacturer?
Yes, we are a professional manufacturer of smart access sensors. Leveraging advanced sensing technologies such as microwave, radio frequency (RF), infrared (IR), and laser, we offer comprehensive solutions including professional sensor supply, engineering design, and technical services.
Can we place a sample order first?
Yes, sample orders are welcome. Please get in touch with our team to discuss your specific requirements and sample availability.
Can I customize the product with my logo?
Yes, logo customization and OEM branding options are fully available for bulk purchases.
What is the detection range of the MW80 radar sensor?
The MW80 features a highly reliable detection distance range of 1 to 6 meters, with a lateral range of 0.5 to 1.5 meters to the left and right, fully configurable via mobile Bluetooth.
What is your lead time for standard and custom products?
Standard products ship within 3-5 working days after payment confirmation. Custom orders depend on the specific quantity and custom manufacturing requirements.
What payment methods do you accept?
We accept various secure payment options, including T/T (Bank Transfer), Western Union, PayPal, Letter of Credit (L/C), and more. Please inquire for detailed payment terms.
