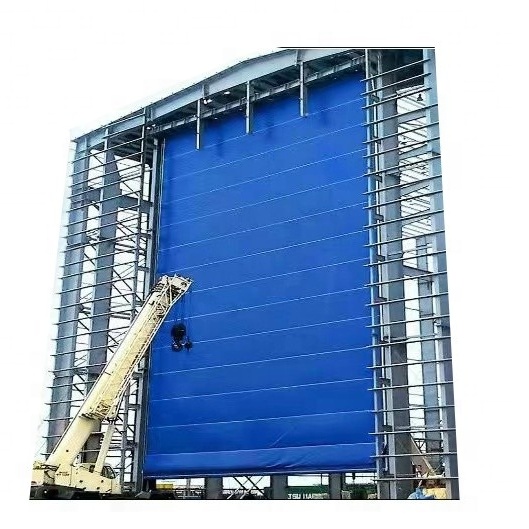

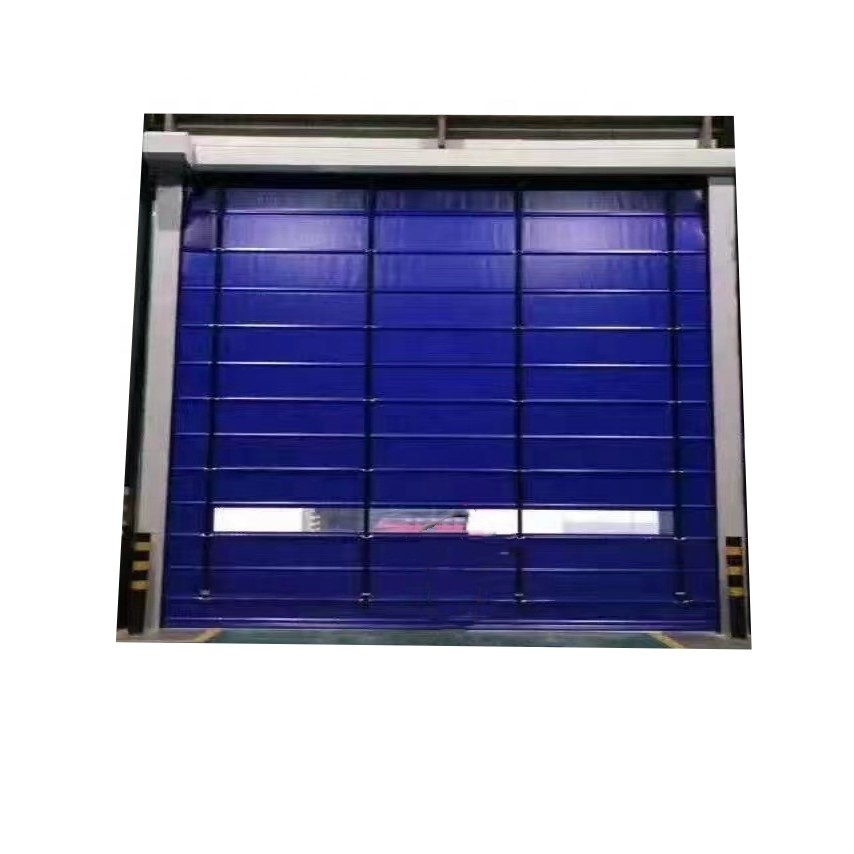

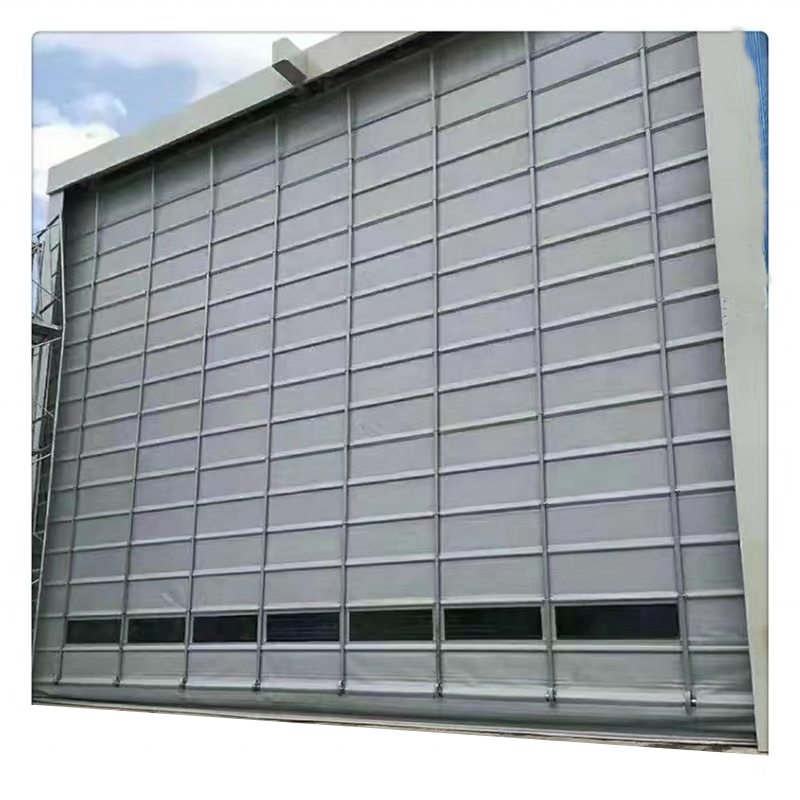

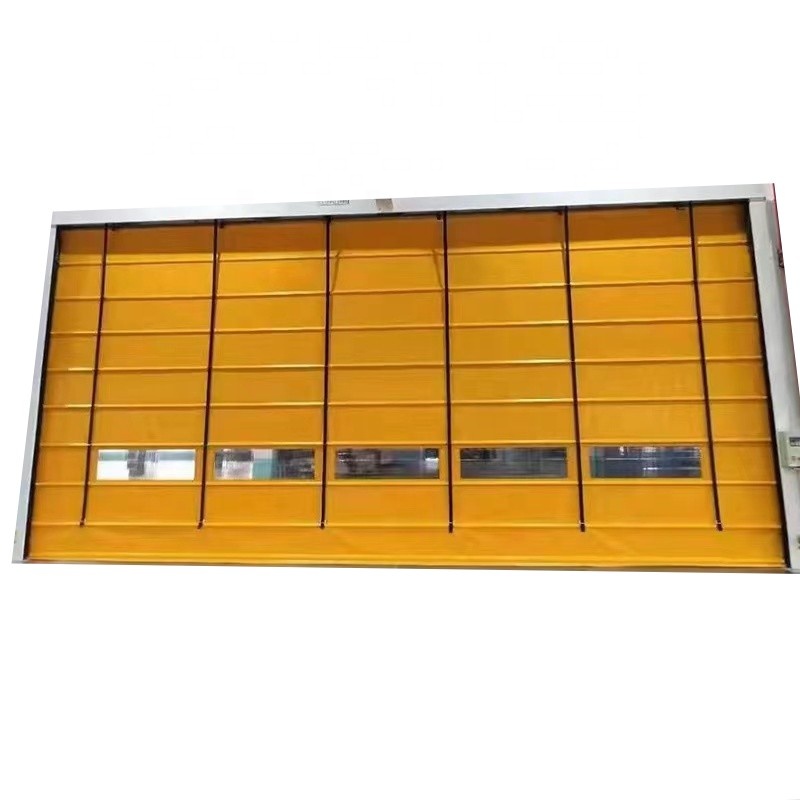

Large Industrial Foldable PVC Aircraft Hangar Door for Airport & Commercial Use Wuxi Shelter

Product Description

Products Description

Fabric Mega Hangar Door is characterized by buildings suitable for small spaces on both sides, and is mainly suitable for large working environments such as hangars, shipbuilding, steel making, mineral processing, large warehouses, and logistics channels.

🏗️
1. Curtain

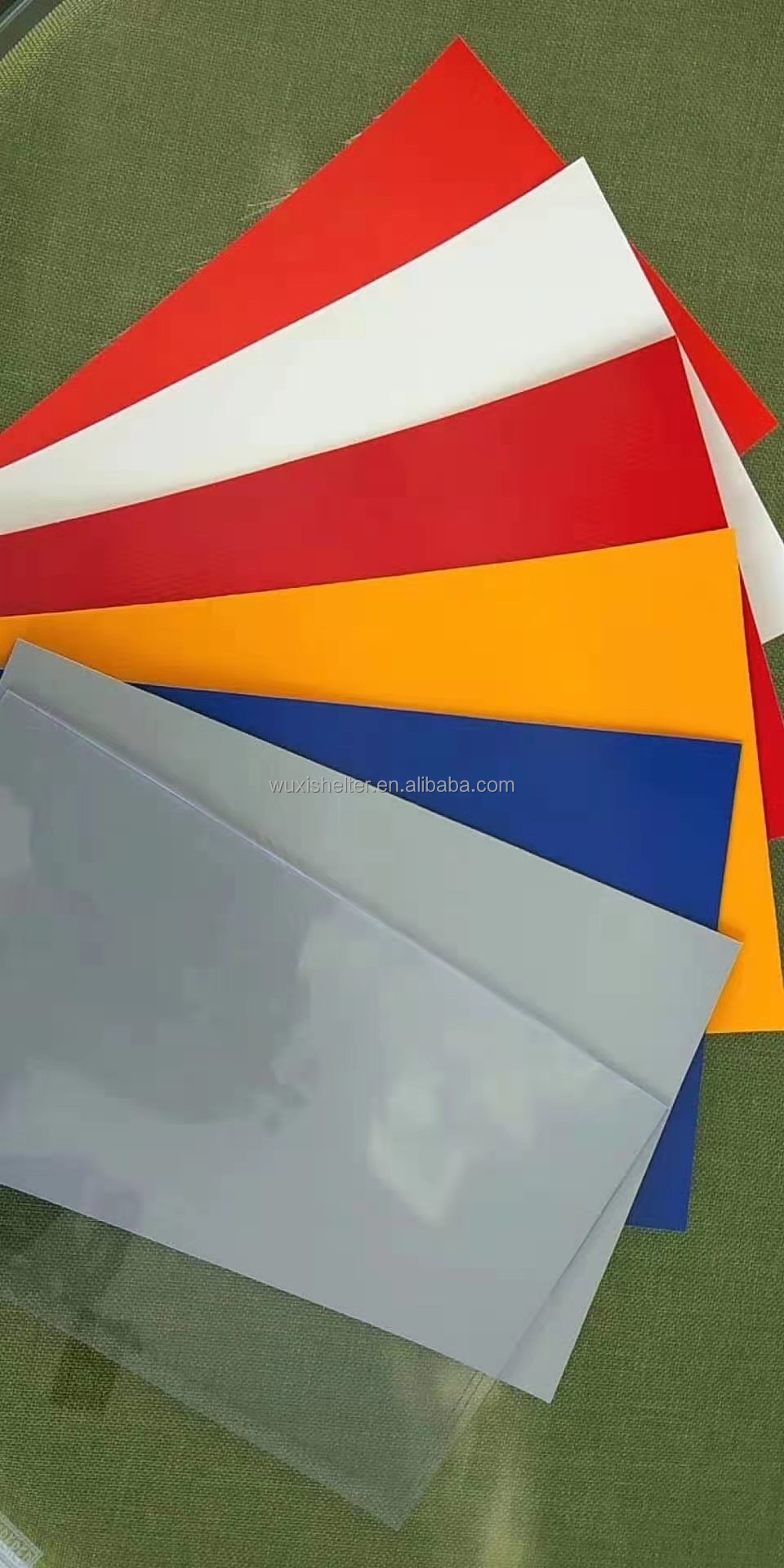

A. PVC fabric: 1.0-1.5mm thickness, commonly used color: blue, yellow, green, red, white.
B. Function and performance: UV-resistant, fire-resistant, anti-mildew, anti-bacteria, self-cleaning, oil-resistant, acid and Alkali resistant, anti-wicking, anti-aging.
🔩

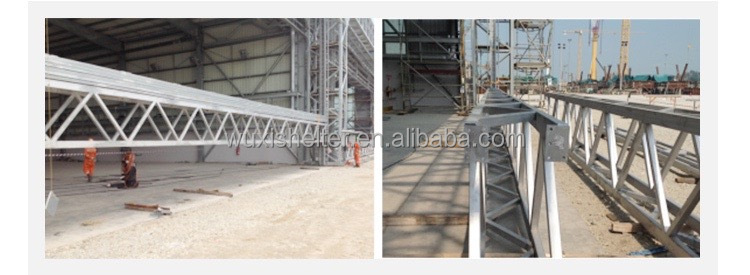

2. Steel Structure
A. Brand of material: High-quality surface process: hot dip galvanized steel tubes.
B. All the joints are fully welded to ensure the high strength of the structure.
⚙️
3. Motor and Controller
A. Motor loading capacity: 2-15t, running speed: 6m/min, power: 5-13KW.
B. Variable frequency control, slow start and stop, other functions can be customized.
🛡️

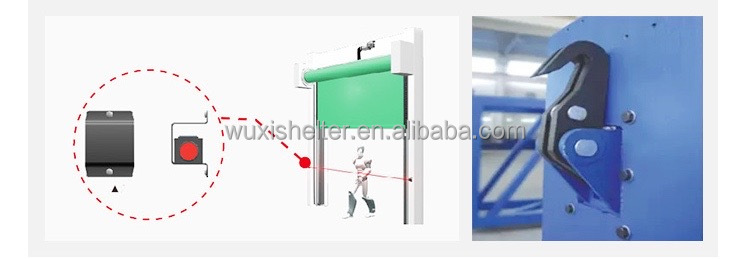

4. Safety Device
A. Photo sensor: When there is human or vehicle under the door, the door will stop closing and get up automatically, this will avoid accident collisions.
B. Accident fall arrester safety system: clamp type fall arrester is installed to prevent any accident falls and avoid any damage to human or other objectives under the door.

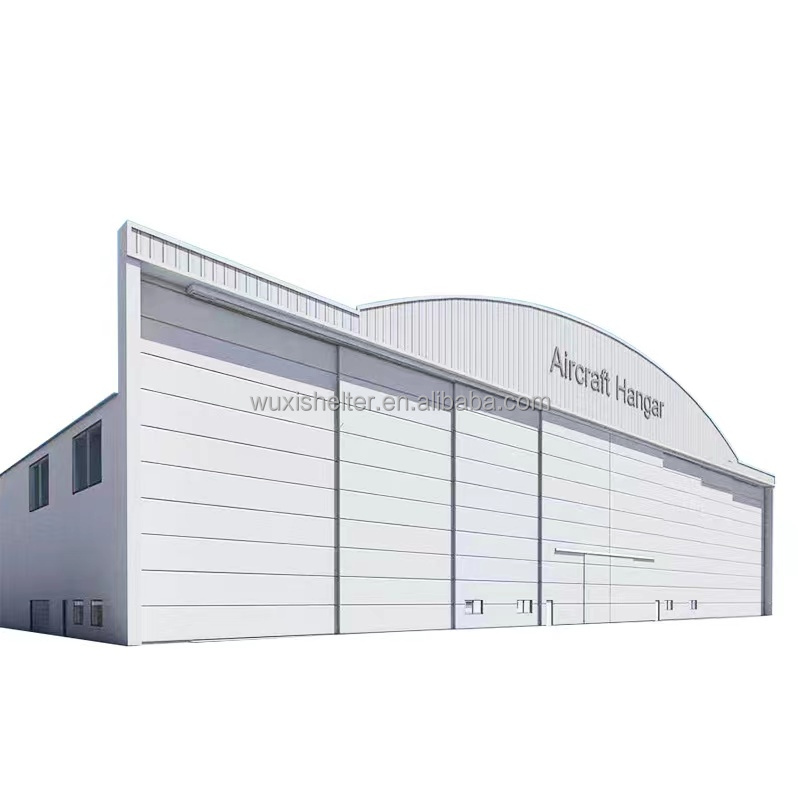

Fabric Mega Hangar Door 1

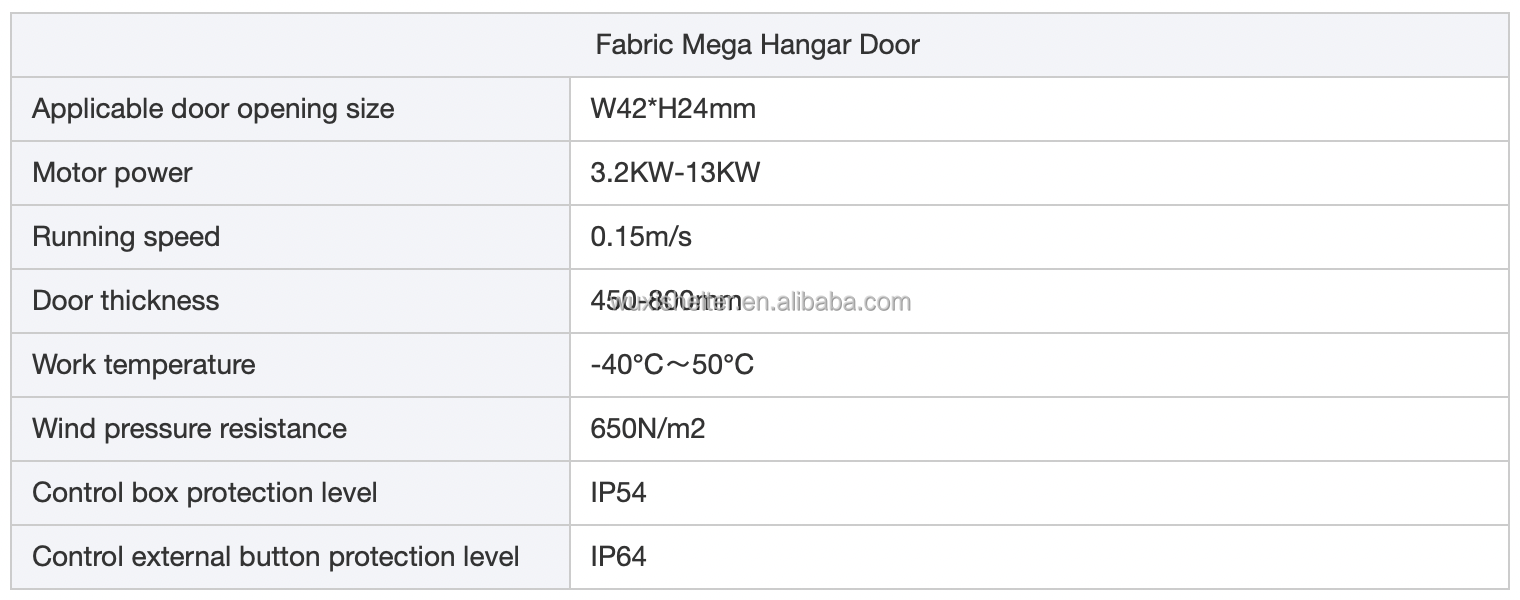

Fabric Mega Hangar Door 2

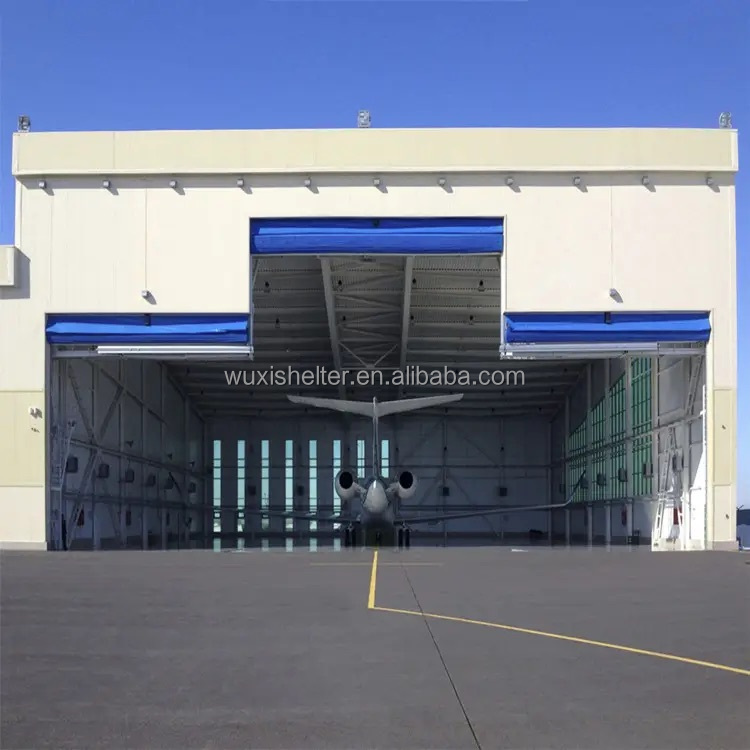

Fabric Mega Hangar Door 3

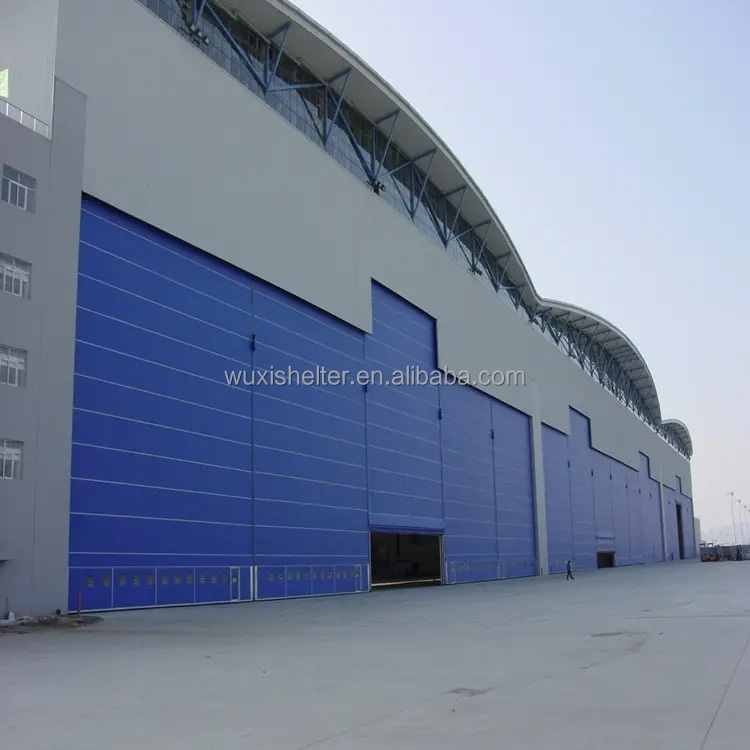

Fabric Mega Hangar Door 4
Company Profile

As a professional Manufacturer of garage doors, industrial doors, and components, we specialize in producing high speed doors (complete speed door parts), sectional garage doors, industrial doors, rolling shutters, springs, hardware, seal strips, rubbers, windows, etc.

Our products are exported mainly to Europe, America, UAE, and South Africa. We have developed very quickly through continuous innovation, a wide product range, competitive pricing, on-time deliveries, and strong technical support.

Details Images

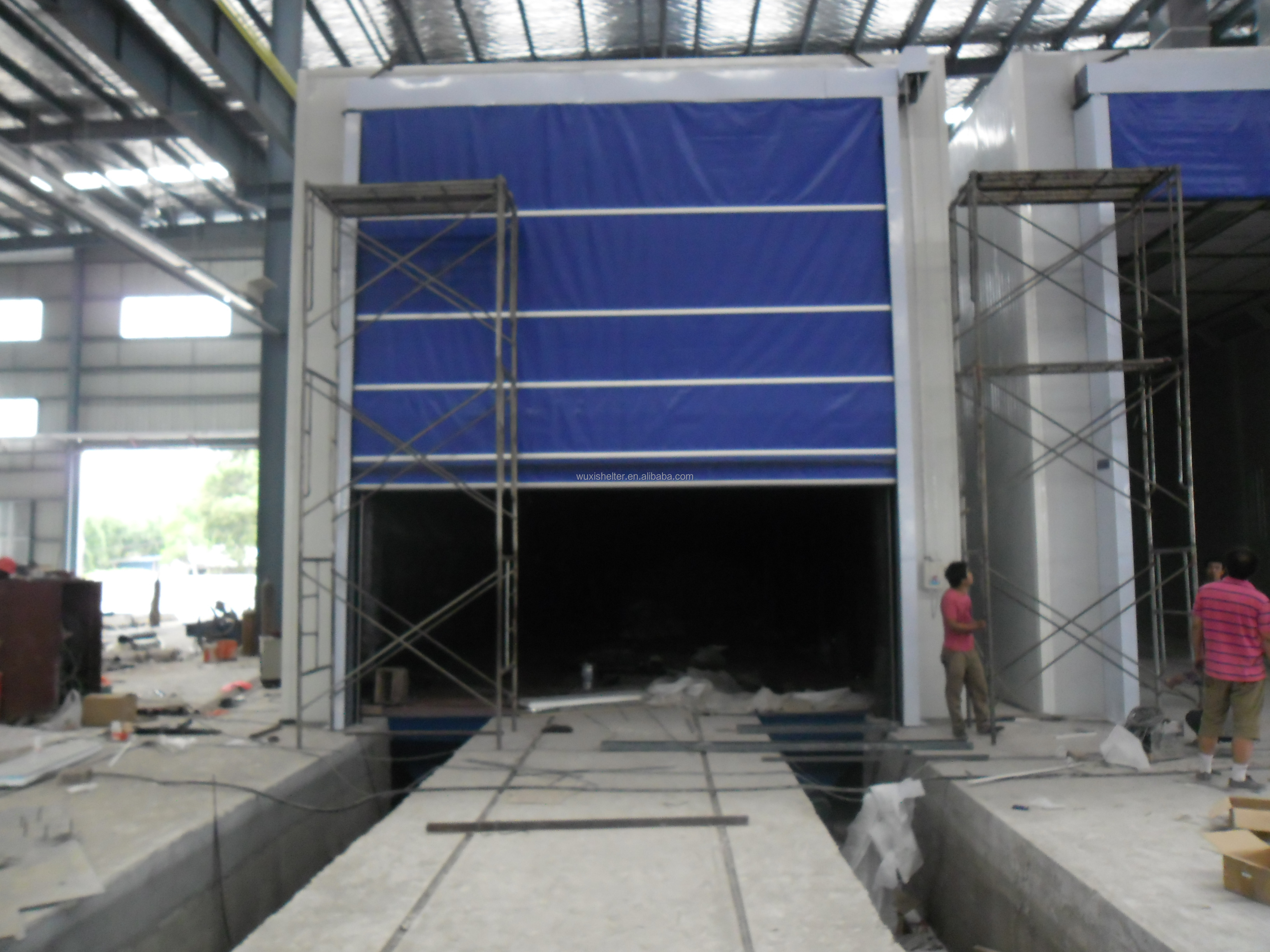

Detail 1

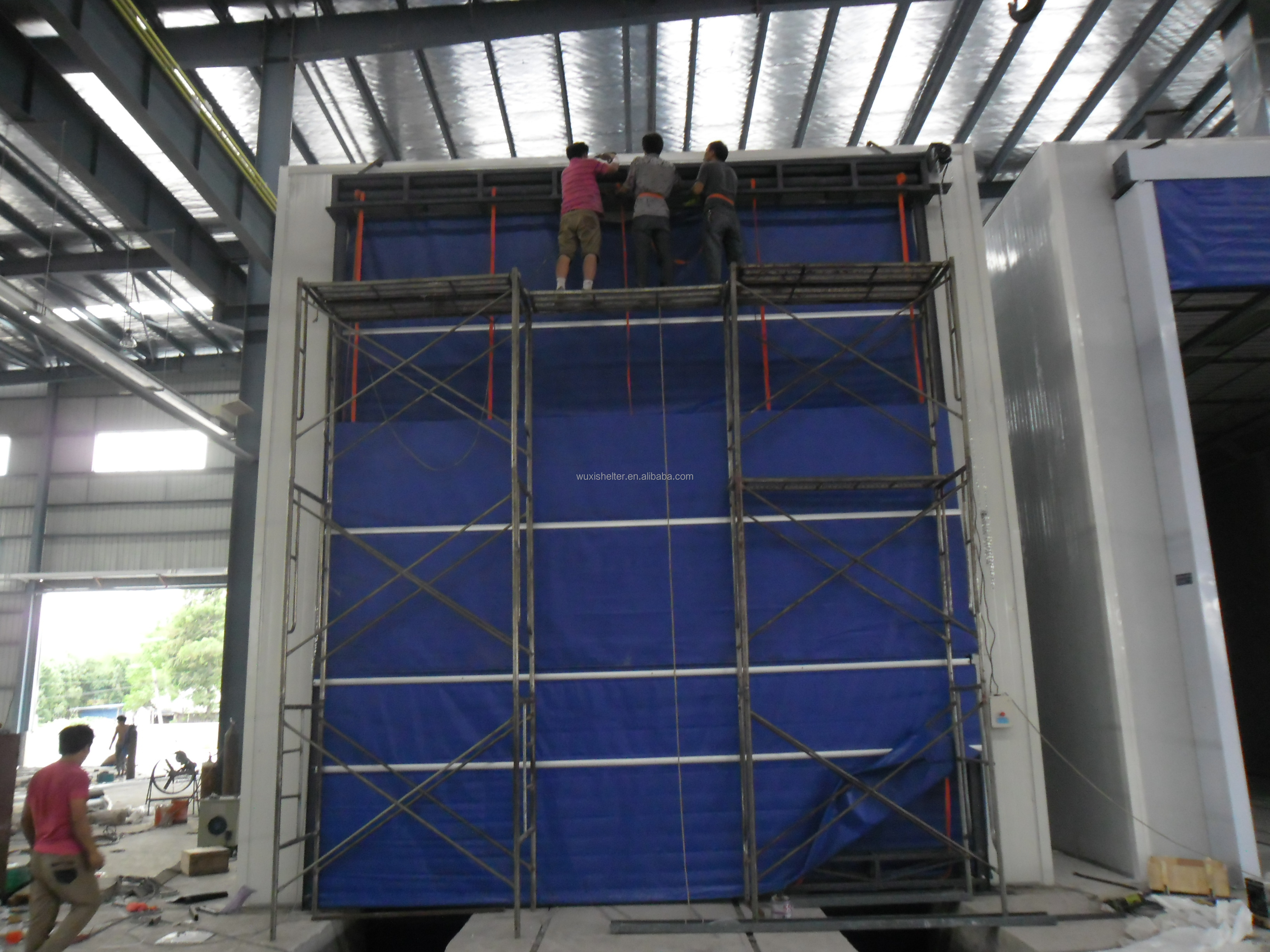

Detail 2

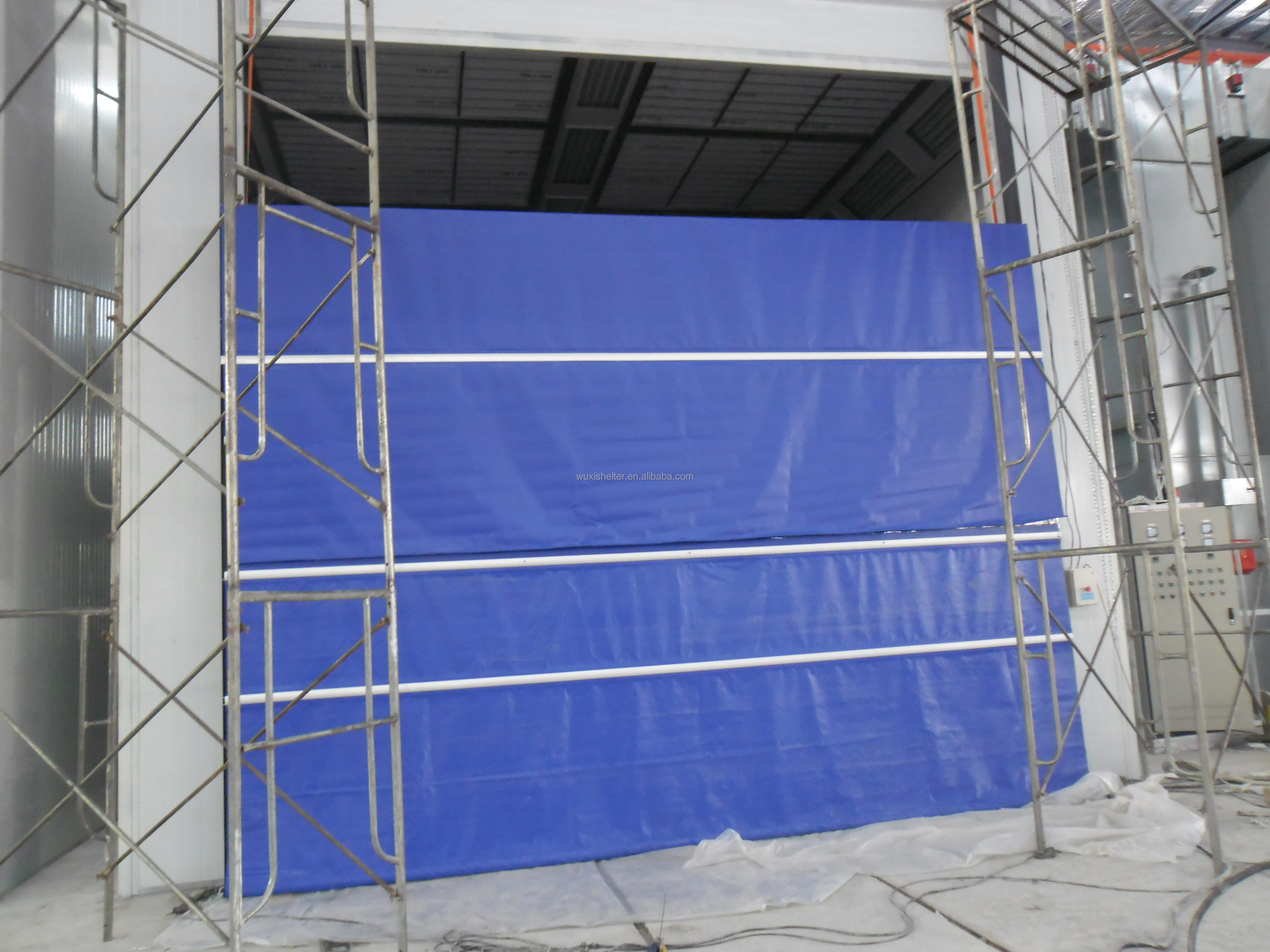

Detail 3

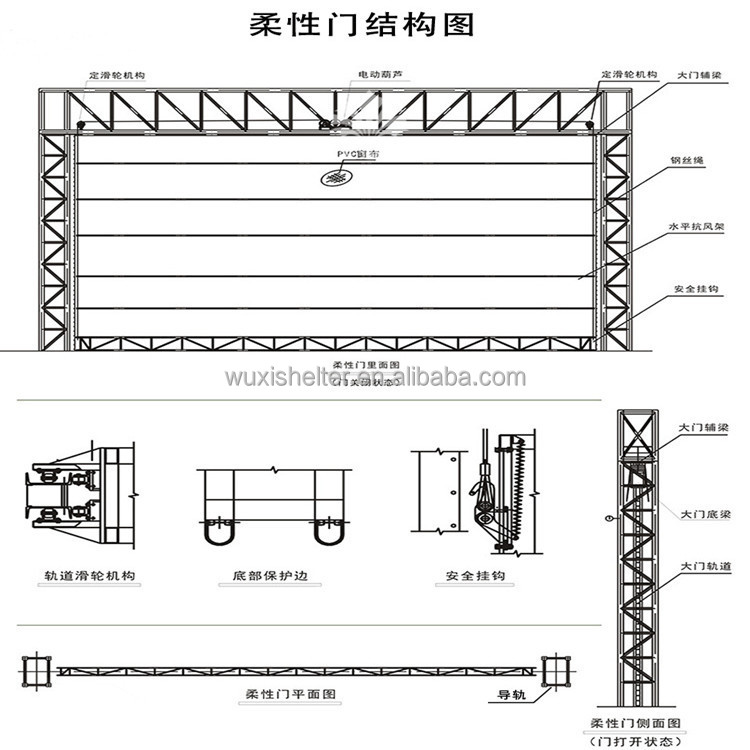

Detail 4

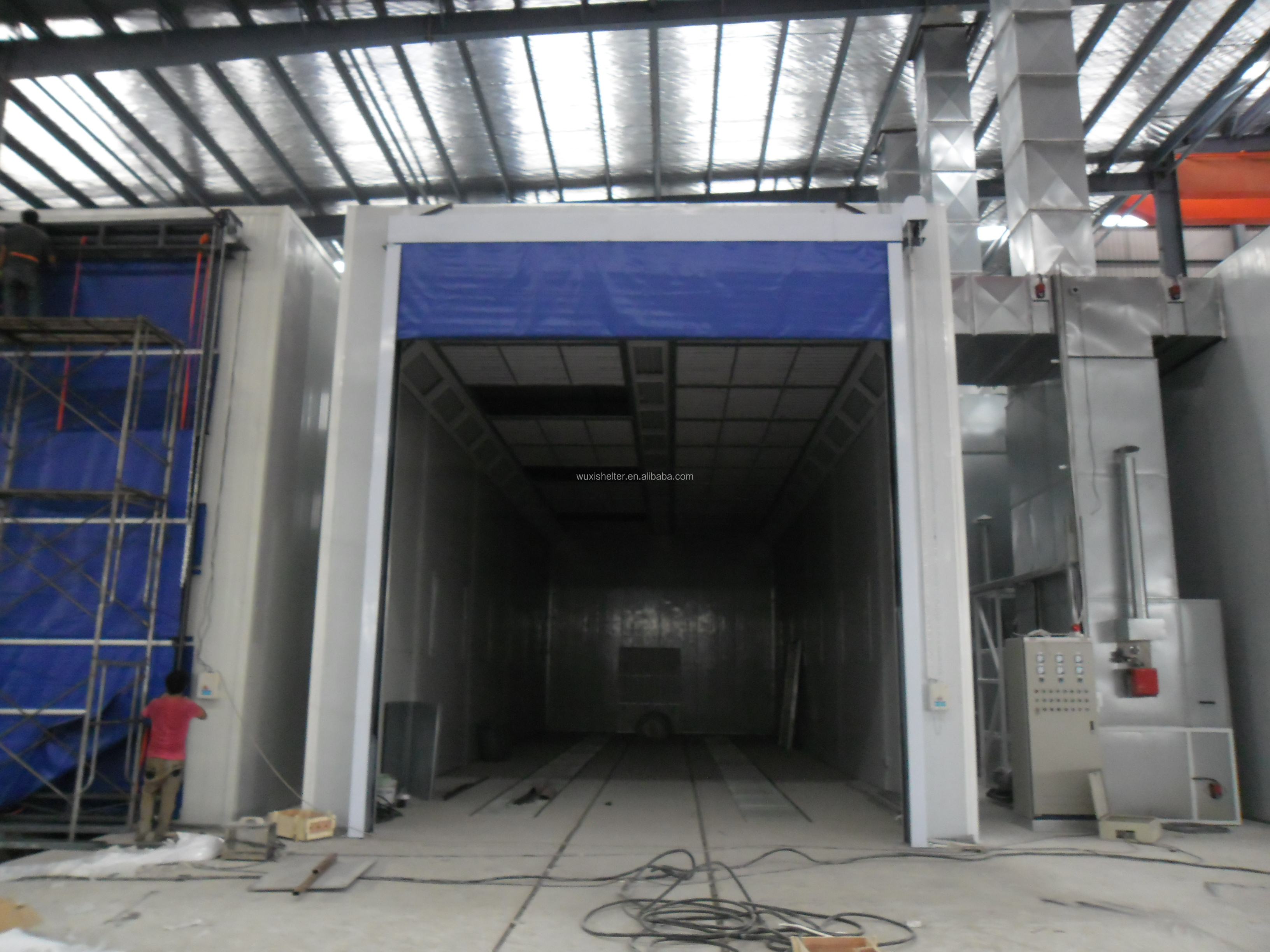

Detail 5

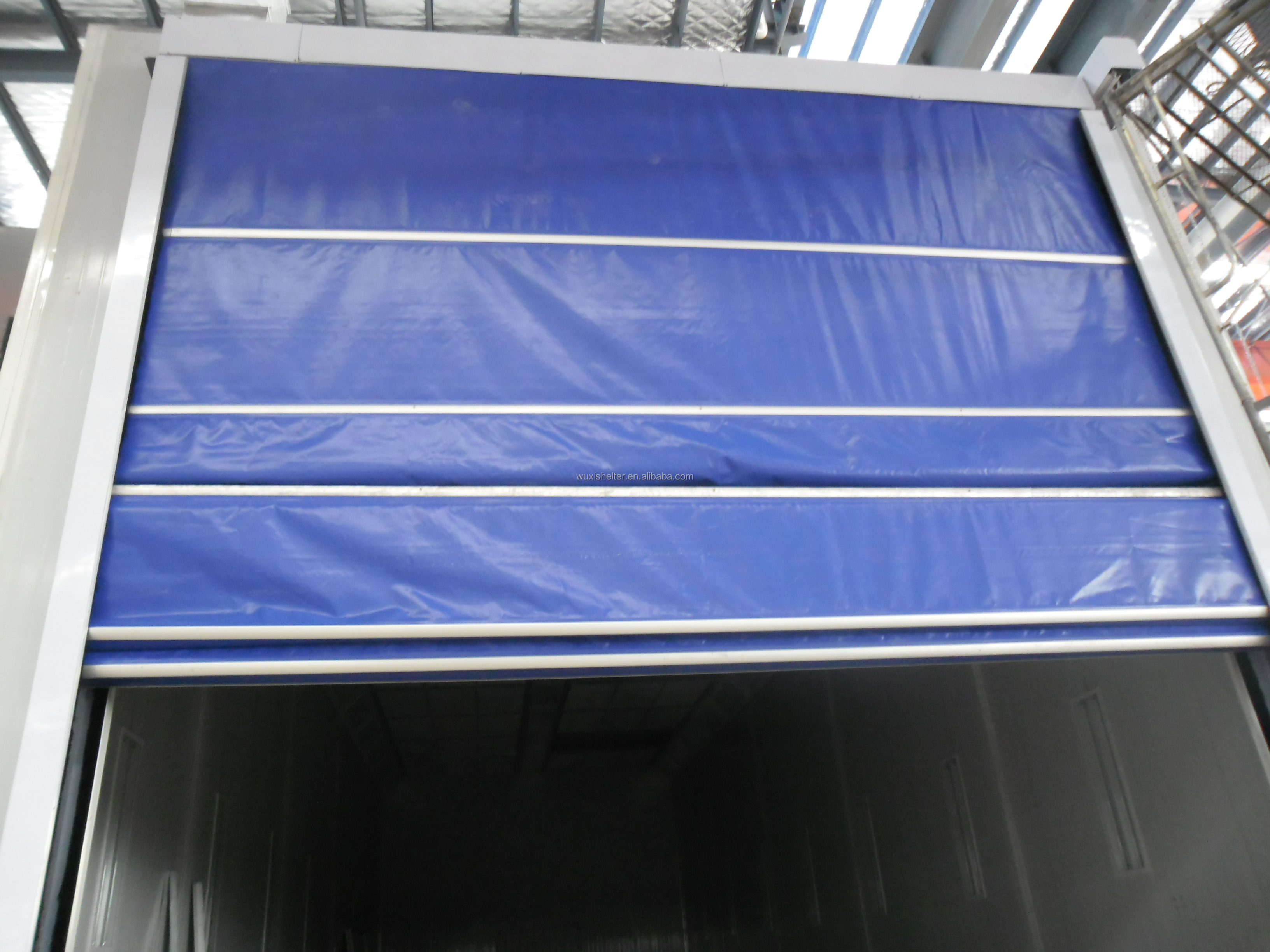

Detail 6

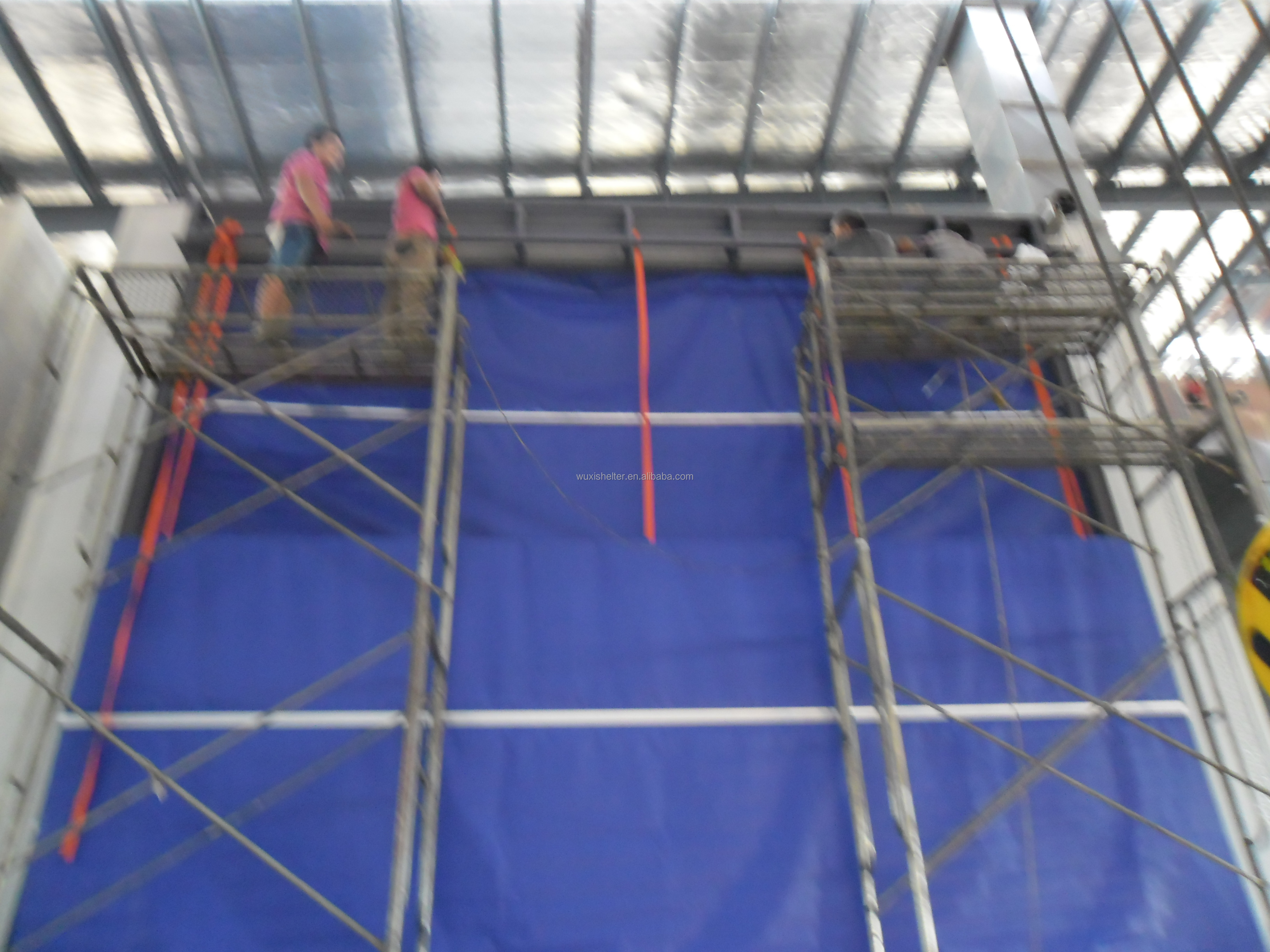

Detail 7

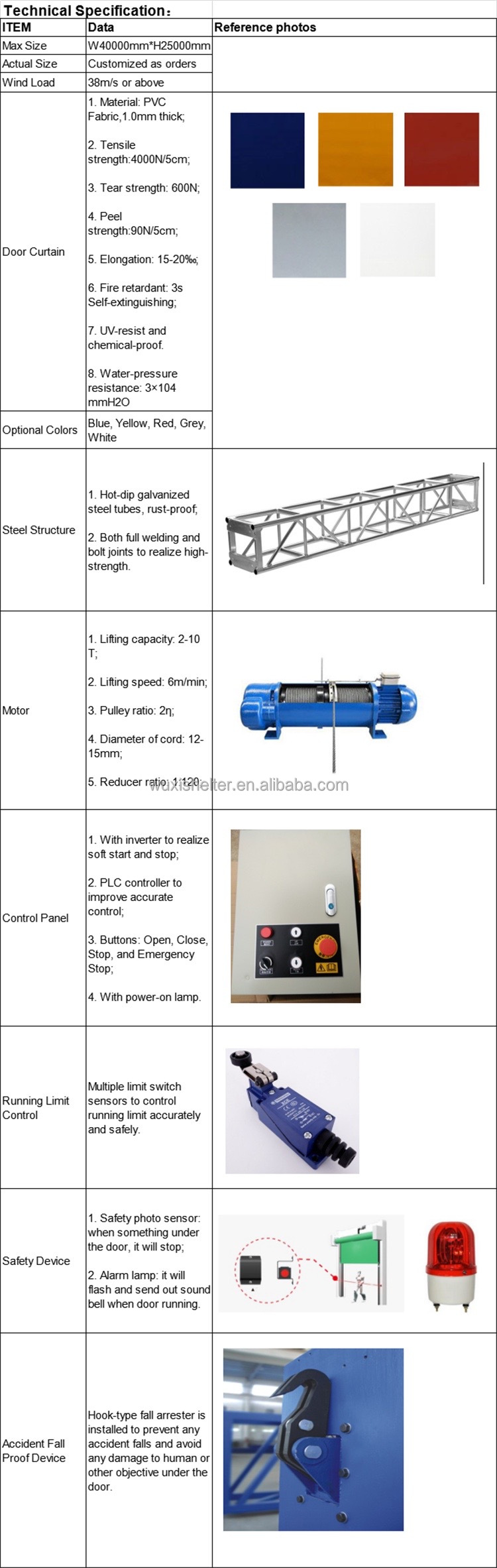

Detail 8

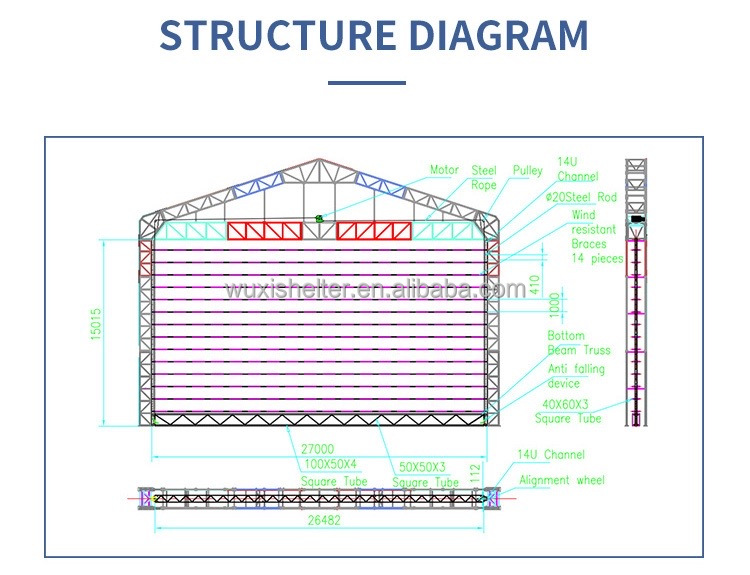

Detail 9
Exhibition & Certifications
Vertical 1
Vertical 2
Vertical 3

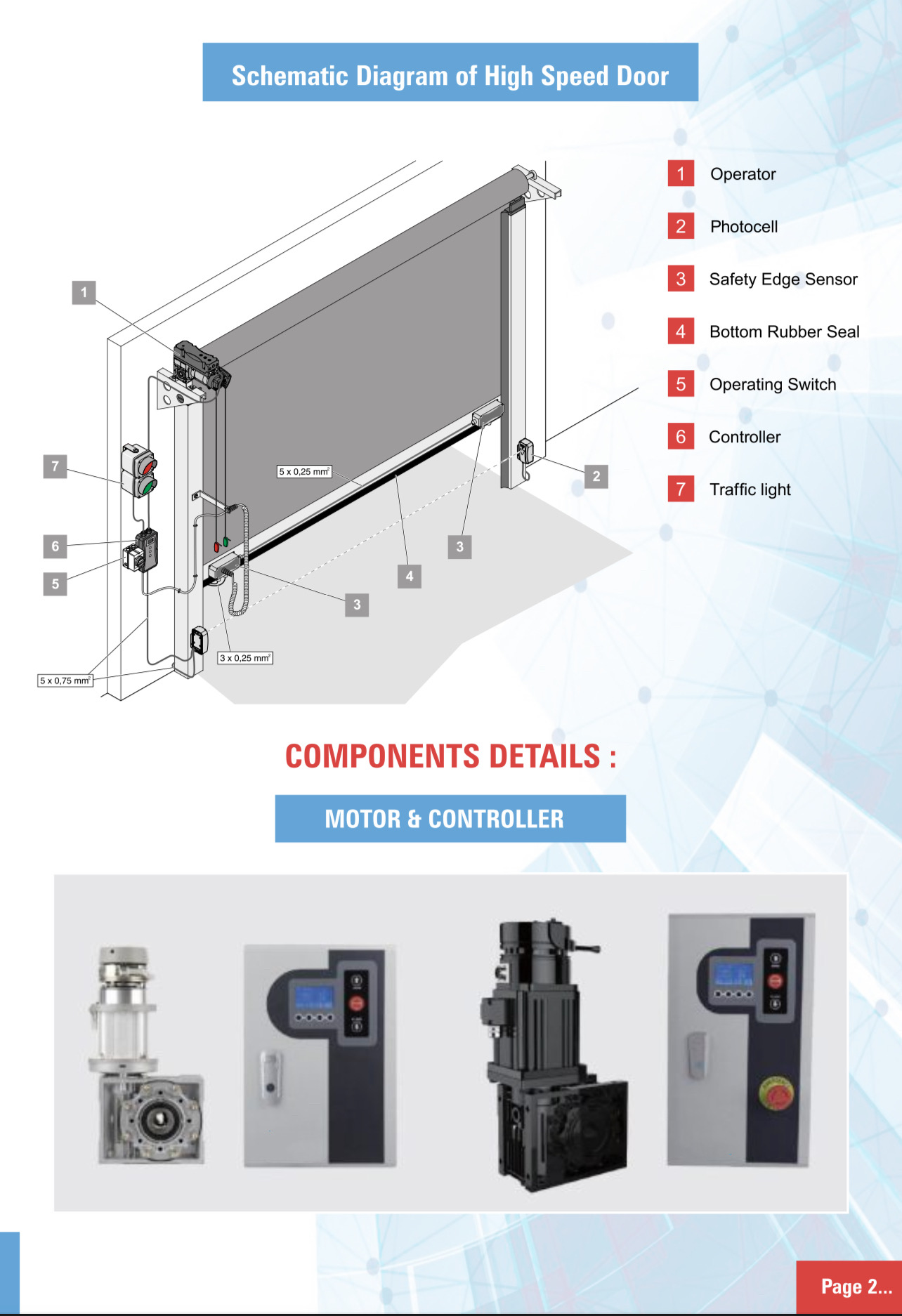

Vertical 4

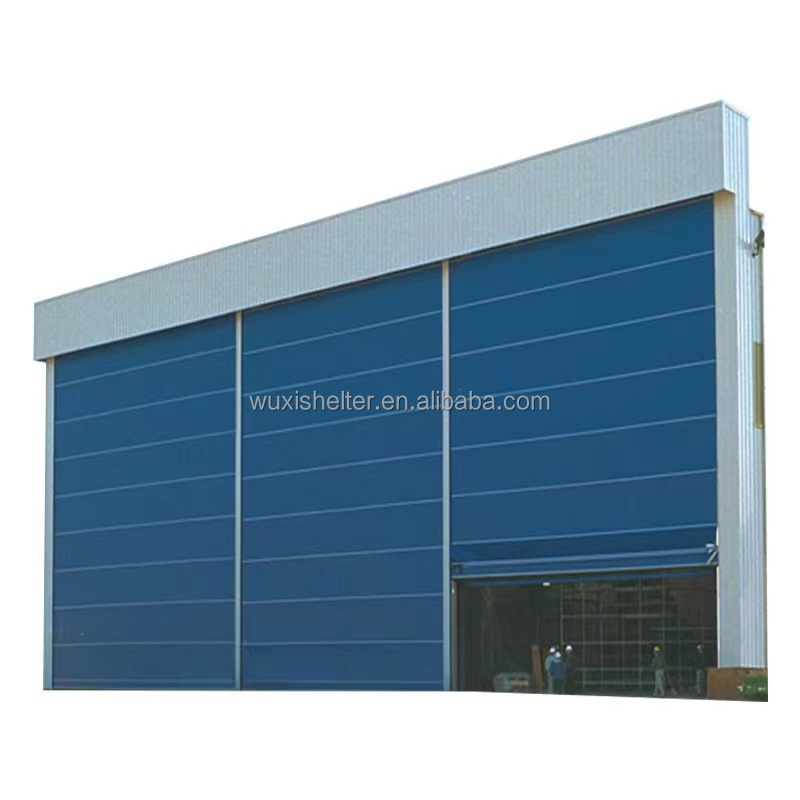

Multi 1
Multi 2
Multi 3
Production 1
Production 2
Exhibition
Certification 1
Certification 2
Frequently Asked Questions
1. What are the ideal applications for Fabric Mega Hangar Doors?
They are specifically designed for large working environments such as aircraft hangars, shipbuilding facilities, steel making plants, mineral processing sites, and large-scale logistics warehouses.
2. What kind of material is used for the door curtain?
We use high-quality PVC fabric with a thickness of 1.0-1.5mm. The material is UV-resistant, fire-resistant, anti-mildew, and anti-aging, available in various colors like blue, yellow, and white.
3. How durable is the steel structure of these doors?
The structure is made from hot-dip galvanized steel tubes. All joints are fully welded to ensure maximum strength and resistance to corrosion, ensuring a long service life in harsh environments.
4. What safety features are included with the door system?
Our doors are equipped with photo sensors to detect obstacles and a clamp-type fall arrester safety system to prevent accidental falls, ensuring the safety of personnel and vehicles.
5. Can the motor and speed be customized?
Yes, the motor capacity ranges from 2-15t with variable frequency control. We offer slow start and stop functions, and other performance parameters can be customized based on your specific needs.
6. Do you provide international shipping for these doors?
Yes, we have extensive experience exporting to global markets including Europe, America, the UAE, and South Africa, providing comprehensive technical support throughout the process.
