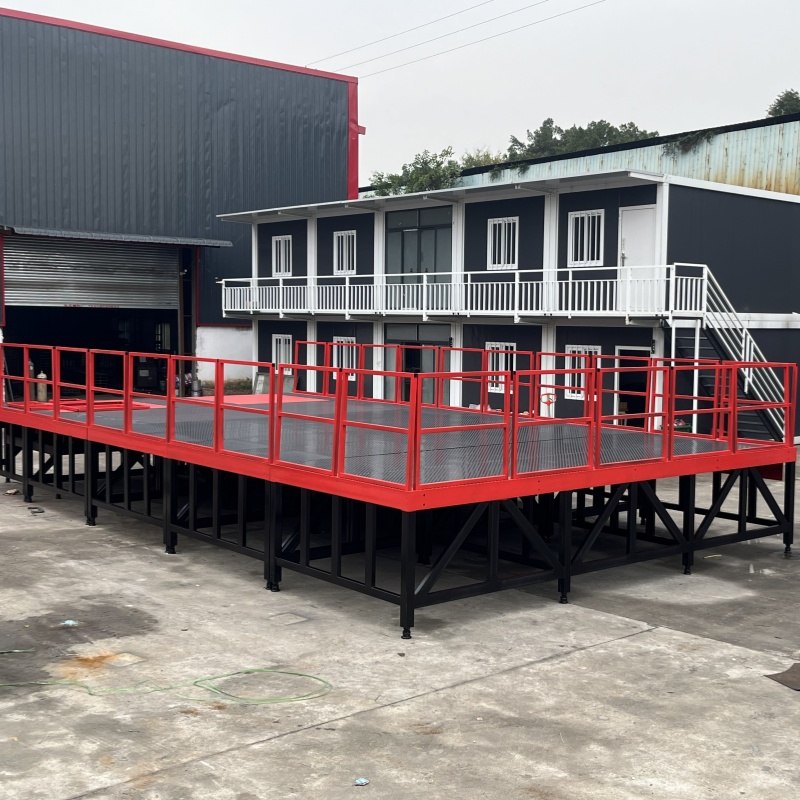

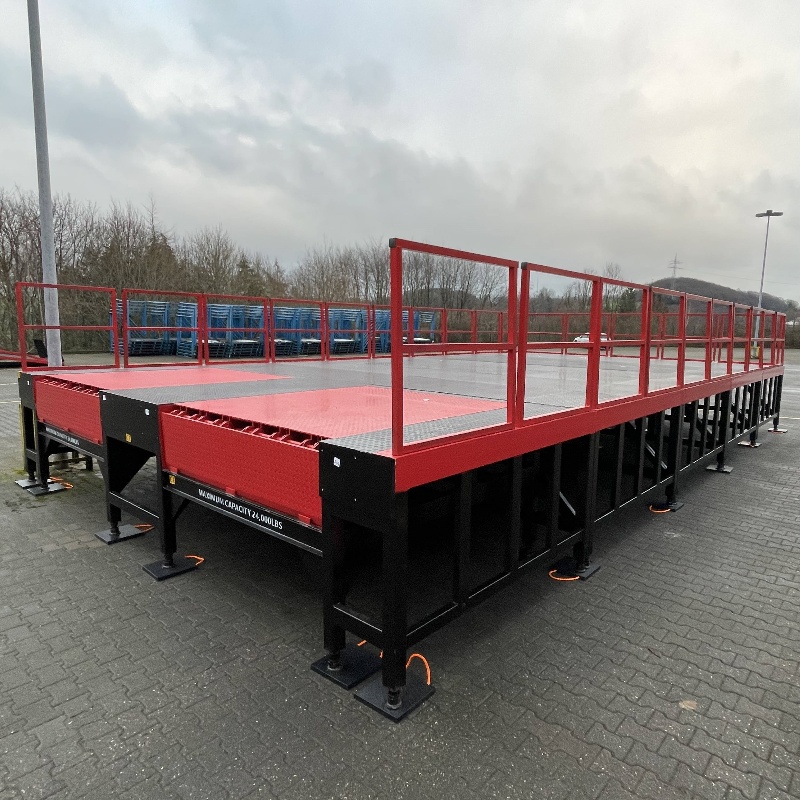

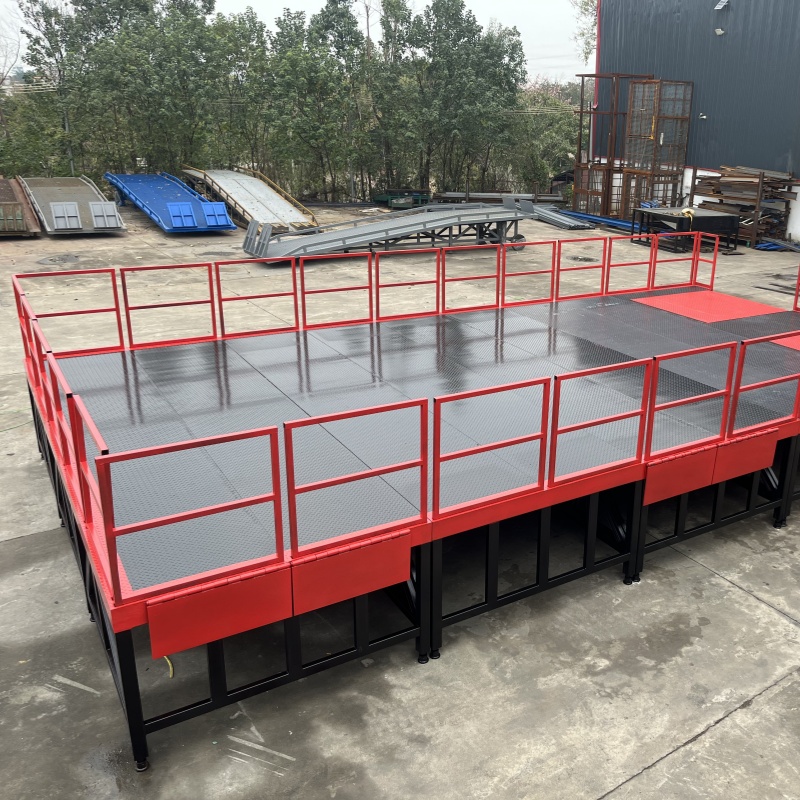

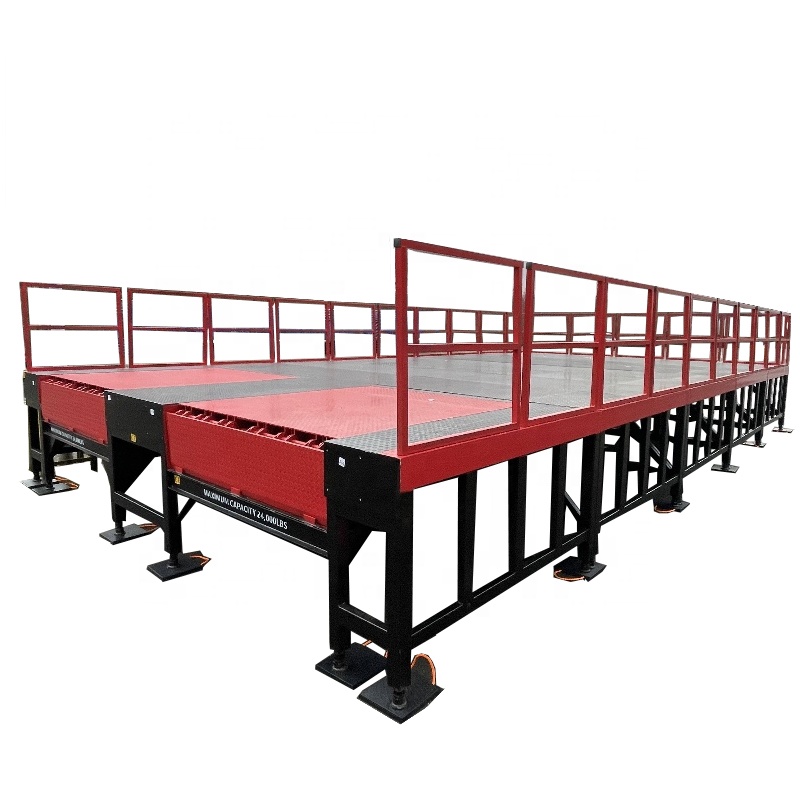

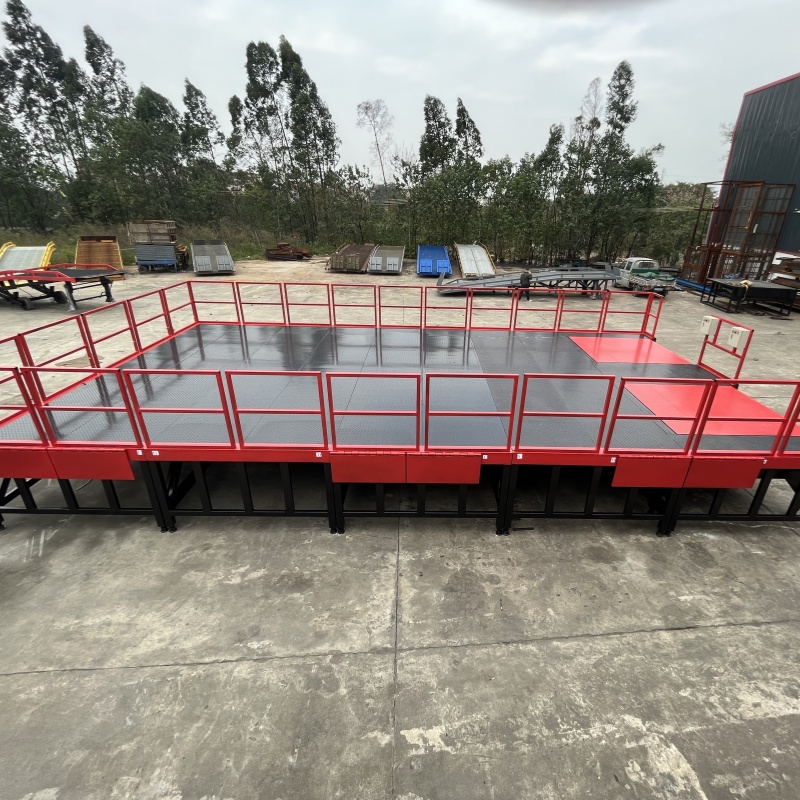

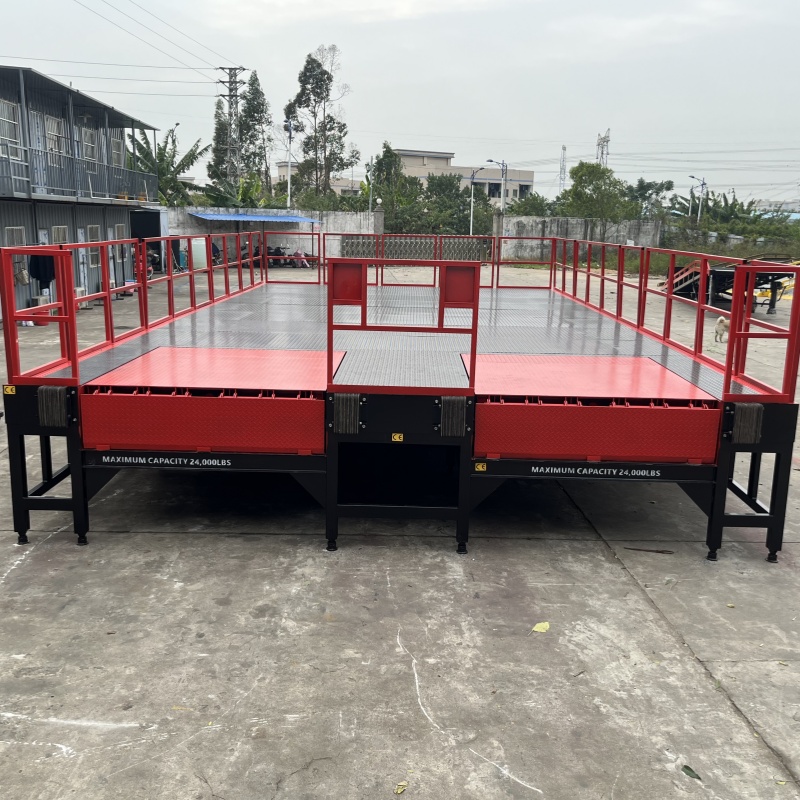

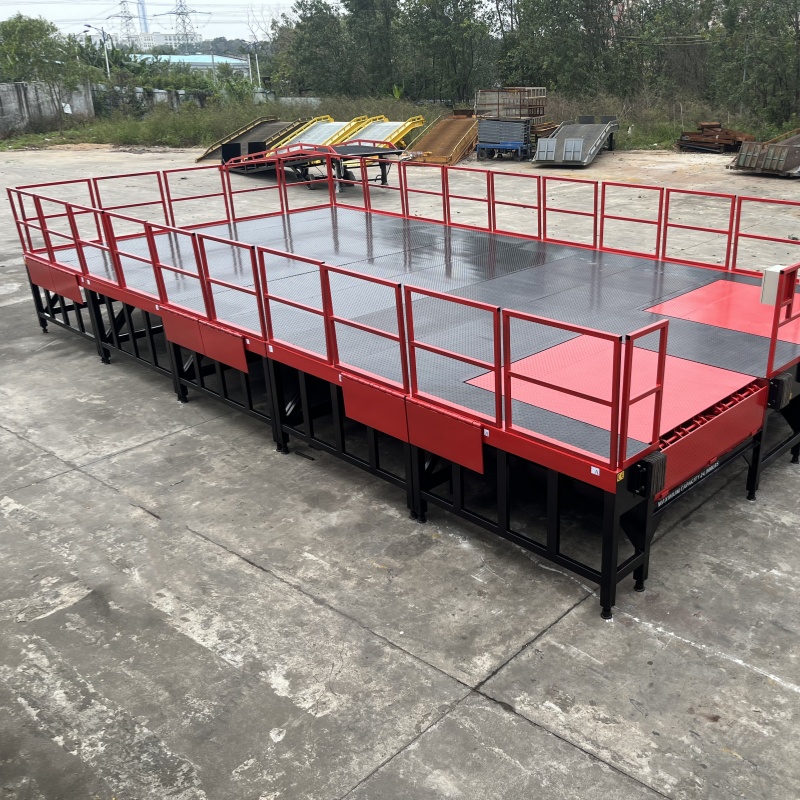

Modular Loading Dock Platform, sometimes referred to as freestanding loading ramps, are one of the most popular types of portable loading ramps in European and American countries. A Self-Standing loading platform is a type of dock ramp that can stand alone by itself, without the need to be supported by another piece of equipment. These types of loading dock platforms are the perfect solution for warehouses, retail distribution centres, forklifts, railcars and more.

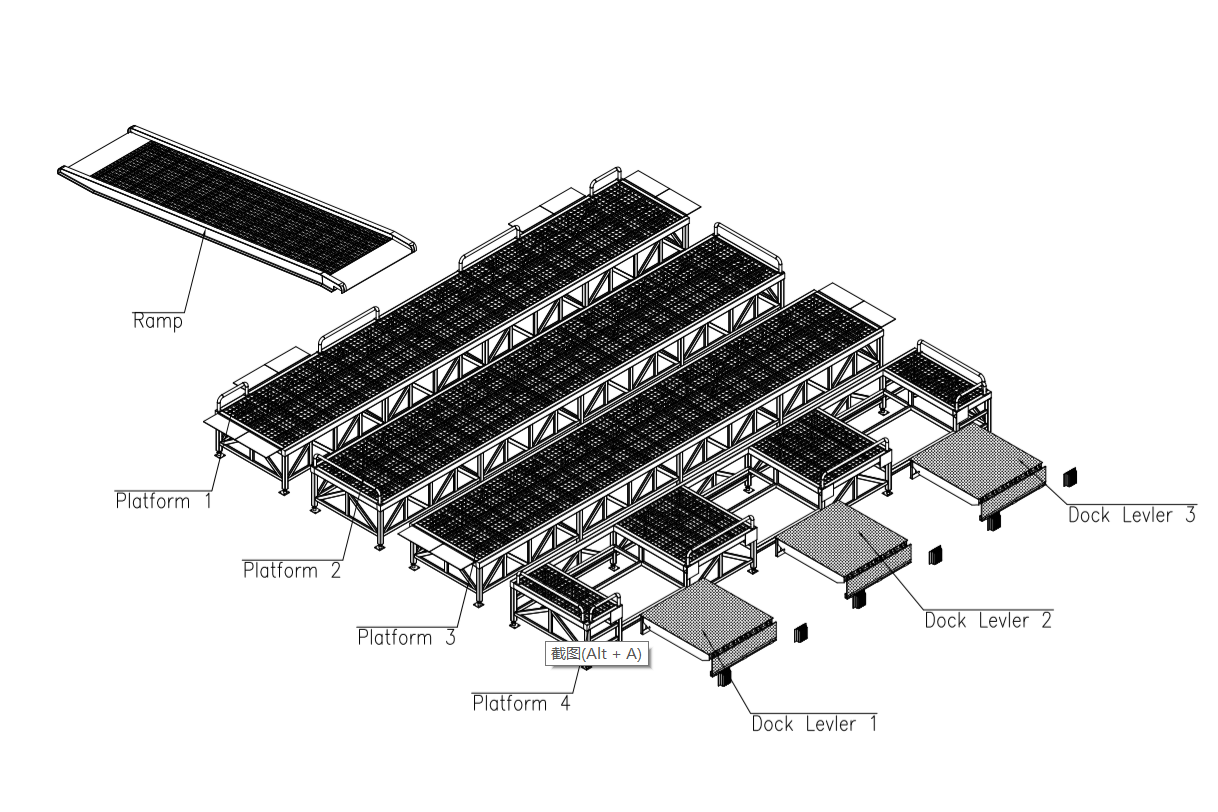

• Platform Overall Length: 11580MM
• Platform Overall Width: 8200MM (Four sections: 2000mm x 3, 2200mm x 1)
• Platform Overall Height: 1100MM
• Ramp Overall Width: 2130MM
• Ramp Overall Length: 8240MM
• Hinge Lip Plate Overall Width: 1800MM (Two pieces, 895mm each)
• Hinge Lip Plate Overall Length: 400MM
• Dock Leveler Overall Width: 1830MM
• Dock Leveler Overall Length: 2200MM
• Dock Leveler Lip Width: 420MM
• Dock Leveler Power Unit: 1.10kW, AC 380V/50Hz, 3-Phase
• Dock Leveler Service Height Range: -300mm to +750mm
• Platform Guardrail Height: 1000MM
• Steel Grille Anti-Skid Plate
• Weight-bearing adjustable screw legs for uneven ground assembly
