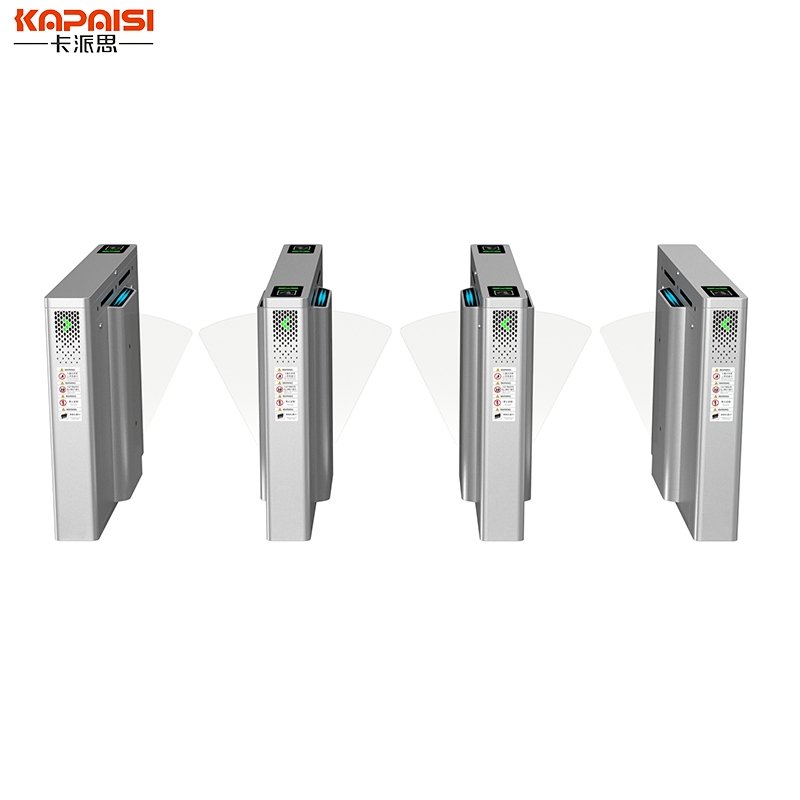

Premium Factory Direct Rotating Security Solutions for Businesses

Overview & Specifications

Model NO.	KPS-TD-3202
Movement	Single Movement
Type	Swing Gate
Control Mode	Remote Control
Communication Interface	RS485
Aisle Width	Max 600mm Single Door
Body Material	304 Stainless Steel
Door Material	Acrylic/Stainless Steel
Power Supply	AC220V, 50/60Hz

Customized	IC/ID Card Reader/ Face Recognition System
Working Temperature	-20°c~70°c
Working Environment	Indoor/Outdoor
Power	≤180W
Transport Package	Carton Box
Specification	H1050*Φ 168mm
Origin	China
HS Code	8479899990
Package Size	120.00cm * 30.00cm * 100.00cm
Gross Weight	50.000kg

Product Description

The cylinder turnstile swing gate KPS-TD-3301 is made of standard 304 stainless steel sheet through stamping process. It is equipped with a DC brushless motor, featuring a beautiful and elegant design, durability and resistance to external damage. It supports various IC/ID readers, ID card readers, QR codes, facial recognition terminals, etc., and is easy to integrate with the access control system. It is widely used in CBD business centers, neat office buildings, high-end residential areas, kindergartens, and other places for pedestrian entrance and exit control.

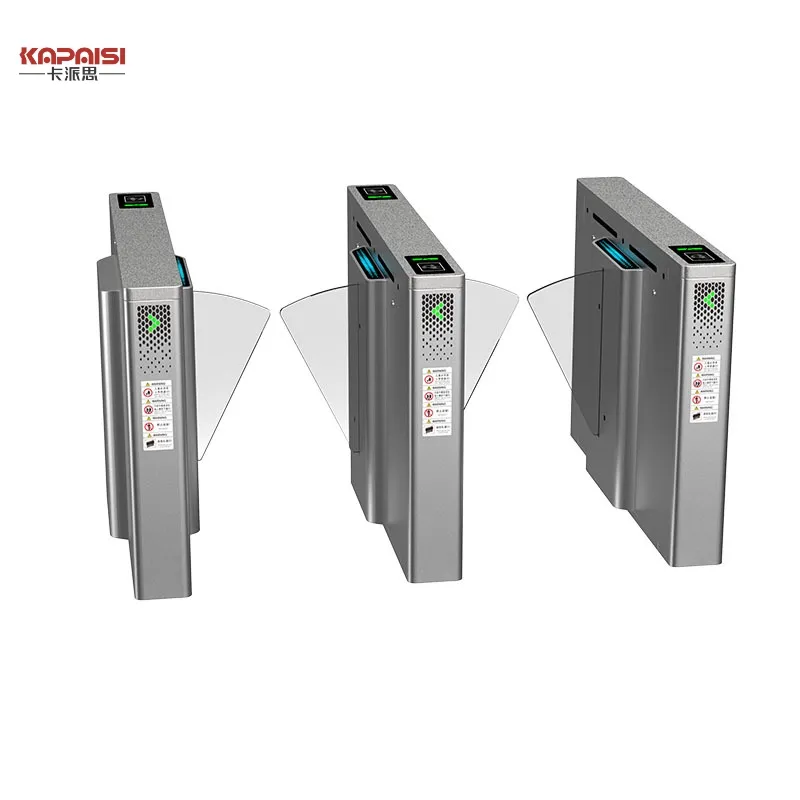

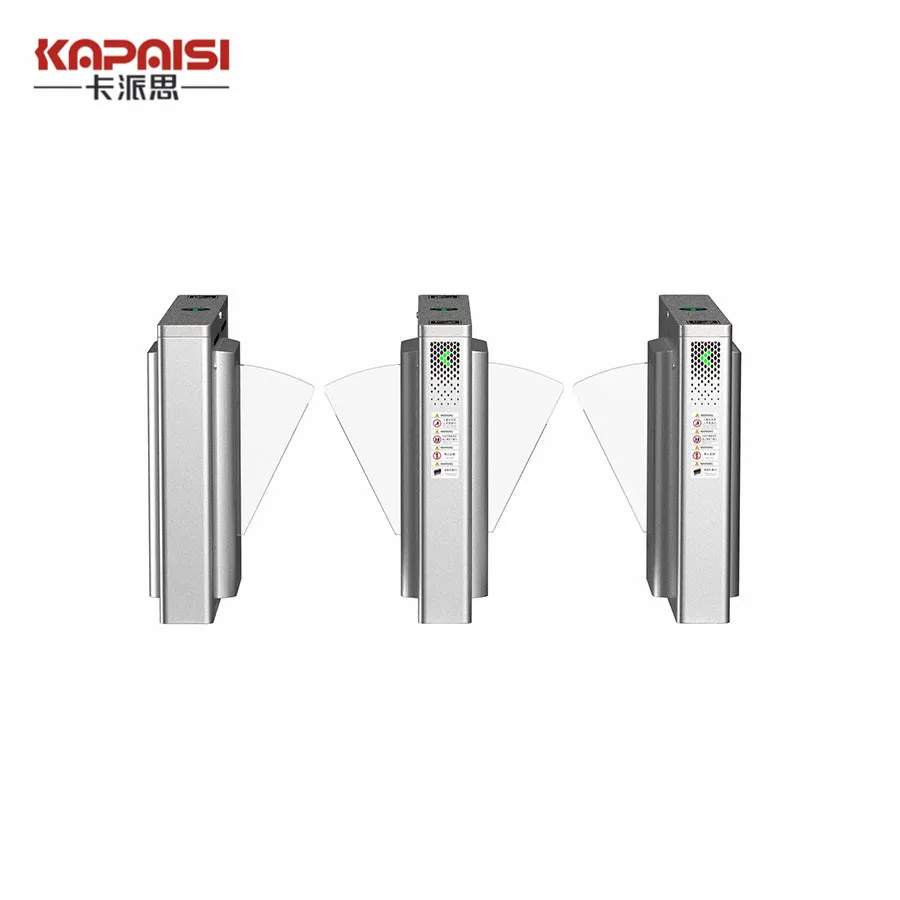

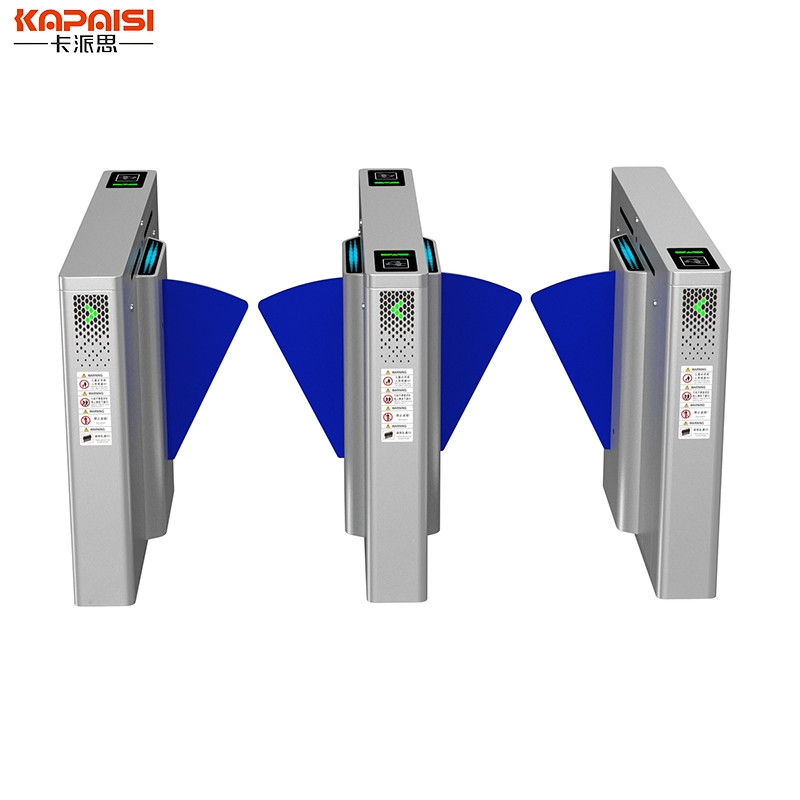

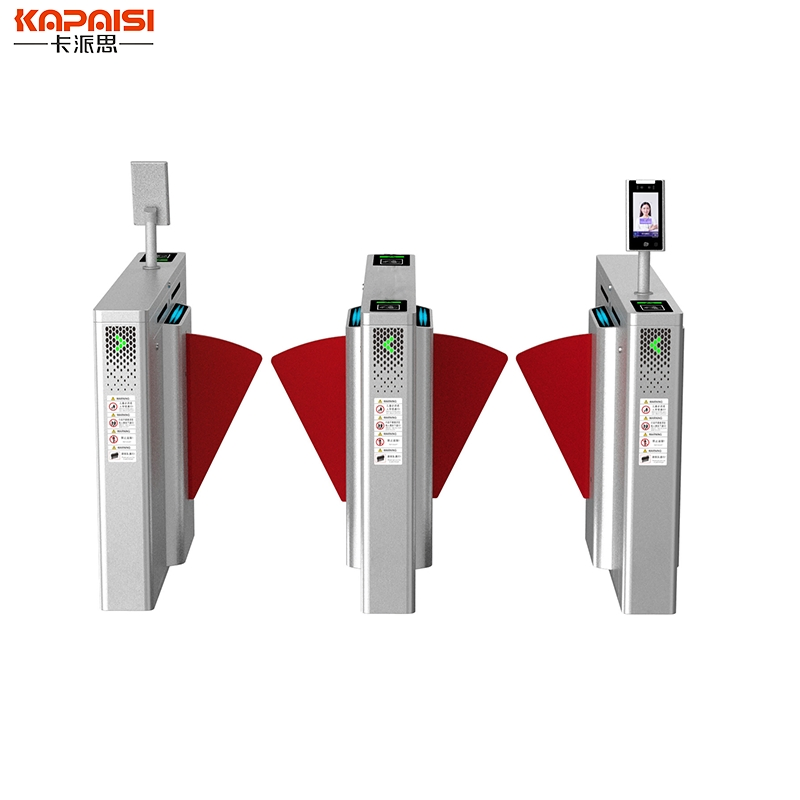

Electronic Security Flap Wing Barrier Front View

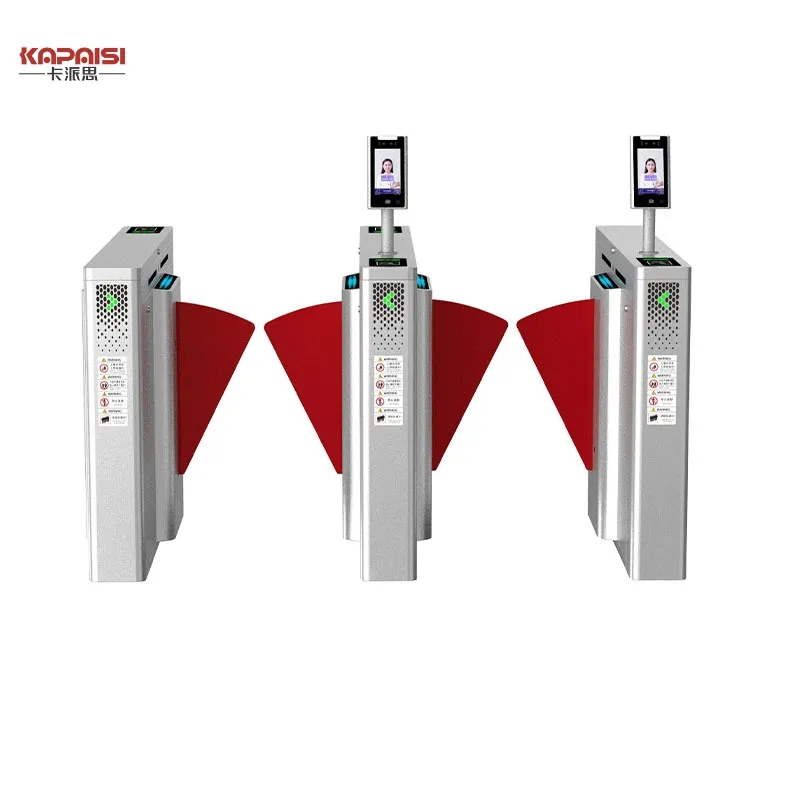

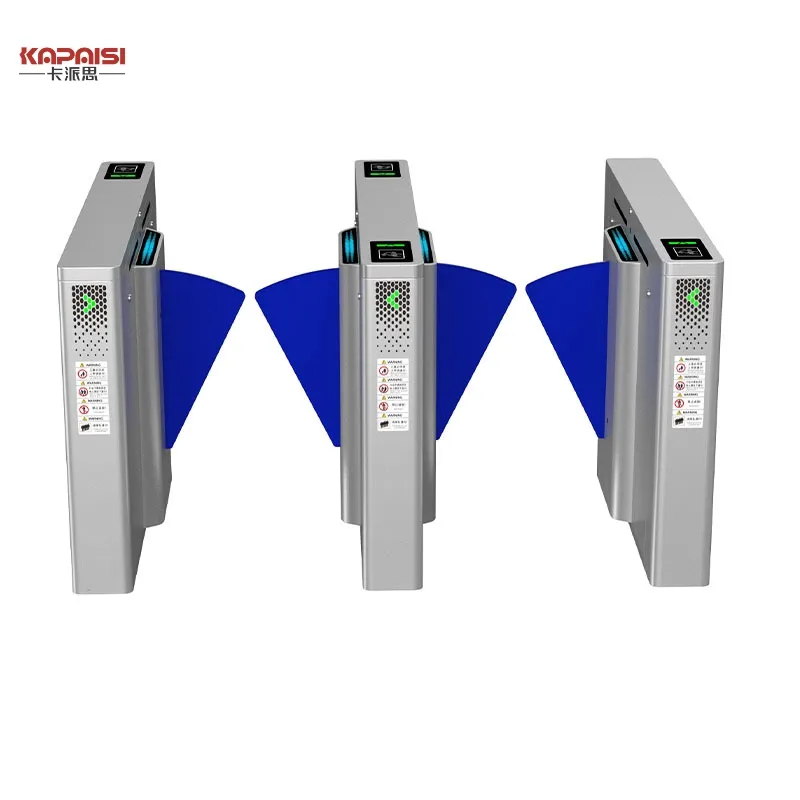

Electronic Security Flap Wing Barrier Perspective View

Product Features

Motor Type

The device is equipped with a brushless DC motor, featuring power-on self-diagnosis, low failure rate, and long service life, supporting at least 5 million normal passages.

Acoustic and Optical Alarm Prompt Function

Uses LED lights to indicate the passage direction and display the passage status. There are corresponding acoustic and optical prompts for authorized personnel passage and illegal intrusion.

Anti-Pinch Function

Features an infrared anti-pinch function. When the infrared sensor detects an obstruction during the closing process of the swing door, it will issue an audible alarm.

Obstruction-Sensing Rebound Function

The motor will automatically stop working when encountering resistance during the door wing resetting process to prevent personnel injury. If the infrared sensor is not triggered and an obstacle is encountered, the door will rebound to the open state.

Anti-Tailgating Function

Adopts infrared detection sensors and anti-tailgating tracking control technology. Only authorized personnel can pass through. An audible alarm will be triggered when unauthorized personnel intrude.

Power-Off Passage

Standard-equipped with a super capacitor. When power is cut off, the door wings automatically open, allowing personnel to pass freely and preventing panic.

People Counting Function

Supports a people counting function, which can separately count the number of people in the inbound and outbound directions.

Fire Linkage

When a fire signal is triggered, the gate will automatically open for emergency evacuation of personnel.

Easy Maintenance

The door wings adopt a hoop design, making door wing replacement more convenient and facilitating subsequent equipment maintenance.

Exhaust System

Uses a special air duct design, standard-equipped with dual-ball long-life fans and thermal insulation cotton to resolve condensation caused by low temperature outside the box and high temperature inside the box.

Optional Wireless Receiver

When used with a remote control, the optional wireless receiver can realize remote control of door opening, normally open, and normally closed states.

Maintenance Guidelines

Stainless steel offers excellent rust and corrosion resistance. However, regular maintenance is required to preserve its appearance and extend its service life.

Material Selection: 304 stainless steel is suitable for general conditions; 316 stainless steel is recommended for harsh environments like coastal areas.
Surface Care: Keep the product surface clean and dry at all times.
Cleaning Routine: For surface contaminants, gently wipe with a non-woven cloth and alcohol.
Rust Removal: If rust spots appear, use a scouring pad (never steel wool) along the grain until removed. Wiped with a non-woven cloth and maintenance oil.
Regular Maintenance: Perform maintenance by wiping with a care solution periodically (once a month for standard conditions; once a week for harsh environments).

Product Parameters

Dimensions	H1050 * Φ 168MM
Passage Width	Single Gate Max 600mm
Box material	304 stainless steel
Gate Material	Stainless steel tube or acrylic
Physical Interface	RS485, Left/Right opening, Fire emergency input
Passing Rate	20-60 people/minute (actual speed depends on pedestrian flow and operation mode)
Power Supply	AC220V, 50/60Hz
Operating Temperature	-20ºC ~ 70ºC
Relative Humidity	≤95%, No condensation
Suitable Environment	Indoor/Outdoor

Note: All kinds of peripheral devices (QR codes, card readers, facial recognition, etc.), remote controllers, and remote control receiving modules are optional accessories and not included by default.

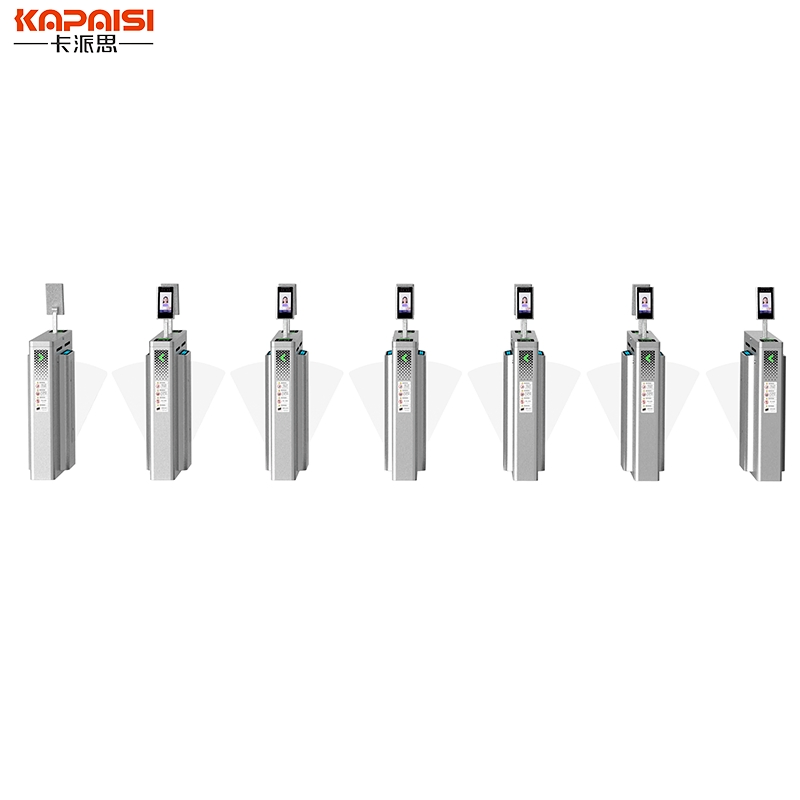

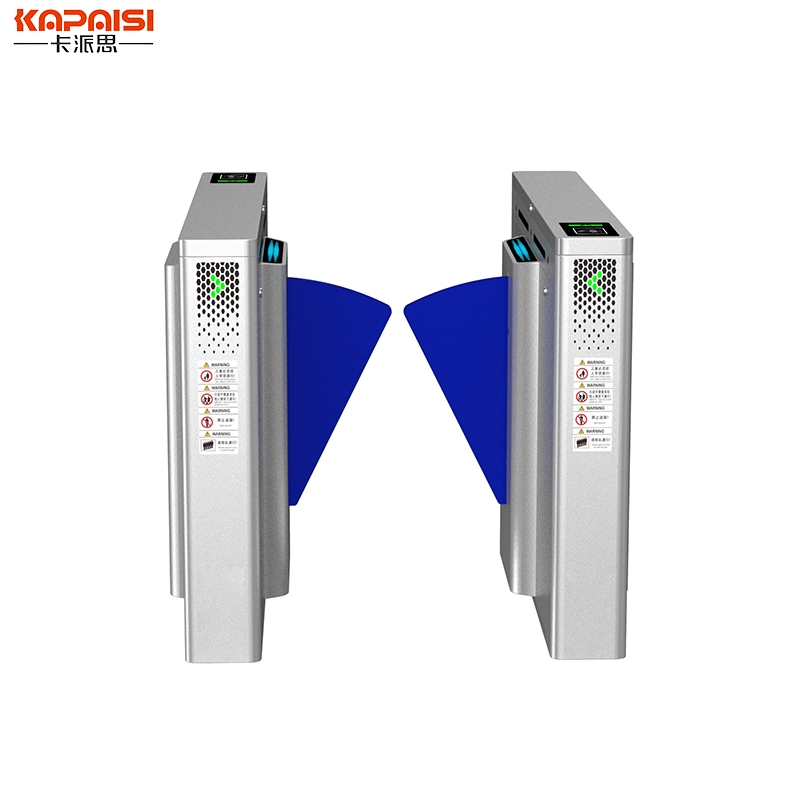

Product Gallery

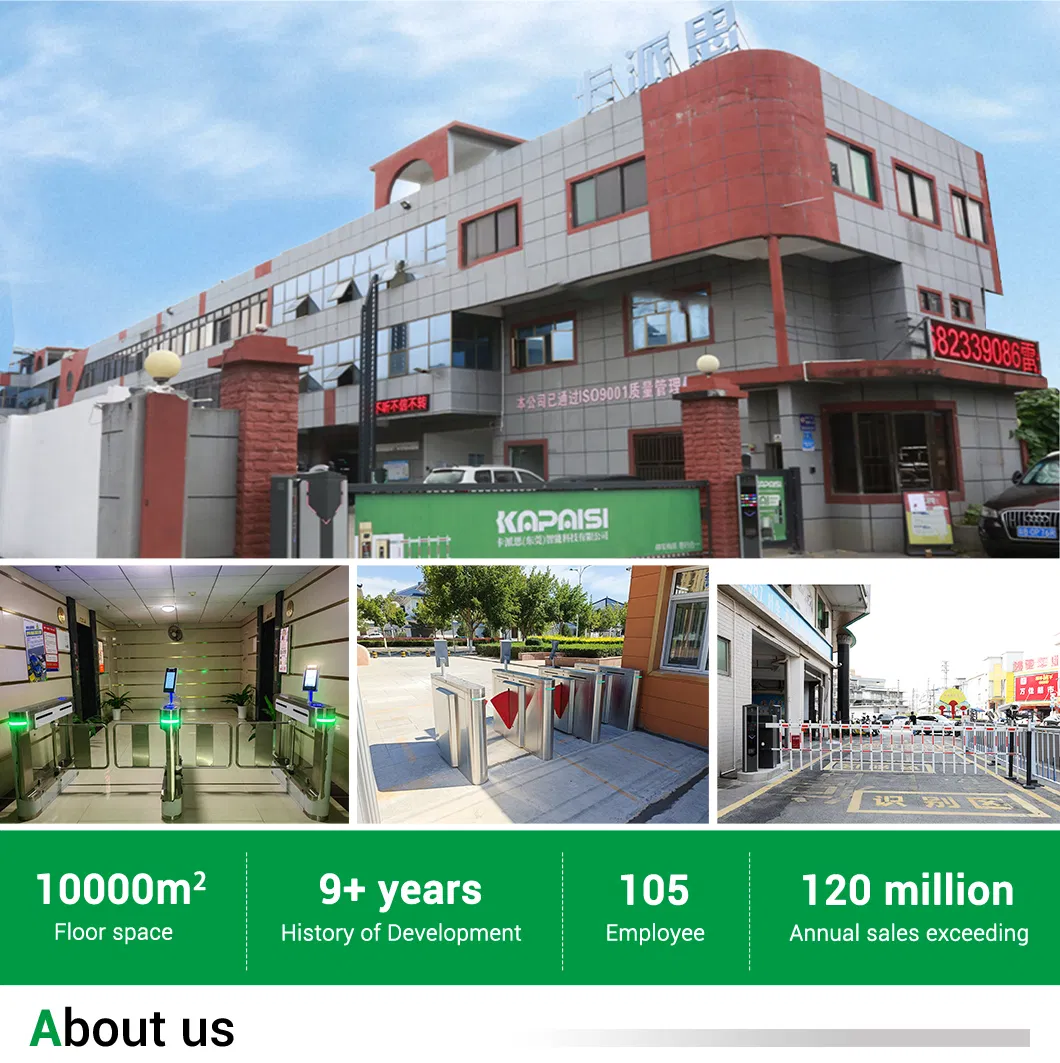

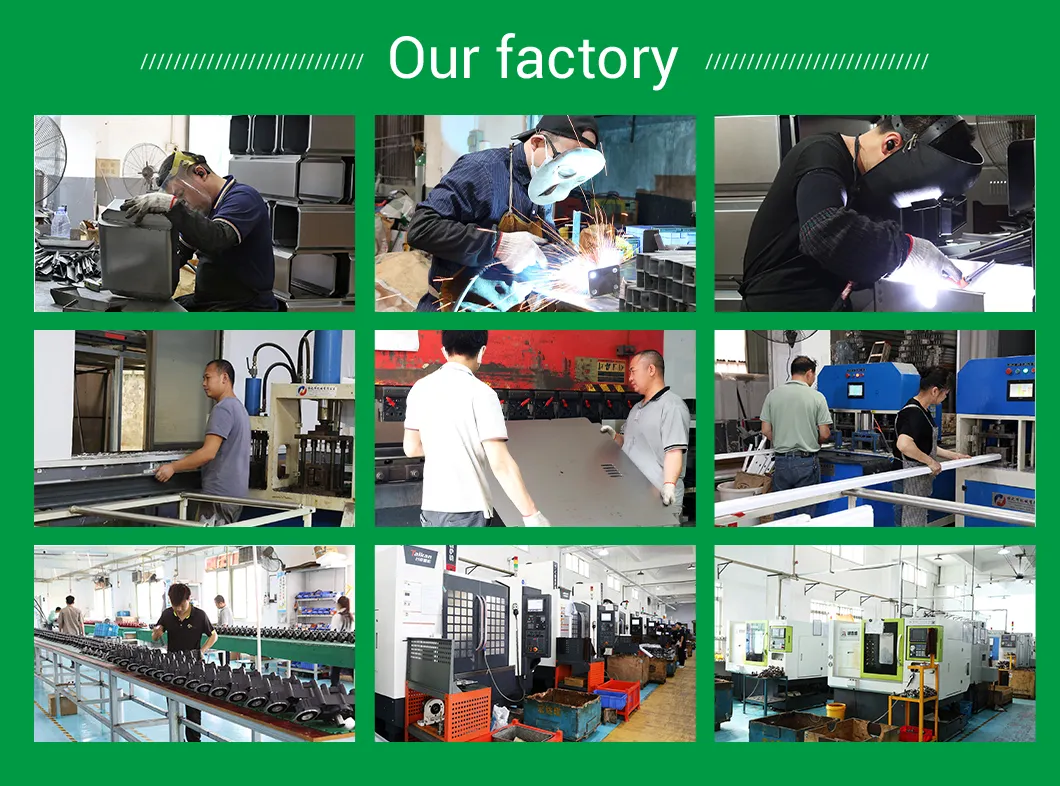

Manufacturing & Production

Core Advantages

Certifications & Shipping

Frequently Asked Questions

Q How to choose a suitable pedestrian gates manufacturer?

Prioritize local or nearby suppliers to facilitate installation and after-sales maintenance. Look closely at quality details like the chassis material (SUS 304 with a thickness of ≥1.5mm), wear-resistant mechanical structures, and a high number of fault-free operations (high-quality systems support ≥5 million times). Be cautious of low-priced products that may use inferior components or falsely state warranty terms. A warranty period of ≥1 year including free service is recommended.

Q What issues should be noted when installing pedestrian gates?

During installation, the anti-pinch infrared beam must be perfectly aligned, otherwise the gate cannot close normally. Additionally, make sure to reserve fire signal interfaces so that the gate automatically opens and releases the passage in case of a power failure, forming a safe and unobstructed emergency exit.

Q What should be done if the turnstile does not operate or responds slowly?

This can be caused by abnormal power supply (unstable voltage), motor jamming, or infrared sensor occlusion. To resolve this, verify the stability of the 24V power supply, clean the infrared probe, and manually test whether the motor is physically stuck.

Q How to handle abnormal noise or jitter during turnstile operation?

These issues typically arise from a lack of oil in the gears, unbalanced spring tension, or loose screws. You can resolve this by applying special grease (such as KLUBER), tightening the barrier rod screws, and adjusting the spring balance.

Q How does the system prevent tailgating or illegal intrusion?

The turnstile implements an anti-tailgating mechanism that monitors passage trajectory in real time using multiple pairs of infrared light bands (16 to 20 pairs for high-end systems). It triggers an alarm and locks the gate when unauthorized intrusion occurs. Additionally, if the door wing is open and reverse entry is detected, it will close immediately and sound an alarm.

Q What special features does the facial recognition terminal offer?

The facial recognition terminal supports offline comparison using a built-in database of 50,000 faces, allowing operation when disconnected from the network. Records are cached offline and synchronized automatically once the connection is restored. High-security combination modes such as "face + fingerprint" or "face + card + fingerprint" are also supported.
