| Door Panel Plate | Doubled-Sided 0.8mm Steel |
| Door Panel Thickness | 57mm, 77mm |
| Opening Speed | 90 Degree at 7 Seconds |
| Opening Style | One-Way, Bidirectional |
| Specification | PU door panel, GL door frame, casted hinge |

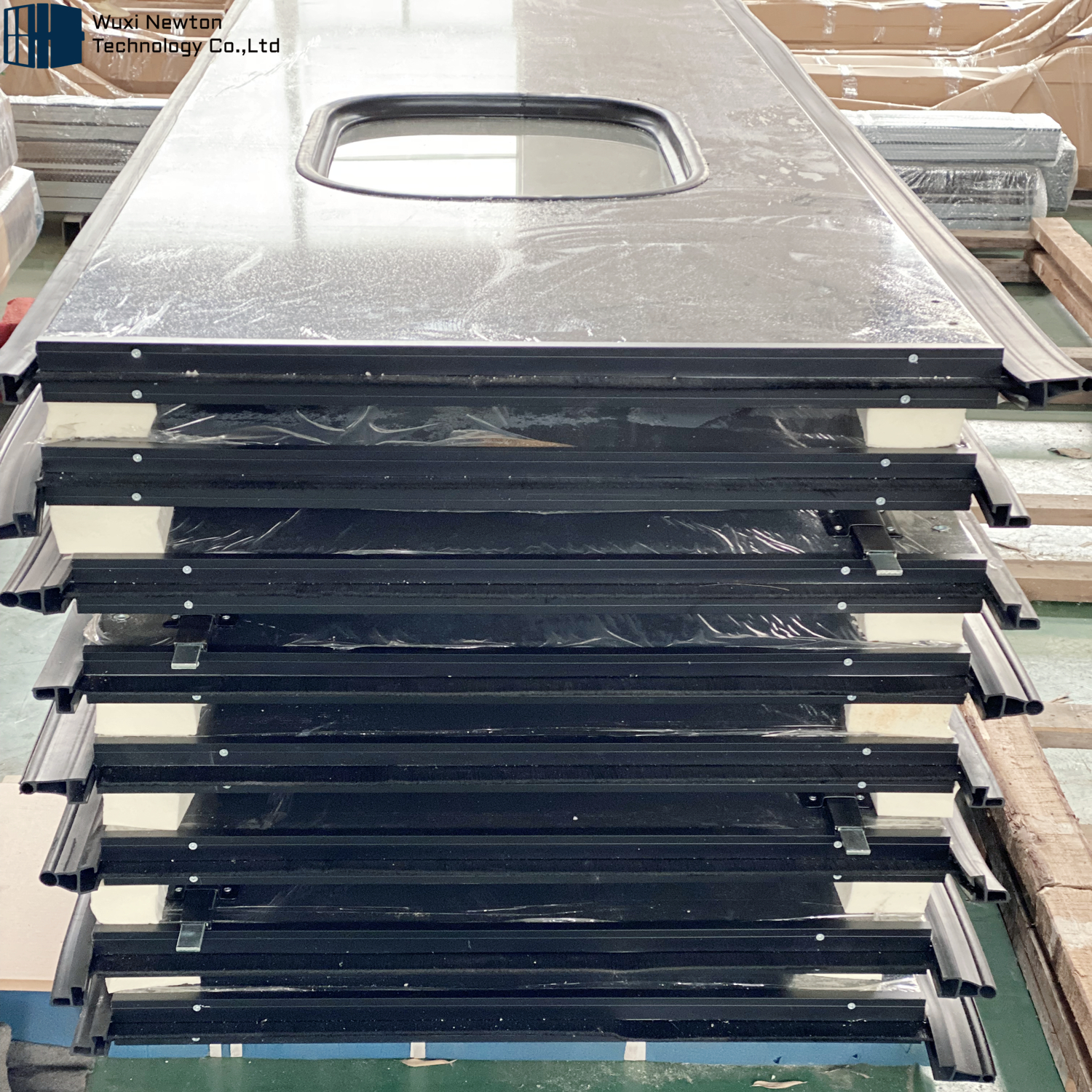

Our automatic folding door features the automatic operation and rapid opening from closure to full opening, it also can be manual operated in case of power failure easily. Our automatic folding door will bring you the fastest running speed and security at any time. The European standard production process has been used in folding doors, and the frame is invisible. Also, coarctation design is used between surface panel and frame, without welding.

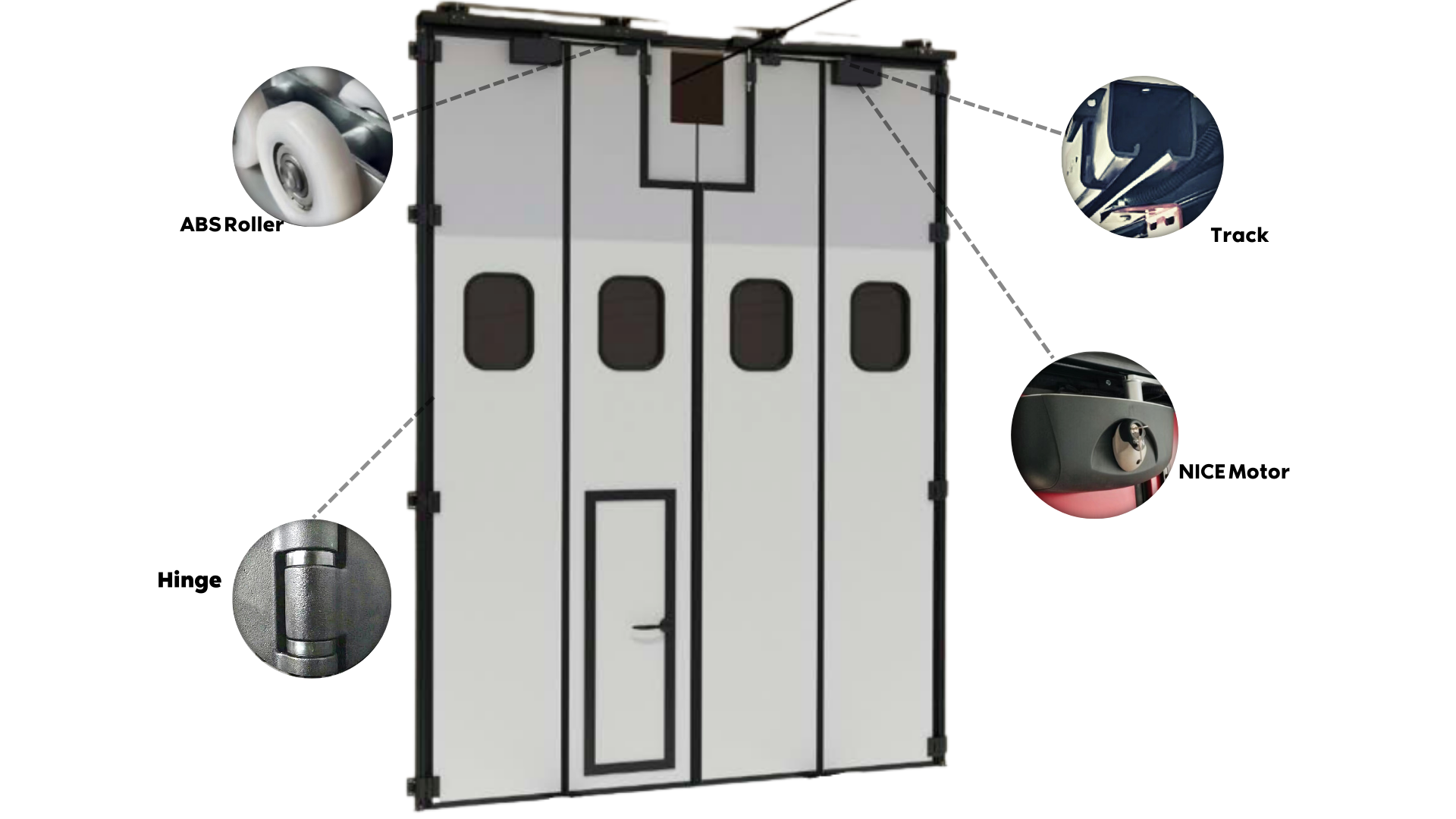

The high density polyurethane foam whose density exceeds 50kg/m3 is used for the whole door. It can not only enhance the tightness between surface and implicit frame, but also beautify the appearance to a large extent. The connecting hinge adopts casting aluminum and plane thrust bearing, reduced the friction caused by resistance. Frame adopts the professional aluminum alloy strengthening design to make installation much more convenient, solid and improve the degree of beauty. In the assembly, we use embedded pull rivet nut, prevent the screw loose.
The frame of door is made of cold-rolled galvanized steel, and designed with U-shape concave and convex grooves molded by special rolling machine. It is covered with 0.6mm to 1.2mm of aluminium plating zinc plate or aluminium alloy plates on both sides, and foamed overall.

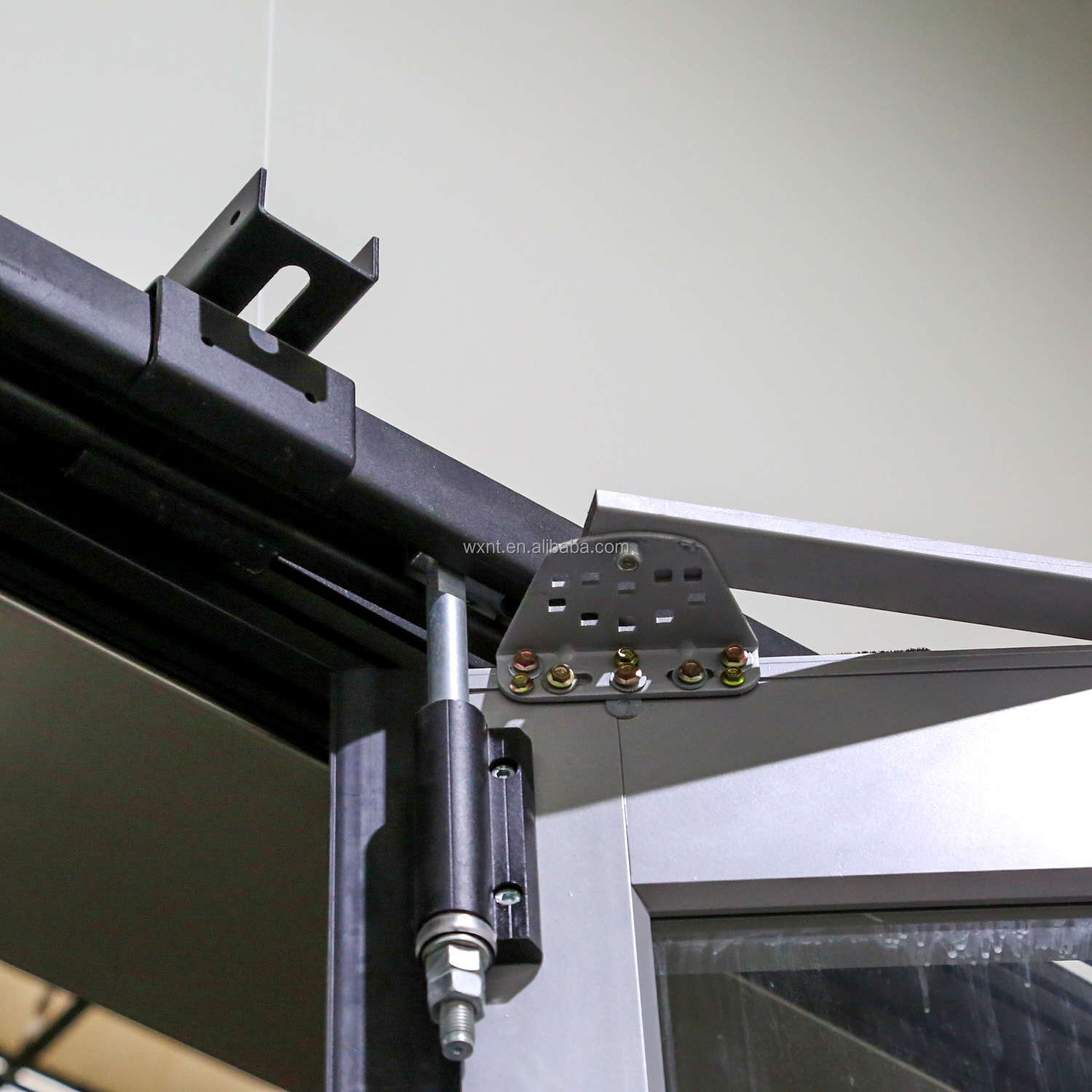

Hanging wheels are made of sealed bearings and PA66 nylon, four wheels can increase the strength and make the door move smoothly.

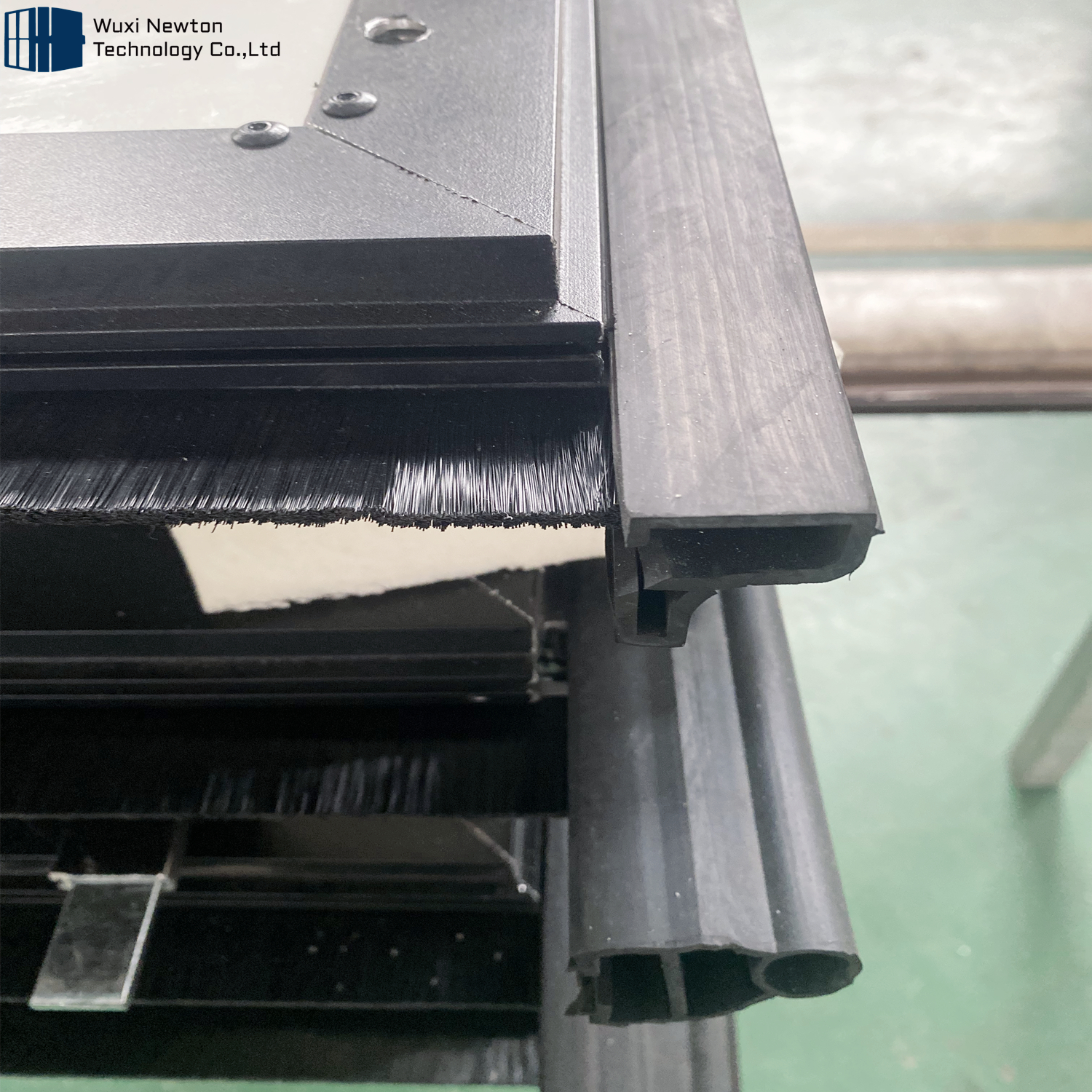

The door leaf is equipped with EPDM seals and specially designed bottom sealing strips, which overcome the defects of conventional rubber seals such as easy wear and aging, and unsuitability to harsh environments, and have a longer service life.

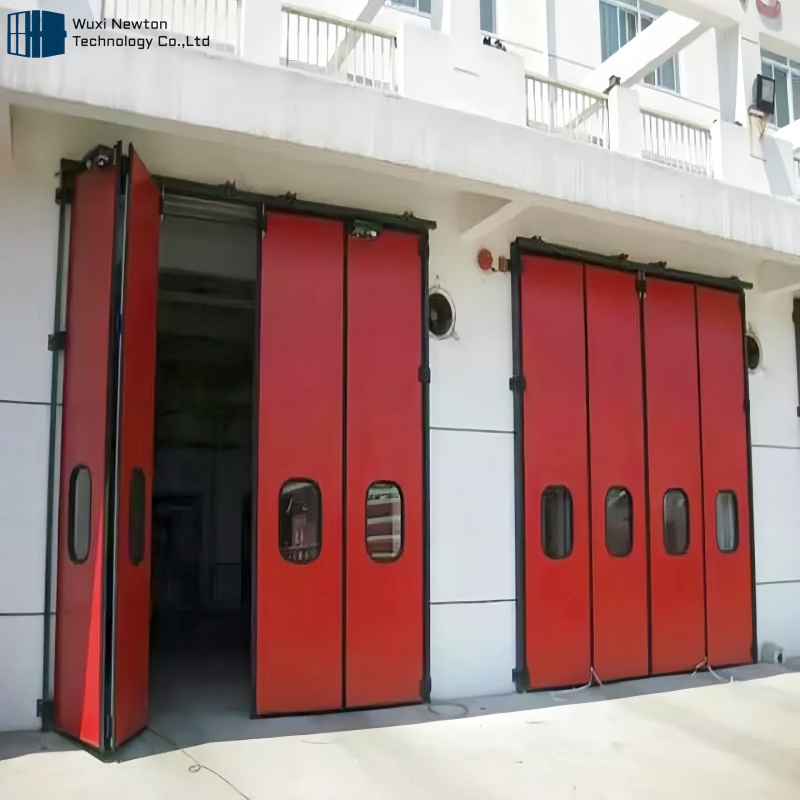

Rapid Fireproof Folding Door: High speed folding door for fireproof, fastest opening speed can be 90° at 7 seconds.

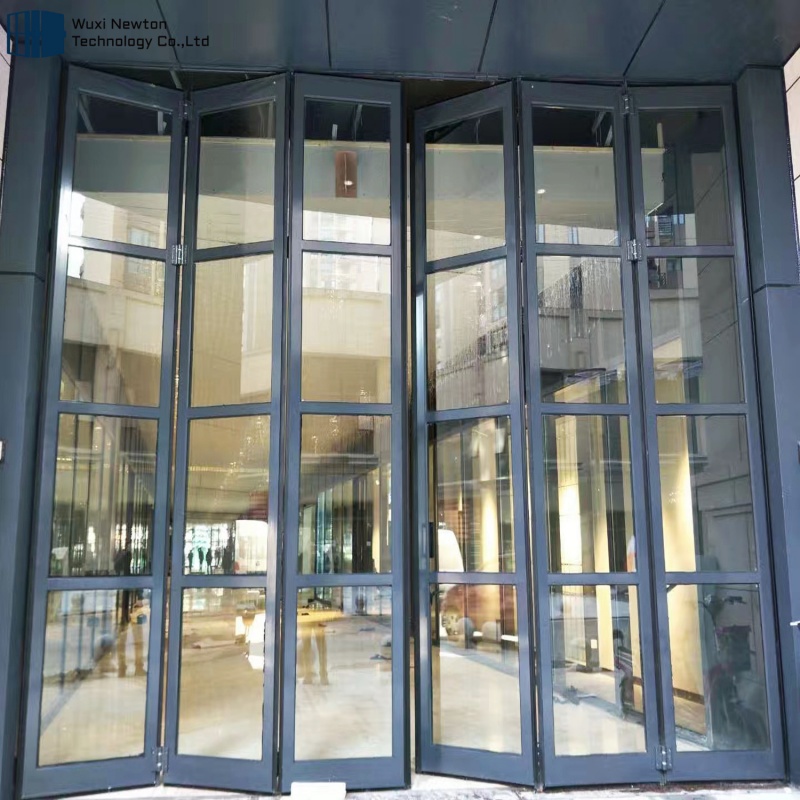

Commercial Folding Door: Modern and futurist appearance, U value is 1.1W/M2°K, noise reduction up to 55 dB.

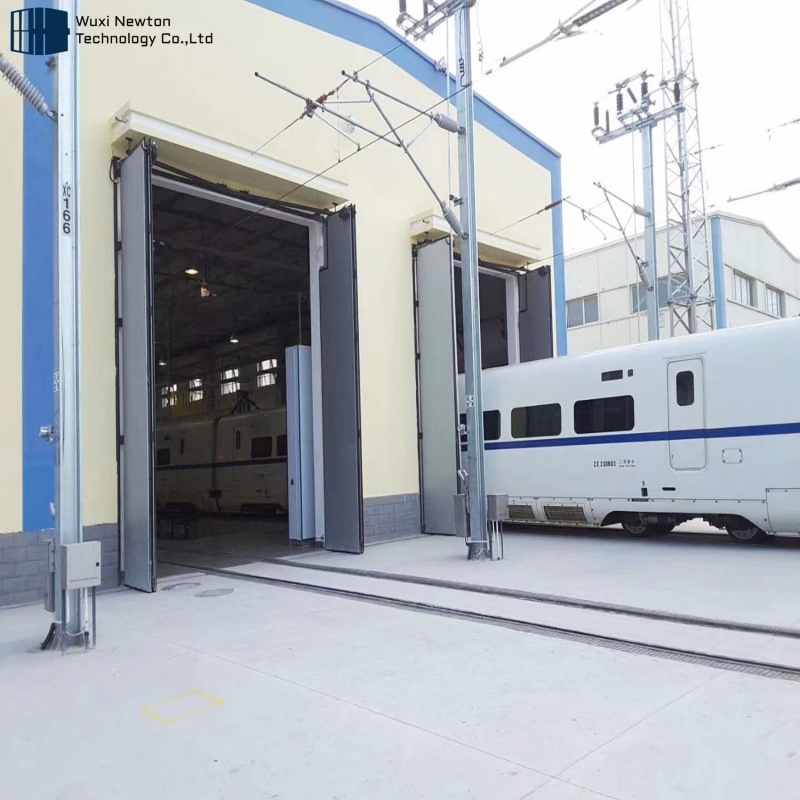

Subway/High-speed Train Folding Door: 57mm panel thickness, foamed density exceeds 59KG/m3, suitable for high voltage wire insulation environments.
