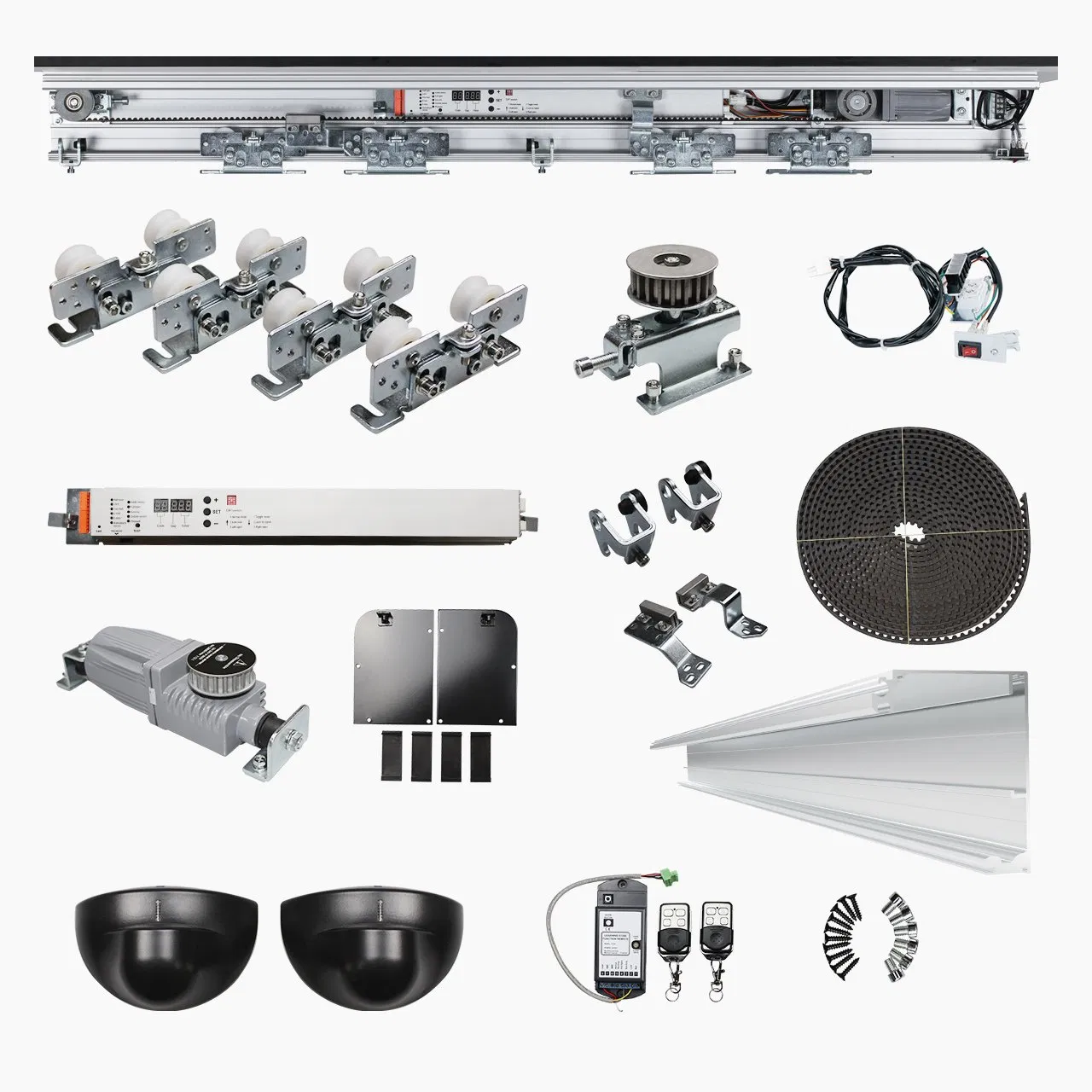

Turtech Smart Automation for Sliding Door

Send Inquiry

Product Description

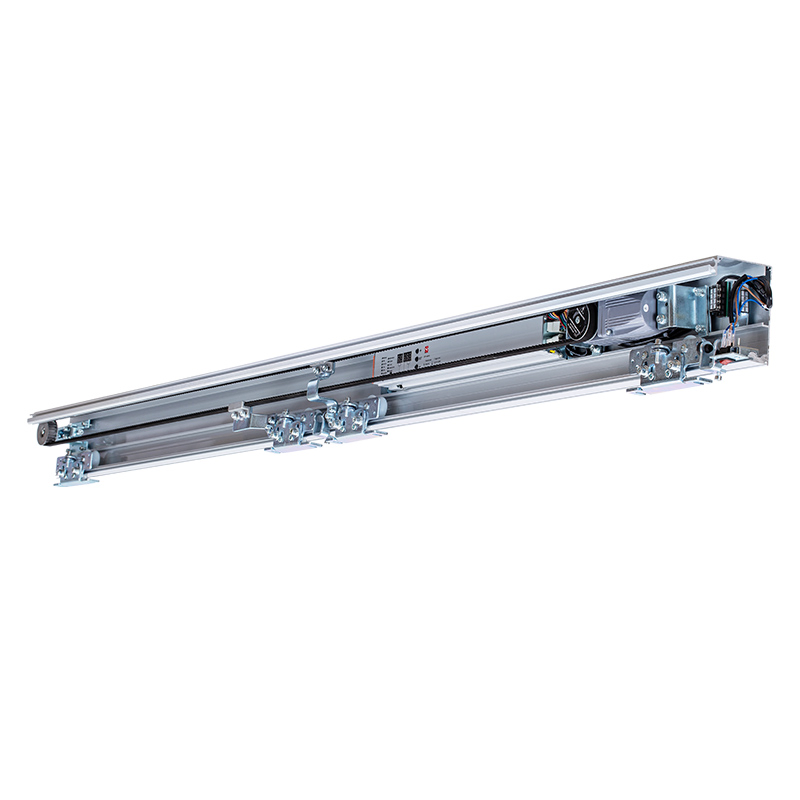

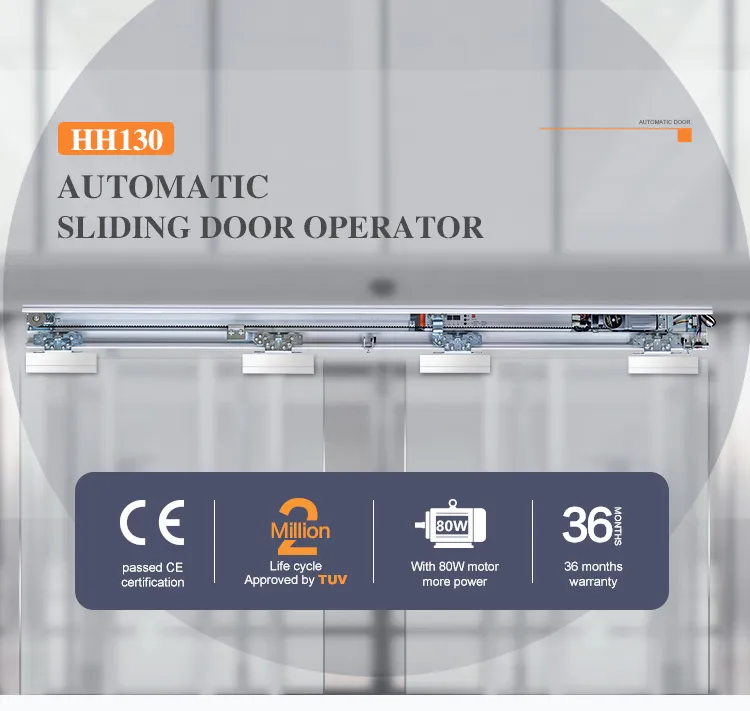

Commercial Interior Glass Door Automatic Sliding Door HH130

⚡ Key Performance Highlights

🔵 Heavy Duty: Up to 150kg single leaf support.

🔵 Precision Control: Adjustable opening/closing speeds.

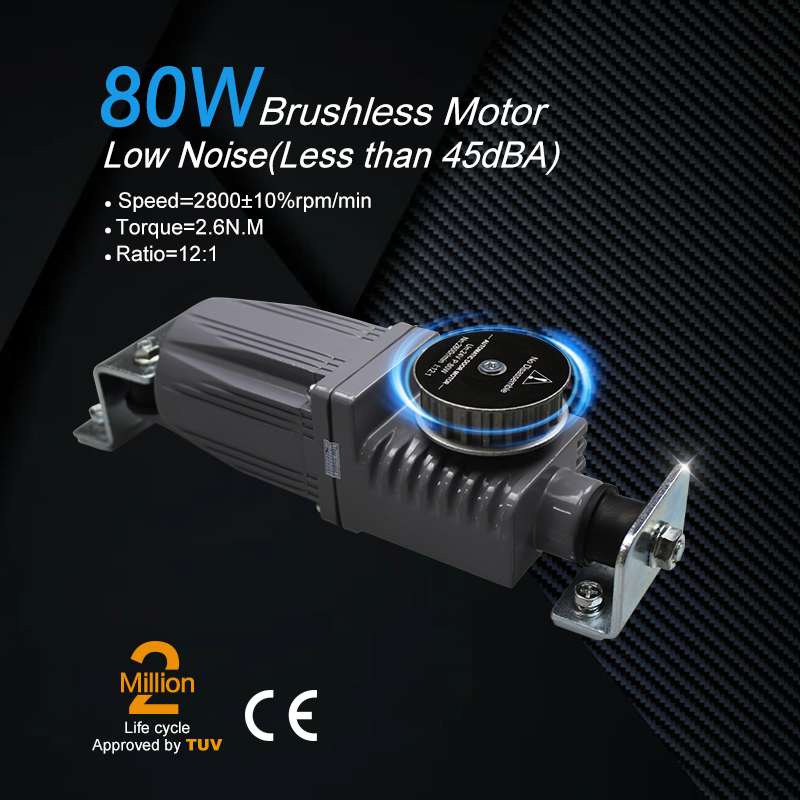

🔵 Brushless DC Motor: 24V 80W 2800rpm efficiency.

🔵 Wide Voltage: AC100-240V compatibility.

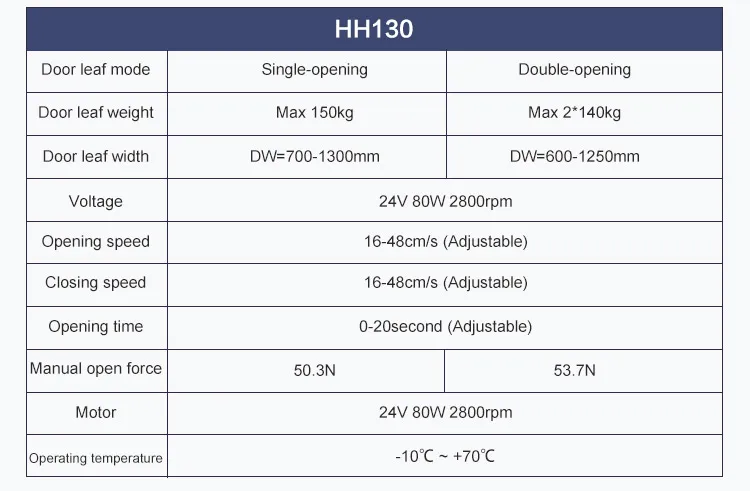

Specifications	HH130 System Details
Door leaf mode	Single-opening	Double-opening
Door leaf weight	Max 150kg	Max 2*140kg

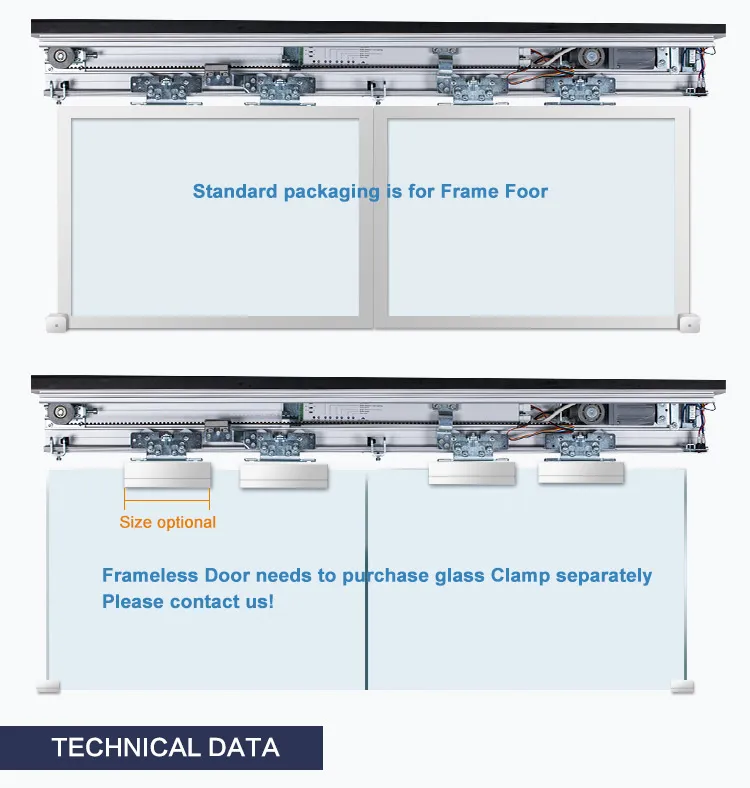

Door leaf width	DW=700-1300mm	DW=600-1250mm
Voltage	AC100-240V, 50Hz-60Hz
Opening speed	16-48cm/s (Adjustable)
Closing speed	16-48cm/s (Adjustable)
Opening time	0-20 second (Adjustable)
Motor Type	24V 80W 2800rpm brushless DC motor
Operating temperature	-10ºC ~ +70ºC

❓ Frequently Asked Questions

1. What is the maximum door weight the HH130 can handle?

The HH130 system is designed for high capacity, supporting a single door leaf up to 150kg or double-opening door leaves up to 140kg each.

2. Is the speed of the automatic sliding door adjustable?

Yes, both the opening and closing speeds are fully adjustable, ranging from 16cm/s to 48cm/s to suit your specific traffic flow needs.

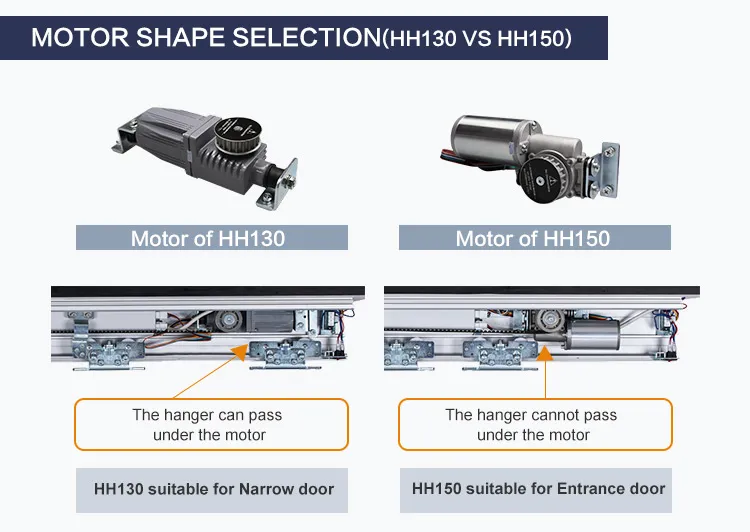

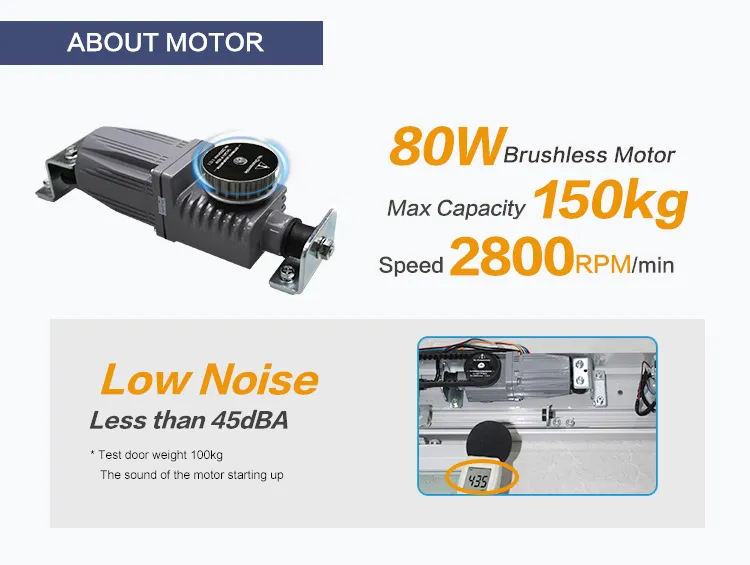

3. What kind of motor is used in the HH130 system?

The system utilizes a high-efficiency 24V 80W brushless DC motor operating at 2800rpm, ensuring quiet and durable performance.

4. Can this system work in extreme temperature environments?

Yes, the HH130 is engineered to operate reliably in temperatures ranging from as low as -10ºC up to +70ºC.

5. What is the standard voltage requirement for installation?

The system features a wide voltage range of AC100-240V (50Hz-60Hz), making it compatible with most commercial power grids worldwide.

6. Does it support different door widths?

Absolutely. For single-opening doors, it supports widths from 700mm to 1300mm. For double-opening configurations, it supports widths from 600mm to 1250mm per leaf.
