Dock Leveler Type

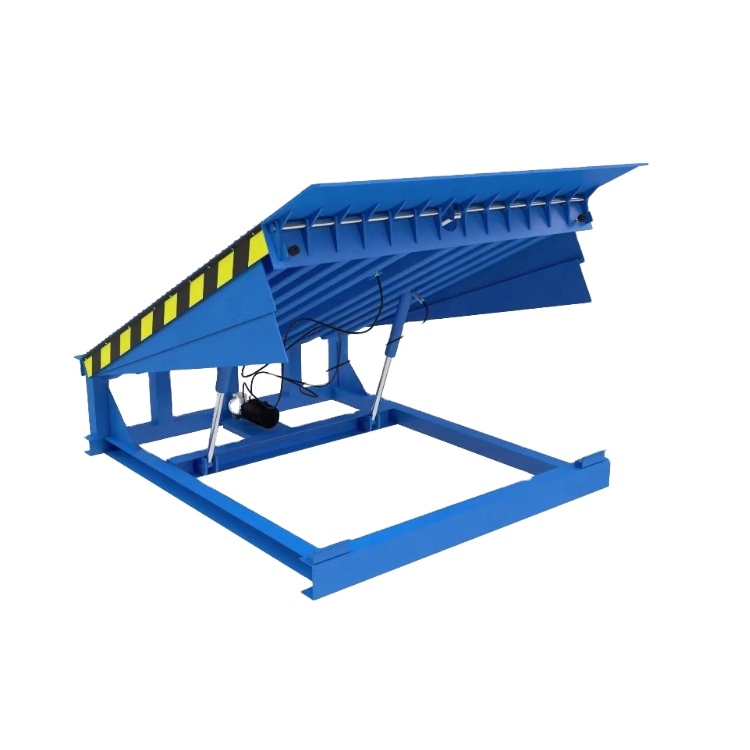

Folding Dock Leveler
Telescopic Dock Leveler
Product Details
The Hydraulic Platform
Standard size and pit size specifications:
| Specification |
Width of Platform |
Length of Platform |
Width of Foundation Pits |
Length of Foundation Pits |
Height of Foundation Pits |
| 2000 × 2000 | 2000mm | 2000mm | 2030mm | 2000mm | 610mm |
| 2000 × 2300 | 2000mm | 2300mm | 2030mm | 2300mm | 610mm |
| 2000 × 2500 | 2000mm | 2500mm | 2030mm | 2500mm | 610mm |
| 2000 × 3000 | 2000mm | 3000mm | 2030mm | 3000mm | 610mm |
| 2000 × 3500 | 2000mm | 3500mm | 2030mm | 3500mm | 610mm |
| 2000 × 4000 | 2000mm | 4000mm | 2030mm | 4000mm | 610mm |
| Dynamic Load |
Thickness of Panel |
Material for Thickening |
Mouth Plate Thickness |
Frame Material |
Static Load |
Suitable Forklift |
| 6 Ton | 6 mm | 4mm L-shaped steel | 12x400 | 100 Channel Steels | 8 Ton | 2.5 Ton |
| 8 Ton | 8 mm | 4mm L-shaped steel | 14x400 | 100 Channel Steels | 10 Ton | 3 Ton |
| 10 Ton | 8 mm | 14 # I-beam steel | 16x400 | 100 Channel Steels | 12 Ton | 3.5 Ton |

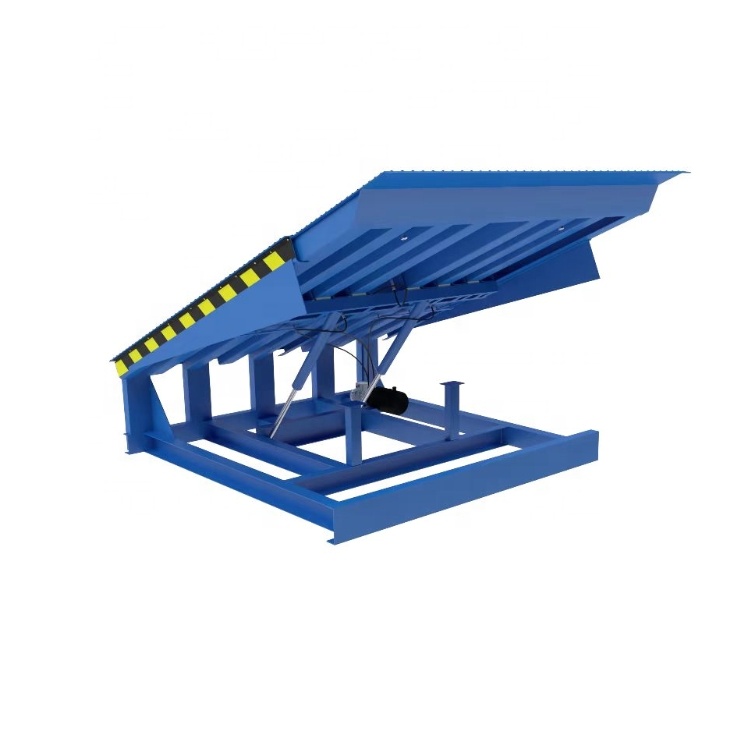

Telescopic Hydraulic Platform
Standard size and pit dimensions expansion length:
| Width of Platform |
Length of Platform |
Height of Platform |
Pit Width |
Pit Length |
Pit Height |
Telescopic Length |
| 2000mm | 2000mm | 600mm | 2030mm | 2000mm | 610mm | 650mm |
| 2000mm | 2300mm | 600mm | 2030mm | 2300mm | 610mm | 980mm |
| 2000mm | 2500mm | 600mm | 2030mm | 2500mm | 610mm | 980mm |
| 2000mm | 3000mm | 600mm | 2030mm | 3000mm | 610mm | 980mm |
| 2000mm | 3500mm | 600mm | 2030mm | 3500mm | 610mm | 980mm |
| 2000mm | 4000mm | 600mm | 2030mm | 4000mm | 610mm | 980mm |
| 2000mm | 5000mm | 600mm | 2030mm | 5000mm | 610mm | 980mm |
| Dynamic Load |
Thickness of Panel |
Material for Thickening |
Mouth Plate Thickness |
Frame Material |
Static Load |
Suitable Forklift |
| 6 Ton | 6 mm | 4mm L-shaped steel | 14x400+8x700 | 100 Channel Steels | 8 Ton | 2.5 Ton |
| 8 Ton | 8 mm | 4mm L-shaped steel | 16x400+8x700 | 100 Channel Steels | 10 Ton | 3 Ton |
| 10 Ton | 8 mm | 14 # I-beam steel | 16x400+8x700 | 100 Channel Steels | 12 Ton | 3.5 Ton |
| 14 Ton | 10 mm | 16 # I-beam steel | 16x400+8x700 | 100 Channel Steels | 16 Ton | 3.5 Ton |
Dock Seal Type

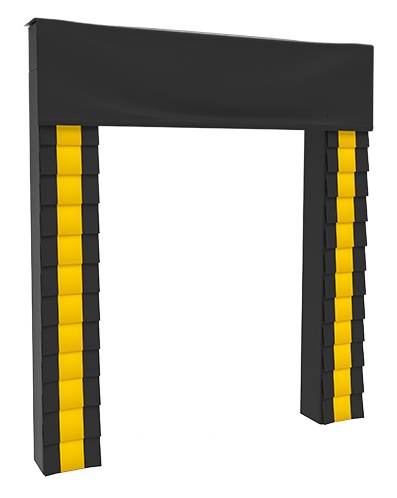

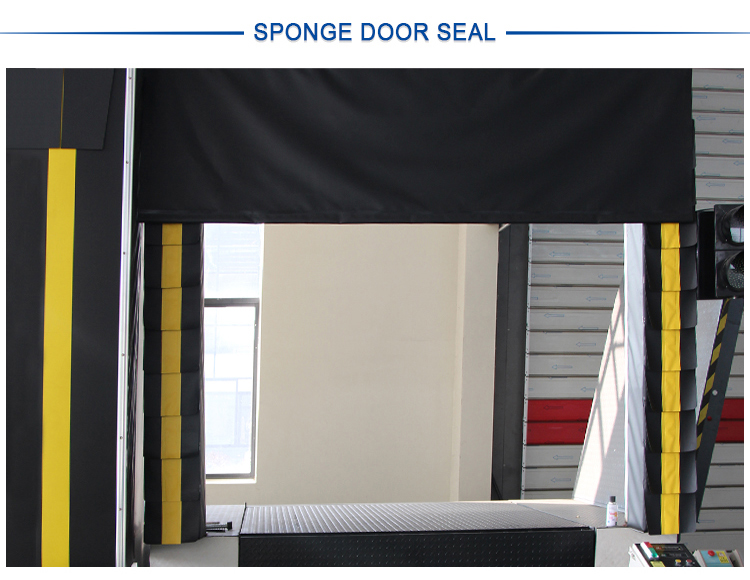

Sponge Dock Seal

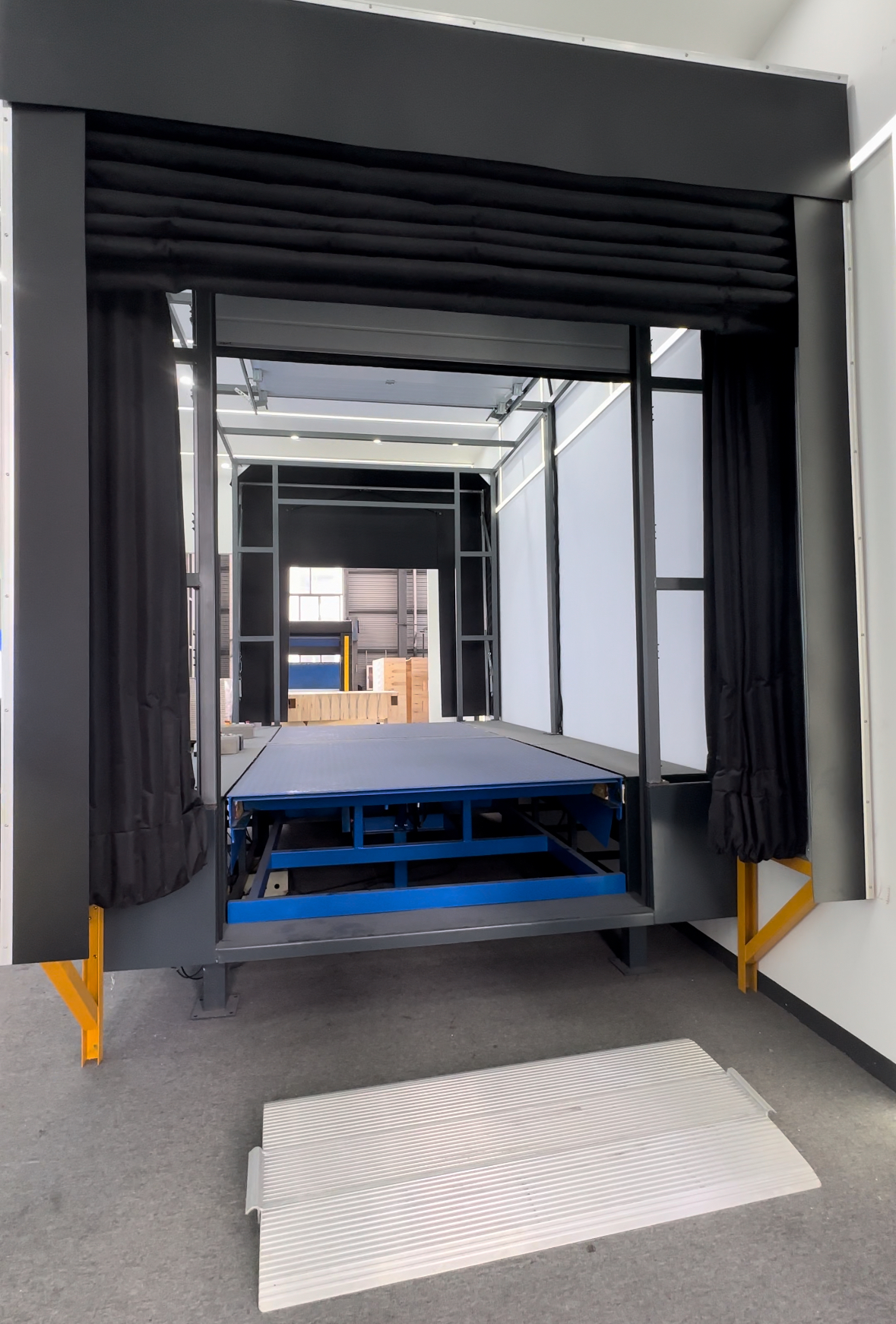

Mechanical Dock Leveler
Inflatable Dock Seal

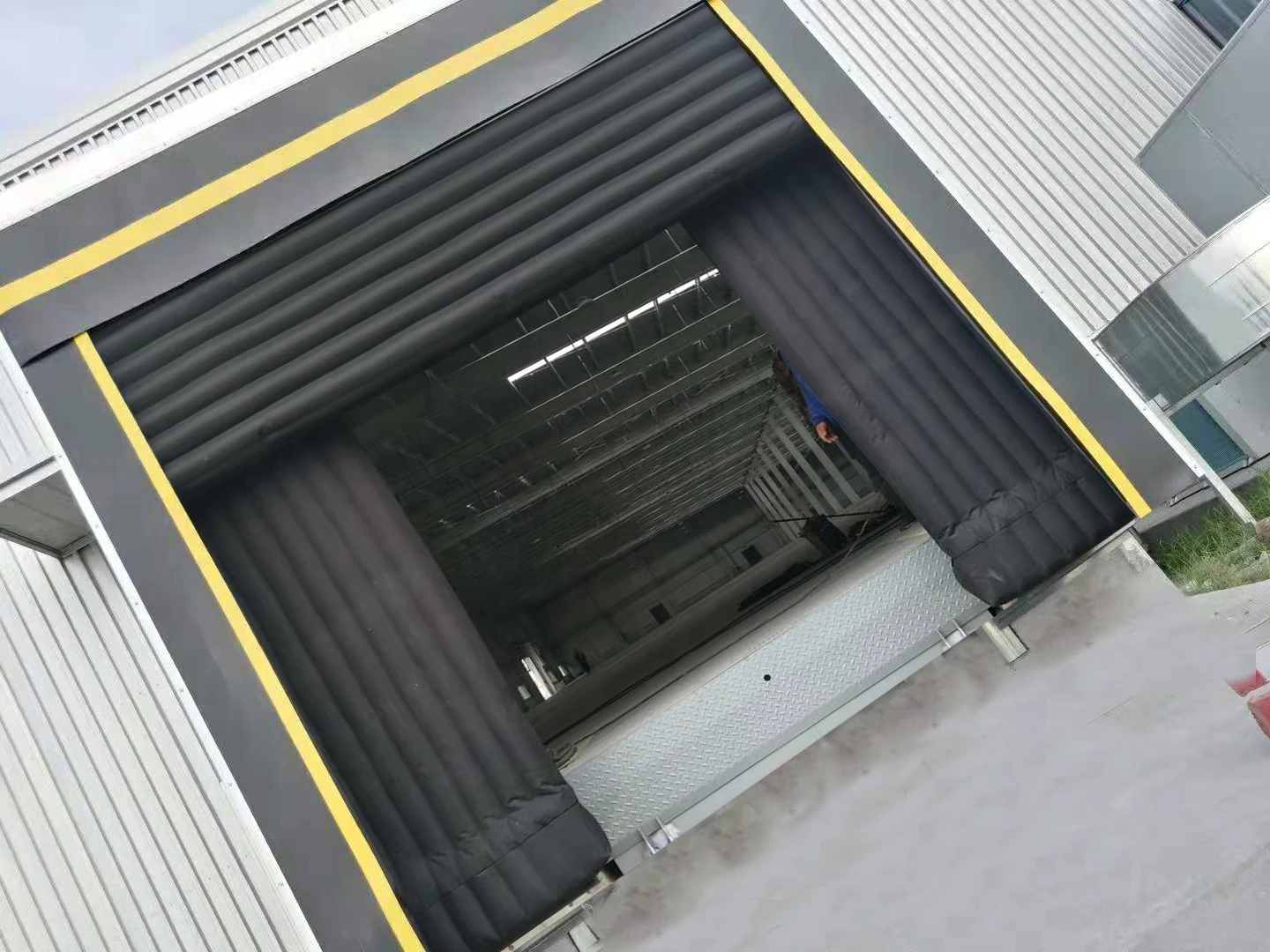

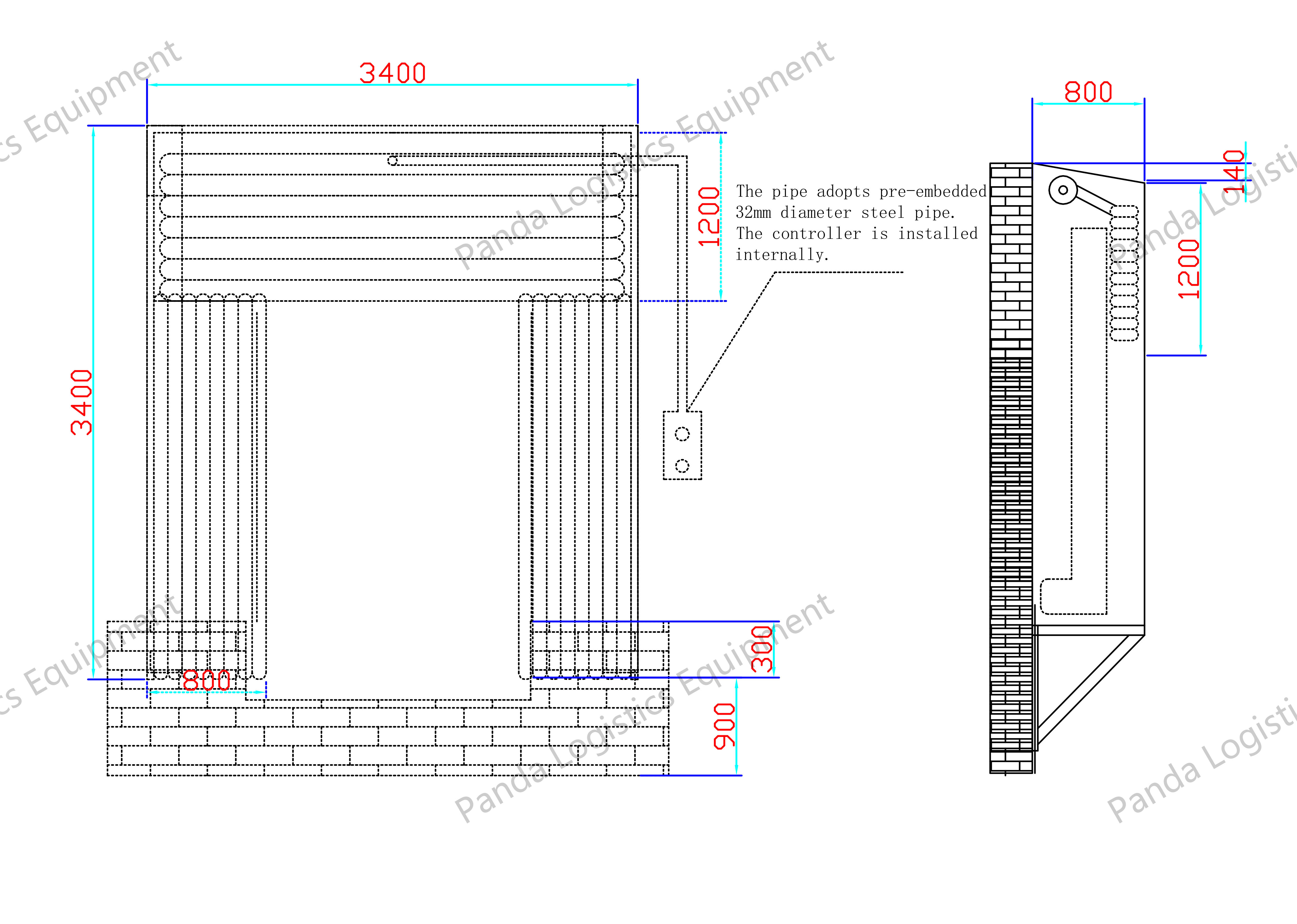

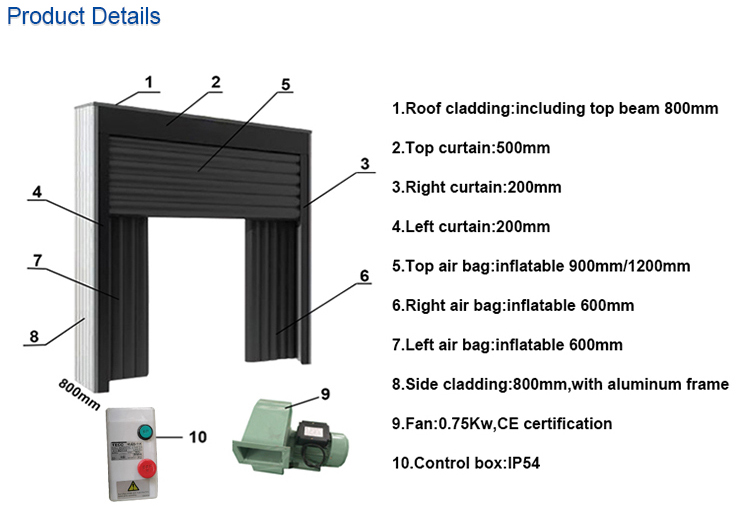

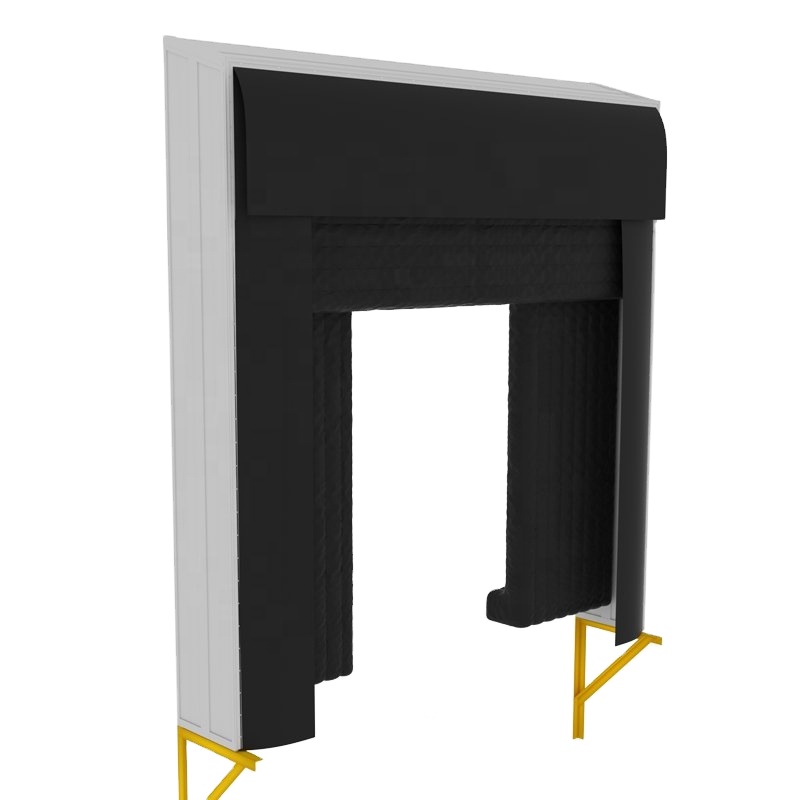

Inflatable Dock Seal
By continuously inflating the airbag using a fan, the airbag expands to tightly fit against the truck body, achieving high sealing performance and preventing the exchange of cold and hot air between the interior and exterior.

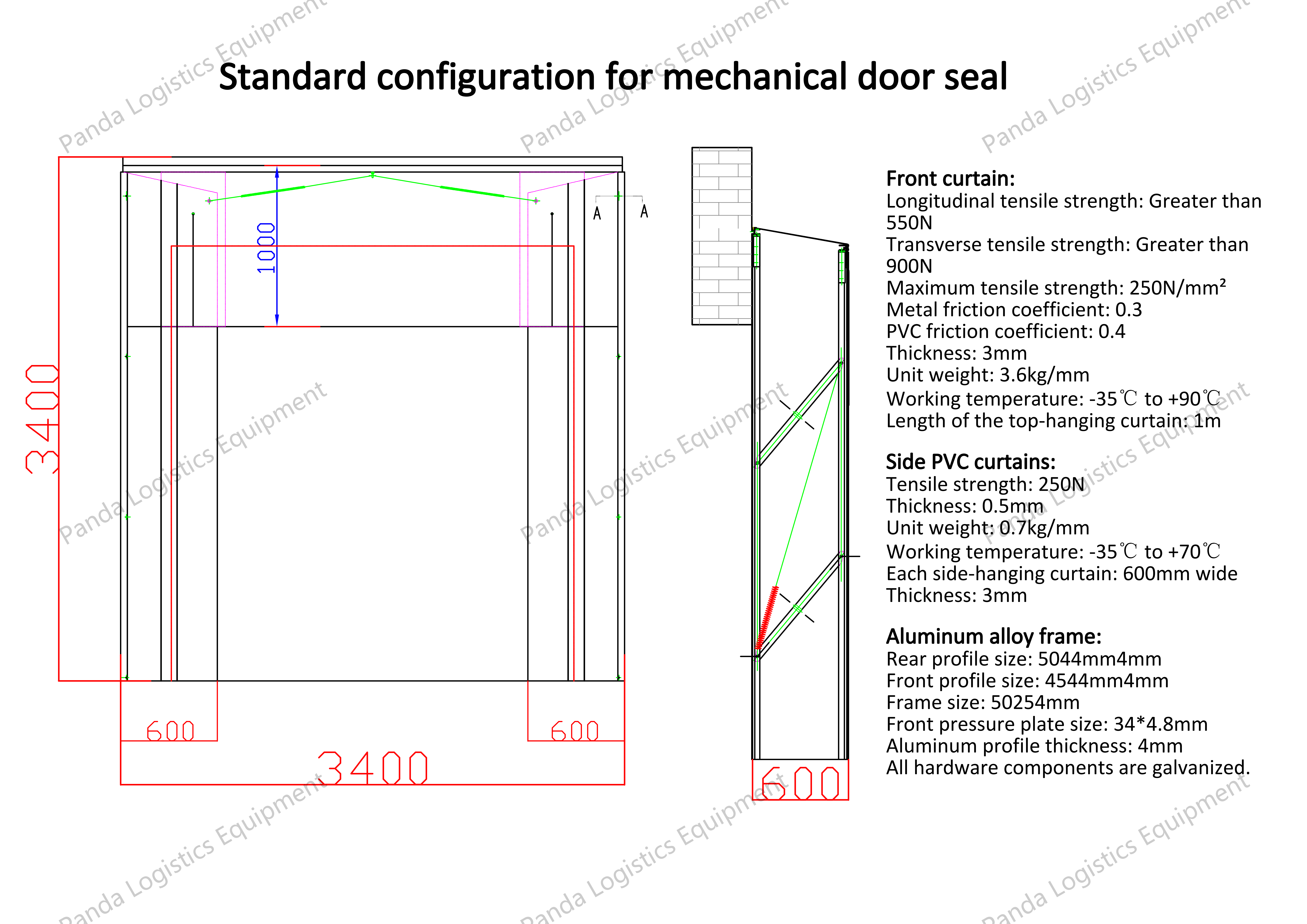

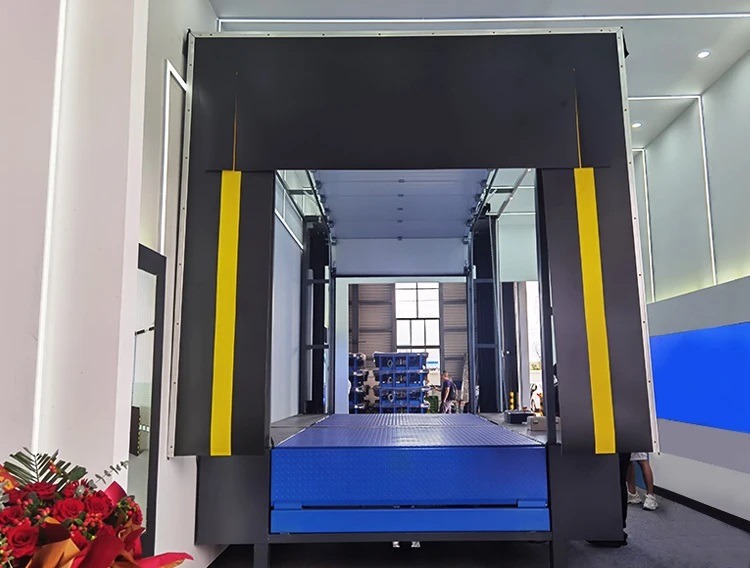

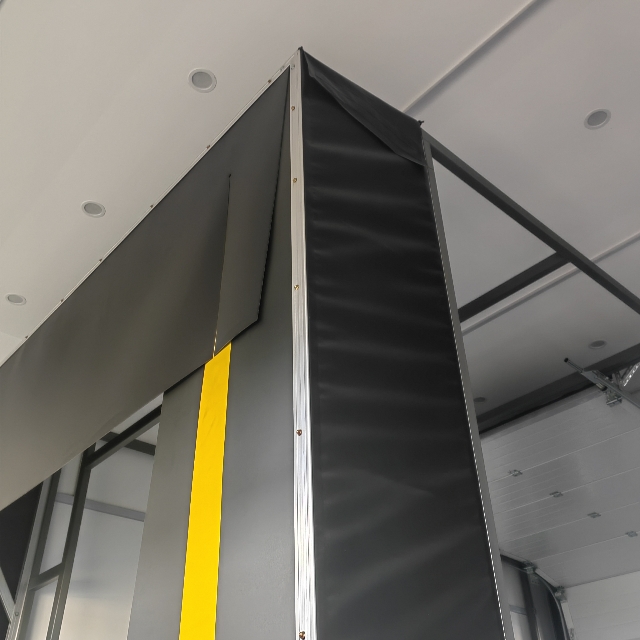

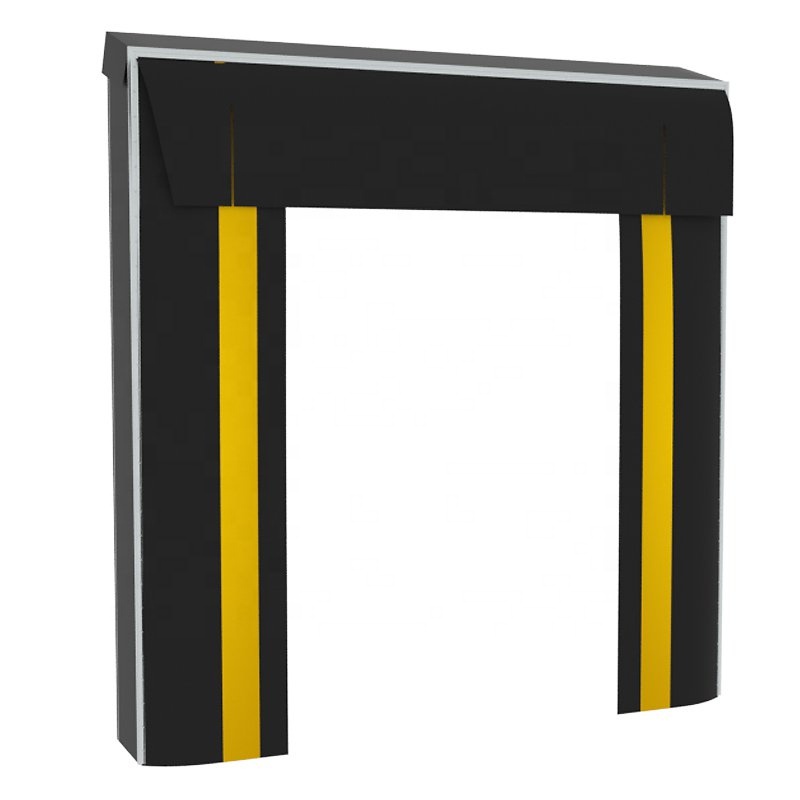

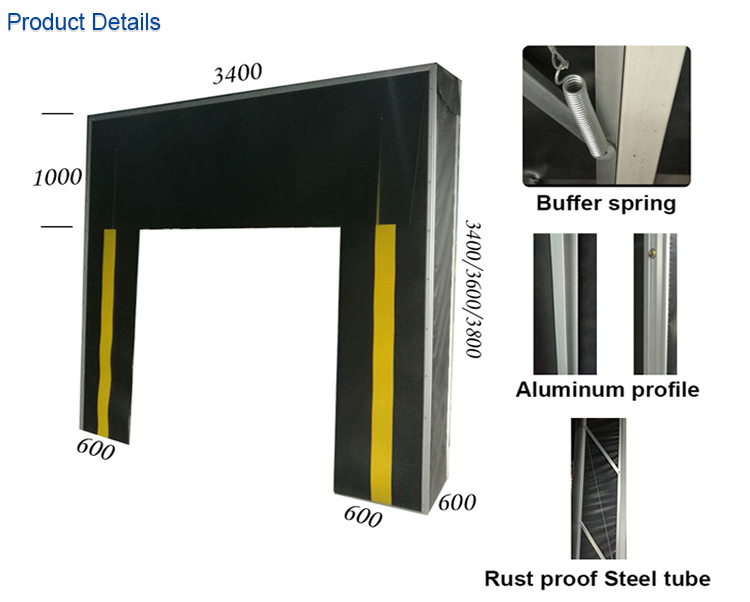

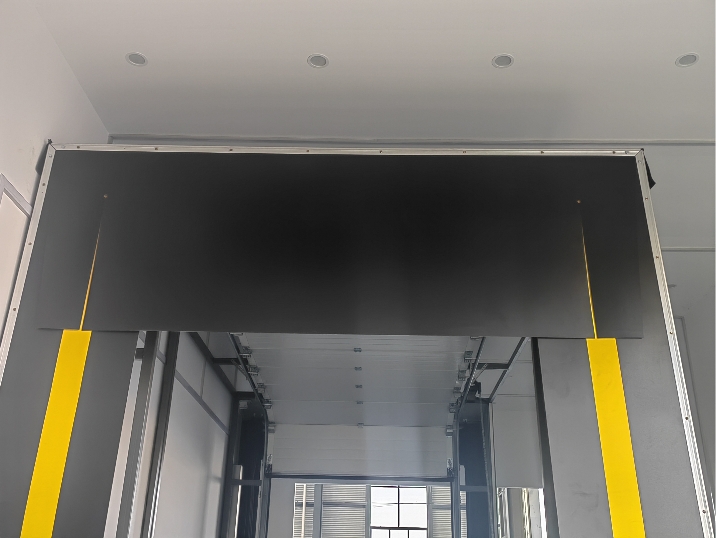

Mechanical Dock Seal
By closely contacting the top-hanging curtain and side-hanging curtain with the truck compartment, it achieves a preliminary rainproof sealing effect.

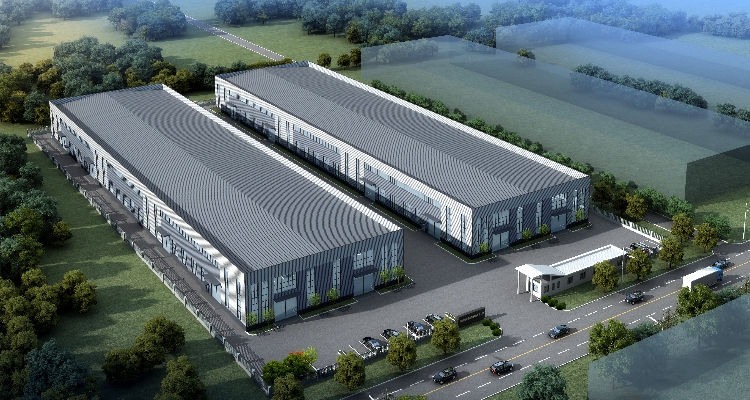

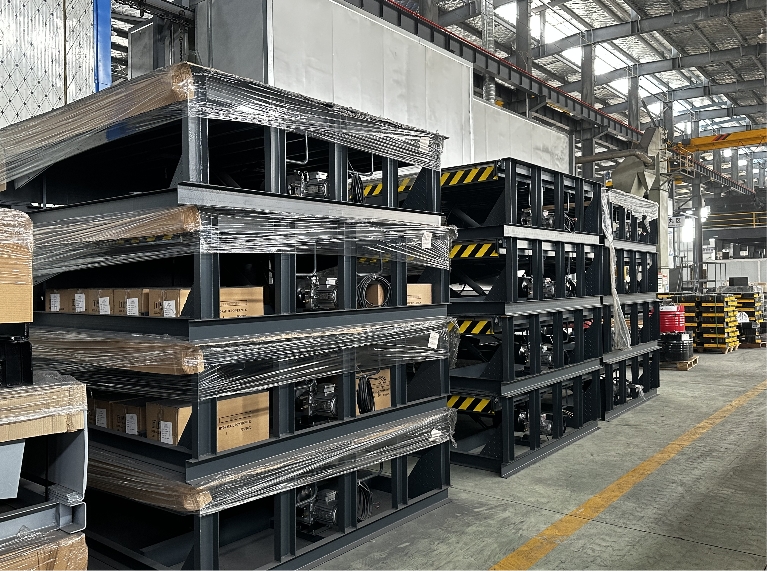

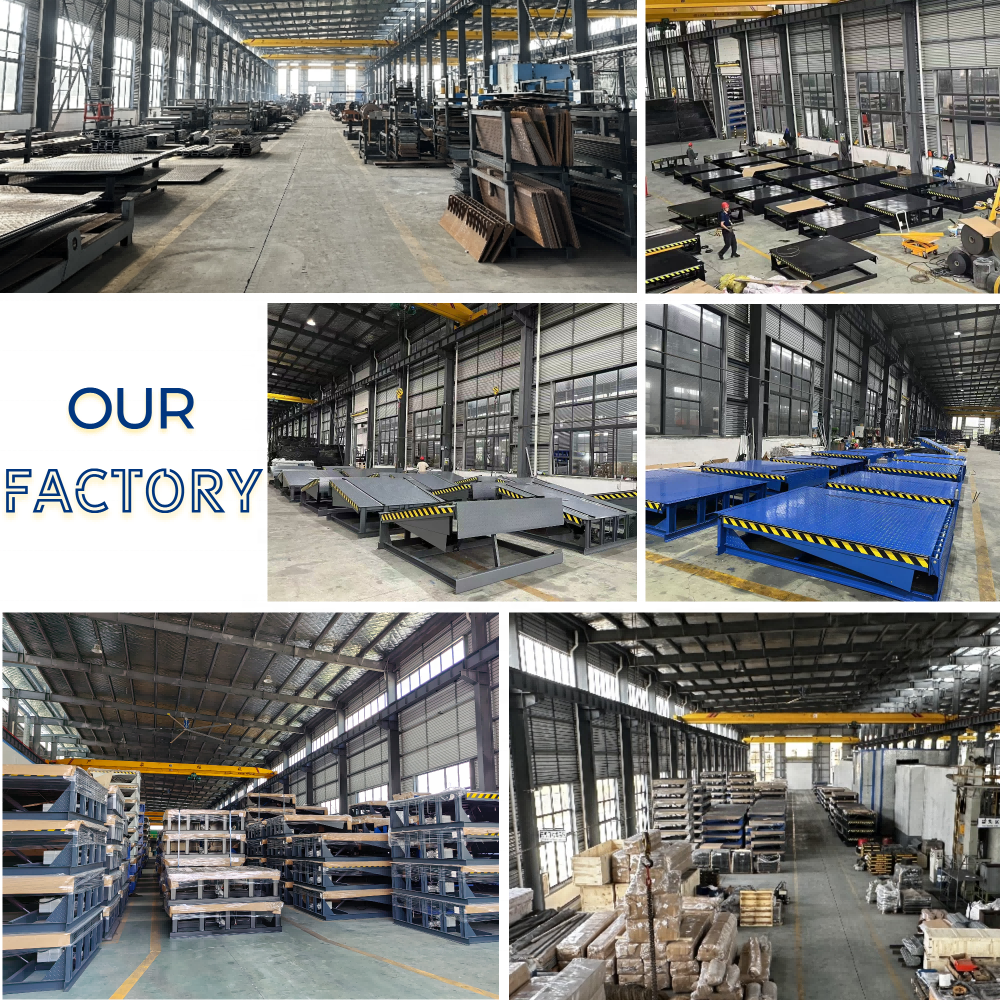

Factory Overview
We are a modern production enterprise that integrates design, manufacturing, sales, installation, and after-sales service. Since our establishment in 2013, we have continuously expanded our presence in the international market, with products exported to over 40 countries and regions, including South Korea, Germany, Italy, Vietnam, and many others. We have established long-term cooperative relationships with over 1000 global clients.

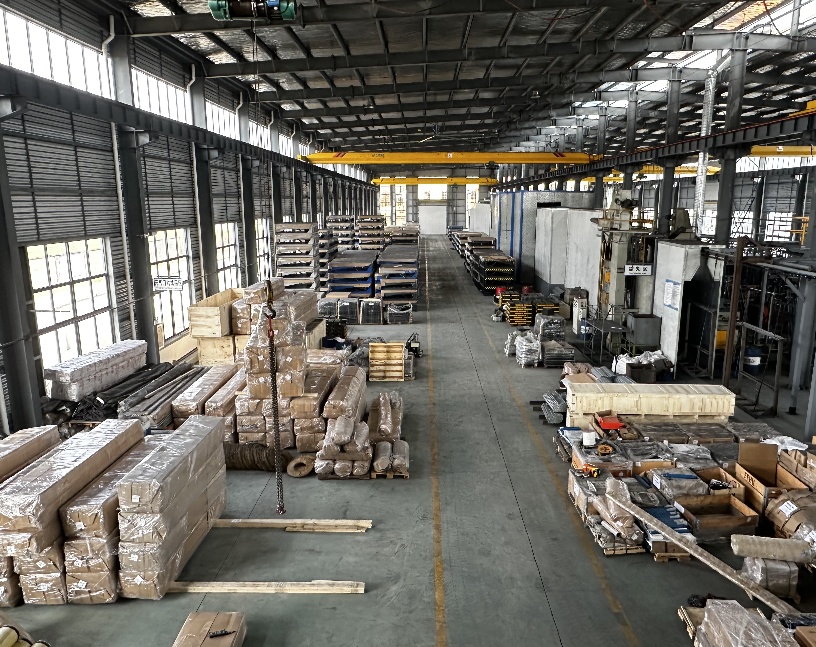

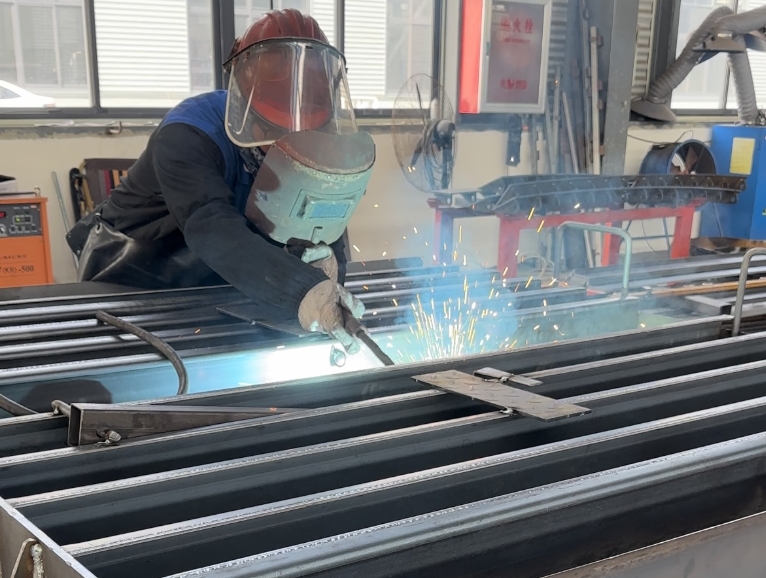

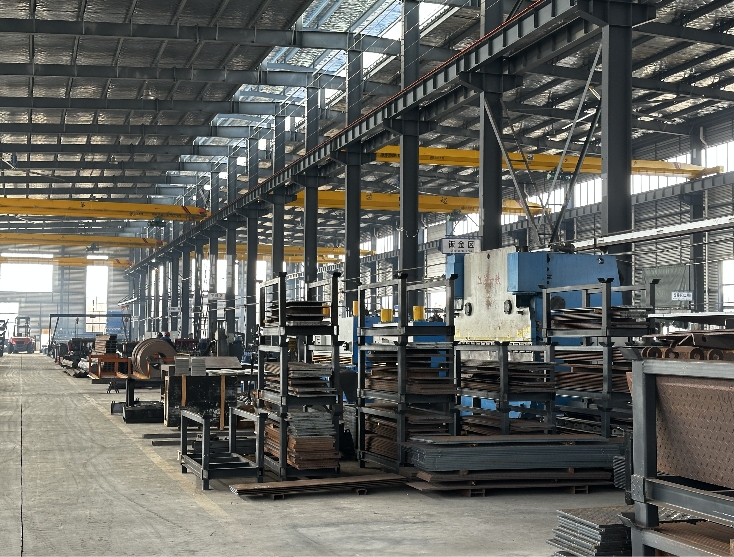

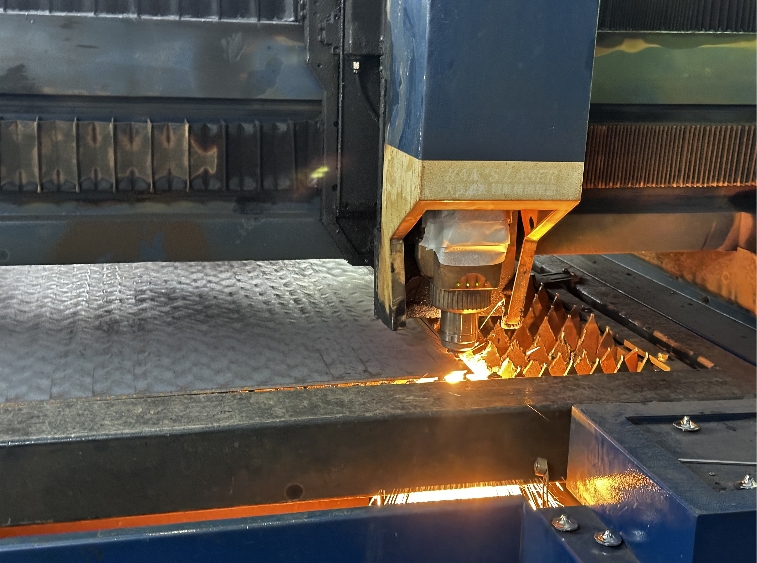

Our facility boasts a factory area of 15,000 square meters, with advanced production equipment including a 12,000W large laser cutting machine, robotized welding platforms, and a large-scale assembly line painting system. Specializing in hydraulic unloading platforms, telescopic platforms, inflatable door seals, mechanical door seals, and industrial doors, our products are widely used in logistics, warehousing, cold chain, and pharmaceutical sectors.
Global Export
Asia: Thailand, Malaysia, Indonesia, Singapore, Myanmar, Philippine, India, Sri-lanka, Vietnam, UAE, Pakistan, South Korea.
Europe: Poland, Russia, Holland, England, Norway, Germany, Italy, Denmark.
Americas: Colombia, Brazil, Chile, Argentina, Peru, Jamaica.
Africa & Oceania: Nigeria, Angola, South Africa, Australia, New Zealand.
Co-Branding
Frequently Asked Questions
Are you a trading company or a factory?
We are a specialized Logistics equipment manufacturer. We have our own production plant and rank among the top three in production scale in China, supported by a strong technical R&D team.
Can you do full set products according to my project drawing?
Yes, we can design and produce the whole set of logistics equipment and support all kinds of customization. Our engineers will verify your drawings to ensure accuracy for all fittings.
Do you produce other products or accessories?

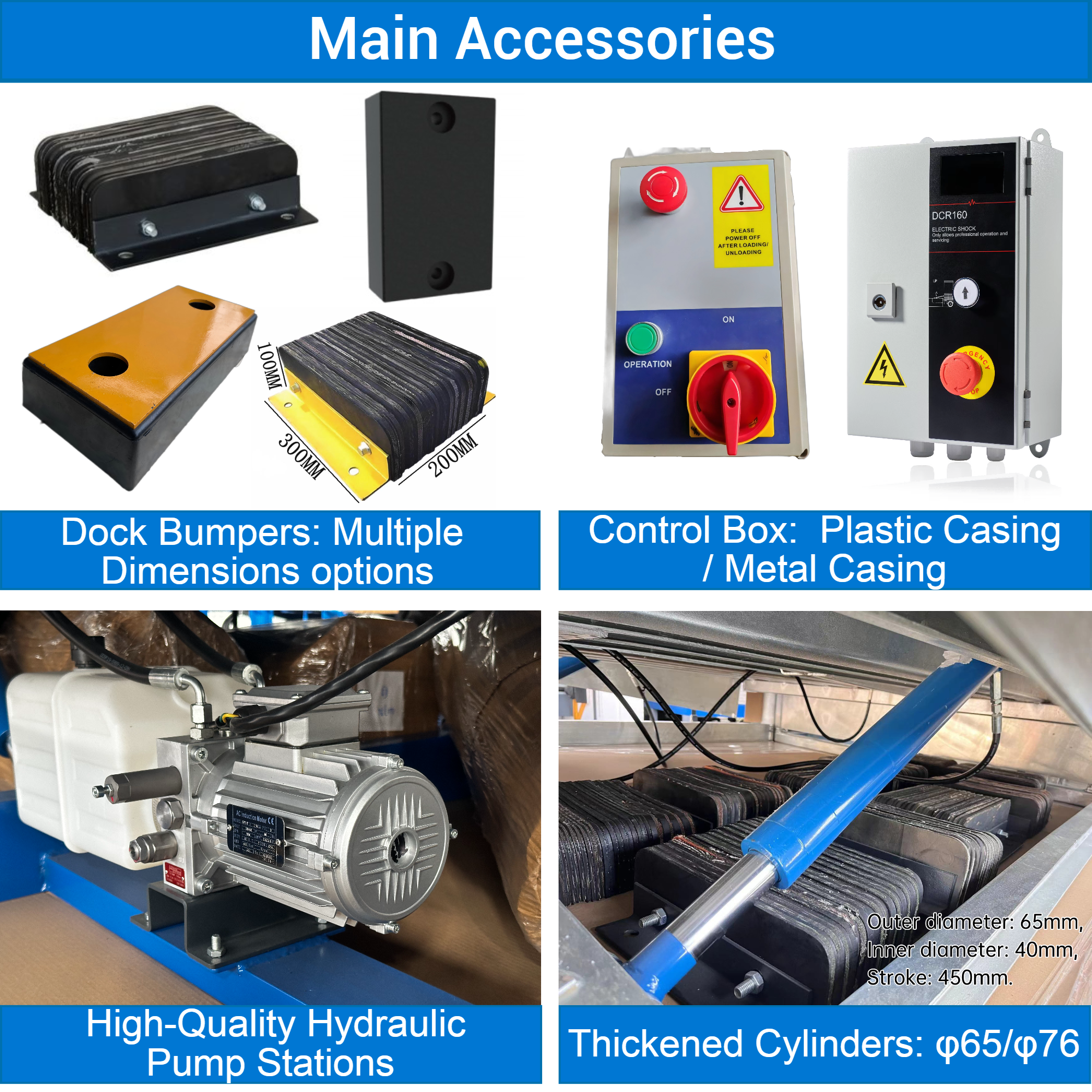

Yes, we produce various hydraulic platforms, dock levelers, mobile boarding bridges, dock seals, high-speed PVC doors, vehicle restraints, and anti-collision blocks. We produce parts in-house to control quality and cost.
Can you give us a discount?
Thanks to our advanced production equipment, we effectively control costs while maintaining high quality. We offer very affordable prices, and for large quantities or long-term cooperation, the pricing is even more favorable.
How is the delivery time?
We typically ship the goods within 25 working days after receiving the full payment.
What sectors are your products used in?
Our products are widely used in sectors with high operational demands, such as logistics, warehousing, precision machinery, cold chain, automotive, food, and pharmaceuticals.
