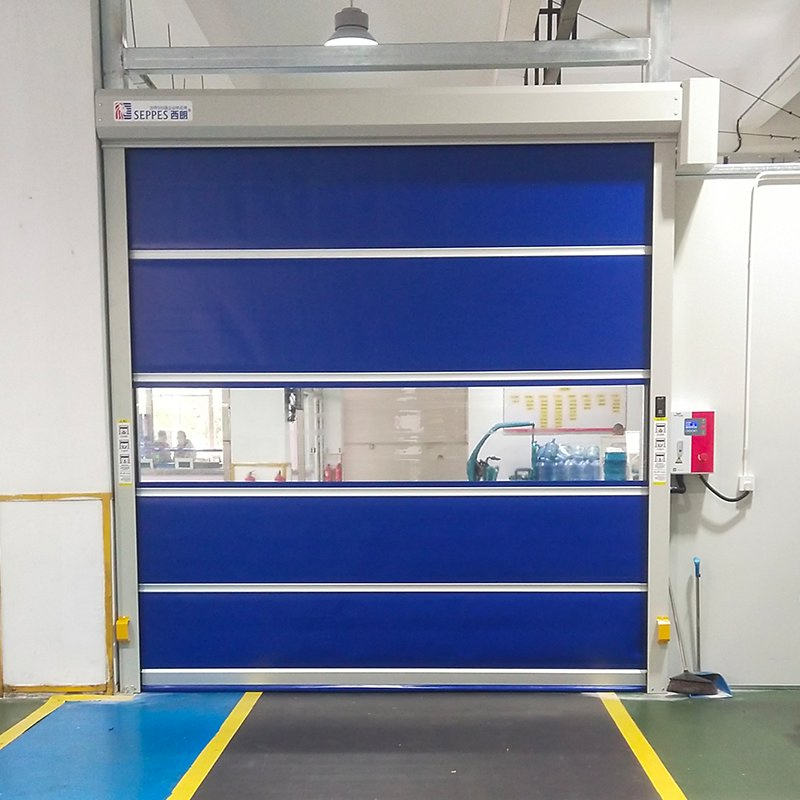

Wind-Resistant High Speed Door with Smart Automation for Large Warehouse and Factory Entrances

Customization:	Available
After-sales Service:	Online Guide
Warranty:	1 Year

Basic Info.

Model NO.	HSD-180
Material	PVC
Type	Rolling
Open Style	Rolling
Opening Type	Induced
Special Function	Security
Color	Customized
Certification	ISO9001, CE
Position	Industrial
Surface Finishing	Finished
Max Size	5000*5000mm
Opening Speed	Max 2.0m/S (Adjustable)
Operation Methods	Buttons, Sensors, Remote Control
Power Supply	1-Phase 220V, or 3-Phase 380V
Power	0.75-1.5kw
Transport Package	Wooden Box
Specification	customized
Origin	China Jiangsu
Production Capacity	10000 Set/Sets Per Month

Packaging & Delivery

Package Size	35.00cm * 25.00cm * 150.00cm
Package Gross Weight	350.000kg

Product Overview

✔ An industrial Door Brand Exported to Over 50 Countries

✔ Serving Over 3600 Clients Worldwide

✔ Holder of Multiple Authoritative Certifications, Including CE, SGS, UL

✔ Supplier Partner to Fortune 500 Companies

✔ Advanced Servo Intelligent Control Systems for Professional Needs

Wind-Resistant High Speed Door with Smart Automation for Large Warehouse and Factory Entrances

PVC High Speed Door

Our high speed door adopts German brand integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

Installation Site

Pharmaceutical workshop

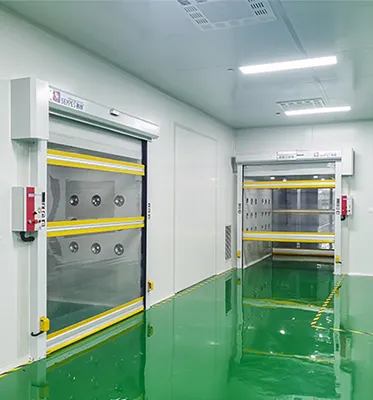

Air shower room

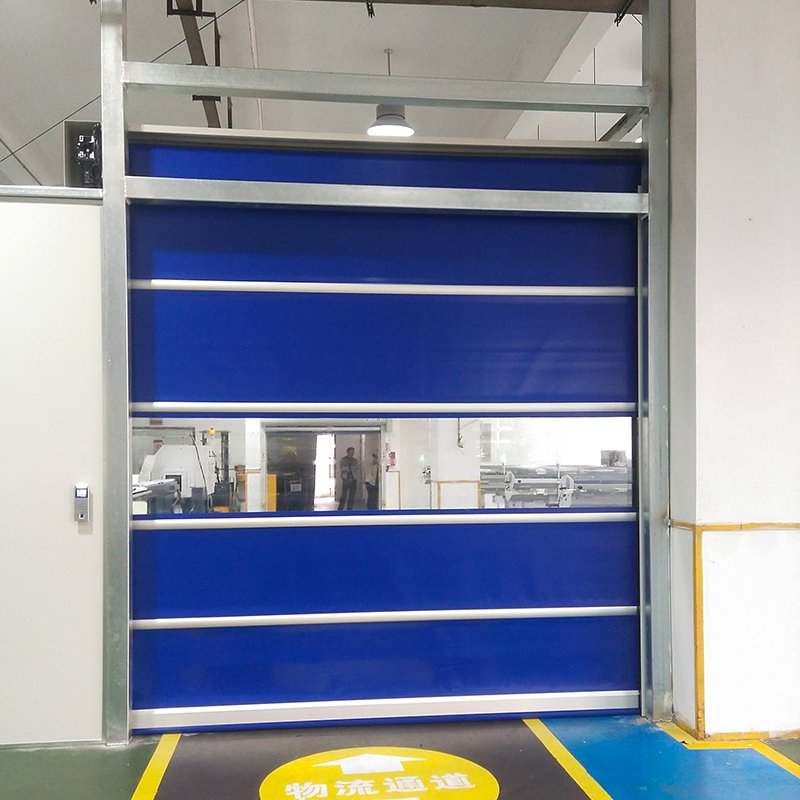

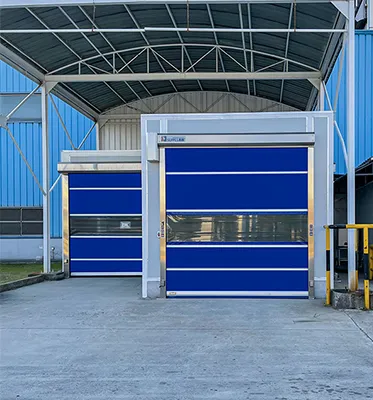

Factory exterior doors

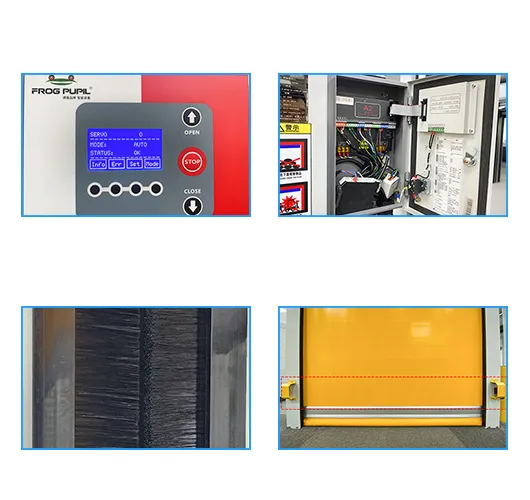

Detailed Photos

Human-Machine Interface

Innovative human-machine interface design. Visual operation, real-time display of running status. Plug-in interface, easy to use and maintain.

Intelligent Control System

Equipped with German brand control system and servo high-precision drive unit to ensure the stable, fast and efficient operation of industrial fast rolling shutter products.

Sealing Brush

The door frame is equipped with double-row card-type sealing brushes, which form a four-sided air-tight structure with the U-shaped bottom edge and the integrated door head sealing box, and the fast partition effect is better.

Infrared Photoelectric

It is equipped with an infrared anti-pinch safety protection device as standard, which rebounds when triggered to ensure safety. In addition, the bottom edge of the airbag and a multi-point protective light curtain are optional.

More Functions

Remote Communication

There are various ports integrated in the control system of our high speed door, such as automatic control interface, external device interface and so on. Among them, the external device terminal has signal receiving and output terminals for opening and closing the door which can be connected to the general control of the AGV vehicle to realize the linkage control of the fast door and the vehicle.

Double/Multi-Door Interlock

Two or more high speed doors are connected with interlocking lines, and the two doors cannot be opened at the same time, that is, only when one door is closed the other door can be opened to ensure that the room is always in a closed state.

Available Colors

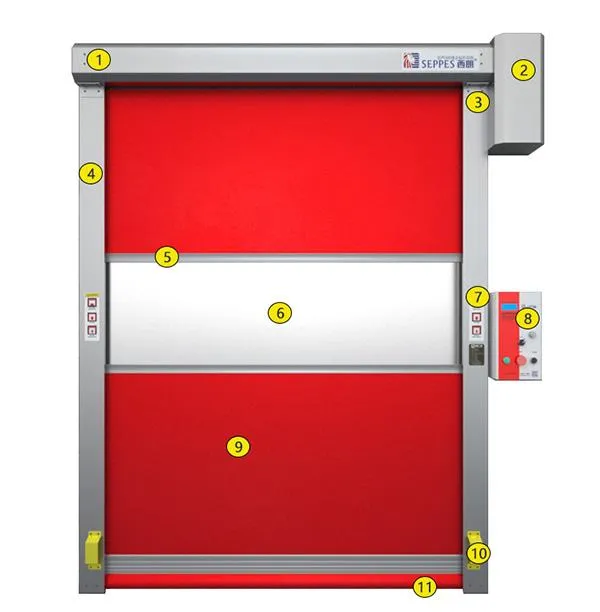

Product Description

(1) The front box
(2) Motor
(3) Fixed angle iron
(4) Track Aluminum profile wind-resistant ribs
(5) Transparent window
(6) Identification nameplate
(7) Control box
(8) PVC door curtain
(9) Infrared safety photoelectric
(10) U-shaped bottom edge

Maximum size	50005000mm(WH)
Wind pressure	4-5 wind (refer to the size of the door)
Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ
Interlock function	support
Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

All measurements are made indoors and each value must be measured at at least three points:

H -- the height of the doorway (the distance from the ground to the top of the doorway)
B -- the width of the door opening (the distance from the left edge of the door opening to the right edge)
h -- Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm
b1/b2 -- The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor.

When measuring H and B, take the maximum value as the final dimension. When measuring h, b1, b2, take the smallest value as the final size.

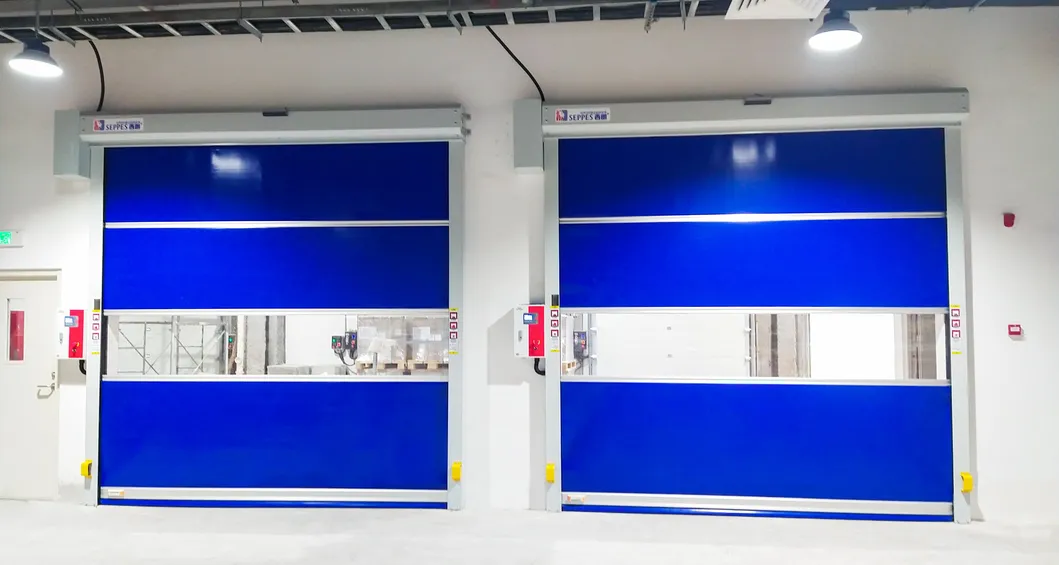

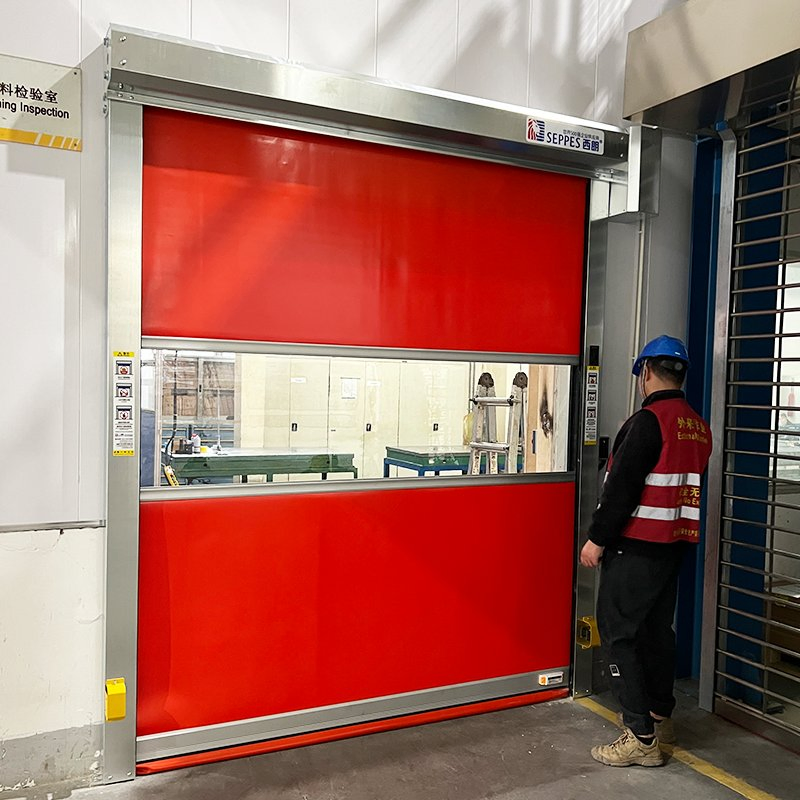

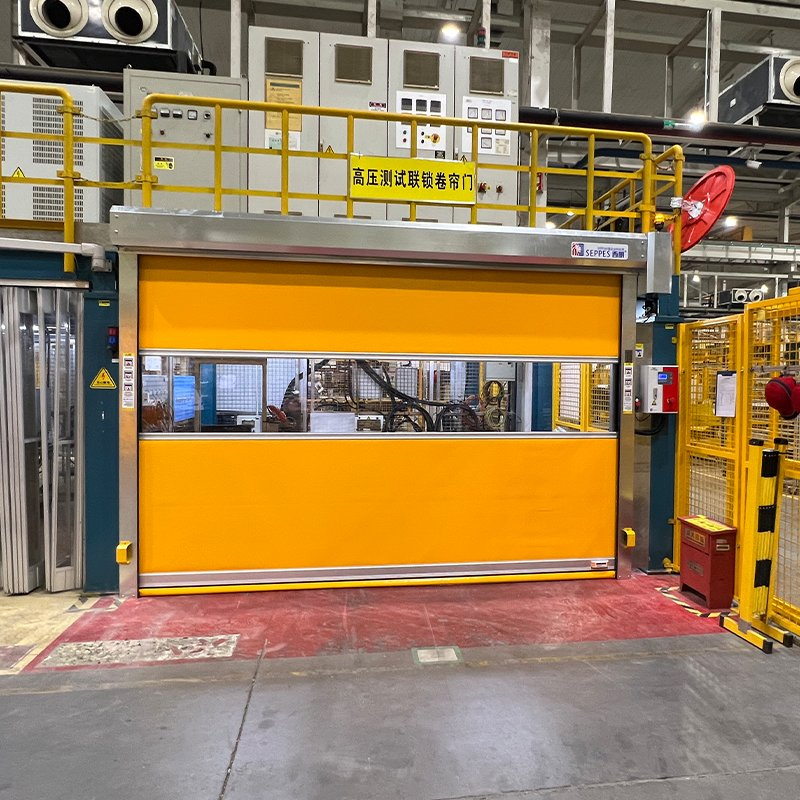

Real Projects

Pharmaceutical Company

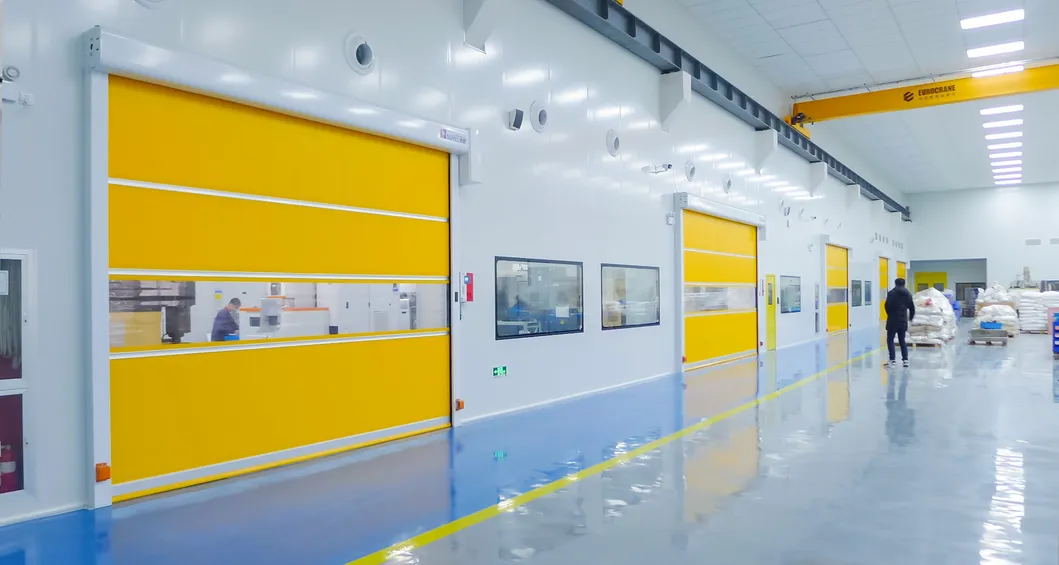

Food Company Warehouse

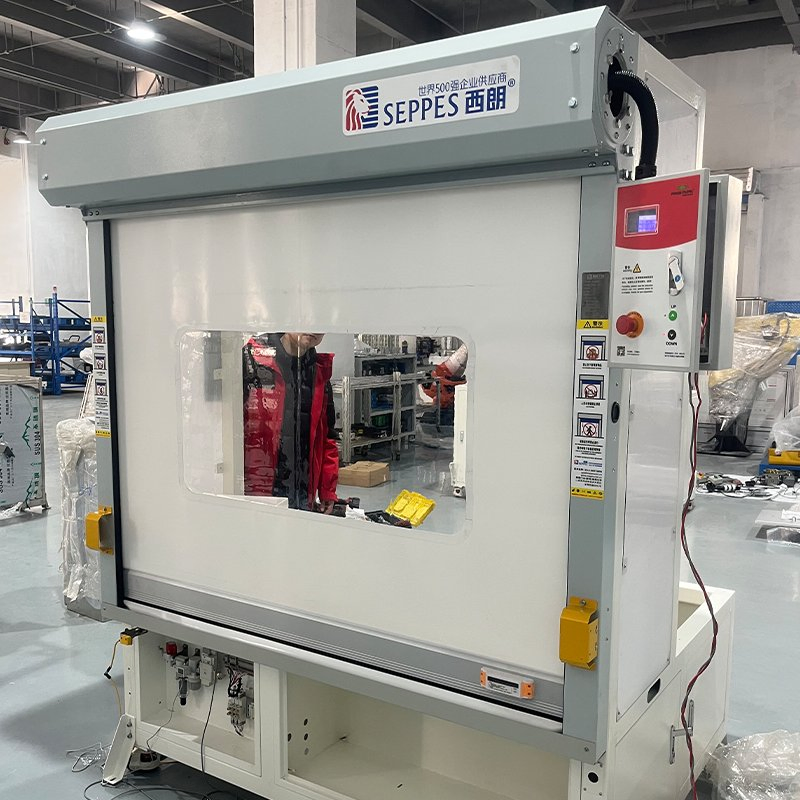

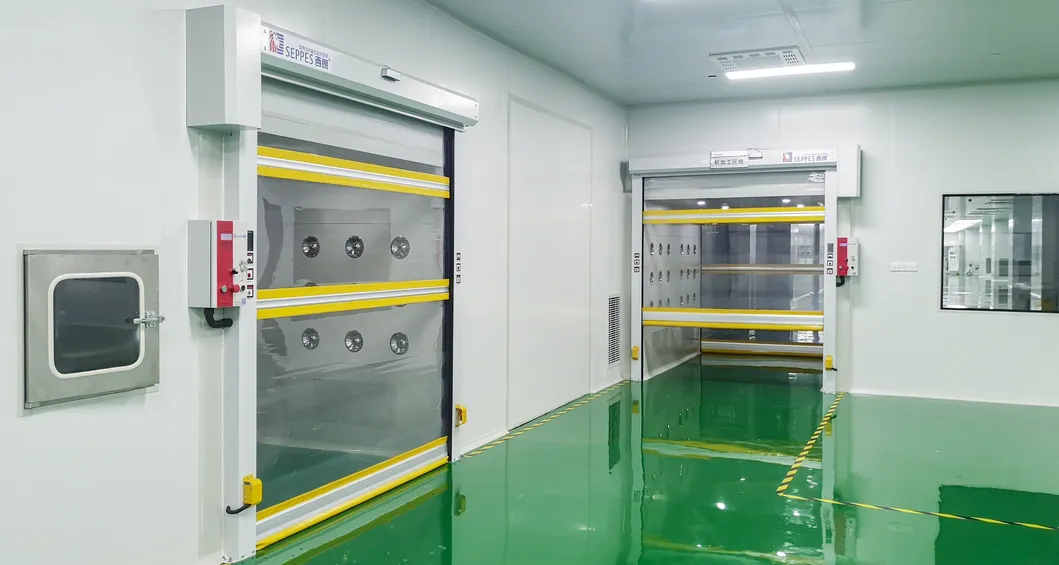

Air Shower Room Transparent High Speed Door

Profile

We are a high-tech manufacturer focusing on the development, design, and production of industrial door systems. We manufacture complete customized entrance door system solutions for industrial customers. Our main products include high speed doors, automatic roller shutter doors, sectional doors, etc. All products comply with European industry standards and have obtained EU CE, international SGS, and ISO9001 quality management systems certification.

With professional products and reliable reputation, we have become a cooperative partner to more than 60 Fortune 500 companies. Products are exported to more than 65 countries and regions including the European Union, Australia, the United States, Canada, France, Japan, and have provided products and technical solutions as well as multiple product safety guarantees for more than 3,200 corporate customers!

Other Products

FAQ

What are high-speed doors?

High-speed doors are specialized doors used in industrial and commercial settings, designed for fast opening and closing to ensure quick and efficient traffic flow, enhance environmental control, and improve safety. They are ideal for areas requiring rapid access, including warehouses, logistics centers, and manufacturing facilities.

What materials are high-speed doors made of?

High-speed doors can be made from various materials, including PVC, steel, and aluminum. The choice of material depends on the application, with PVC being common for interior doors due to its lightweight and speed, and metal options offering greater durability and security for exterior entrances.

Can high-speed doors be customized?

Yes, high-speed doors can be customized to meet specific requirements. This includes dimensions, materials, colors, and features such as windows or logos. Customization options vary by manufacturer, so please inquire about your specific needs.

How do high-speed doors operate?

High-speed doors operate using a motorized mechanism that allows them to open and close rapidly. They can be activated through various methods, including remote controls, motion detectors, and push-buttons, depending on the user's needs and the door's application.

Are high-speed doors energy efficient?

Yes, high-speed doors are designed for energy efficiency. Their quick open and close cycle helps maintain controlled environments, reducing energy loss from heating or cooling. Some models also include insulated materials for additional energy savings.

What safety features do high-speed doors have?

Safety is a priority for high-speed doors. Features may include built-in sensors to detect obstacles, emergency stop functions, and safety edges to prevent injury or damage. Specific safety features can vary, so please check the product specifications.
