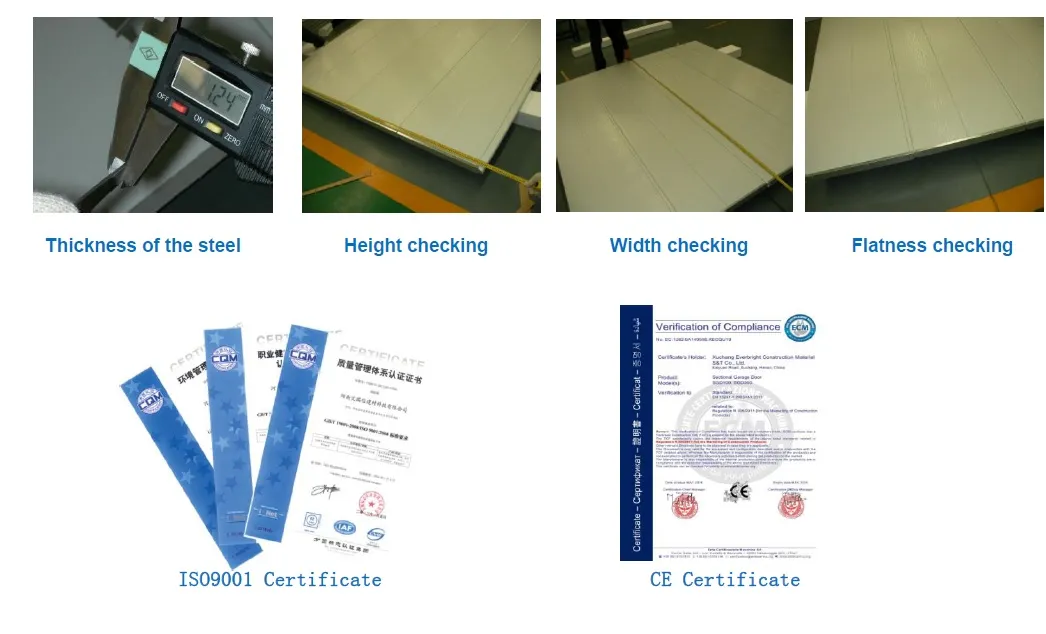

Panel Details: The density of the sectional garage door panel is 40kg/m3, offering high thermal efficiency and sound insulation. The 40mm thickness ensures excellent mechanical properties and stability from -50ºC to +100ºC. External skins are PPGI steel with a rust-resistant finish (25-30 years life).

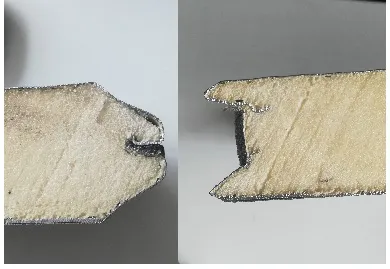

| Structure | Pinch Resistant | Non Pinch Resistant |
|---|---|---|
| Height | 435mm / 485mm / 535mm | 530mm / 610mm |
| Panel Thickness | 40mm | 50mm |
| Steel Thickness | 0.326-0.5mm | |
| PU Density | 40Kg/m3 | - |
| Material | PPGI Steel skins | Polyurethane foam |
| Textures | Wood grain / Orange peel | Stripe, H-line |

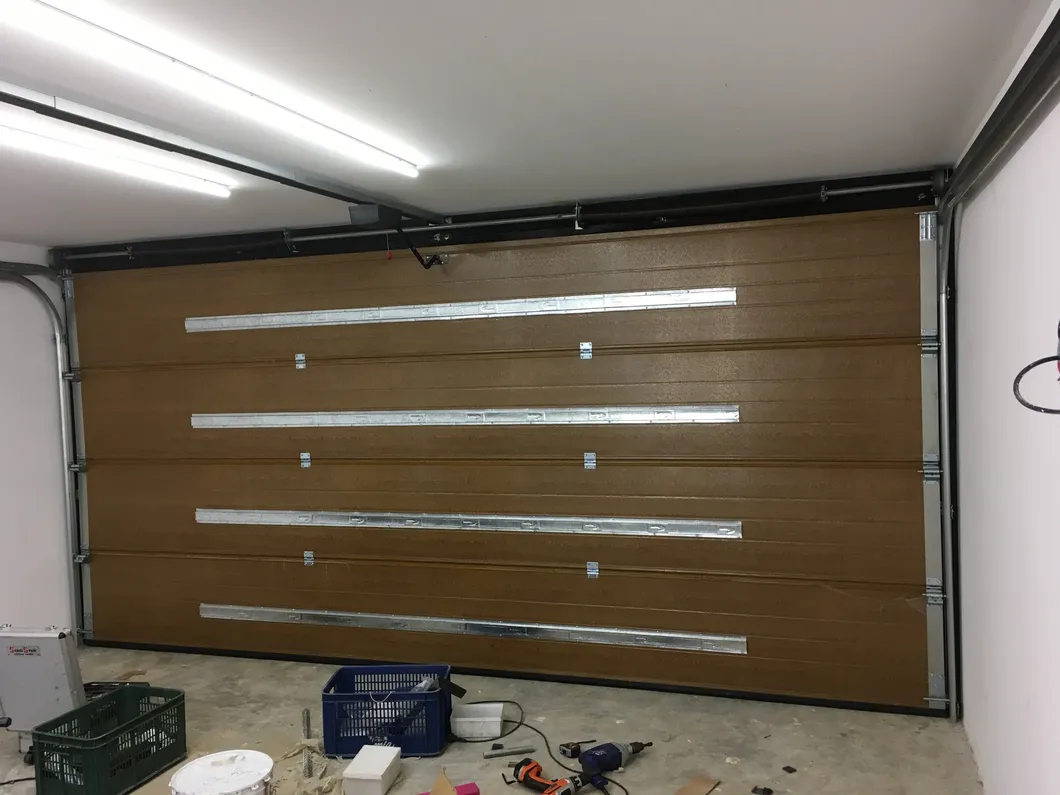

Full set of hardware designed according to EN13241 standards to offer maximum safety.

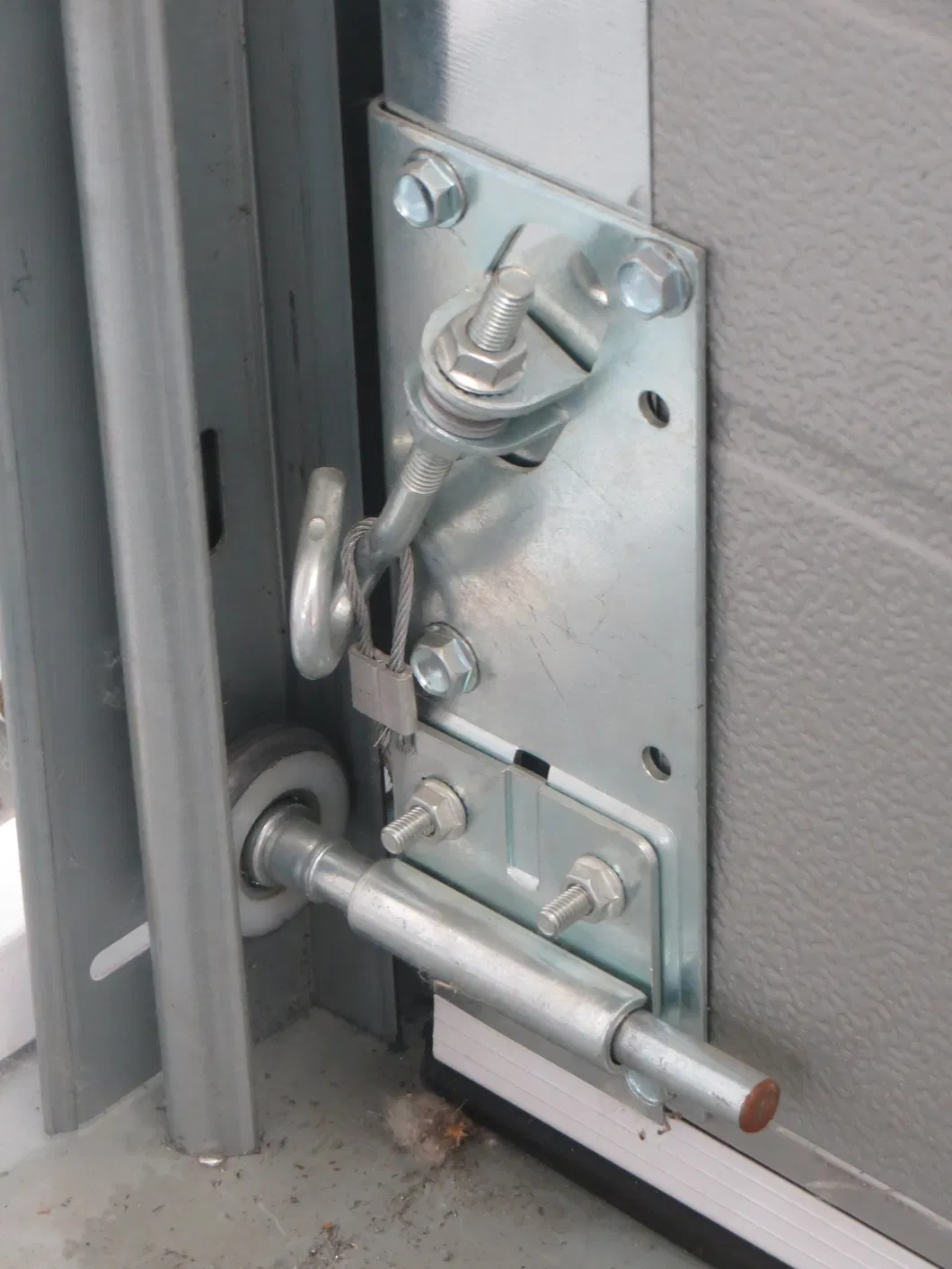

New Bottom Bracket: Keeps the bottom roller in position and allows for easy cable tension adjustment, reducing after-sales service costs.

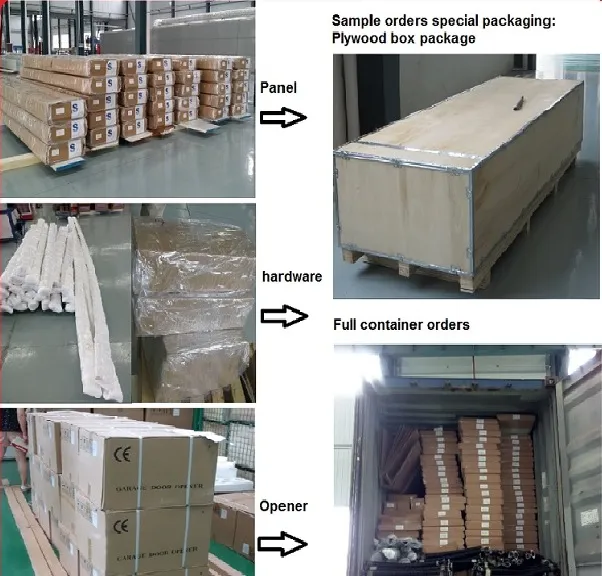

Packaging: Panels are protected by 5mm carton boxes and wrapping film. LCL orders are protected by polywood boxes.
Loading: Approximately 65 single doors (2500*2140) per 20ft container.
