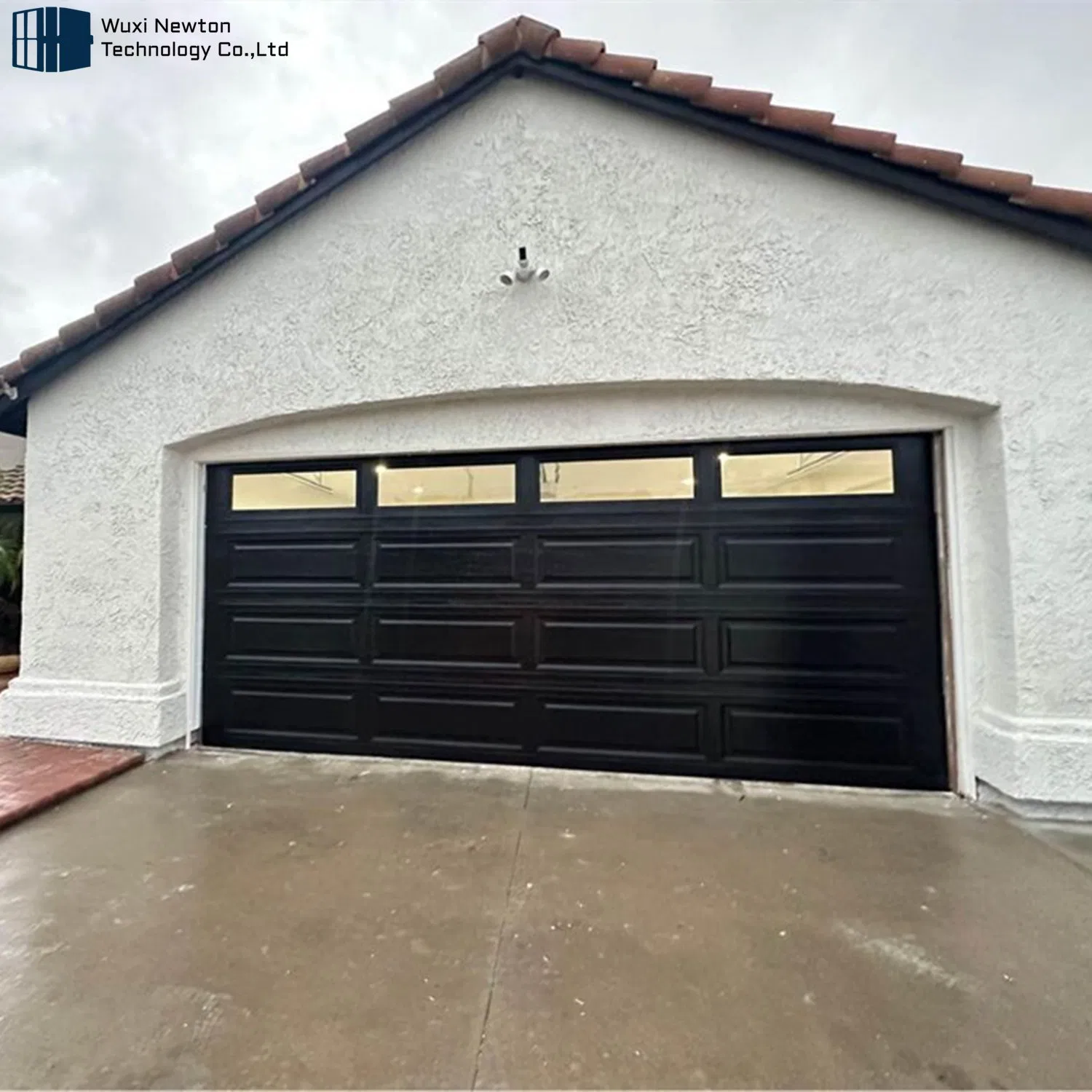

Gerald Doors
1 / 5
| STRUCTURE | FINGER SAFE | NON FINGER SAFE |
|---|---|---|
| Section's height | 450mm, 500mm, 550mm | 500mm, 550mm |
| Section's thickness | 40mm | 43mm, 50mm, 75mm |
| Layer Material | PPGL hot-dipped galvanized steel | |
| Insulation | Polyurethane foam | |

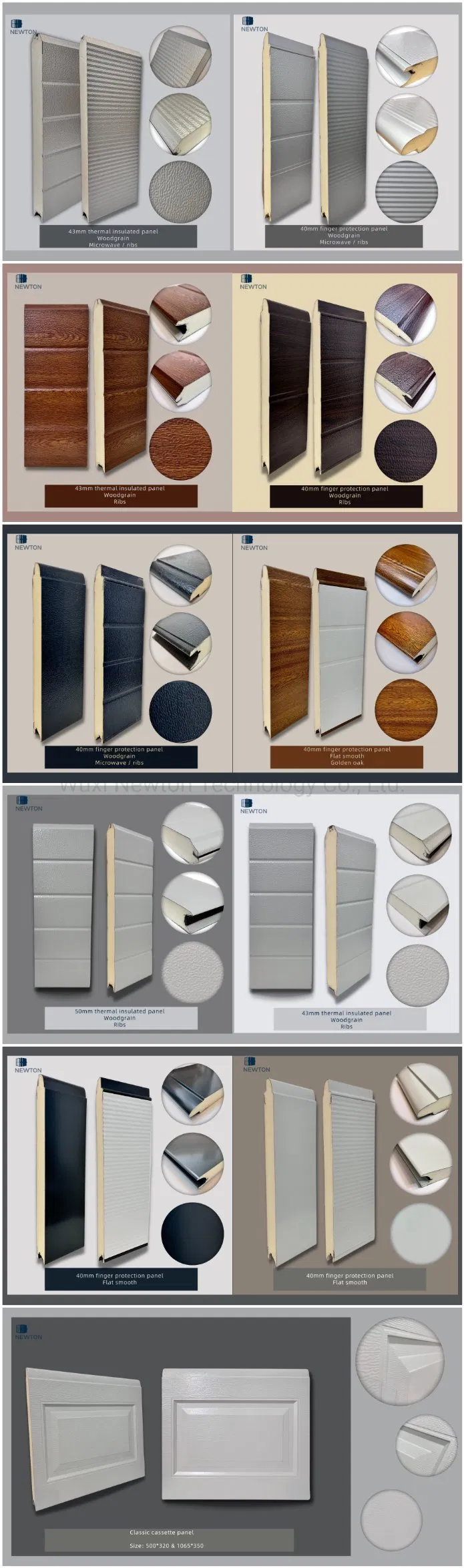

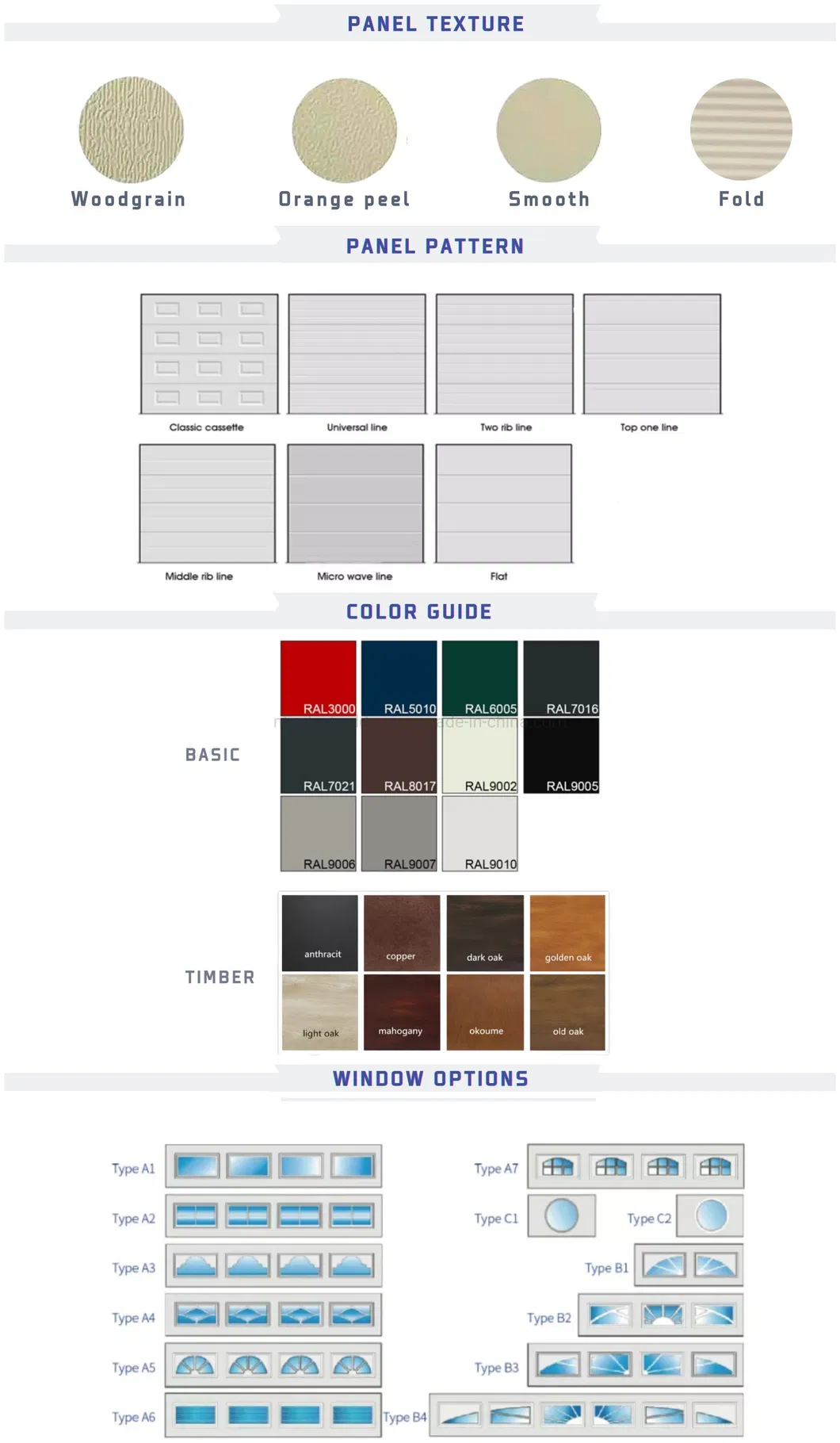

| Surface treatments | Wood grain, Micro-wave, Flat-smooth | |
| Patterns | Strip; H-line; Classic; Micro-wave; Flat-smooth | |

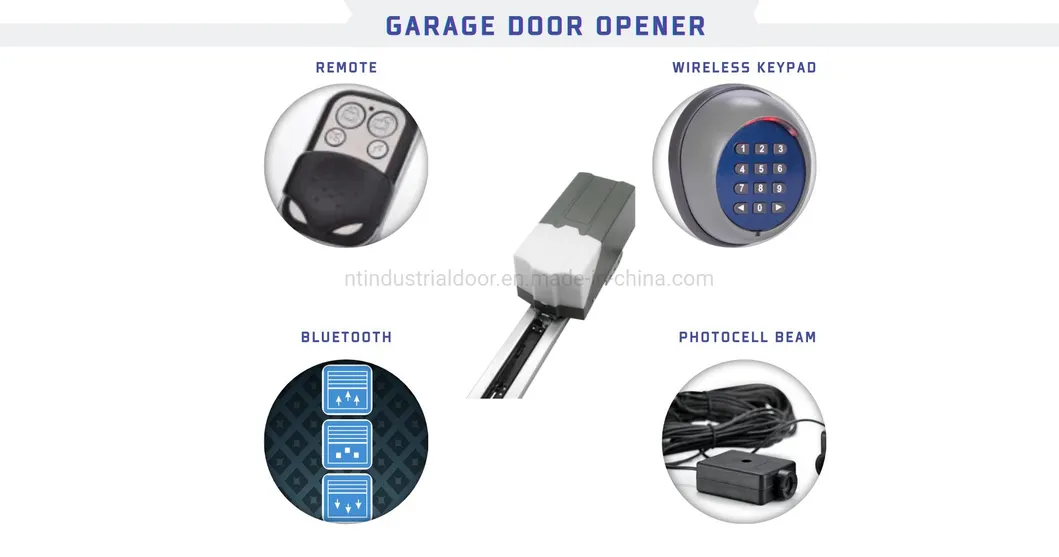

| MODEL | 600N | 800N | 1000N | 1200N |
|---|---|---|---|---|
| Rated power | 200W | 235W | 245W | 260W |
| Max lifting force | 600N | 800N | 1000N | 1200N |
| Opening speed | 180mm/s | |||
| Lamp / Lighting | LED / 3 minutes | |||
| Ambient temp | -20~+40°C | |||
| Door area | 10 m2 | 12 m2 | 14 m2 | 16 m2 |

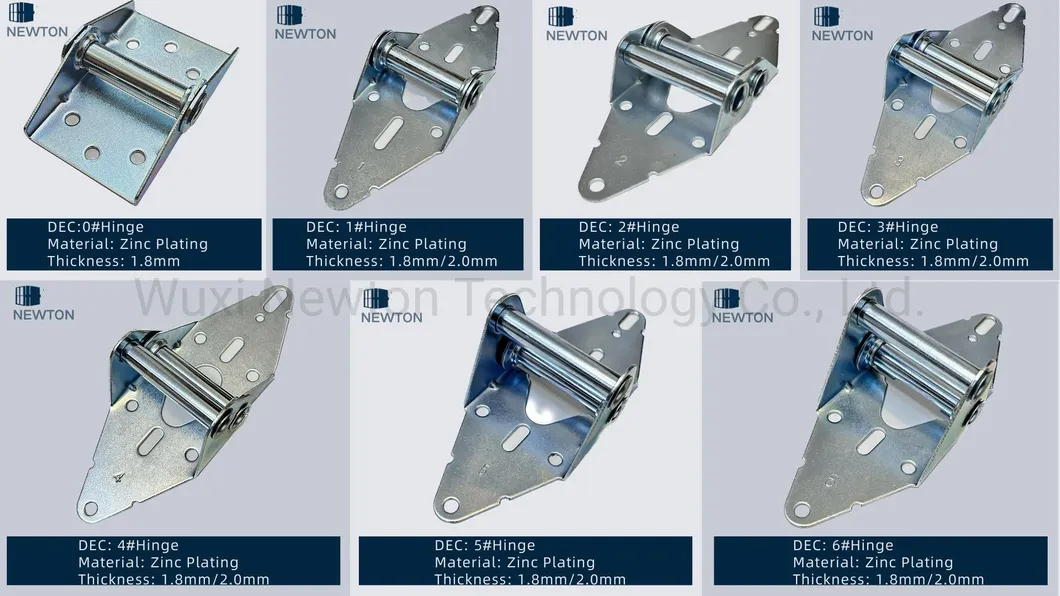

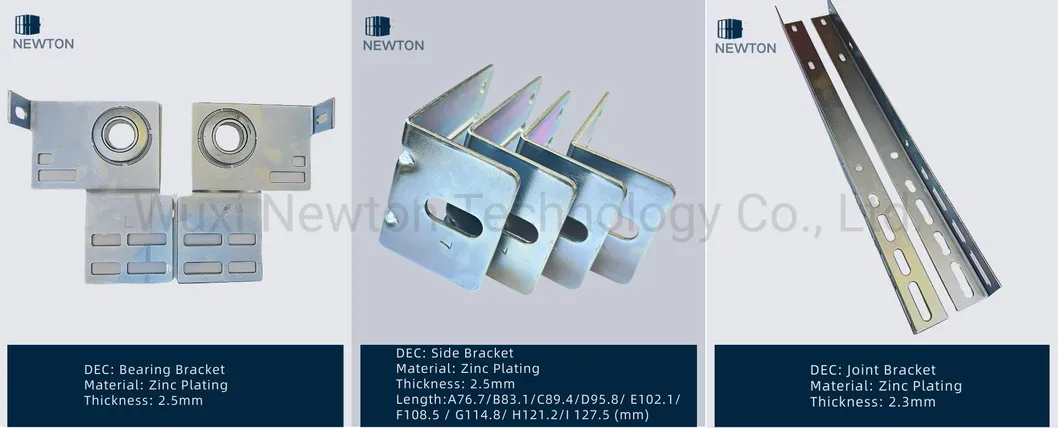

The durability, stability, and safety are our primary concerns. We supply high-quality hardware to meet the latest EN13241-1 standards of Europe. Tracks, hinges, and rackets are made of hot-dipped galvanized steel for long-term rust-free usage.

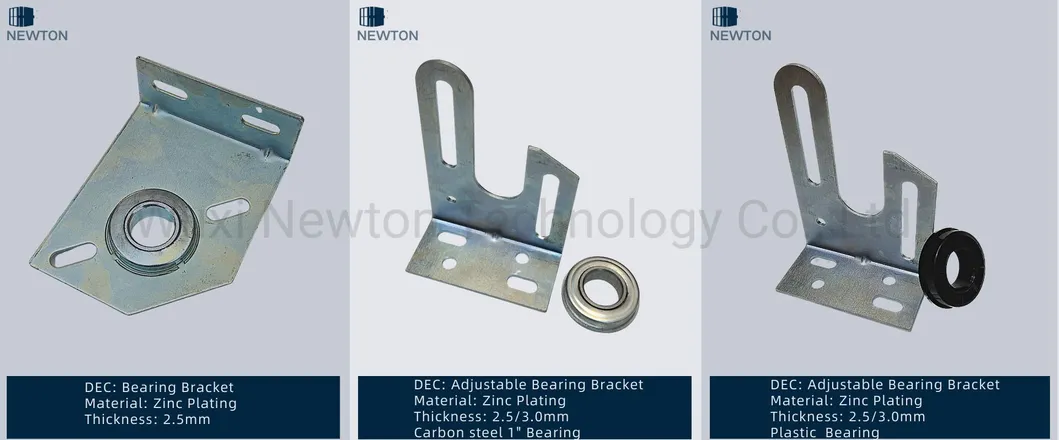

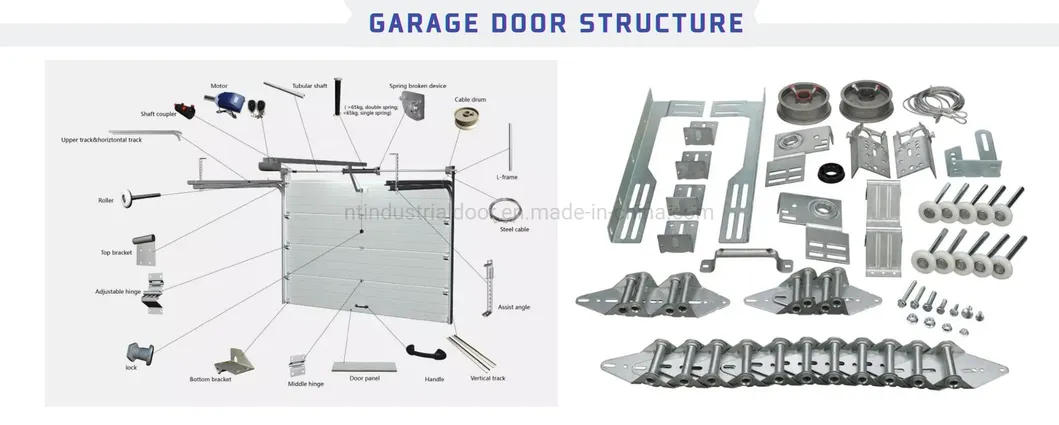

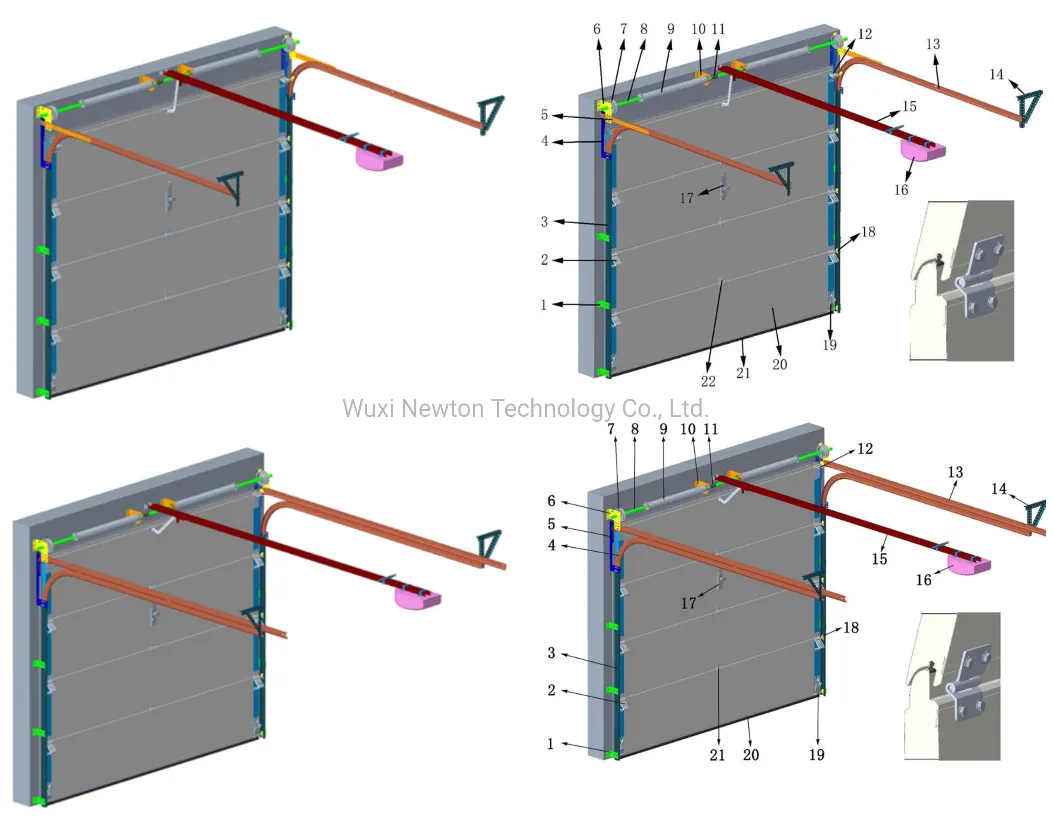

| Single Track Parts | Double Track Parts |
|---|---|
| 1. Track bracket | 1. Track bracket |
| 2. Adjustable side hinge | 2. Adjustable side hinge |
| 3. Vertical track | 3. Vertical track |
| 13. Horizontal track | 4. Horizontal track |
| 16. Motor | 16. Motor |
| 20. Panel | 20. Bottom seal |

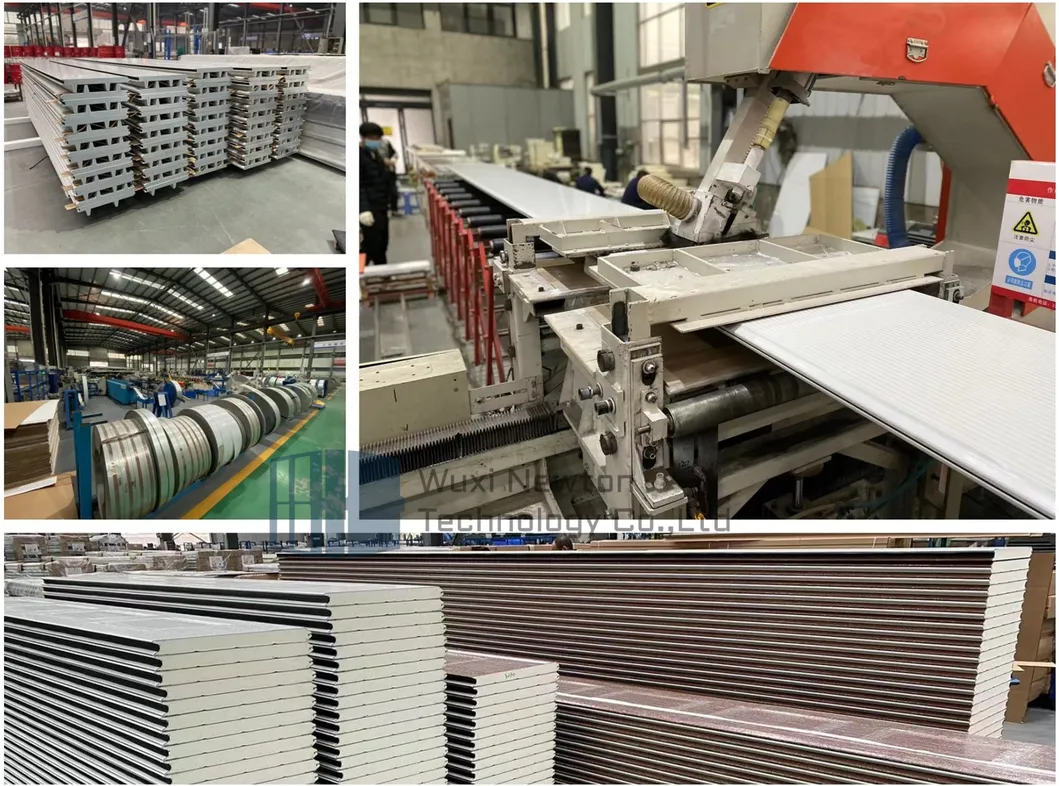

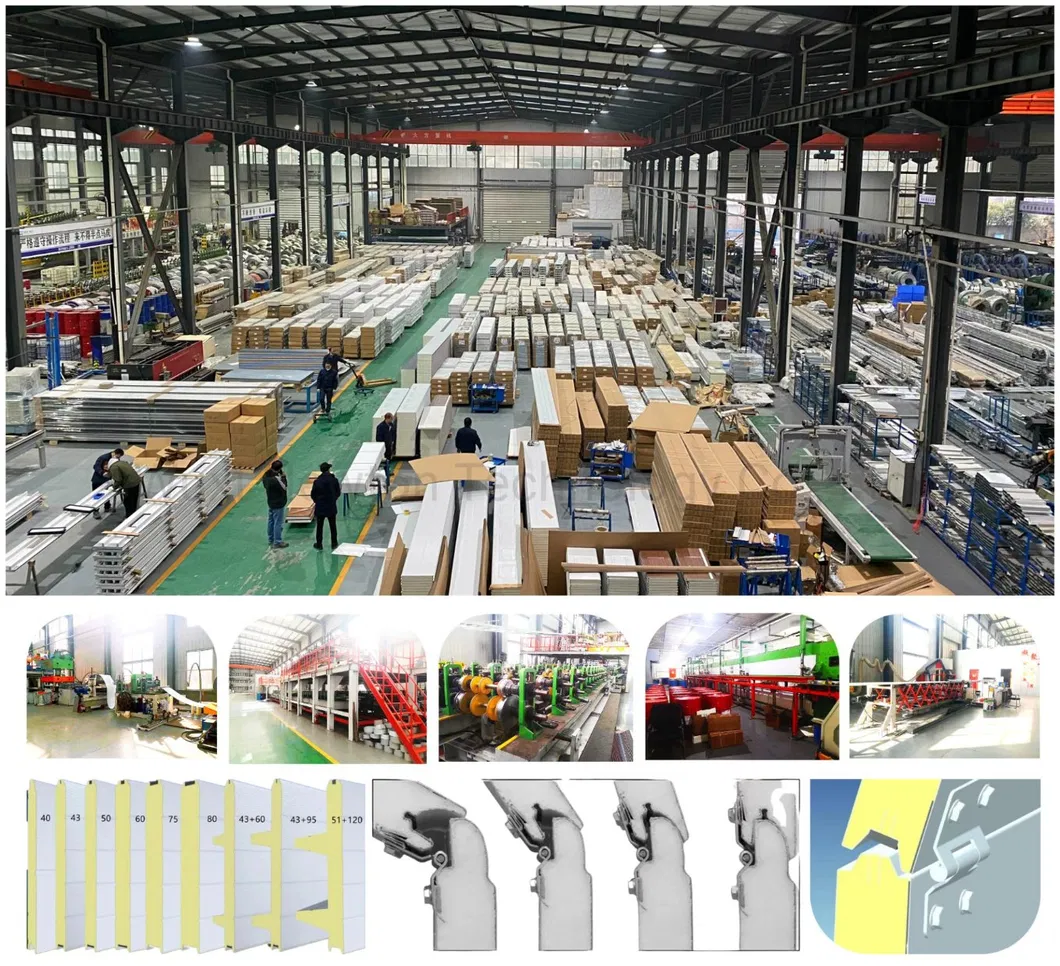

We are a specialized manufacturer in the field of automatic doors in China, including automatic folding doors, industrial sectional doors, high-speed roll-up doors, and garage doors. Our team has been involved in this industry since 2000, providing optimal solutions and strong support to global clients. We precision-control all stages through skilled operators and technicians to help our customers grow their businesses.
