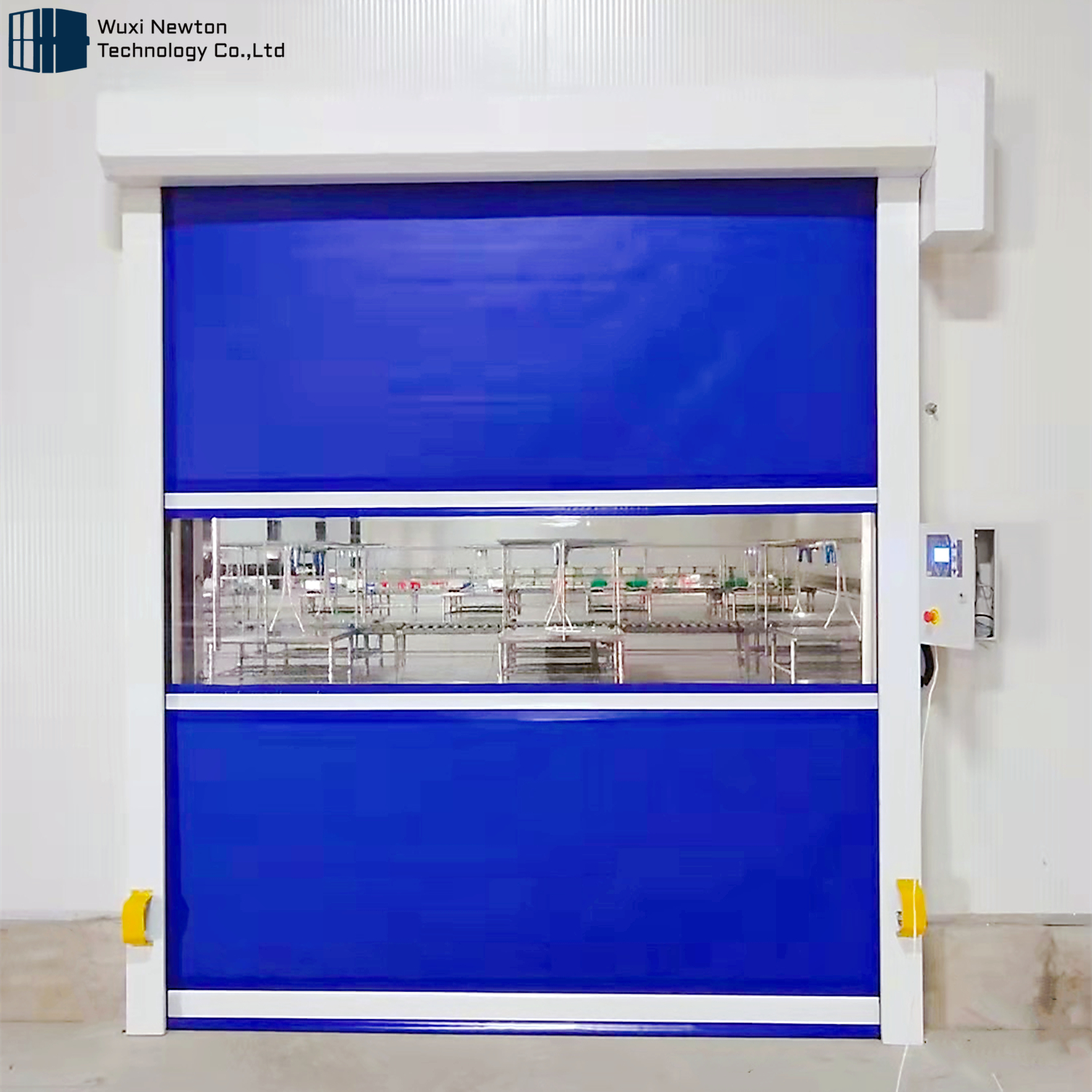

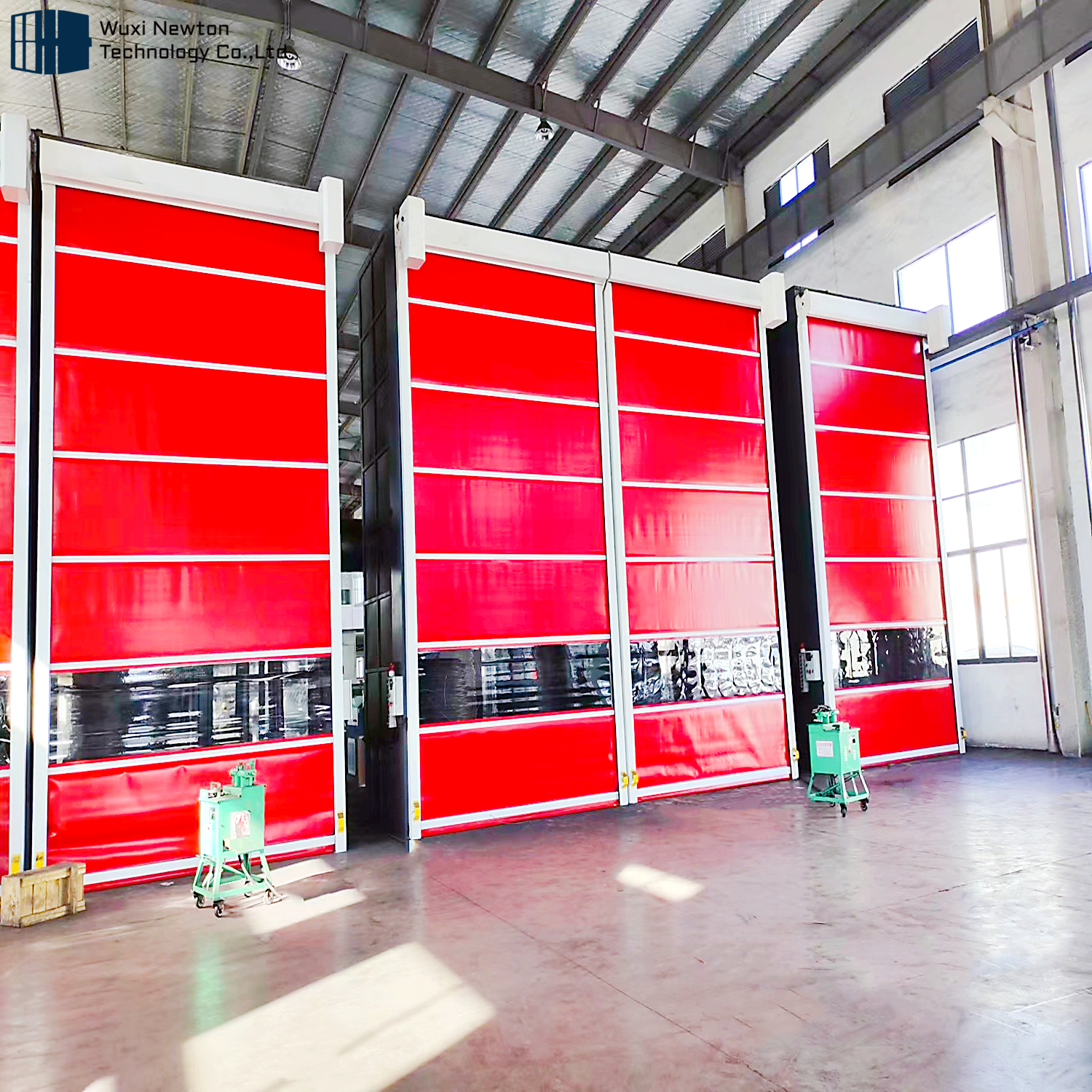

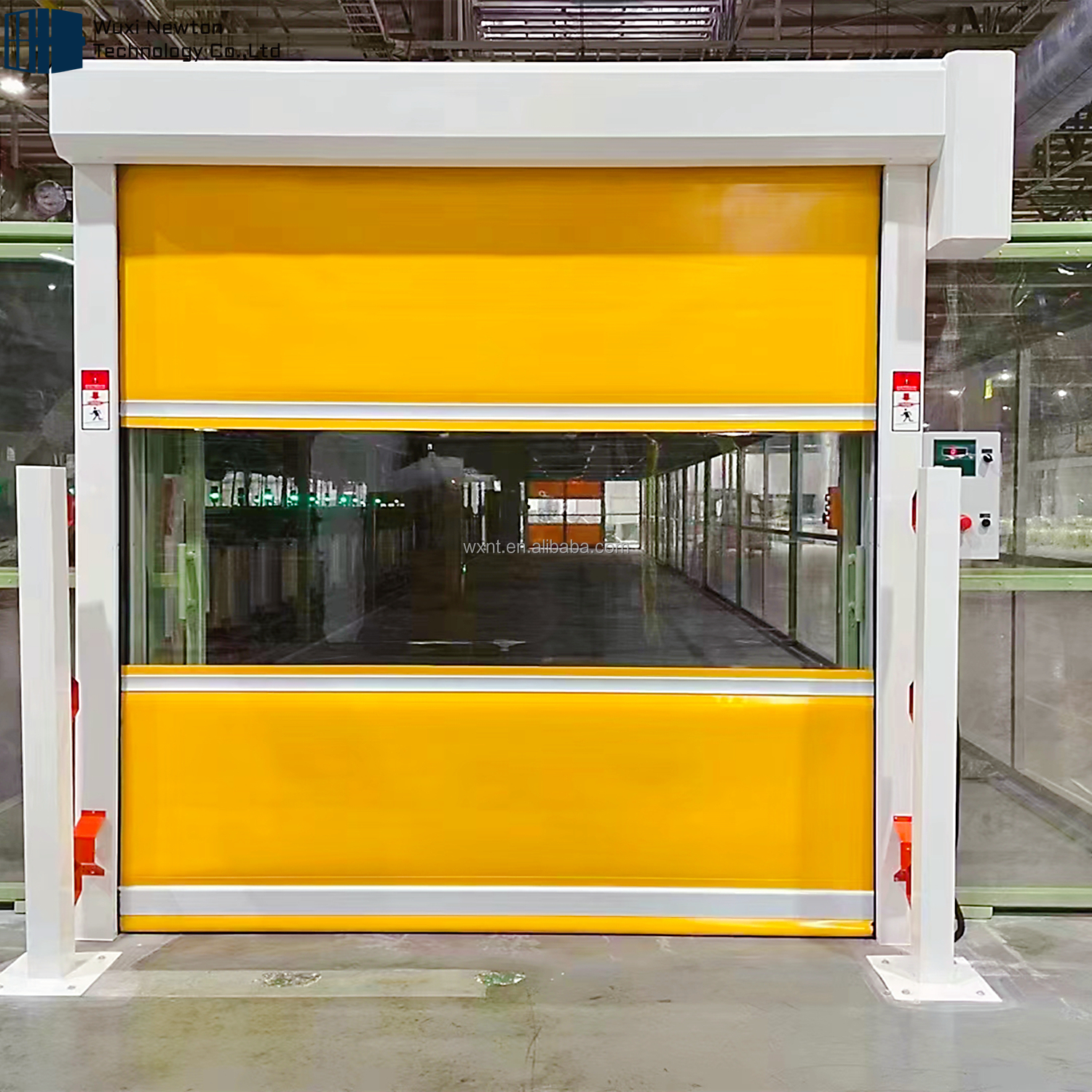

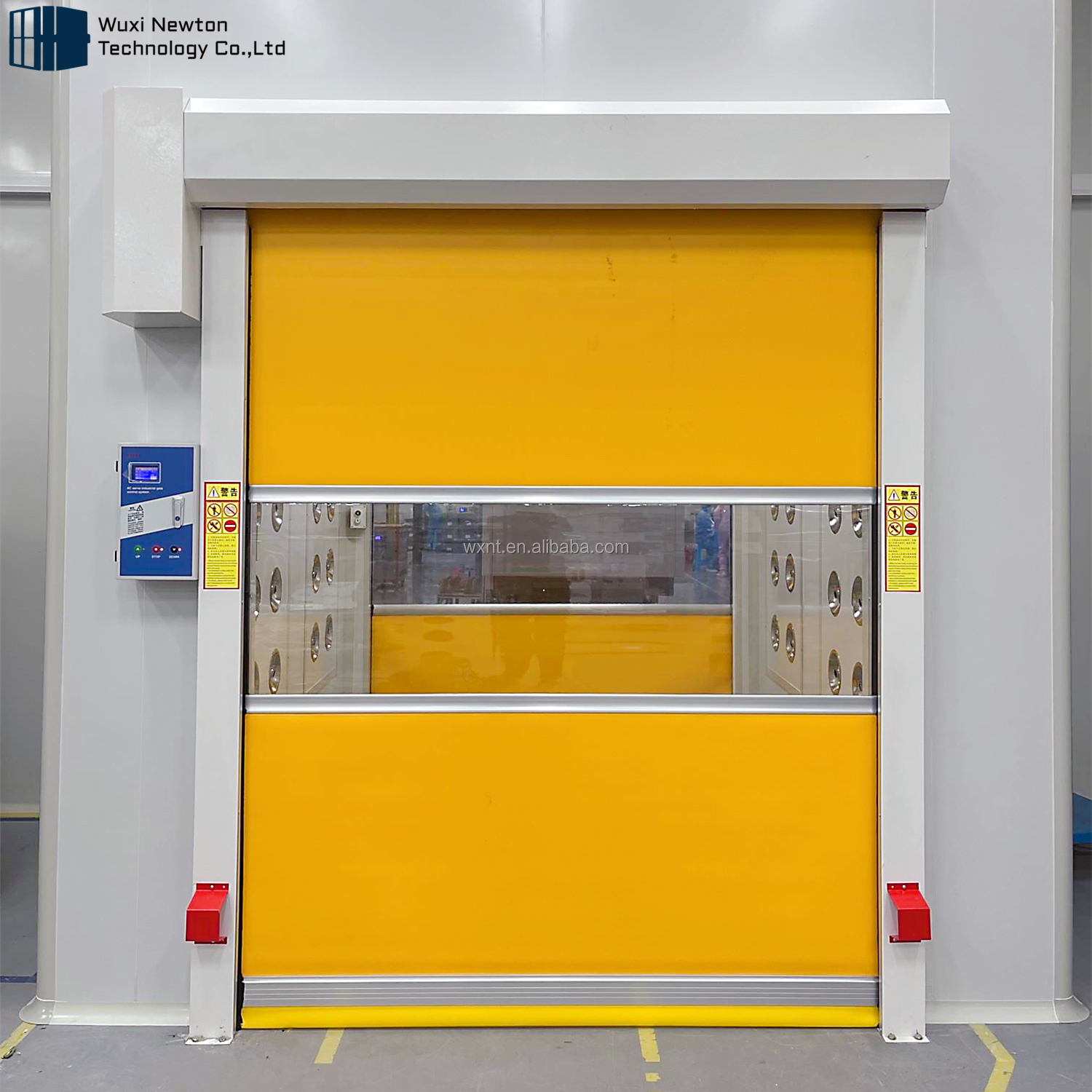

| Product Name | PVC High Speed Rolling Up Door |
| PVC Material | High Strength Polyethylene |
| Door Rib Material | Aluminum Alloy |
| Opening/Closing Speed | 0.8-1.5m/Sec |
| Control Box | Digital Tube, Frequency Conversion Control System |
| Power Supply | 220V |
| Max. Size | 5500*6500mm |
| Visible Window Thickness | 1.5mm |
| Safety Configuration | Infrared, Pressure Airbag, Warning Light |

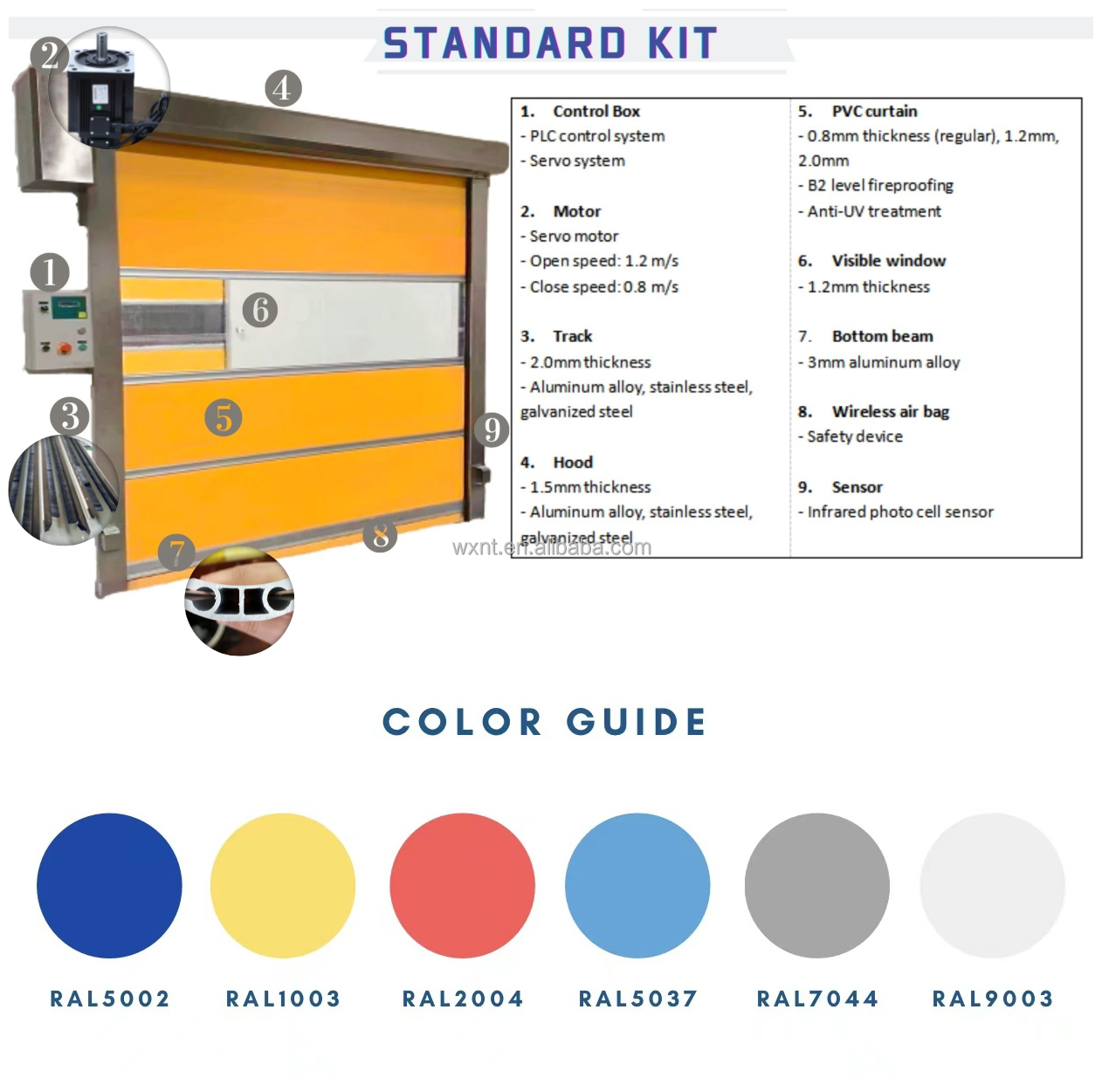

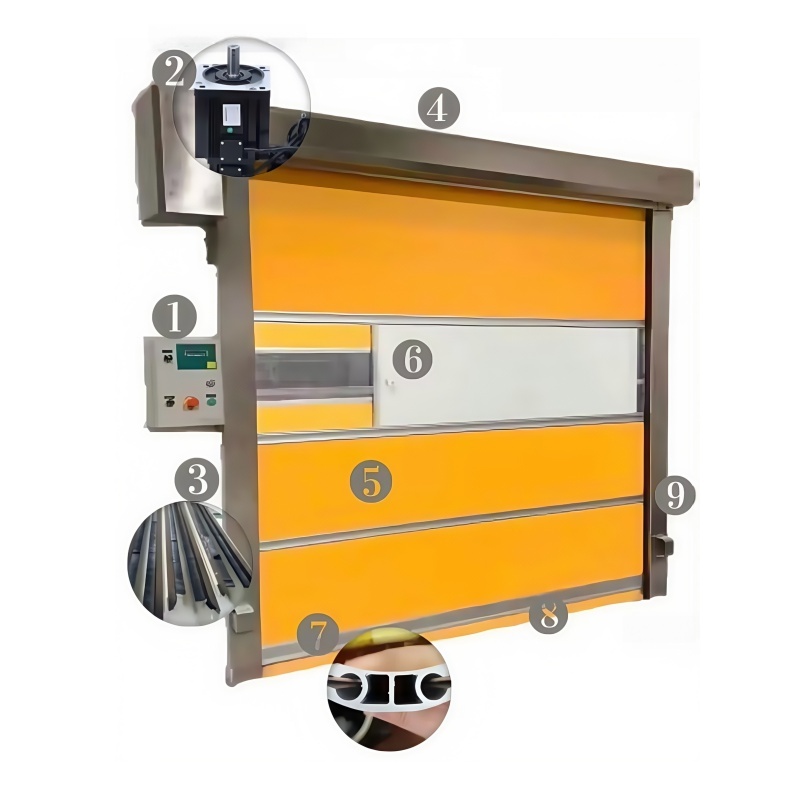

- PLC control system
- Servo system
- Servo motor
- Open speed: 1.2m/s
- Close speed: 0.8m/s
- 2.0mm thickness
- Aluminum alloy, stainless steel, galvanized steel
- 1.5mm thickness
- Aluminum alloy, stainless steel, galvanized steel
- 0.8mm (regular), 1.2mm, 2.0mm thickness
- B2 level fireproofing
- Anti-UV treatment
- 1.2mm thickness
- 3mm aluminum alloy

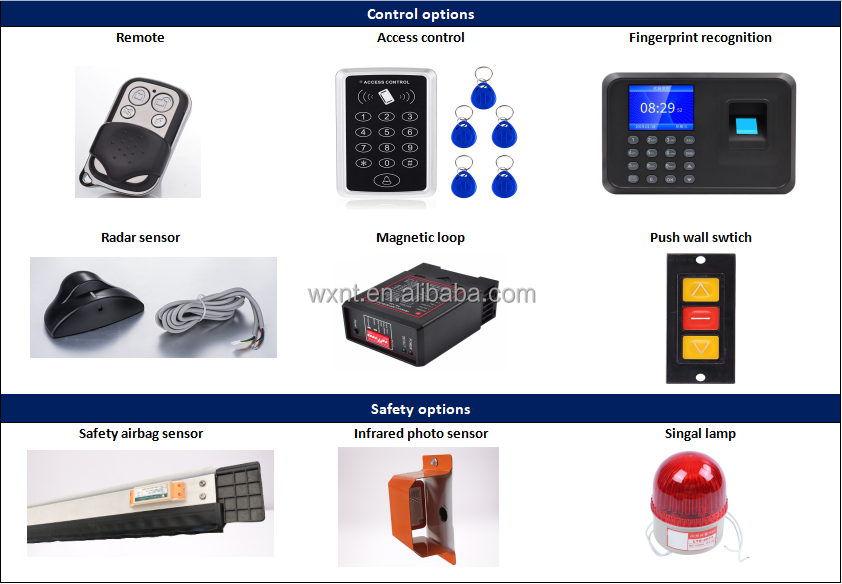

- Safety device

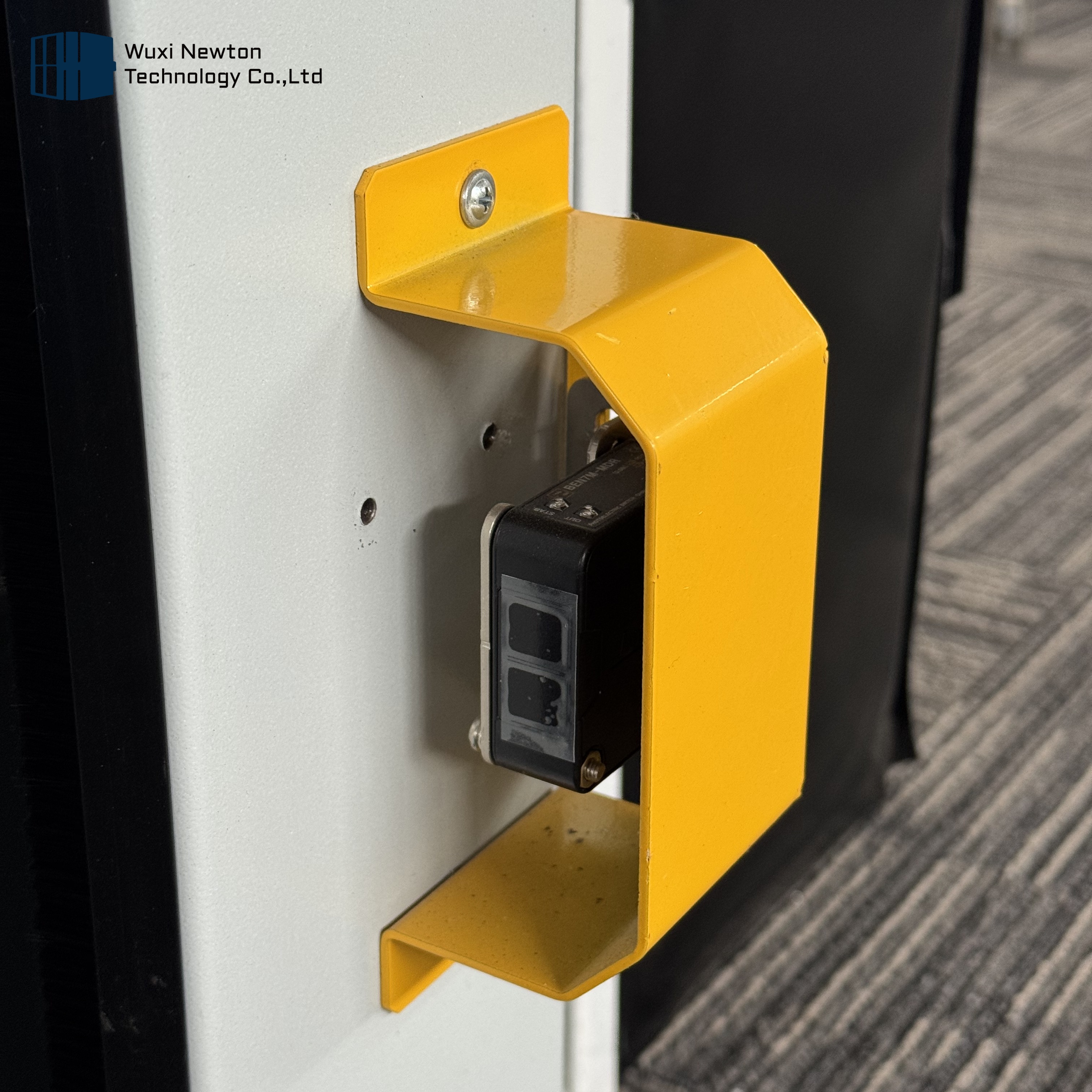

- Infrared photo cell sensor

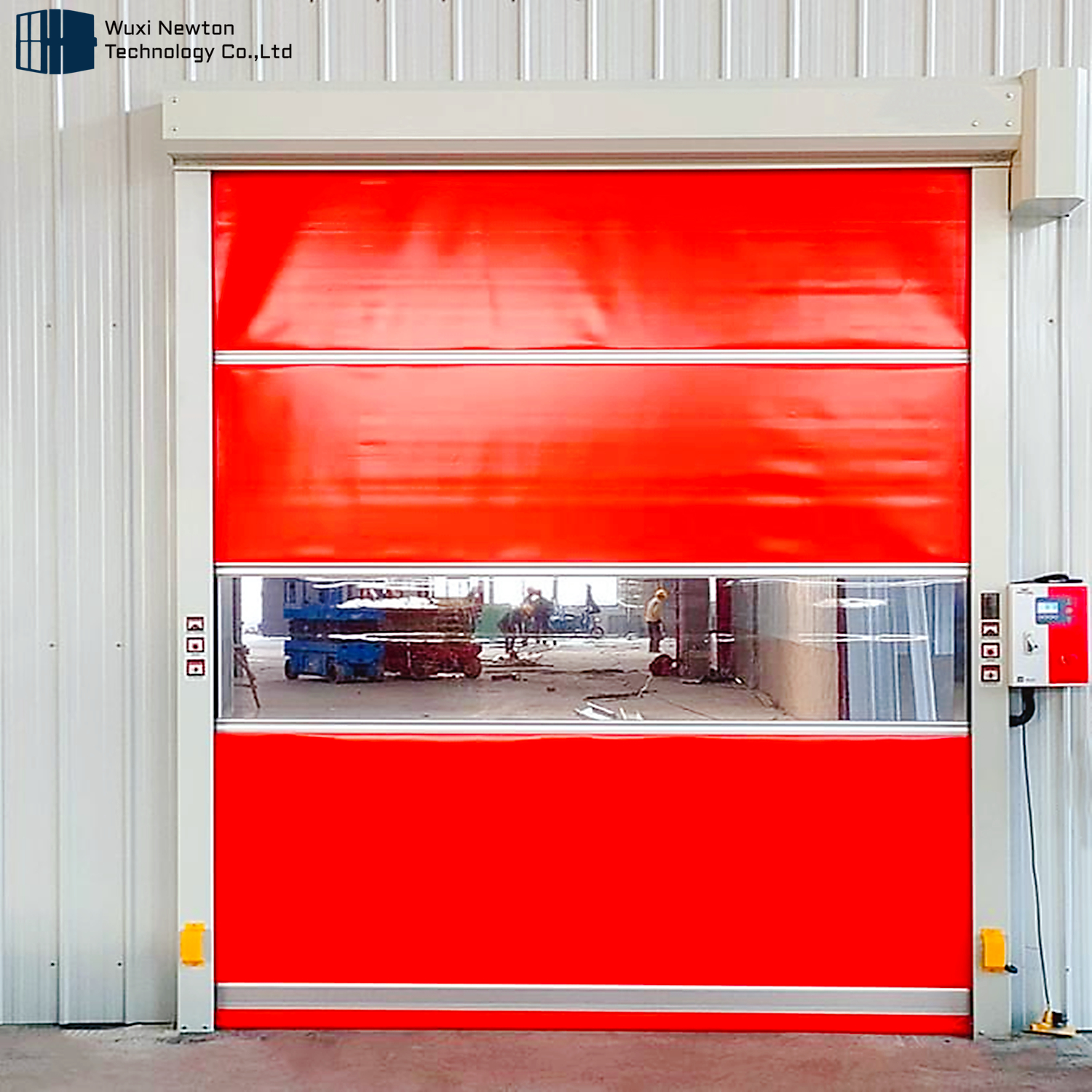

The PVC fast door adopts the design of built-in horizontal aluminum alloy wind-resistant reinforcement ribs to effectively disperse the wind load, prevent the door curtain from bulging and deforming under strong winds.

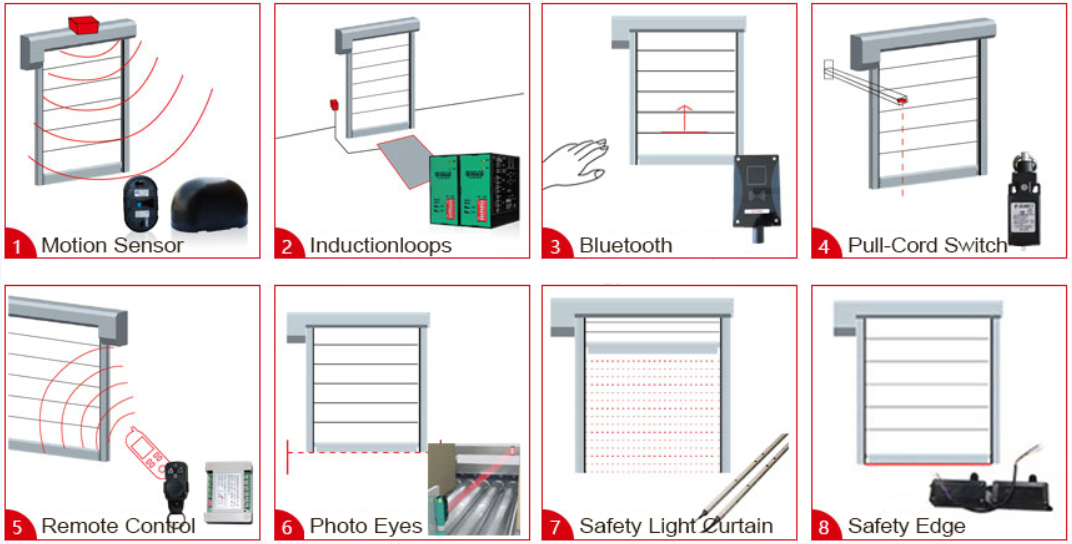

Equipped with sensors, safety edges, and emergency stop functions to prevent accidents and protect personnel/equipment.

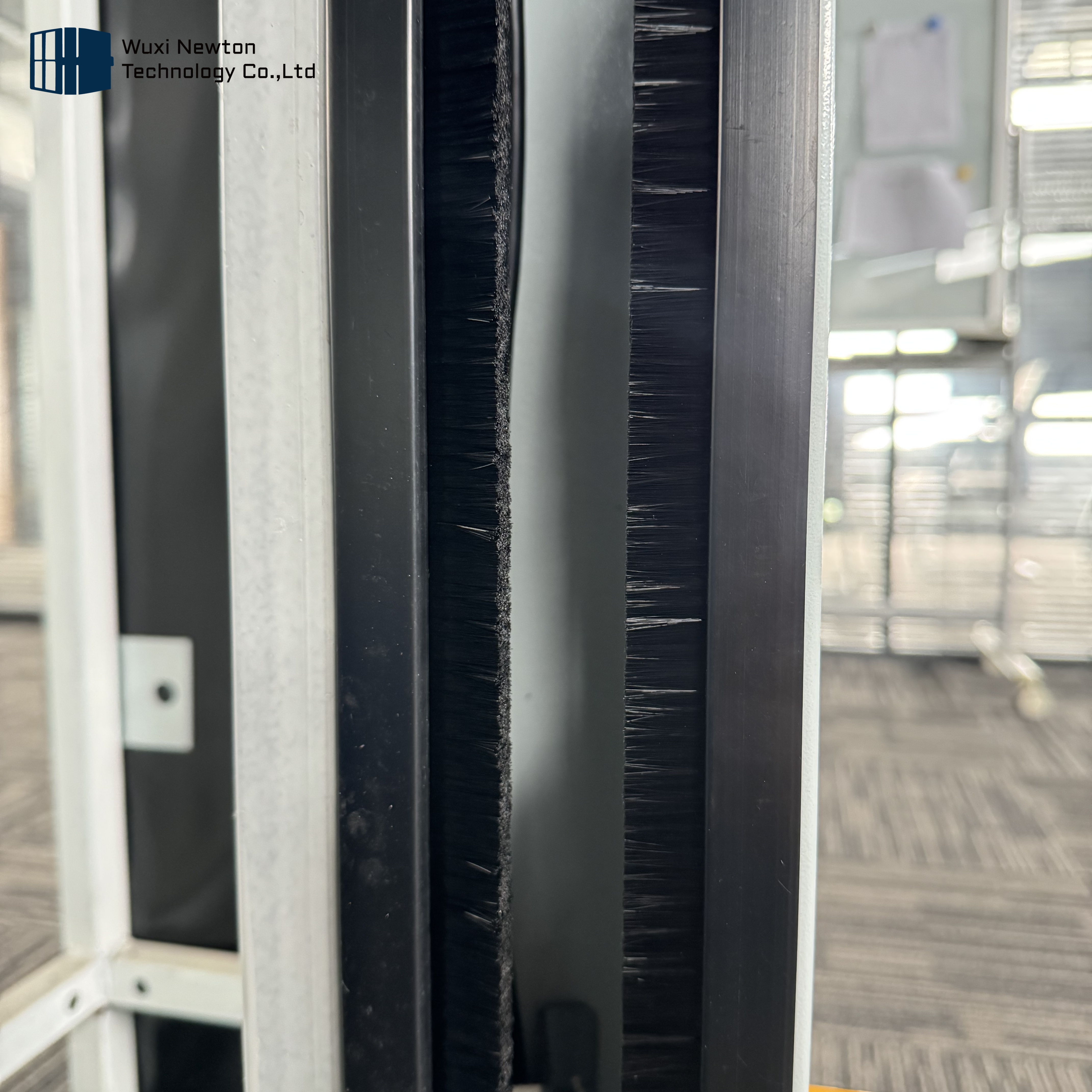

The bottom is equipped with elastic PVC for tight connection on uneven floors. The frame adopts a super elastic sealing brush for partition effects.

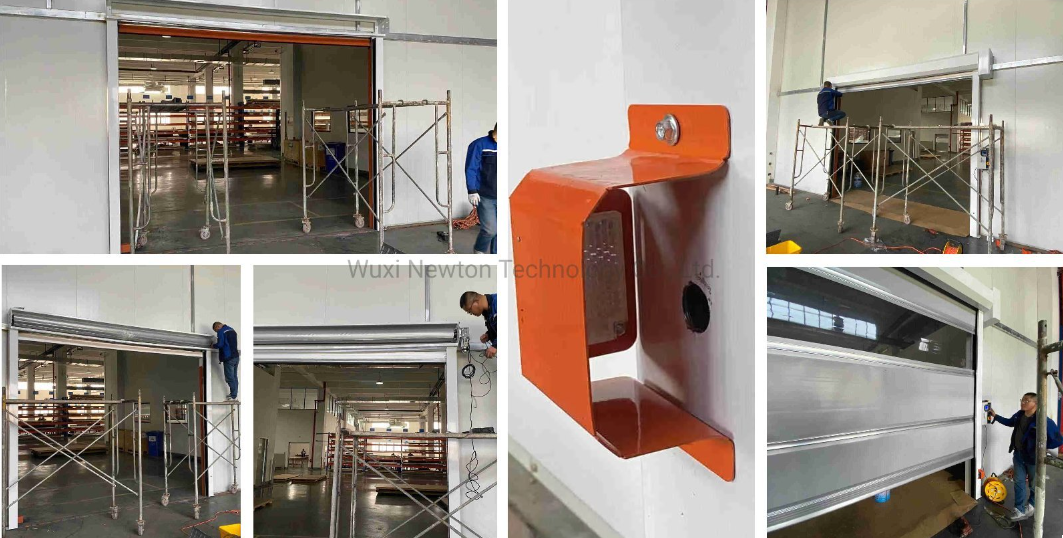

| Step 1 | Door steel frame installation |
| Step 2 | Door curtain installation |
| Step 3 | Mount the motor |
| Step 4 | Mount the door cover |
| Step 5 | Infrared detection or other safety device installation |
| Step 6 | Speed and stroke debug |

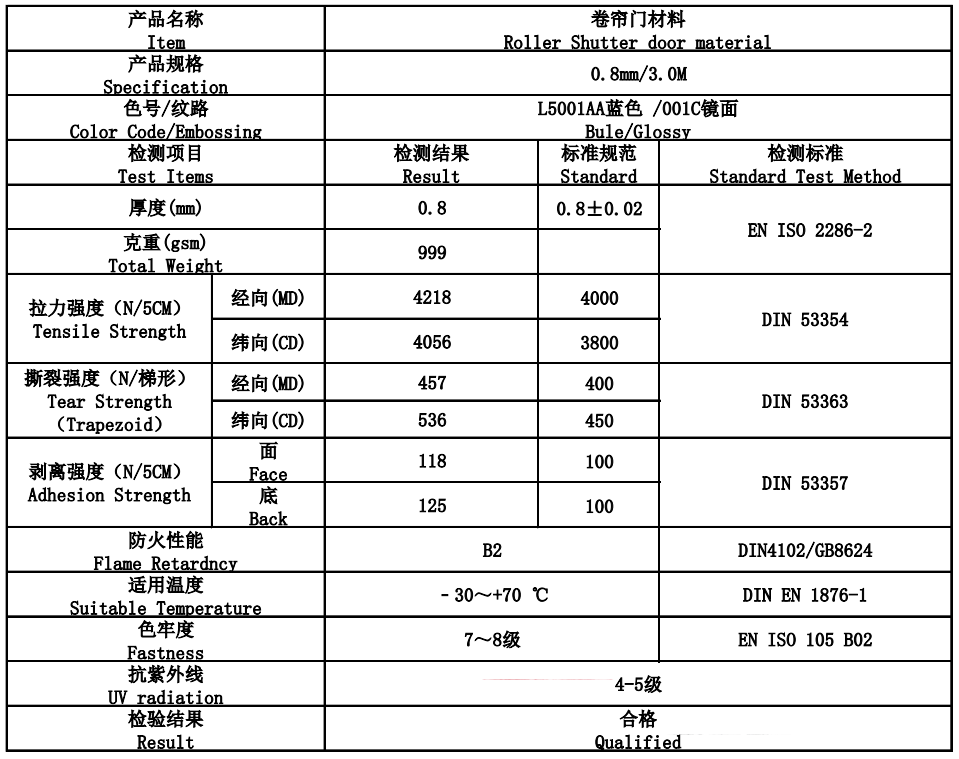

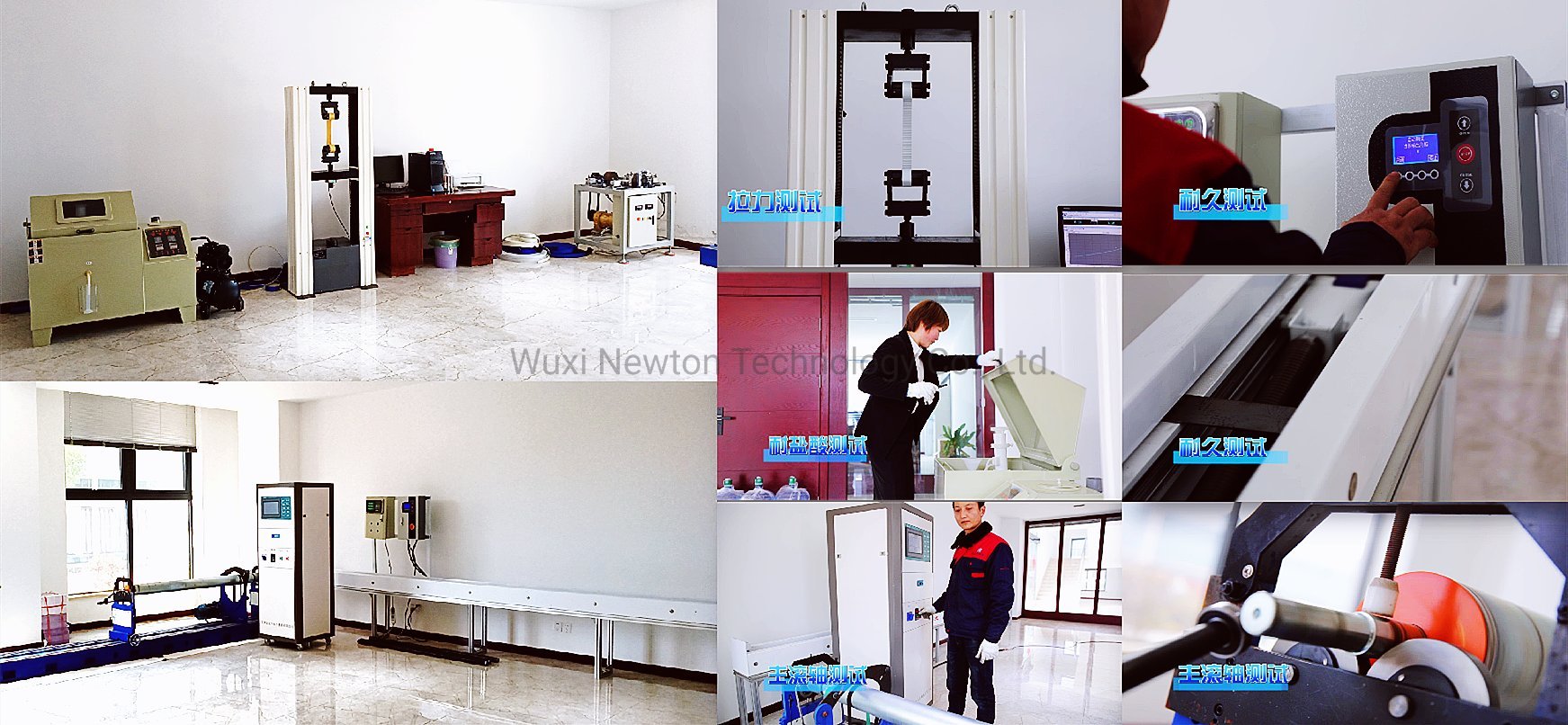

To assure quality, we perform rigorous lab testing:
