Gerald Doors
1 / 5
| Door Material | A40 Galvanized steel or galvanealed. Heavy Duty, SDI Level 2-(1.1 mm) 18-Gauge Steel Face Sheets for doors, (1.4 mm) 16 gauge for frame-(16 Ga. 20 Ga. Available) |
| Door Core | Honeycomb Core or Polystyrene Core mineral fireboard / rock wool |
| Door Thickness | 1-3/4 inch (44.5 millimeters) AS standard |
| Door Design | Asymmetric design; reversible hinge plate; High definition embossed panels |
| Door Size | Single door: up to 4'0" x 8'0" (1220 x 2440mm); Double doors: up to 8'0" x 8'0" (2400 x 2400mm). Custom sizes available. |
| Reinforcements | Heavy Gauge steel for Door Closer, Hinge, and Lock Reinforcements |
| Channels | 16-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap |
| Door Finish | Gray Primer / Finish Paint / Powder coating / Wood grain finished |
| Standard Preps | 161 (cylindrical lock), 86 Edge (mortise lock), RPD (Panic Bar Reinforced) |

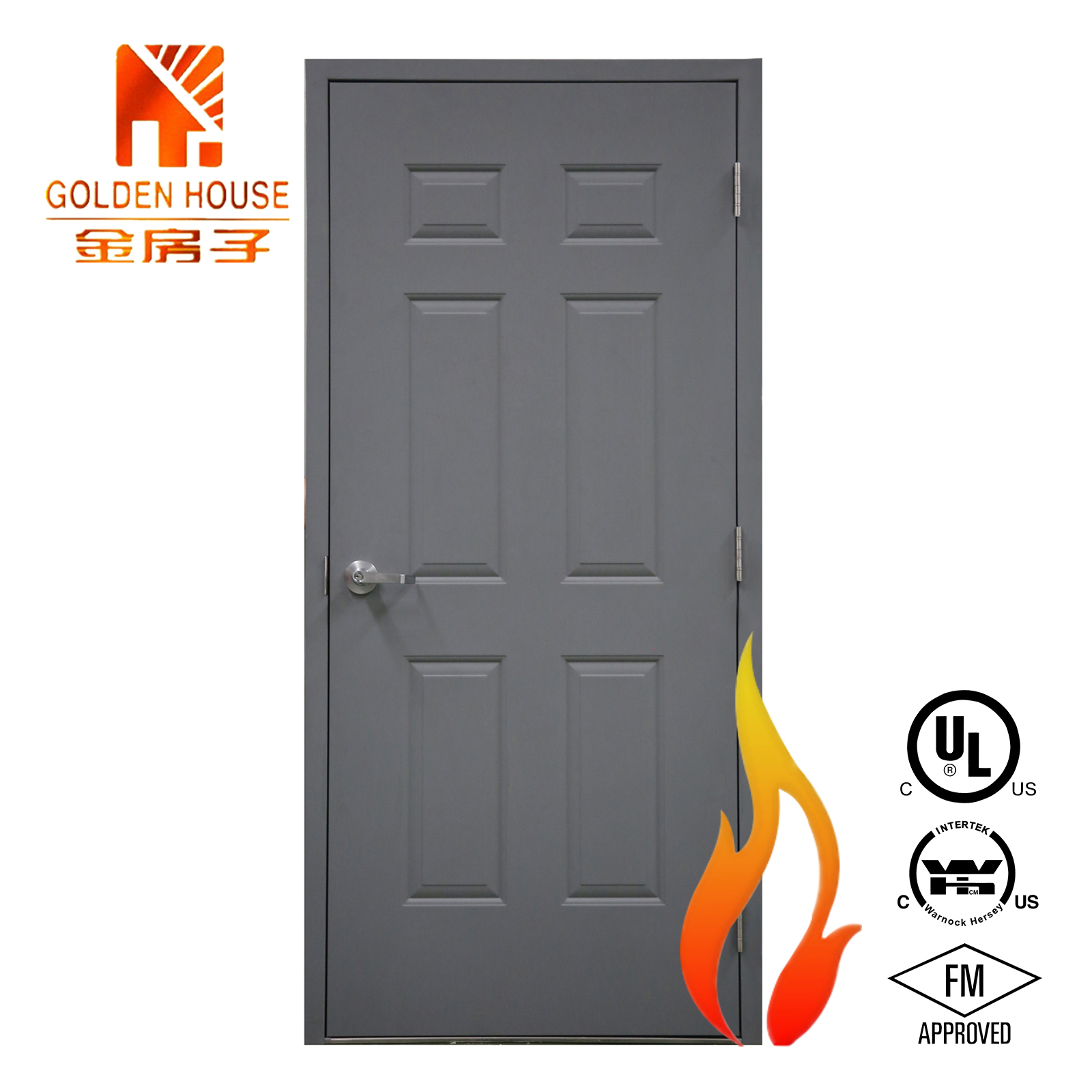

| Fire-Rating | Optional - WHI 90 Mins Fire-Rating, Positive Pressure and "S" Smoke included |
