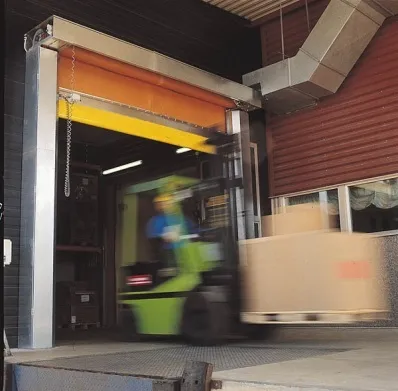

Detection only of vehicles moving towards the sensor

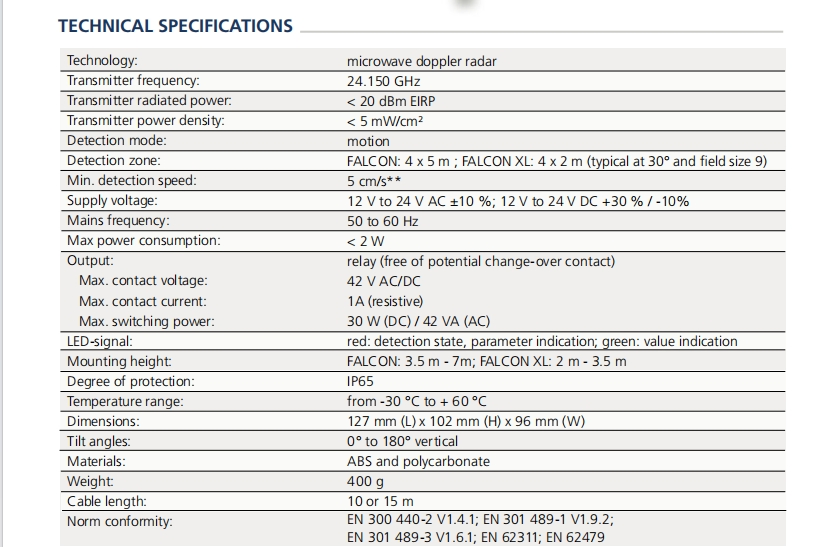

Technical Specifications
Radar Technology
TechnologyMicrowave doppler radar
Transmitter Frequency24.150 GHz
Radiated Power< 20 dBm EIRP
Detection ModeMotion (< 5 mW/cm²)
Detection Performance

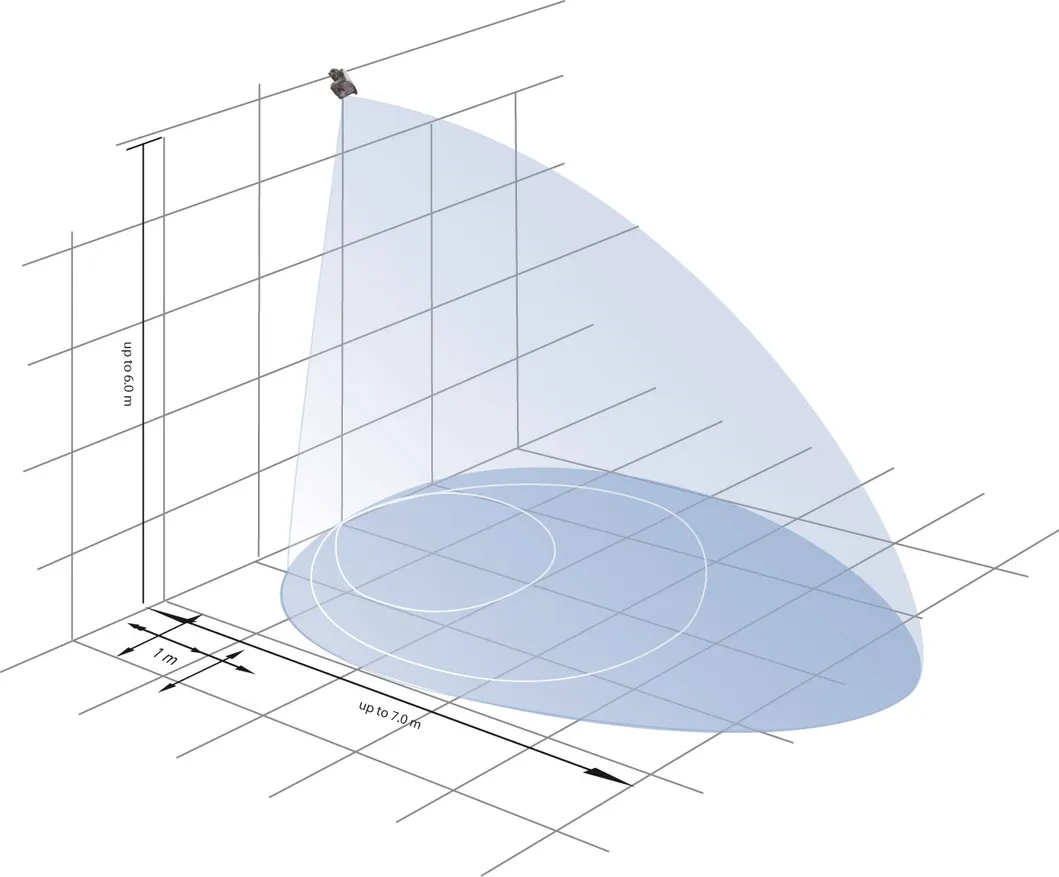

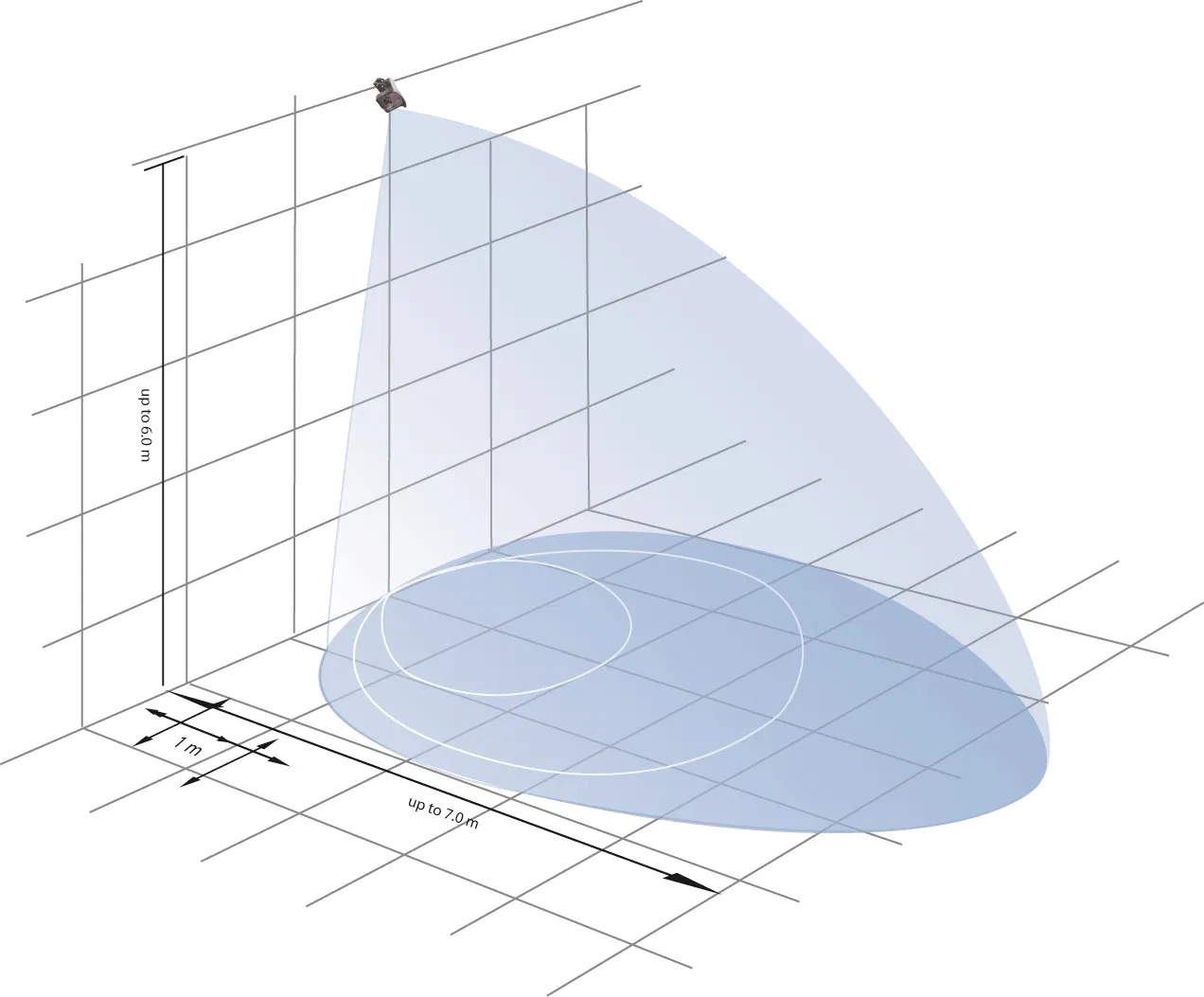

Detection Zone (Falcon)4 x 5 m (typical at 30° & size 9)
Detection Zone (Falcon XL)4 x 2 m (typical at 30° & size 9)
Min. Detection Speed5 cm/s**
Mounting Height (Falcon)3.5 m - 7 m
Mounting Height (Falcon XL)2 m - 3.5 m
Electrical & Outputs
Supply Voltage12V-24V AC ±10% / 12V-24V DC +30%/-10%
Mains Frequency50 to 60 Hz
Power Consumption< 2 W
OutputRelay (potential-free contact)
Max. Contact Current1A (resistive)
Max. Switching Power30 W (DC) / 42 VA (AC)
Physical & Environmental
Degree of ProtectionIP65
Temperature Range-30 °C to +60 °C
Dimensions127 mm (L) x 102 mm (H) x 96 mm (W)
Tilt Angles0° to 180° vertical
MaterialsABS and polycarbonate
Weight & Cable400 g / 10 m or 15 m
Indicators & Certifications
LED-SignalRed: detection state & parameters; Green: value indication
Norm ConformityEN 300 440-2 V1.4.1; EN 301 489-1 V1.9.2; EN 301 489-3 V1.6.1; EN 62311; EN 62479

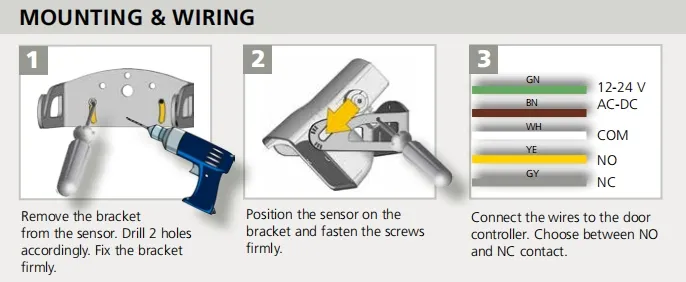

Installation Instructions

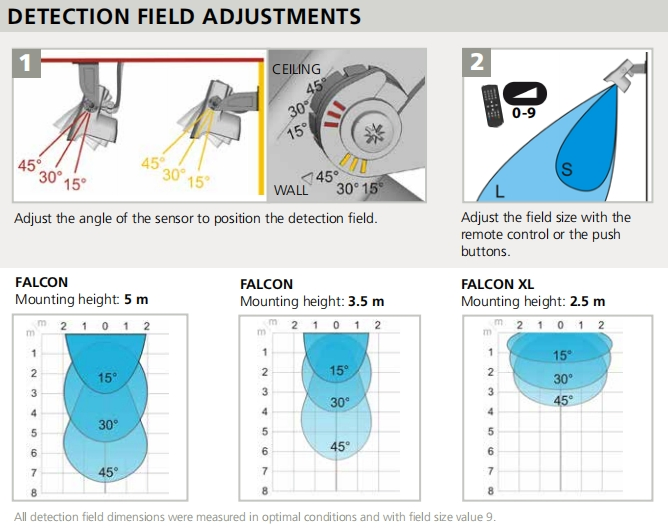

Performance
After Sales Service
7*24 online support
1vs1 expert service
Quickly response time
Site support

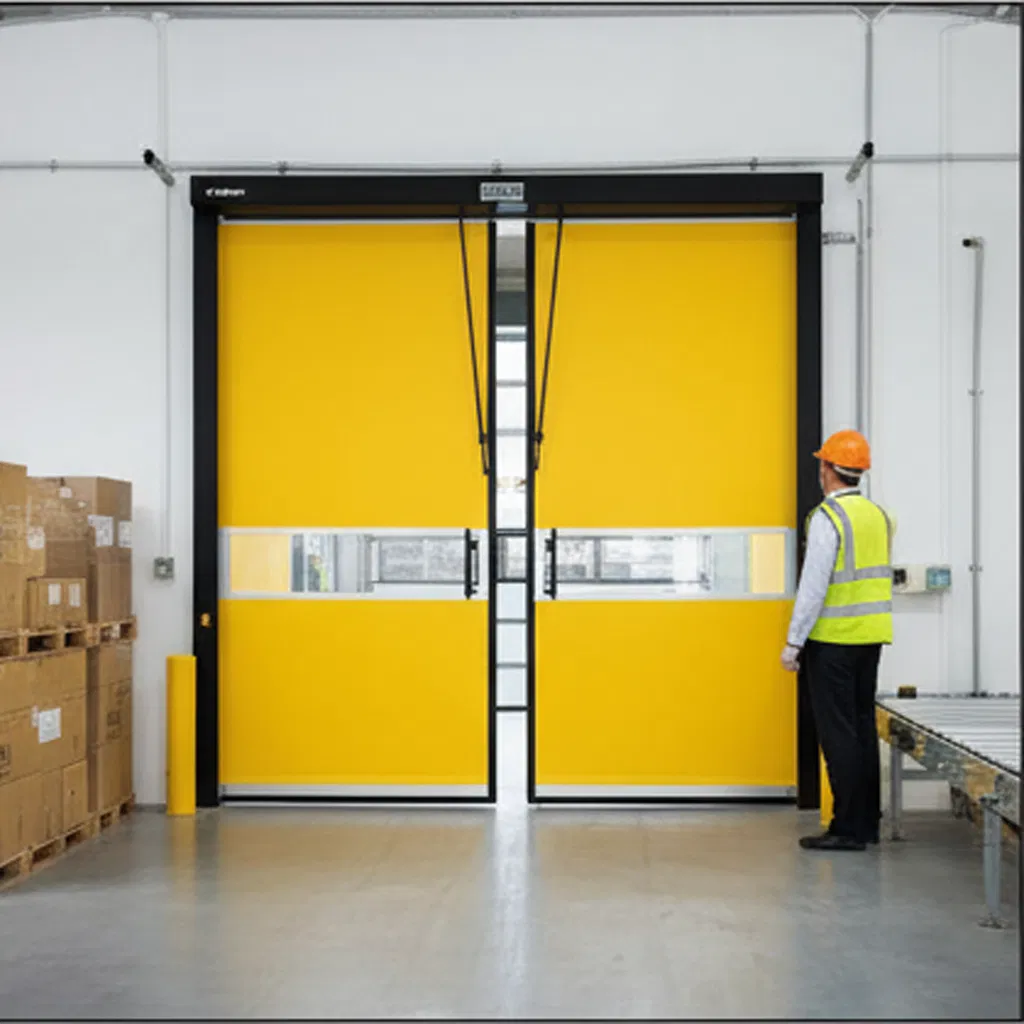

Application

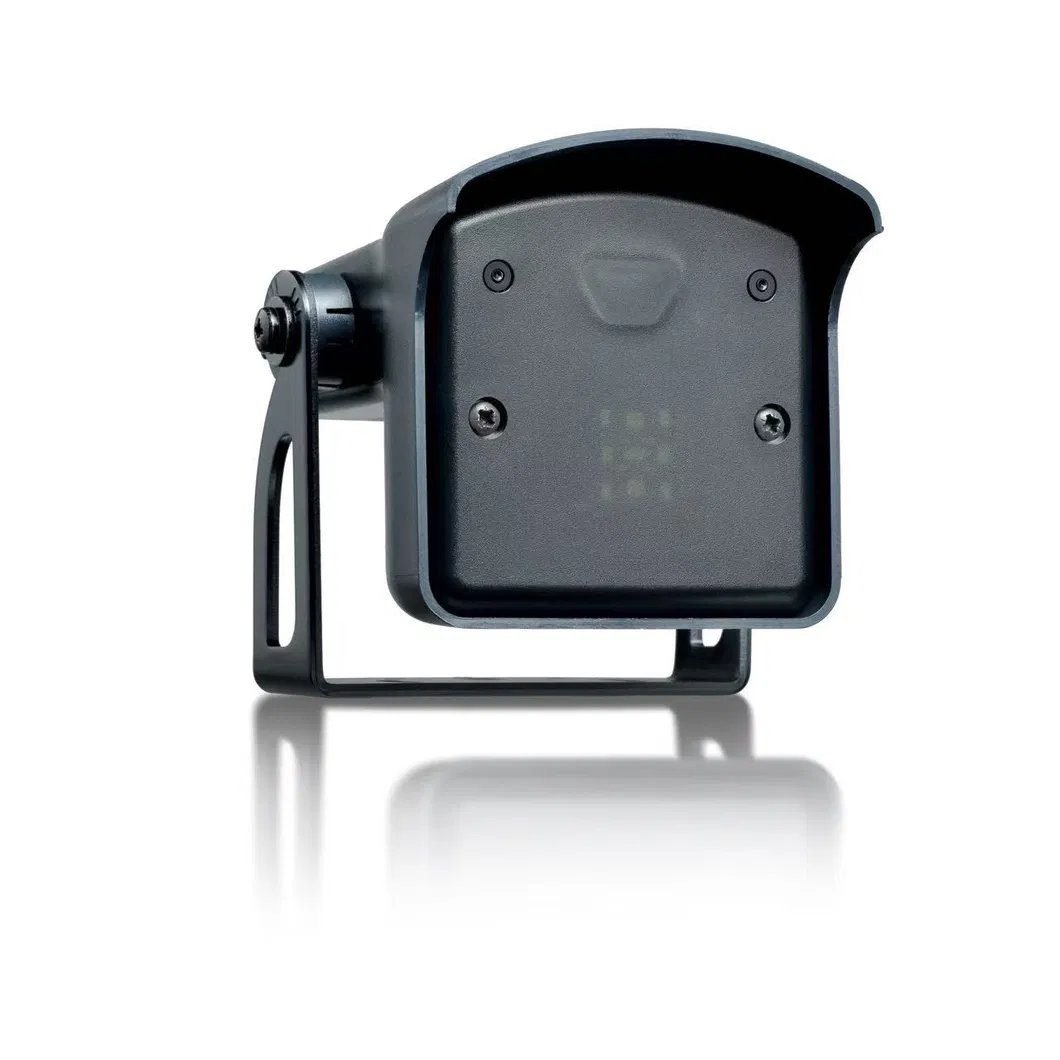

Detailed Photos
Our Advantages
Professional provider for industry door solution
Full product line for industry door
One-stop solution for industry door
Professional pre-sale service
Frequently Asked Questions
Q:
What technology is used for detection, and does it detect all directions of motion?
The device utilizes microwave Doppler radar technology operating at 24.150 GHz. It is engineered specifically for the detection of vehicles moving towards the sensor.
Q:
What are the differences in detection zones and mounting heights between Falcon and Falcon XL?
The standard Falcon model features a detection zone of 4 x 5 m and is suited for mounting heights between 3.5 m and 7 m. The Falcon XL version offers a detection zone of 4 x 2 m and is designed for lower mounting heights from 2 m to 3.5 m.
Q:
Is this detection system waterproof and suitable for extreme weather?
Yes, it has an IP65 protection rating, protecting it against water jets and dust. It is built to operate reliably in a temperature range from -30 °C to +60 °C.
Q:
What are the electrical power requirements and consumption specs for this sensor?
It supports a supply voltage of 12 V to 24 V AC ±10% or 12 V to 24 V DC +30% / -10%, with a frequency of 50 to 60 Hz. The power consumption is highly efficient at less than 2 W.
Q:
What output options are available and what is the maximum switching power?
The output type is a potential-free change-over contact relay. It supports a maximum contact current of 1A (resistive) and a maximum switching power of 30 W (DC) or 42 VA (AC).
Q:
What do the LED indicators on the sensor signify?
The sensor features a dual-color LED signal system. A red light indicates the detection state and parameter adjustments, while a green light indicates value status.
