Product Description

Product Highlights
🛡️
Fire Rated Security
Commercial hollow metal doors with lite kits and glass ensure safety for well-traveled corridors, allowing visibility for oncoming traffic.
🏢
Versatile Application
Ideal for both interior and exterior building applications, including pre-installed Vision Lite with glass windows.
  • Self-attaching metal frame lite kits mounted with glass
  • Glass types: Wire glass or other fire safety glass options
  • 1-3/4" (44.5mm) thickness with non-handed design and reversible hinge plates
  • Factory-applied gray primer or finished painting options
  • Fire-rated time up to 1.5 hours with UL/WHI/FM labels

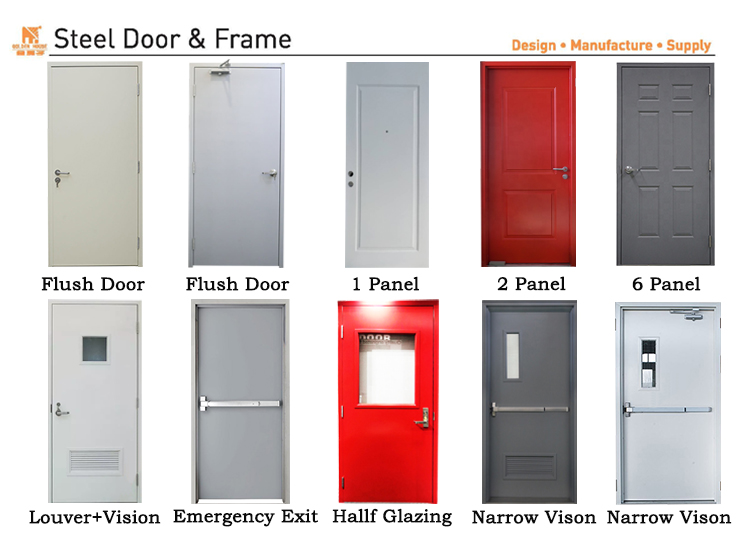

Commercial Steel Door with Vision Lite
Technical Specifications
Door Material A40 Galvanized steel or galvanealed. Heavy Duty SDI Level 2 (1.1 mm 18-Gauge) for face sheets; 1.4 mm 16-Gauge for frame.
Door Core Honeycomb Core, Polystyrene Core, Mineral Fireboard, or Rock Wool.
Door Thickness 1-3/4 inch (44.5 mm) Standard.
Handing Non-Handed Design; Reversible Hinge Plates.
Standard Sizes Single: up to 4'0" x 8'0" (1220 x 2440 mm); Double: up to 8'0" x 8'0" (2400 x 2400 mm). Custom sizes available.
Edges Square Hinge and Lock Edges (Beveled available); Full Height Epoxy Filled Mechanical Interlock Edges.
Reinforcements Heavy Gauge steel for Door Closer, Hinges, and Lock Reinforcements.
Finish Gray Primer / Finish Paint / Powder Coating / Wood Grain Finished.
Fire Rating Optional (with fire glass) - FM/WHI/UL up to 1.5 Hours; Positive Pressure and "S" Smoke included.
Vision Lite 18-Gauge Steel Frame; 5" x 20" standard size; 6.8 mm Fire-Rated Wire Glass.
Project Cases & Manufacturing

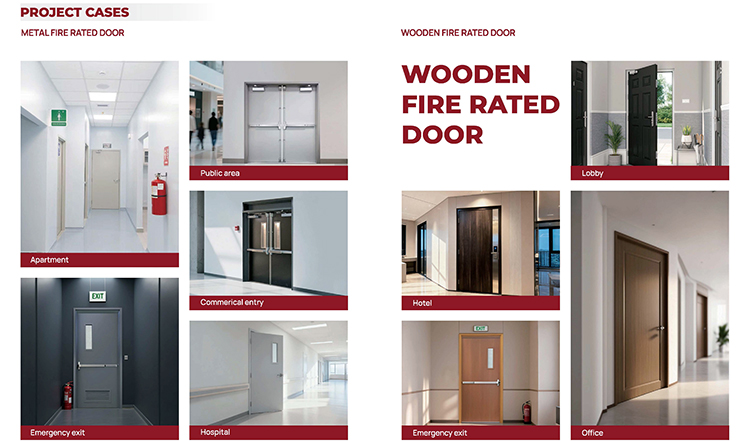

Project Case
Certificates
Production Facility
Trade Show
Workflow & Shipping
Production Workflow
Packaging and Shipping
Frequently Asked Questions
Can different colors and models be mixed in one order?
Yes, mixed colors and models are acceptable. For a 20GP or 40HQ container, we suggest mixing 3-6 different models.
Can you produce doors according to our custom drawings?
Yes, we can. Customers should send the drawings for an initial check, after which we will provide a technical drawing for production approval.
What is the policy for samples?
Small samples are offered free of charge. For complete doors, a cost will be charged based on the actual situation, which is refundable upon placing a bulk order.
What is the typical delivery time and ordering process?
Delivery time is approximately 20-35 days. The process includes technical specification confirmation, invoice and drawing approval, a 50% deposit to start production, and final balance collection after video/picture inspection.
Do you maintain stock for immediate purchase?
We stock American standard hollow metal doors and frames. However, most project orders are customized by size, color, lock type, and materials to meet specific project schedules.
Do you offer specialized overseas services?
Yes, we provide specialized services including overseas installation support.
