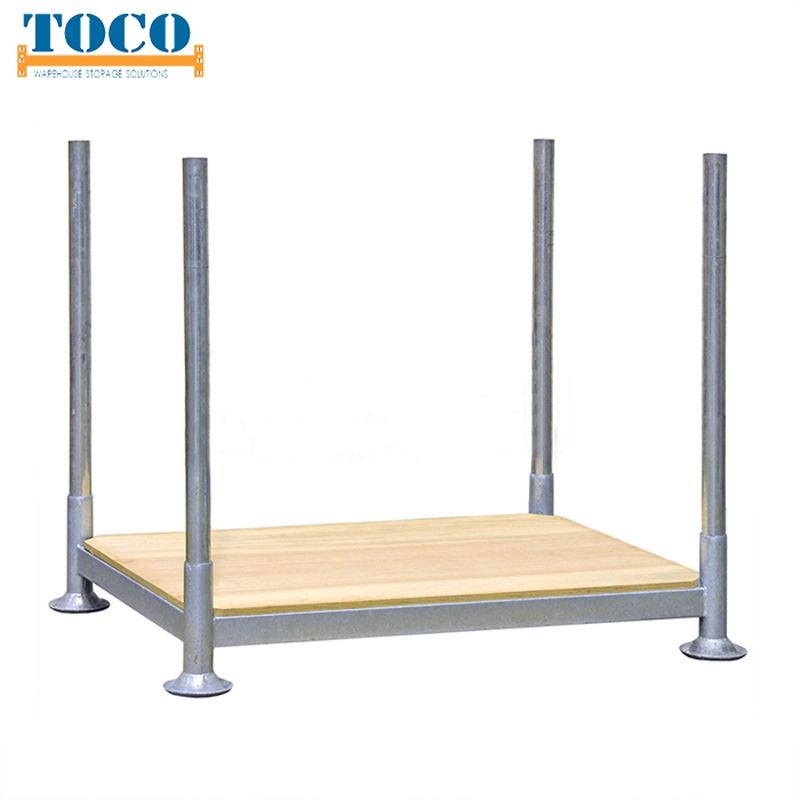

UV Protection Steel Window Door Movable Pallet Stacking System with Wood Deck

Product Description

Advantages of Stacking Rack

Stacking Racks gives you flexibility and versatility in your warehouse/distribution center. Obtain maximum storage density and efficiency.

If your company has seasonal peaks and valleys, you can reconfigure your warehouse storage capacity when your storage needs change.

Multiple pallet locations can be moved at one time.

Stacking Racks assemble quickly and easily, and disassemble & break down for easy storage when not in use.

They are great for Bulk Storage items.

When loaded, the racks can be moved with the product on them to work stations or production lines. This will reduce labor costs, handling time, and manpower.

Can store the product directly on the rack. The base of the rack will act as a pallet, which in turn will eliminate the cost of pallets.

Stack racks can be used as a shipping rack, which would greatly reduce costly shipping damage.

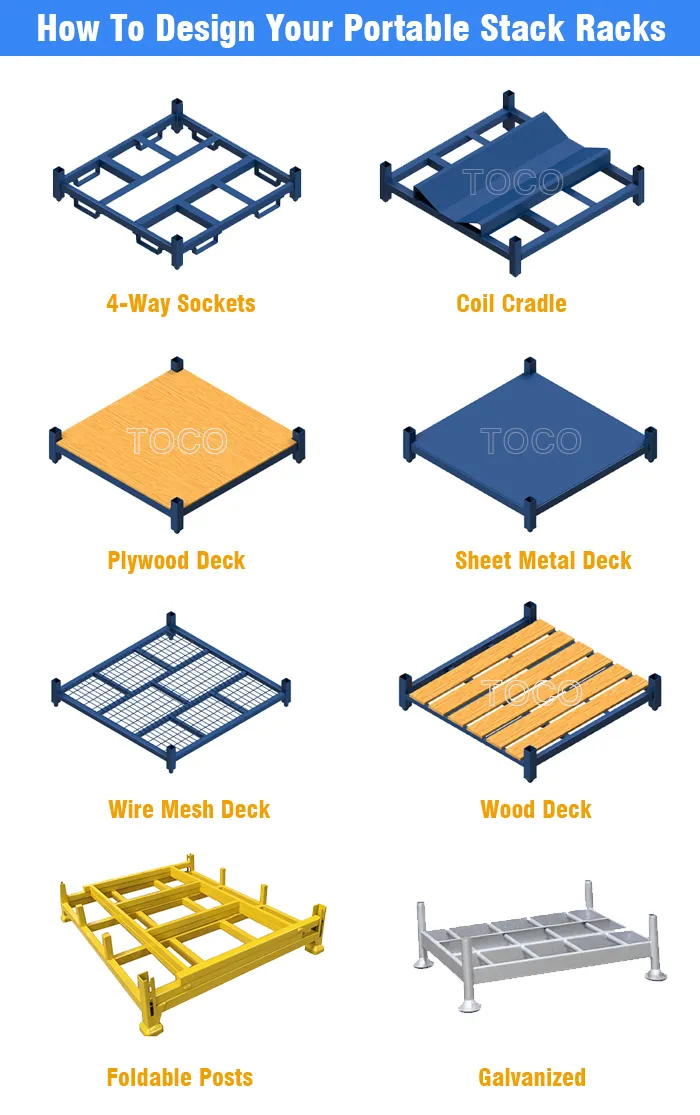

Stack racks can be customized to fit around your product.

Stack racks and be disassembled and stored within a very small area of your warehouse.

Popular Sizes & Custom Built

Popular Sizes, and Custom built welcome!!!
Model No. Exterior Dimension (LxWxH mm) Loading Capacity (kg) Finish Qty / 40ft (sets)
ISR1-Base 1395x1060x310 1500 Hot Gal 220
ISR1-Post 1200x60x2.5 Hot Gal 880
ISR2-Base 1875x1060x310 1500 Hot Gal 143
ISR2-Post 1200x60x2.5 Hot Gal 572
ISR4-Base 1545x1050x310 1500 Powder Coated 247
ISR4-Post 1510x60x2.5 Powder Coated 988
ISR5-Base 1200x1000x310 1000 Cold Gal 255
ISR5-Post 2000x60x2.5 Cold Gal 1020
ISR6-Base 950x950x310 1000 Cold Gal 160
ISR6-Post 2100x60x2.5 Hot Gal 320
Material Q235B
Remark Customized or OEM support

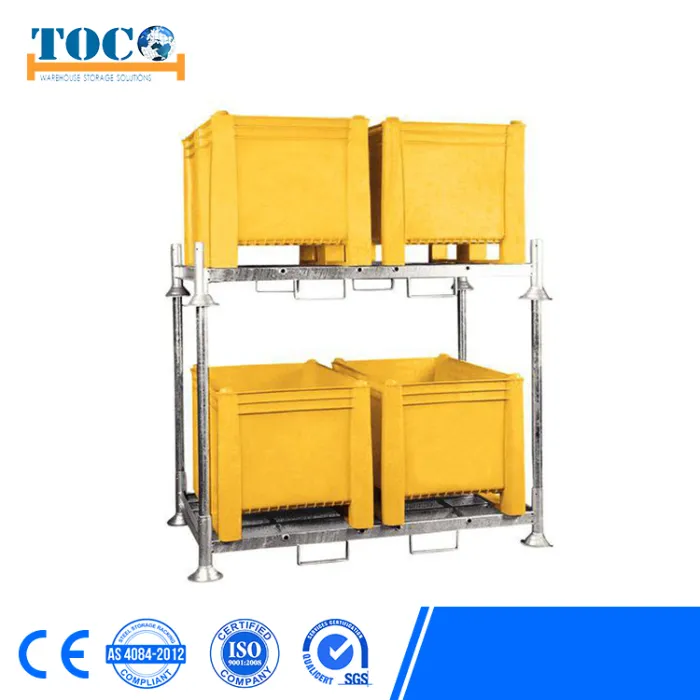

Key Features 1. Strong tubular steel - stack up to 4 high
2. Removable arms - fully collapsible, save space, easy storage when not in use
3. Cup feet - easy stacking
4. Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use or powder coated finish.

Product Gallery

Frequently Asked Questions

What are the main advantages of using stacking racks?
Stacking racks provide excellent flexibility and versatility in warehouse or distribution centers, offering maximum storage density, adaptability for seasonal peaks, easy assembly/disassembly, and reduced labor costs.
Can these stacking racks be customized?
Yes, custom-built designs and OEM support are welcomed. Stack racks can be customized to fit specifically around your product's dimensions.
What is the maximum stacking height?
Thanks to their strong tubular steel construction, the racks can be safely stacked up to 4 units high.
What materials and finishes are available?
The racks are made of Q235B steel. Available finishes include Hot-dip Galvanized (corrosion-resistant for outdoor use), Cold Galvanized, and Powder Coated finishes.
How do they help save warehouse space when not in use?
These racks feature removable arms/posts. They can be completely disassembled and stored within a very small area of your warehouse.
