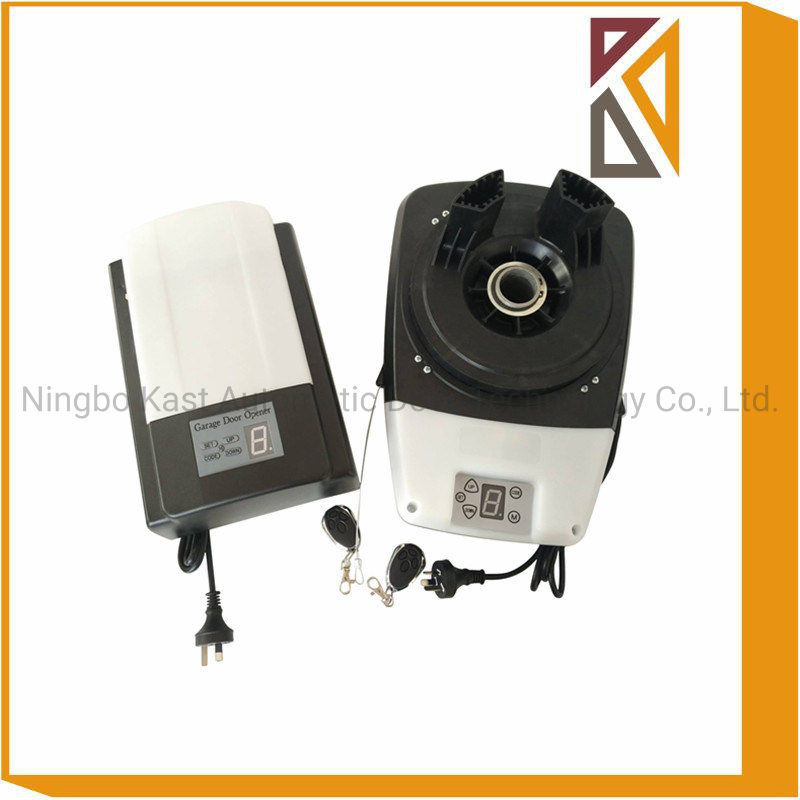

KAST garage door automation leverages the latest technology to support sectional doors up to 18m² and up-and-over garage doors up to 15m². This system features a 230Vac irreversible electromechanical gear motor designed for residential use, available with both chain and belt drive options. The 24Vdc motor is equipped with a magnetic encoder to ensure precise operation for door weights ranging from 60kg to 130kg.
- 433.92Mhz Remote Control
- Smart Control Panel
- Mobile App Connectivity
- Dual Multi-frequency Transmitters
- Integrated LED Lighting
- Soft Start & Soft Stop

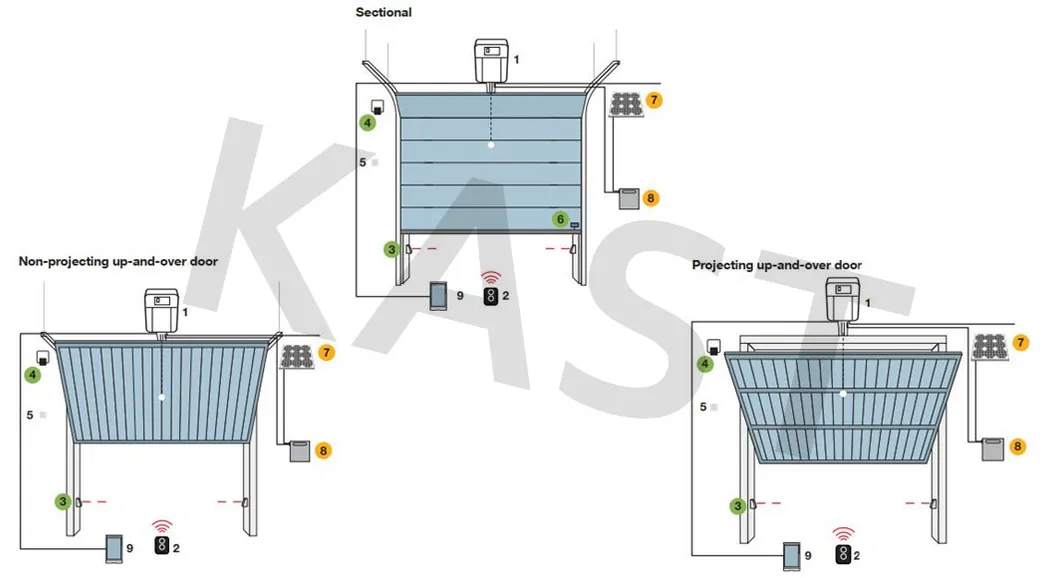

Technical Drawing & Application
The KGS series garage door opener is highly versatile, applicable to sectional doors, projecting up-and-over doors, and non-projecting up-and-over doors. The system is designed for seamless integration with safety and access peripherals, including photocells, flashing lights, key switches, sensitive edge sensors, and mobile access control systems.
Technical Specifications
| Feature |
KGS600N |
KGS800N |
KGS1000N |
KGS1200N |
| Power Supply |
110V-240V AC, 50Hz/60Hz |
| Motor Power |
24V DC, 100W |
24V DC, 120W |
24V DC, 140W |
24V DC, 180W |
| Lifting Force |
≤ 600N |
≤ 800N |
≤ 1000N |
≤ 1200N |
| Max Door Area |
9 sq.m. |
12 sq.m. |
15 sq.m. |
18 sq.m. |
| Operating Temp |
-20 ~ 50ºC |
| IP Classification |
IP20 |
| Rail Type |
Chain / Belt |
| Lighting |
24V / 14pcs LED bulbs (Auto turn-off after 2.5 mins) |
| Radio Frequency |
433.92MHz Rolling Code |
| Safety Features |
Automatic Obstacle Detection & Overload Protection |
| Limit Switch |
Electronic |
Frequently Asked Questions
What types of garage doors are compatible with the KAST system?
The system is compatible with sectional doors up to 18m² and both projecting and non-projecting up-and-over garage doors up to 15m².
How much weight can the garage door opener handle?
The KGS series is designed to handle door weights ranging from 60kg up to 130kg, depending on the specific model chosen.
What control options are available for the automation system?
Users can operate the door via a 433.92MHz remote controller, a smart control panel, or through a dedicated mobile application.
What safety features are integrated into the motor?
The motor includes automatic obstacle detection, transformer overload protection, and an electronic limit switch for secure operation.
Does the system provide lighting for the garage?
Yes, it features a modern 24V system with 14 LED bulbs that activate upon operation and automatically turn off after 2.5 minutes.
What is the difference between the KGS models?
The models vary primarily by lifting force (600N to 1200N) and the maximum door area they can support (9m² to 18m²), allowing you to choose the best fit for your door size.
