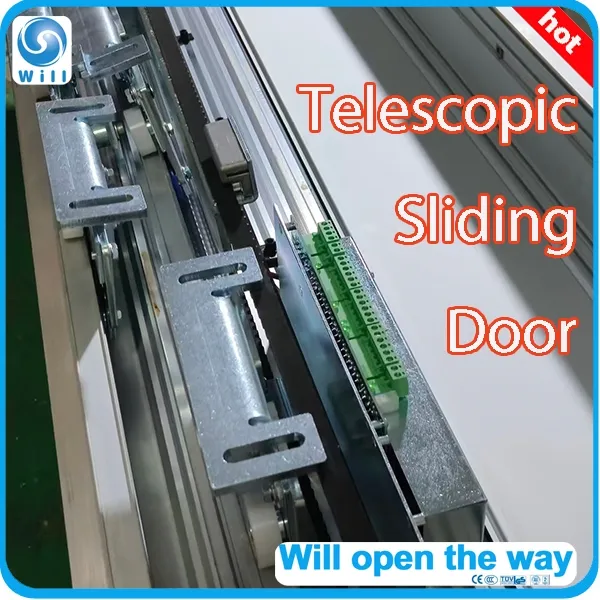

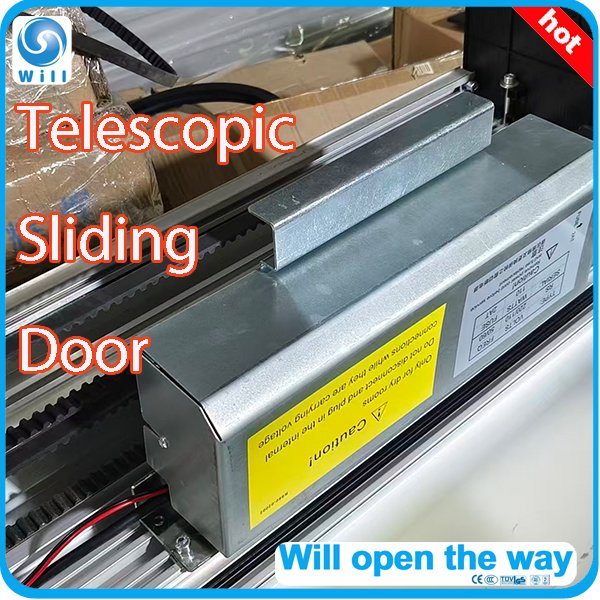

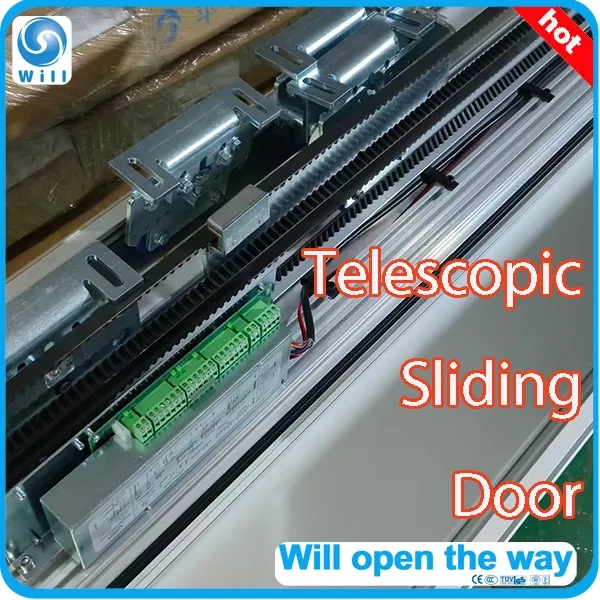

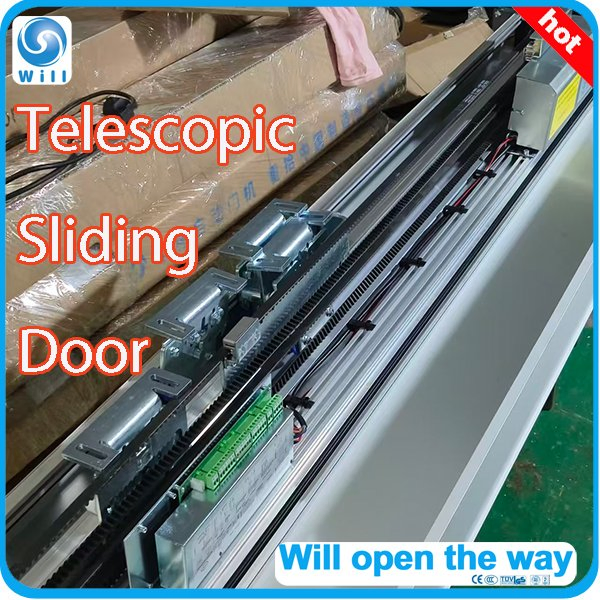

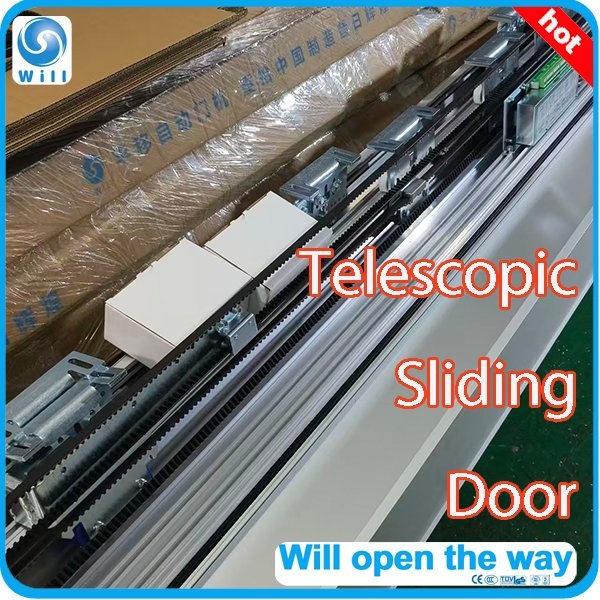

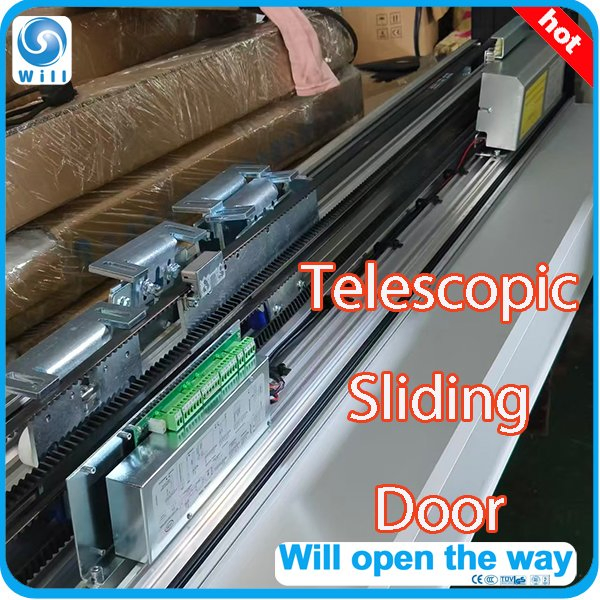

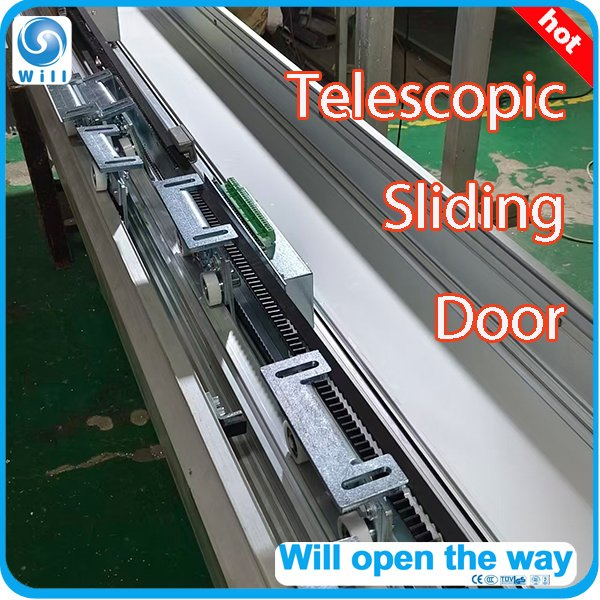

Fast Telescopic Sliding Door System - High-performance automatic door operator with choice of Brush Motor or original German Dunkermotoren. Engineered for silence, speed, and durability in commercial environments.
Key Features
High Compatibility
Function 95% similar to KABA and fully compatible with original KABA components.
Powerful Performance
Brush Motor or Dunker Motor (99.5W) provides enough power to support 2x160KG gates.
Easy Installation
Drive system is pre-installed before leaving the factory to ensure a quick setup process.
Advanced Control
Three-level program allowing users to adjust opening width (20-90%), direction, and more.
Standard Configuration
1. Minidrive Unit
2. Transformer
3. Motor
4. Decoder
5. Basic control module
6. Track
7. Carrier
8. Return Pully
9. Service cover holder
10. End stop
11. Door bracket
12. Belt connection
13. Belt tensioning device
Technical Specification (ES200 Easy)
| Weight of gate Single/Bi-part | 1X200KG / 2X120KG |
| Width of gate Single/Bi-part | 900-6100MM |
| Master Controller | 32 digital microprocessor |
| Motor Options | Brush motor / Dunker motor (99.5W 60VDC 2A IP50) |
| Opening Speed | 300-700mm/s |
| Closing Speed | 300-650mm/s |
| Power Supply | AC110V-250V 50/60HZ |
| Temperature Range | -15°C to +70°C |
| Protection Degree | IP23 |
Safety & Emergency Functions
- Emergency opening in case of power failure / Fail-safe
- Obstacle detection with automatic return mechanism
- Self-monitoring light barriers
- Slow speed search for obstruction
- Low noise design (<40db)
- One million times of tests passed

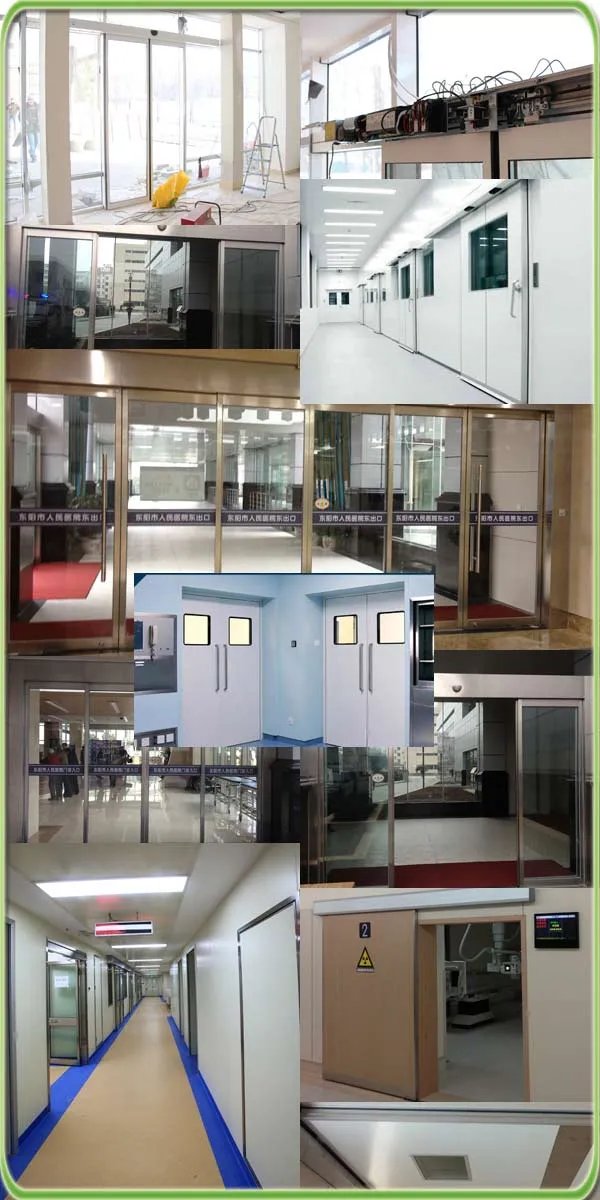

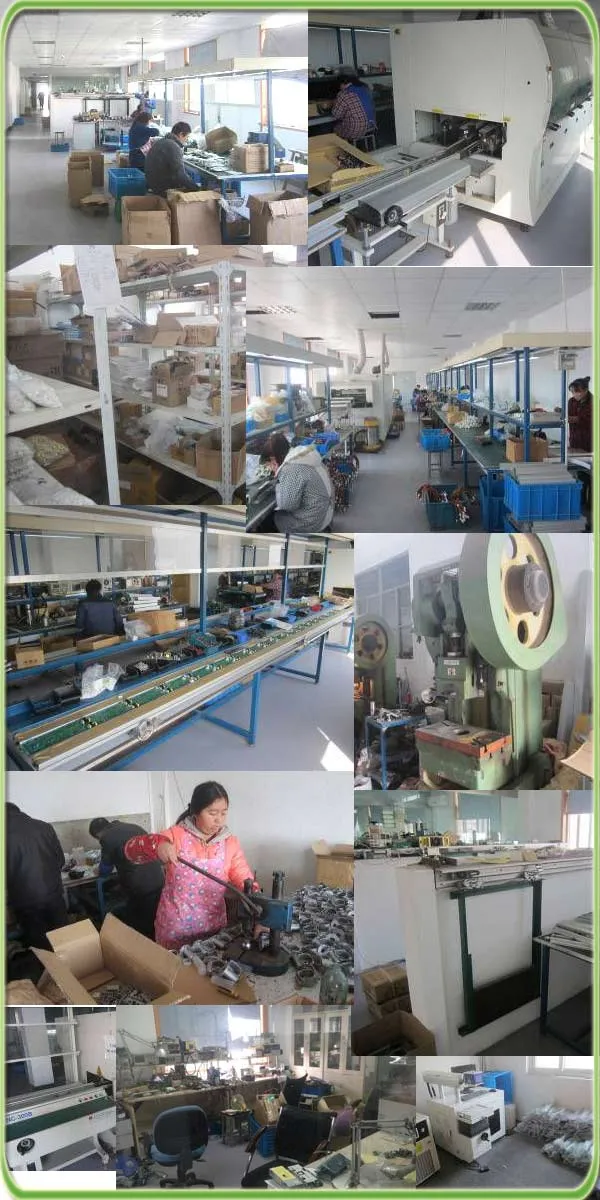

Workshop Showcase
Frequently Asked Questions
What type of motor is used in this system?
The system offers high-quality options including a standard Brush Motor or a premium German Dunkermotoren (99.5W), known for its power and reliability.
Is this automatic door operator compatible with other brands?
Yes, the system is 95% similar to KABA functions and is designed to work seamlessly with original KABA and Dorma parts.
What are the safety features for obstacle detection?
The operator includes an automatic return mechanism upon obstacle detection, self-monitoring light barriers, and a slow-speed search mode for maximum safety.
Can I adjust the opening width of the door?
Yes, the user-friendly program switch allows you to adjust the partial opening width between 20% and 90% of the full width.
What is the weight capacity for the door gates?
The ES200 Easy system can support a single gate up to 200KG or bi-parting gates up to 2x120KG. The heavy-duty motor can bear up to 2x160KG.
What is the warranty period for this product?
The system comes with an 18-month warranty and has passed testing for over one million cycles.
