Product Description

i

Basic Information

Model NO.
KW200
Open Style
Swing
Opening Type
Induced
Color
Black
Certification
ISO9001, CE
Position
Commercial
Surface Finishing
Finished
Door
Single Open/Double Open
Application
Hospital, Office, Clinic
Usage
Interior
Activation
Remote Controller
Safety
Light Barrier
Moving
Soft Open and Close
Speed
50cm/S
Transport Package
Foam and Carton
Specification
aluminum glass door
Production Capacity
10000sets/Year
★

Product Description

KW200 swing door system is a smart, heavy duty, electromechanical swing door operator with an big power to handle heavy doors about 200KG. It is unique on the market and makes a perfect fit to entrances in harsh environments like office, commercial building, medical facilities, hospital operation room, etc. Meanwhile working together with smart controller, it can work with safety device, access control system, etc. It can meet wide range of applications with high demands.
Automatic Swing Door System for Hospital Manual Swing Door
Details Display

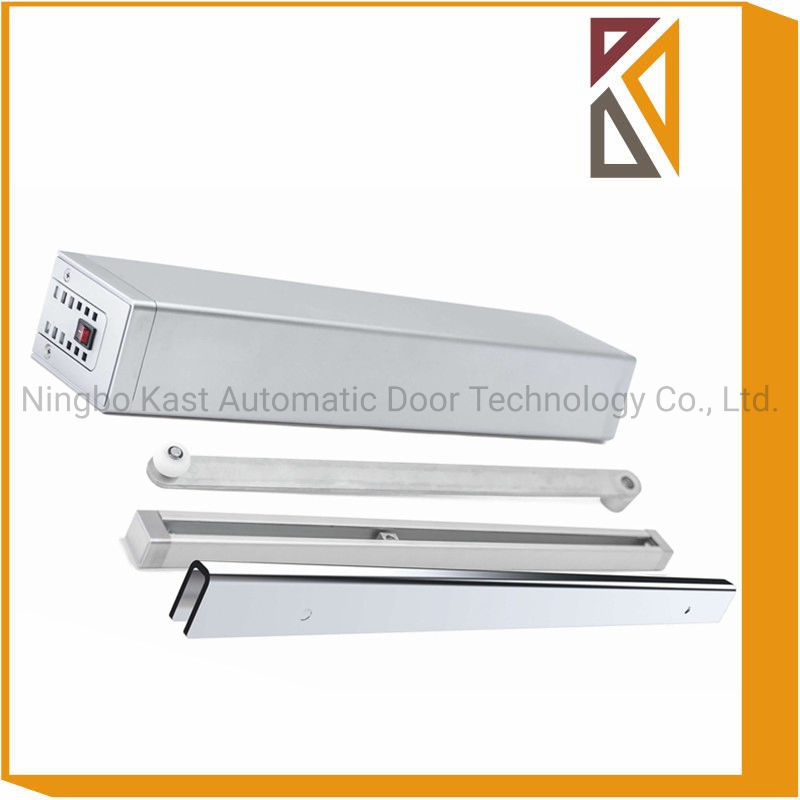

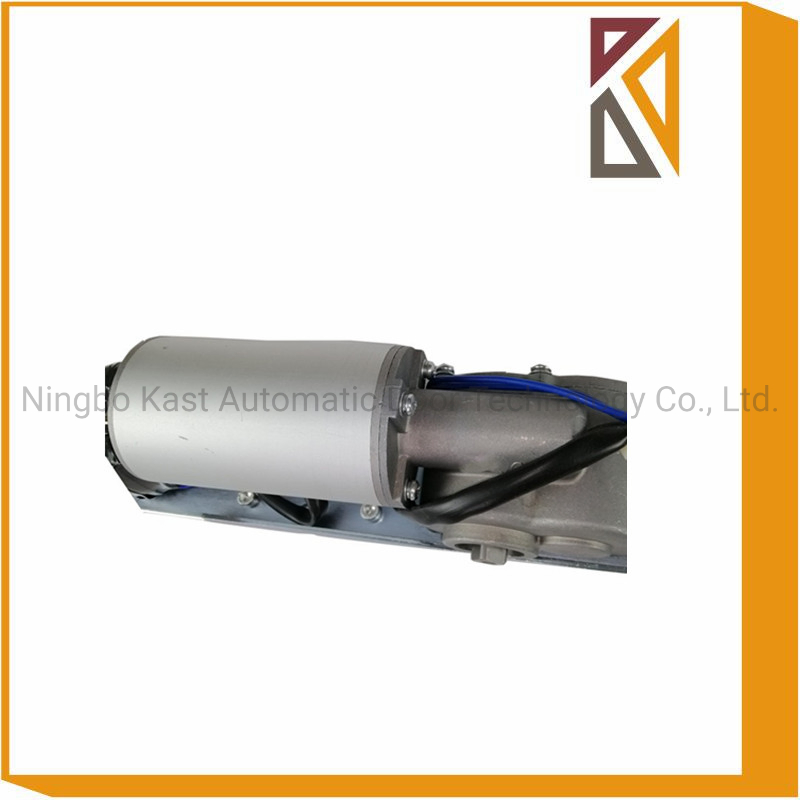

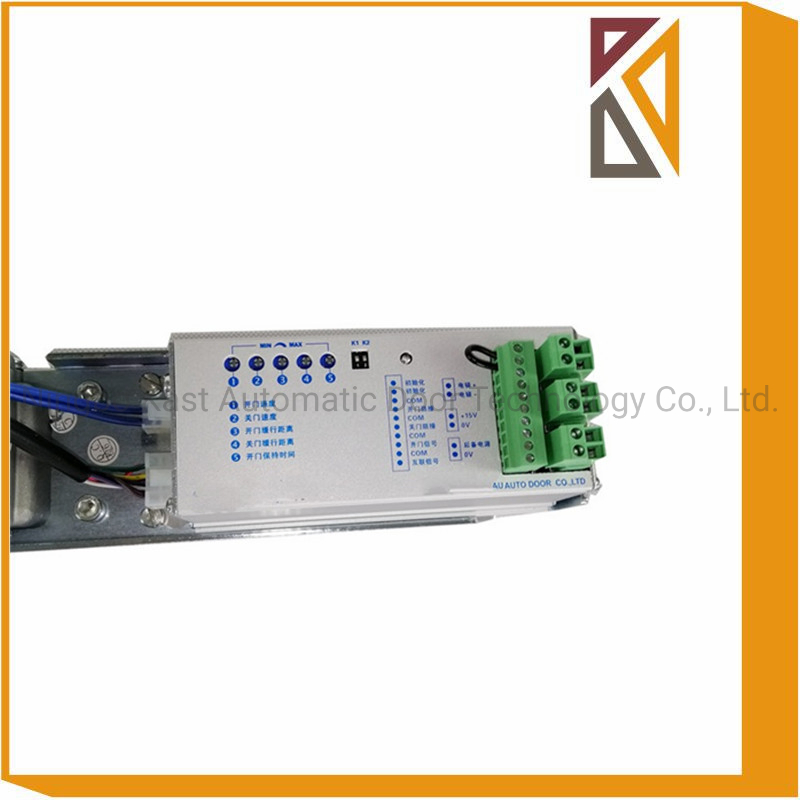

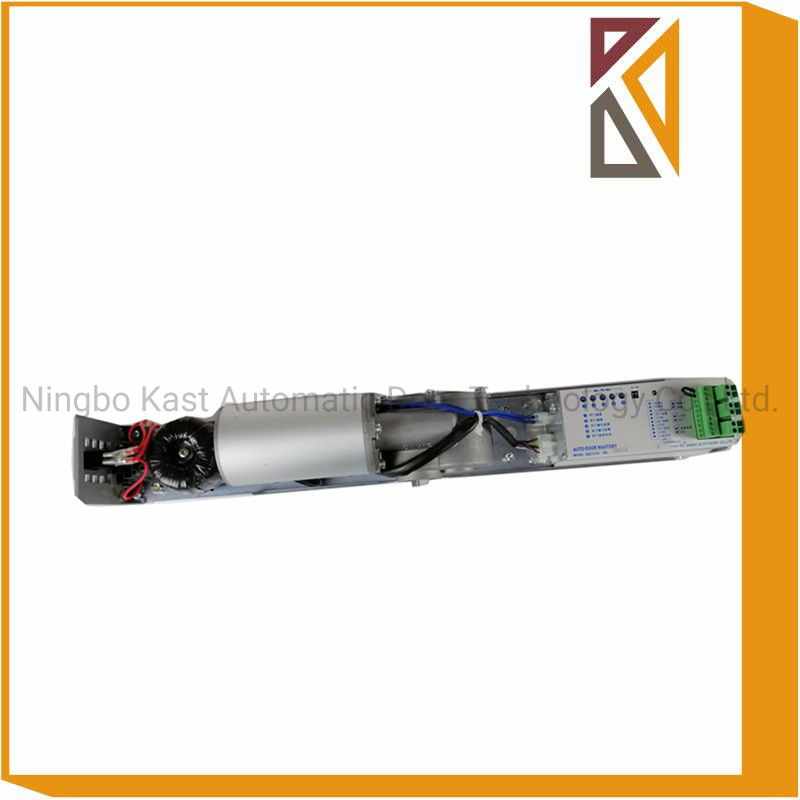

KW200 automatic swing door system is made of transformer, power terminal, smart controller, big power motor, arm and cover. It can works with access control system like press switch, fingerprinter access control, facerecogntion. Easy installation and programming.

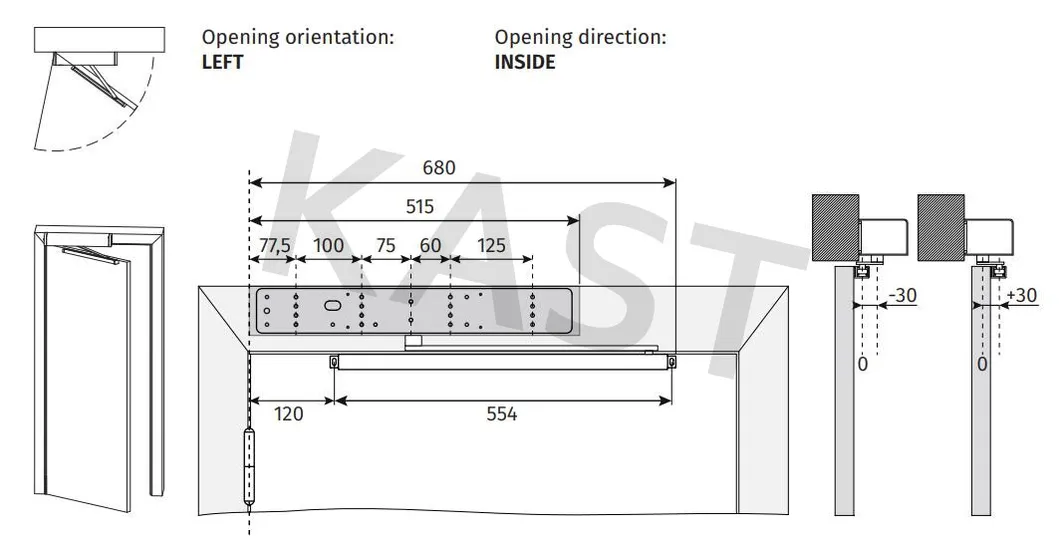

Automatic Swing Door System for Hospital Manual Swing Door Components
⚙

Technical Datas

Type of operationMotor opening and closing
Product dimension(mm)518*77*106
ApplicationInterior door
Door opening angle0° - 105°
Max capacity200KG
Open/close speed(adjustable)300mm-500mm/s
Open time(adjustable)1-30s
Manual force(power fails)30N
Power supply230VAC+10/-15%, 50/60Hz
Power supply for external devices+15VDC/0.5A max
IP classificationIP20; only for dry environments
?

Frequently Asked Questions

What is the maximum door weight the KW200 can handle?
The KW200 is a heavy-duty system designed to handle doors weighing up to 200KG.
Can this door system be integrated with security systems?
Yes, it is compatible with various access control systems, including fingerprint scanners, face recognition, and press switches.
Is the opening and closing speed adjustable?
Yes, the speed is fully adjustable between 300mm/s and 500mm/s to suit different environments.
How does the door operate during a power failure?
In the event of a power failure, the door can be operated manually with a force of only 30N.
What are the typical applications for the KW200 system?
It is ideal for high-demand interior environments such as hospitals, clinics, offices, and commercial buildings.
What safety features are included?
The system supports light barrier safety devices and features a soft open and close mechanism for enhanced user safety.
