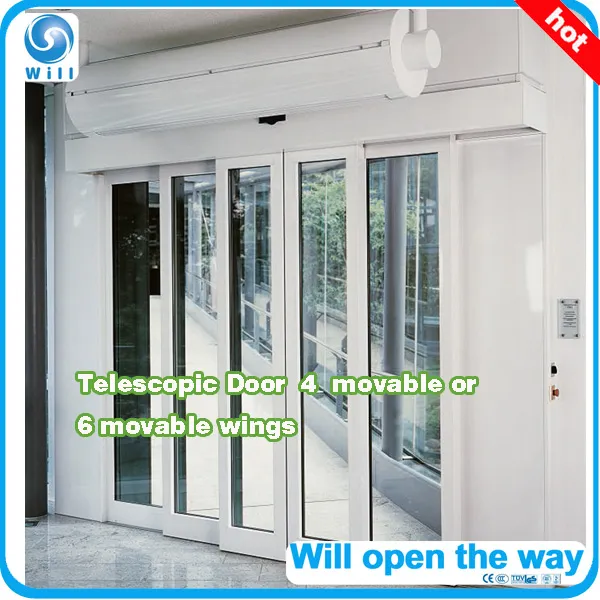

Automatic Telescopic Sliding Door Operator System

1 / 5

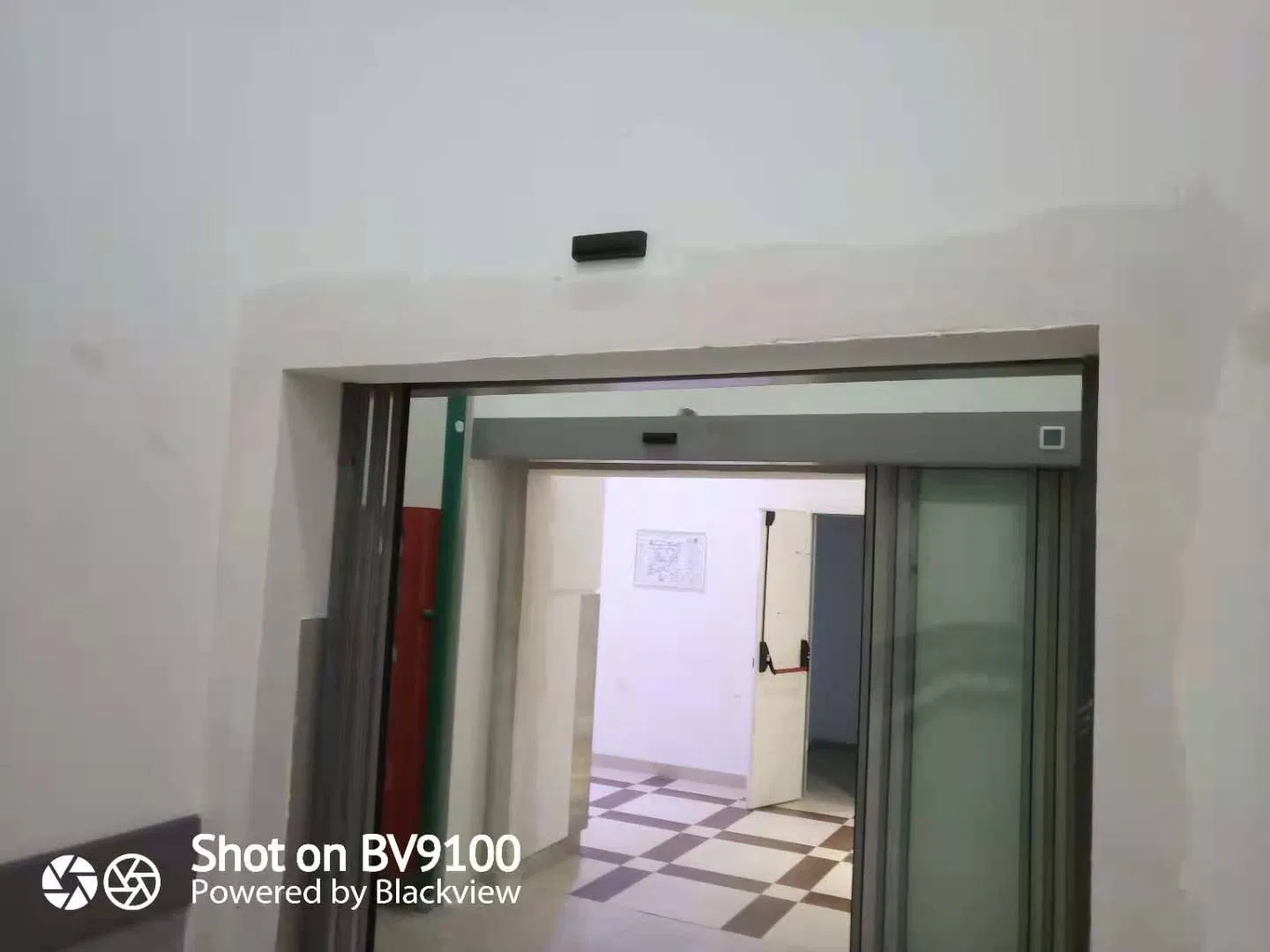

Automatic Telescopic Sliding Door Operator System

Customization:	Available
Warranty:	36monthes
Material:	Aluminum Alloy

Send Inquiry

Product Description

Basic Specifications

Model NO.

Automatic telescopic sliding door operator

Type

Sliding

Open Style

Sliding

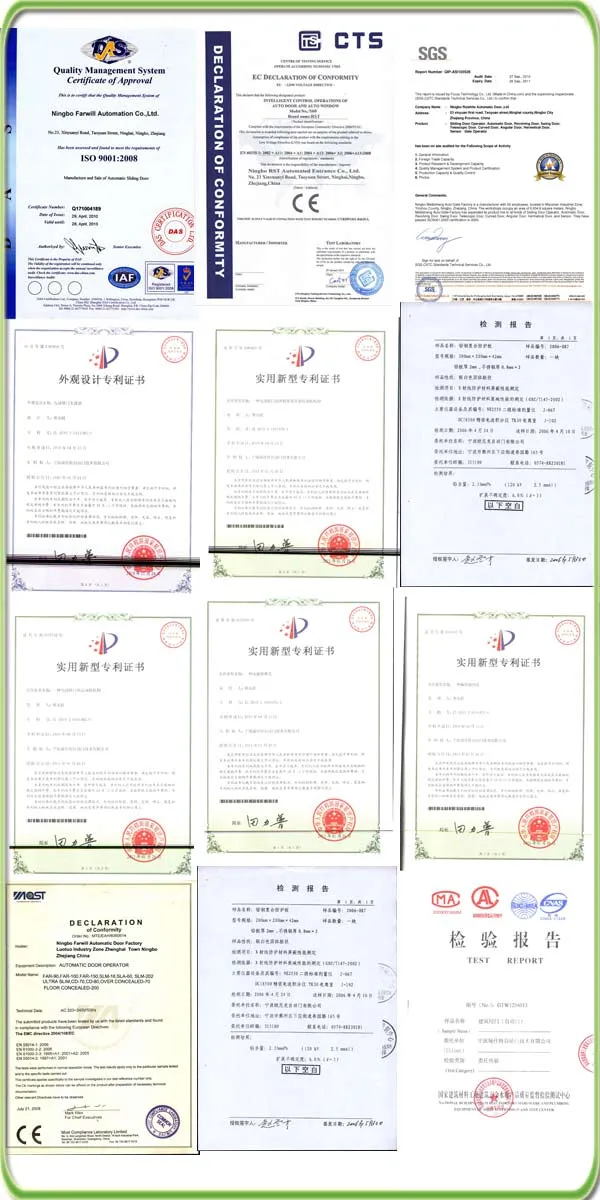

Certification

ISO9001, RoHS, CE

Motor

Dunkermotoren Germany

Power Supply

220V or 110V

Model

SLA60

Production Capacity

2000 sets Every Month

Product Description

Automatic Door Operator Sliding Door Operator with Brush Motor / Dunker Motor RECOR STM400

Key Features

Function 95% similar as KABA and compatible with original parts.
Brush Motor or Dunker Motor 99.5W, powerful enough to bear 2X160KG gates.
Easy installation: Drive system pre-installed before leaving the factory.
Germany Dunkermotor, CE approved quality.
Three Levels program: Users can adjust open width (20-90%), direction, and more.
Low noise design (<40db) for quiet operation.
One million times of tests passed for maximum durability.
Warranty: 18 months.

Standard Configuration

1. Minidrive Unit

2. Transformer

3. Motor

4. Decoder

5. Basic control module

6. Track & Carrier

7. Return Pully & Belt

Technical Specification (ES200 Easy)

Weight of gate	Single: 1X200KG / Bi-part: 2X120KG
Width of gate	900-6100MM
Master Controller	32 digital microprocessor
Motor Specs	99.5W 60VDC 2A IP50 (Brush/Dunker)
Opening Speed	300-700mm/s
Closing Speed	300-650mm/s
Power Supply	AC110V-250V 50/60HZ
Temperature Range	-15°C to +70°C

Emergency Functions

Emergency opening in case of power failure / Fail-safe.
Obstacle detection with automatic return mechanism.
Self-monitoring light barriers.
Slow speed search for obstructions.

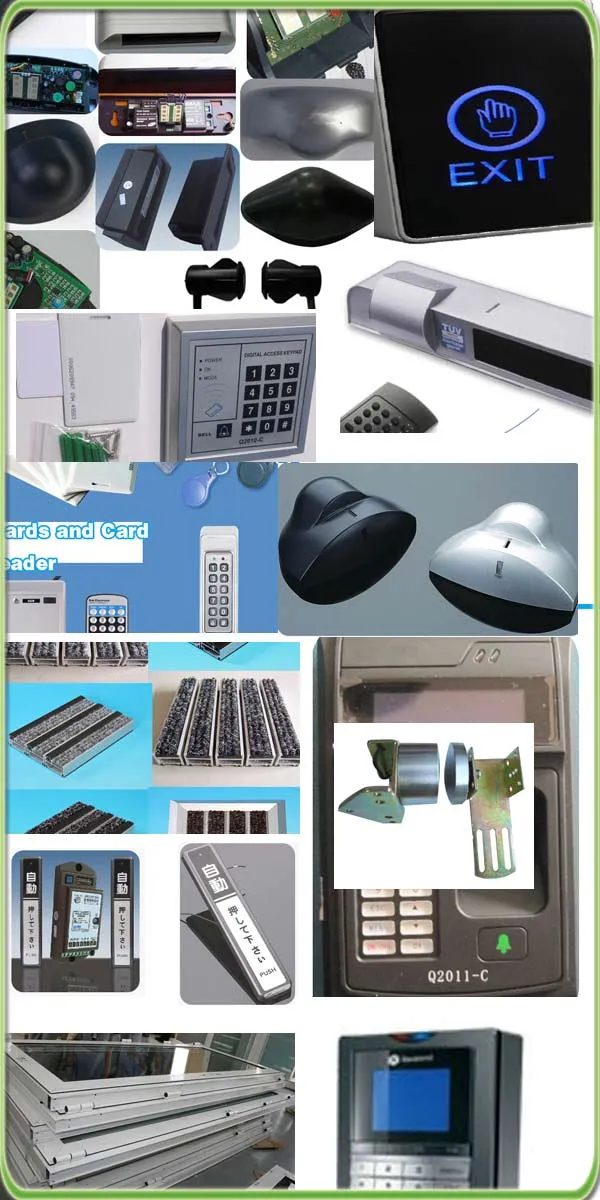

Workshop Showcase

Frequently Asked Questions

What types of motors are available for this operator?

We offer both standard Brush Motors and high-performance Germany Dunkermotoren (99.5W) to suit different project requirements.

What is the maximum weight the sliding door operator can handle?

The system is powerful enough to support bi-parting gates up to 2 x 160KG or single gates up to 200KG.

Is the installation process complicated?

No, the drive system is pre-installed before leaving the factory, making the on-site installation quick and straightforward.

How does the system handle power failures?

The operator includes emergency opening functions and fail-safe mechanisms to ensure safety during power outages.

What is the warranty period for this product?

We provide an 18-month warranty for the automatic telescopic sliding door operator system.

Can I adjust the opening width of the door?

Yes, the three-level program allows users to adjust the partial open width between 20% and 90%.
