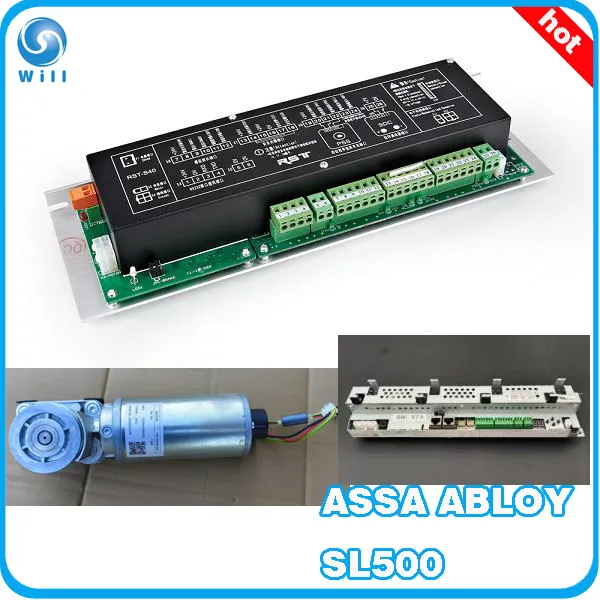

Automatic System for Sliding Door SL500

Customization:	Available
Warranty:	36monthes
Material:	Aluminum Alloy

Send Inquiry

Product Description

Basic Information

Model NO.	STM20-200
Type	Sliding
Certification	ISO9001, RoHS, CE
Position	Commercial
Surface Finishing	Finished
Motor	Dunkermotoren Germany
Power Supply	220V or 110V
Length	2000mm to 6000mm
Function	Works with Original Dorma Parts
Standard System Weight	Around 45kg (4200mm)
Programe Level	3 Levels
Sensor Color	Black or Silver
HS Code	8537101990
Production Capacity	2000 sets Every Month

Packaging & Delivery

Package Size	420.00cm * 20.00cm * 20.00cm
Package Gross Weight	35.000kg
Transport Package	Carton with Film

Product Description

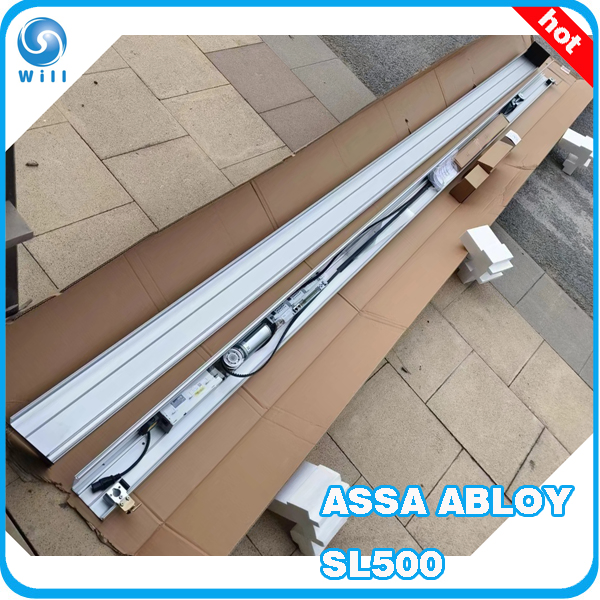

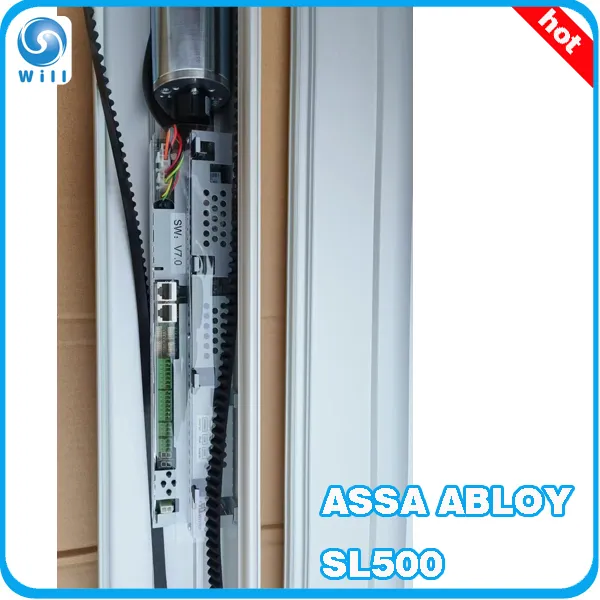

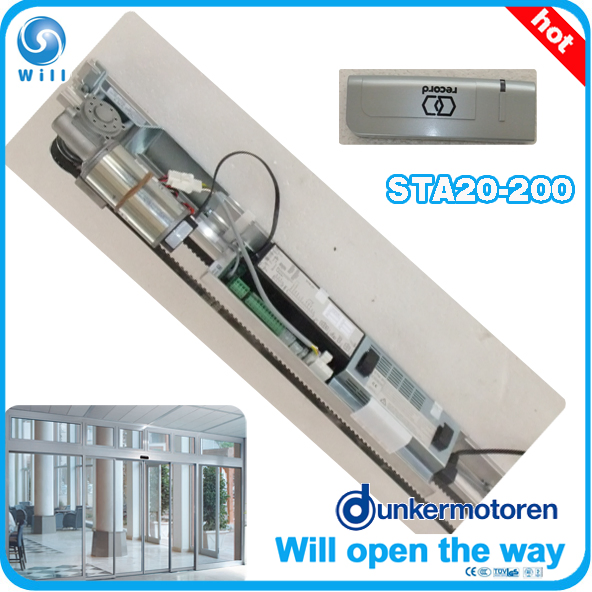

Automatic System for Sliding Door SL500 / SL301 Dunkermotor System

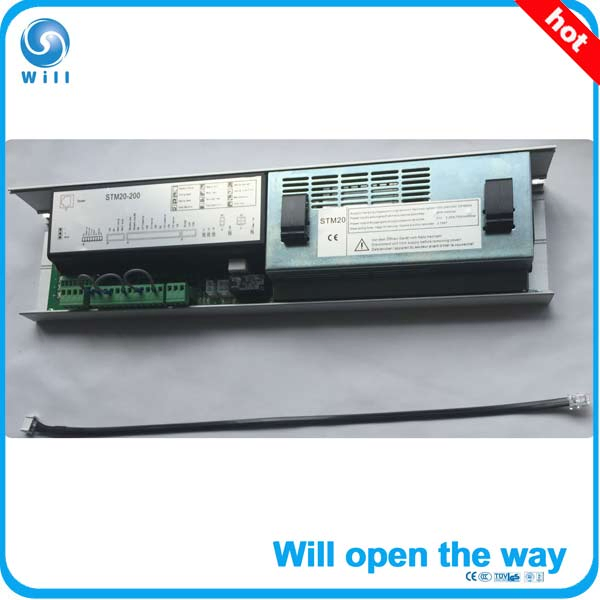

WORKS WITH ORIGINAL RECORD STM20-200

Vibration-proof: Specifically engineered vibration-proof structures for stable operation.

Energy Saving: Low power consumption (100W at work) and only 3W when at leisure.

Intelligent Design: Easy to install and adjust with intelligent control modules.

Customizable: 13 parameters can be revised at the distributors.

Ultra Quiet: Low noise design operating at less than 40db.

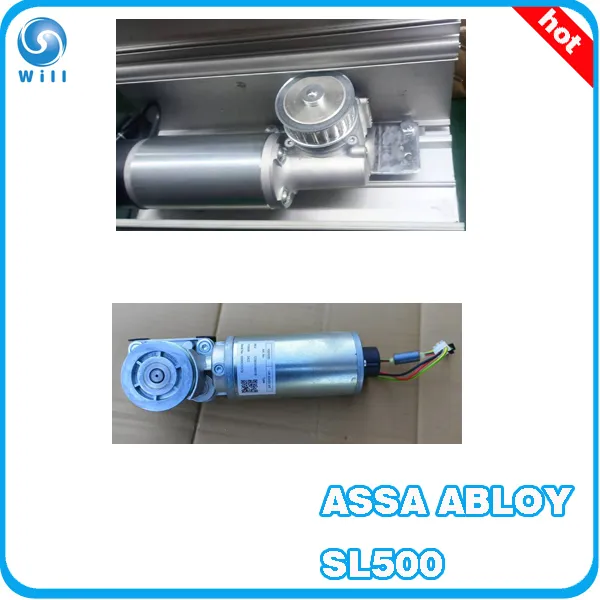

High Performance Motor: Brush motor with worm-gear for higher efficiency and longer life span.

Multiple Triggers: Supports microwave sensors, infrared, mechanical keys, finger printers, and fire warnings.

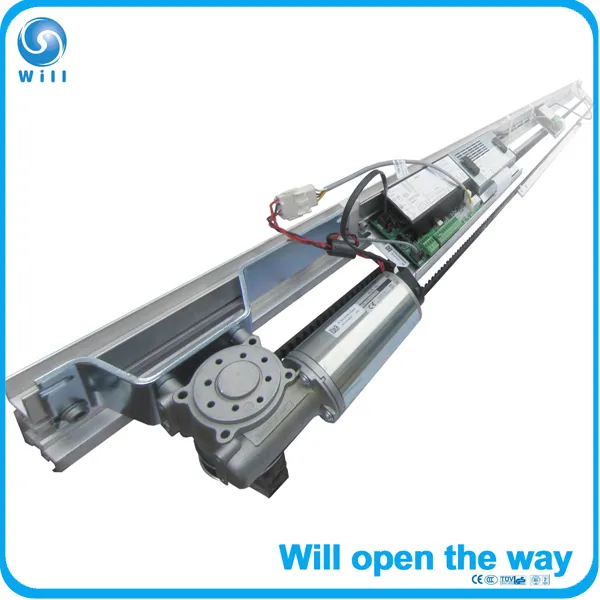

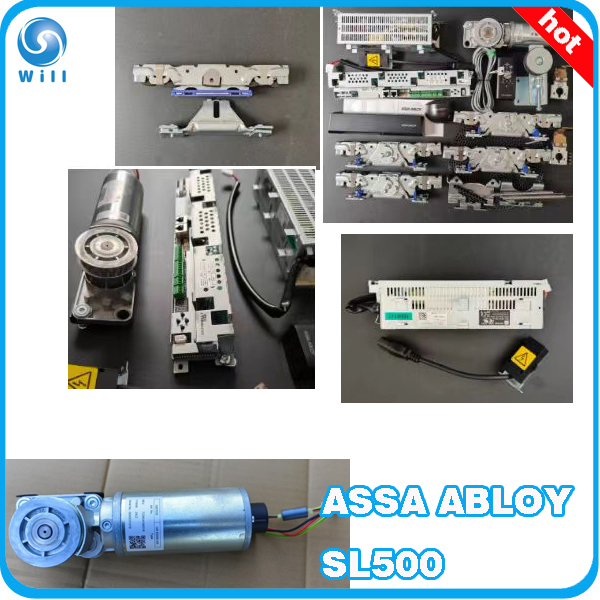

Standard Configuration

1. Minidrive Unit
2. Transformer
3. Motor
4. Decoder
5. Basic control module
6. Track

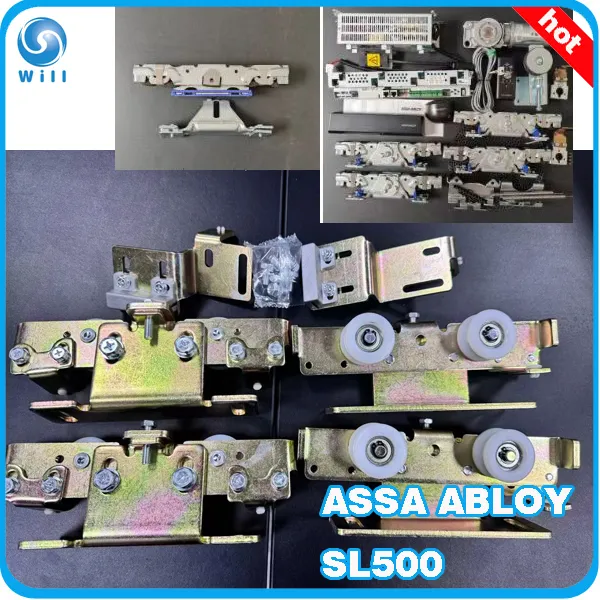

7. Carrier
8. Return Pully

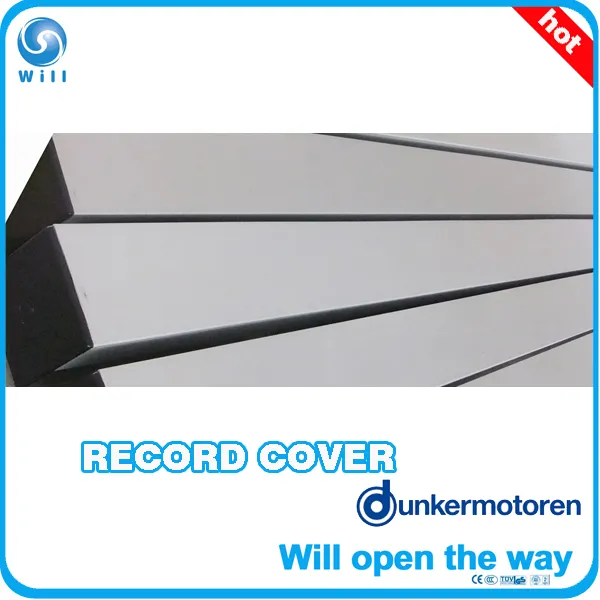

9. Service cover holder
10. End stop
11. Door bracket
12. Belt connection

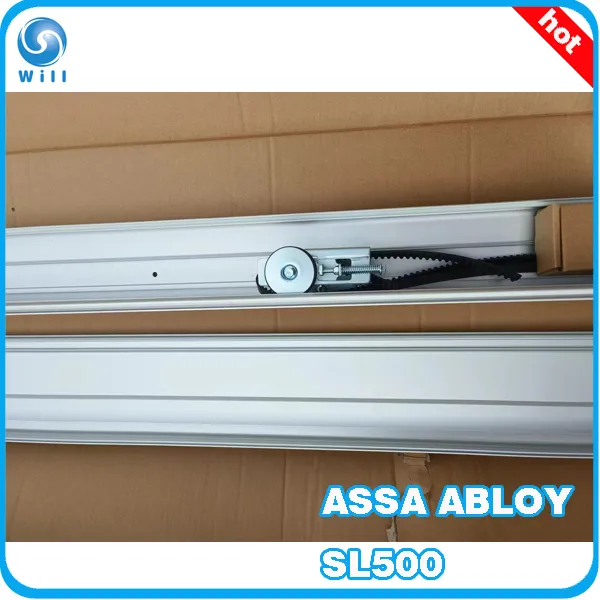

13. Belt tensioning device

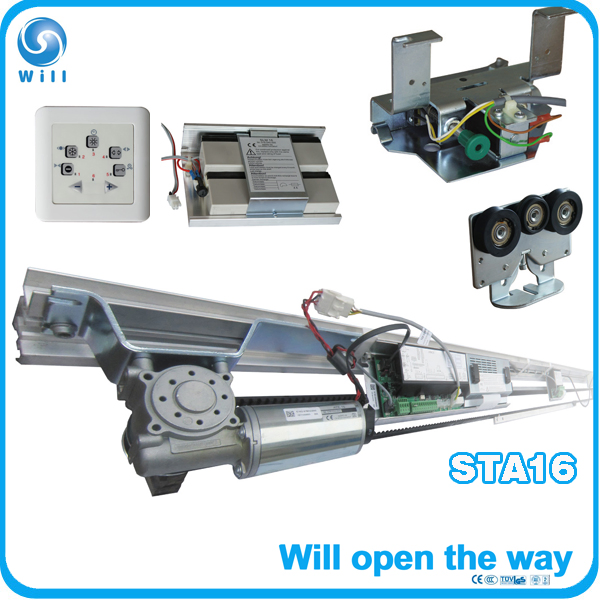

Technical Specification (STA16)

Weight of gate (Single/Bi-part)	1X200KG / 2X120KG
Width of gate (Single/Bi-part)	900-6100MM
Master Controller	32 digital microprocessor
Motor Spec	99.5W 60VDC 2A IP50
Opening Speed	300-700mm/s
Closing Speed	300-650mm/s
Max Open Strength	150N

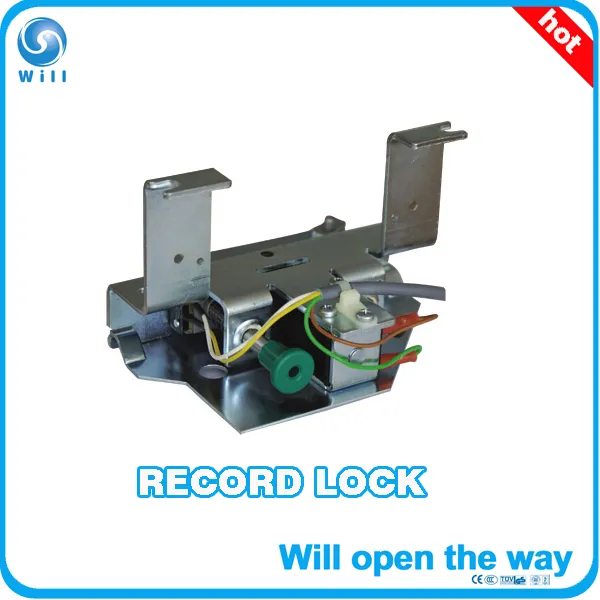

Hold Open Time/Lock	0-10S / 30S
Rail Dimensions	8CM Height / 16CM Depth
Operating Temperature	-15°C to +70°C
Protection Degree	IP23

Emergency & Functions

Fail-safe: Emergency opening in case of power failure.

Detection: Obstacle detection with automatic return mechanism.

Monitoring: Self-monitoring light barriers for enhanced safety.

Search Mode: Slow speed search for obstructions to prevent impact.

Switch Modes: Off, Automatic, Permanent Open, Partial, Exit Only.

Warranty: 18 Months | Reliability: Passed 1 Million Test Cycles

Frequently Asked Questions

1. What type of motor is used in this sliding door system? The system utilizes a high-quality Dunkermotoren Germany brush motor, known for its higher efficiency, larger torque, and longer life span.

2. Is this door operator energy-efficient? Yes, it features a low power consumption design, using 100W while in operation and dropping to just 3W during leisure or standby mode.

3. How much noise does the system make during operation? The system is designed for quiet environments with a noise level of less than 40db, ensuring a silent and smooth operation.

4. What happens if there is a power failure? The system includes emergency opening functions (Fail-safe) that allow the door to open during power failures for safety and accessibility.

5. Can the operating parameters be adjusted? Yes, the intelligent design allows for 13 different parameters to be revised and adjusted via the distributors or program switch.

6. What is the maximum weight capacity of the door? For single-part doors, the maximum weight is 200KG. For bi-part (double) doors, it can handle up to 2 x 120KG.
