Basic Specifications
Model NO.
Automatic Sliding Emergency breakout door system

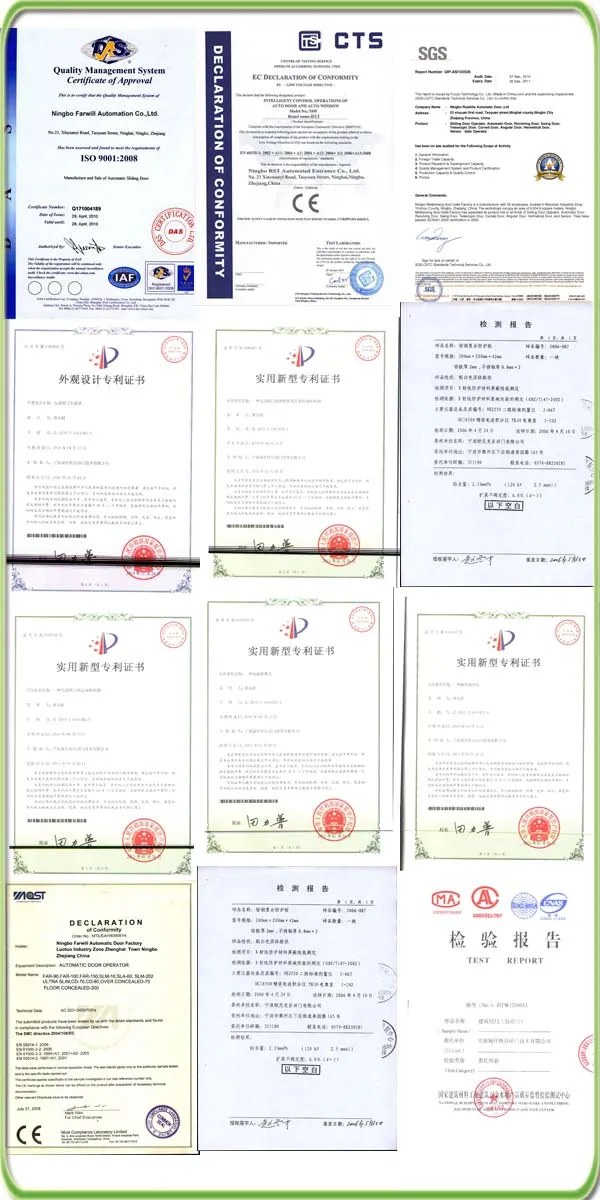

Certification
ISO9001, RoHS, CE
Motor
Dunkermotoren Germany
Power Supply
220V or 110V
Special Function
Breakout
Production Capacity
2000sets Every Month
Product Overview

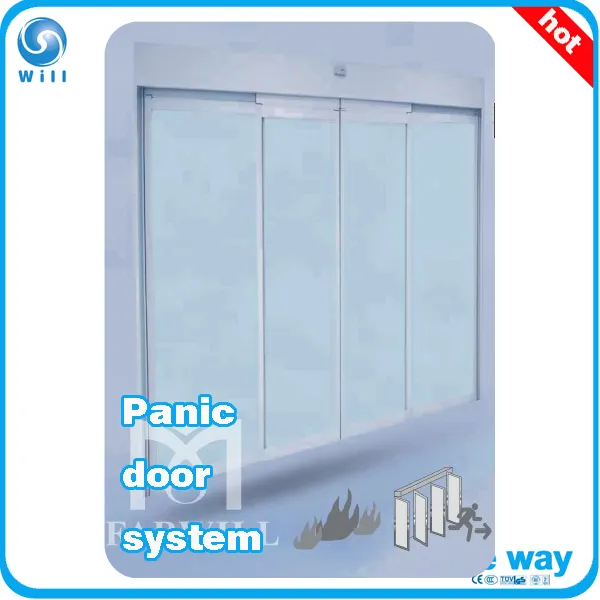

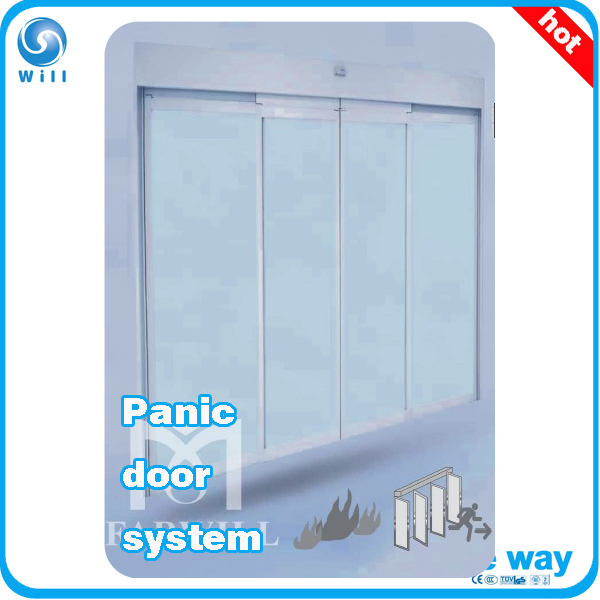

Emergency Breakout Door System - Automatic Sliding Solution
✓
Durability: 10 million times of tests passed, super durable construction.
✓
Wide Voltage: Compatible with AC110-260V range.
✓
Energy Saving: Low power consumption (68W at work, 3W at leisure).
✓
Intelligent Design: Easy to install and adjust with digital program revised parameters.
✓
High Performance: Brushless motor, worm-geared, higher efficiency and larger torque.
✓
Multi-Trigger: Supports microwave, infrared, mechanical keys, fingerprint, and fire warning.
Standard Configuration & Parts

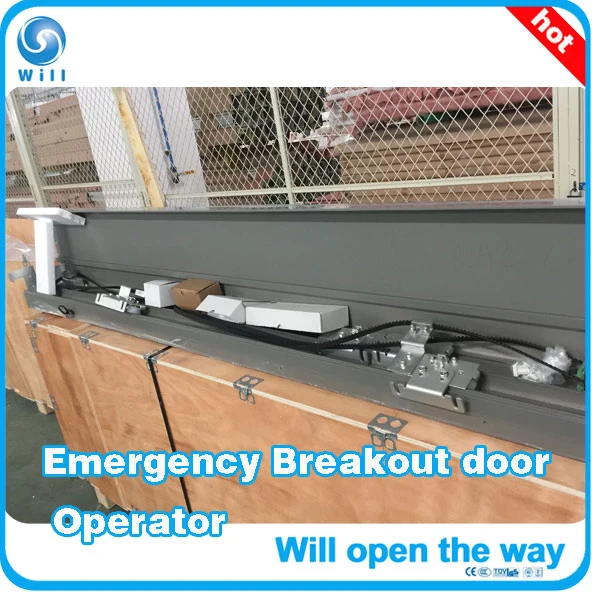

Standard Configuration

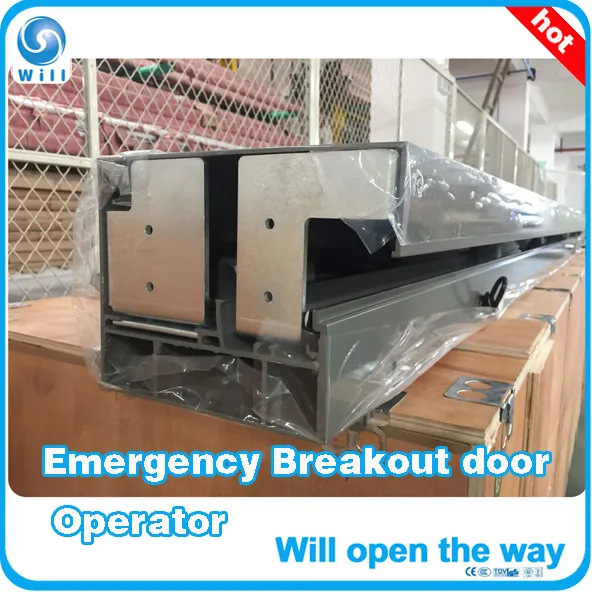

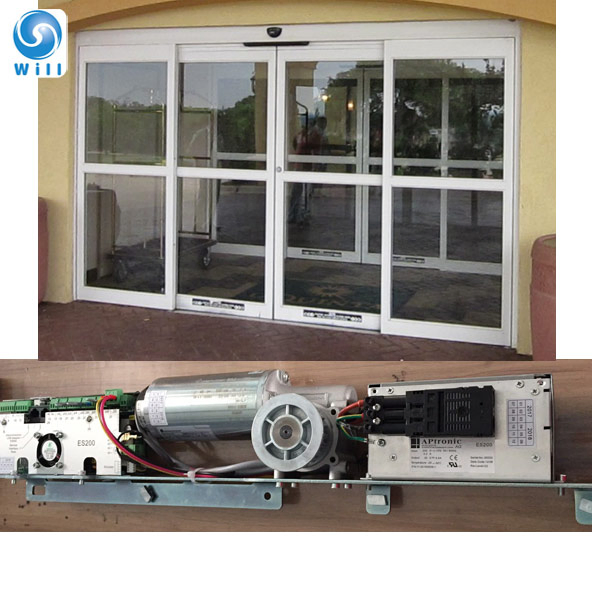

- Motor & Controller
- Remote Controllers
- Basic control module
- Track & Carrier
- Return Pully & Belt connection
- Service cover holder & End stop
- Door bracket & Belt tensioning device

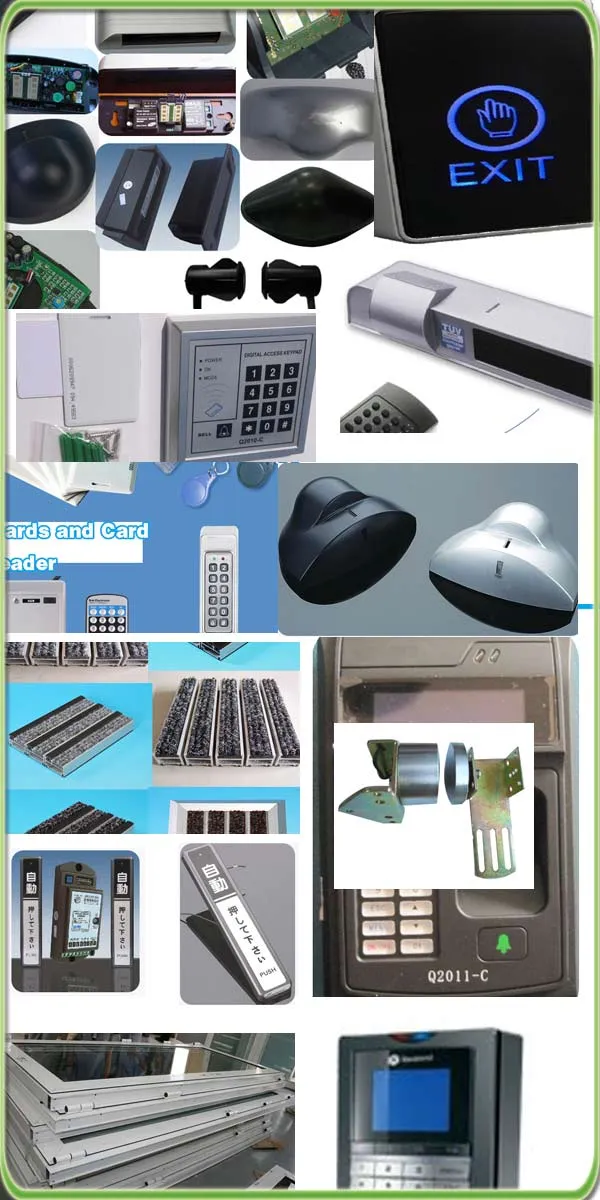

Optional Parts

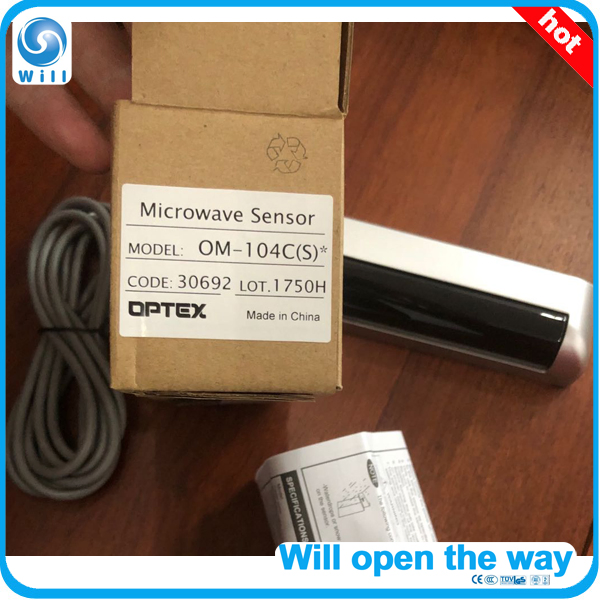

- Motion Sensor
- Lock latch
- Battery
- Beam safety photocell
Technical Specifications
| Weight of gate | Single/Bi-part 1X200KG/2X120KG |
| Width of gate | Single/Bi-part 900-6100MM |
| Master Controller | 32 digital microprocessor |
| Brush motor/Dunker motor | 99.5W 60VDC 2A IP50 |
| Opening/Closing speed | 300-700mm/s / 300-650mm/s |
| Max open strength | 150N |
| Hold Open Time/Lock | 0-10S / 30S |
| Rail Dimensions | Height: 8CM, Depth: 16CM |
| Temperature Range | -15°C to +70°C |
| Power Consumption | Around 100W |
| Warranty | 24 Months |

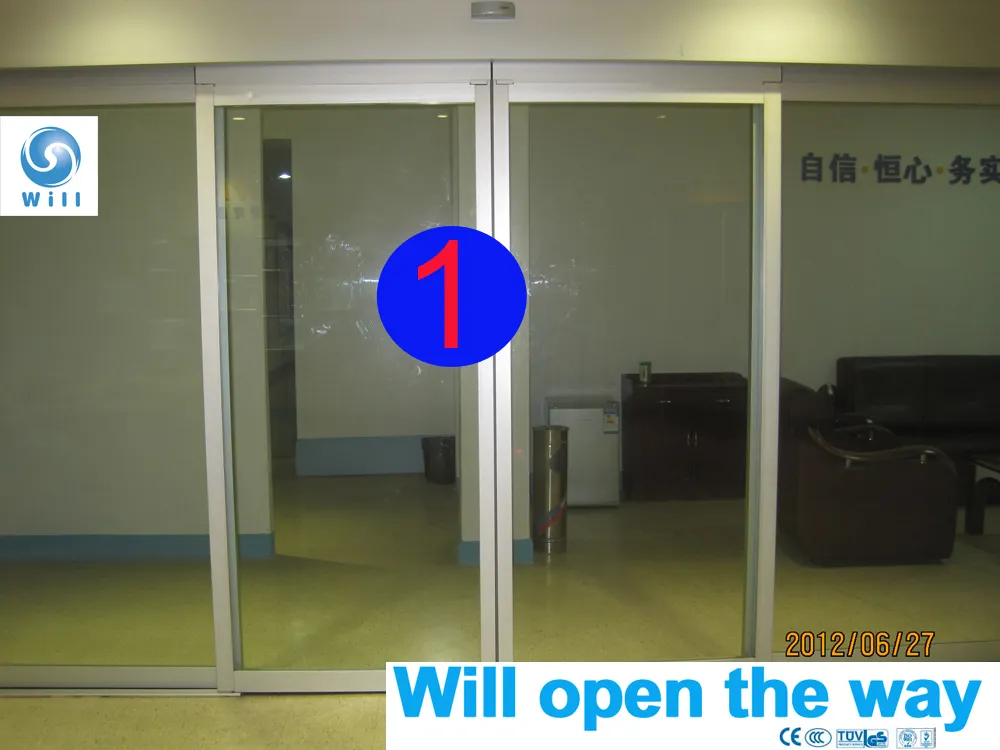

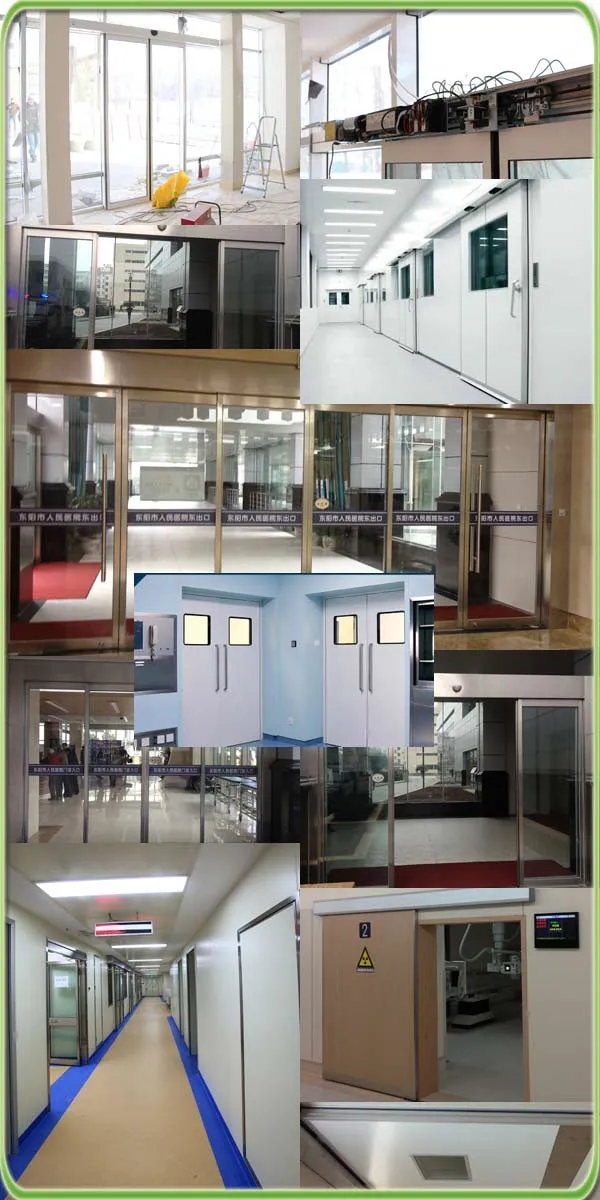

Installation & Applications
Frequently Asked Questions

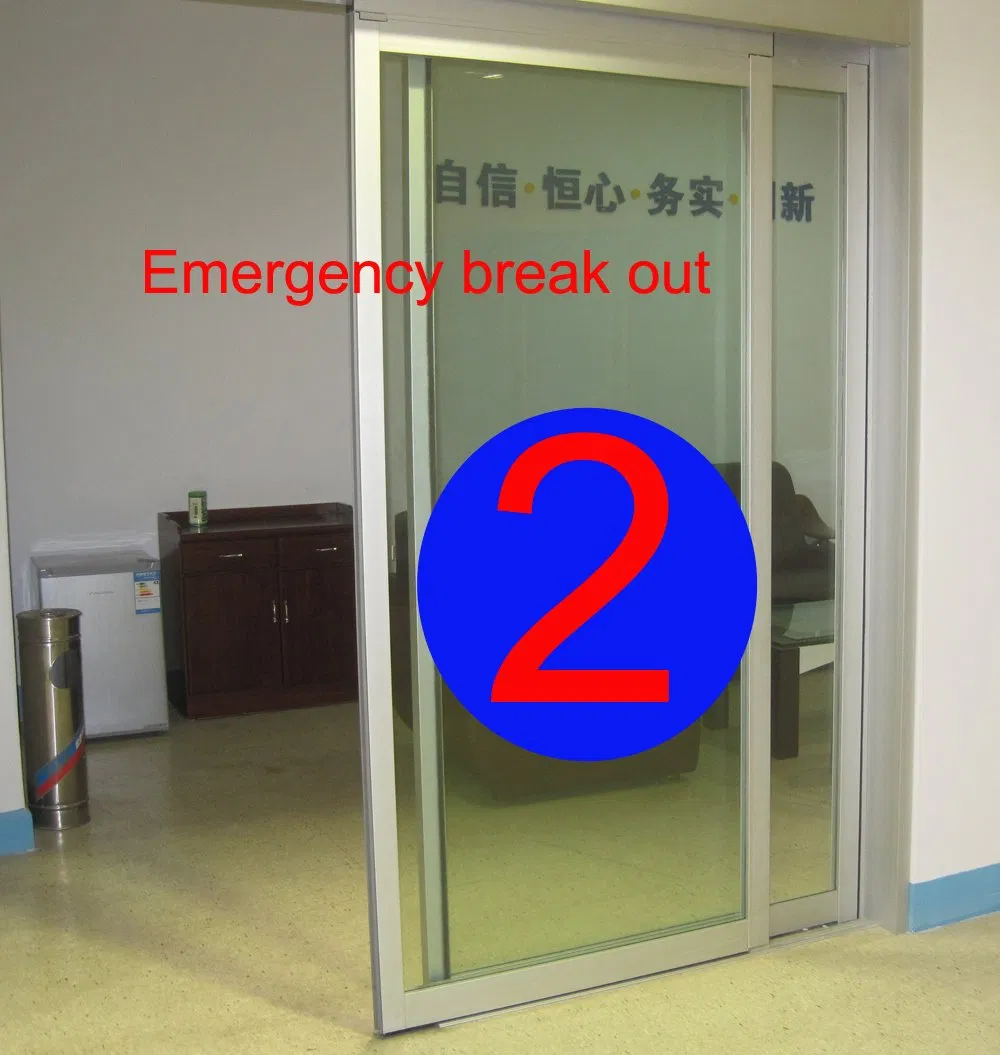

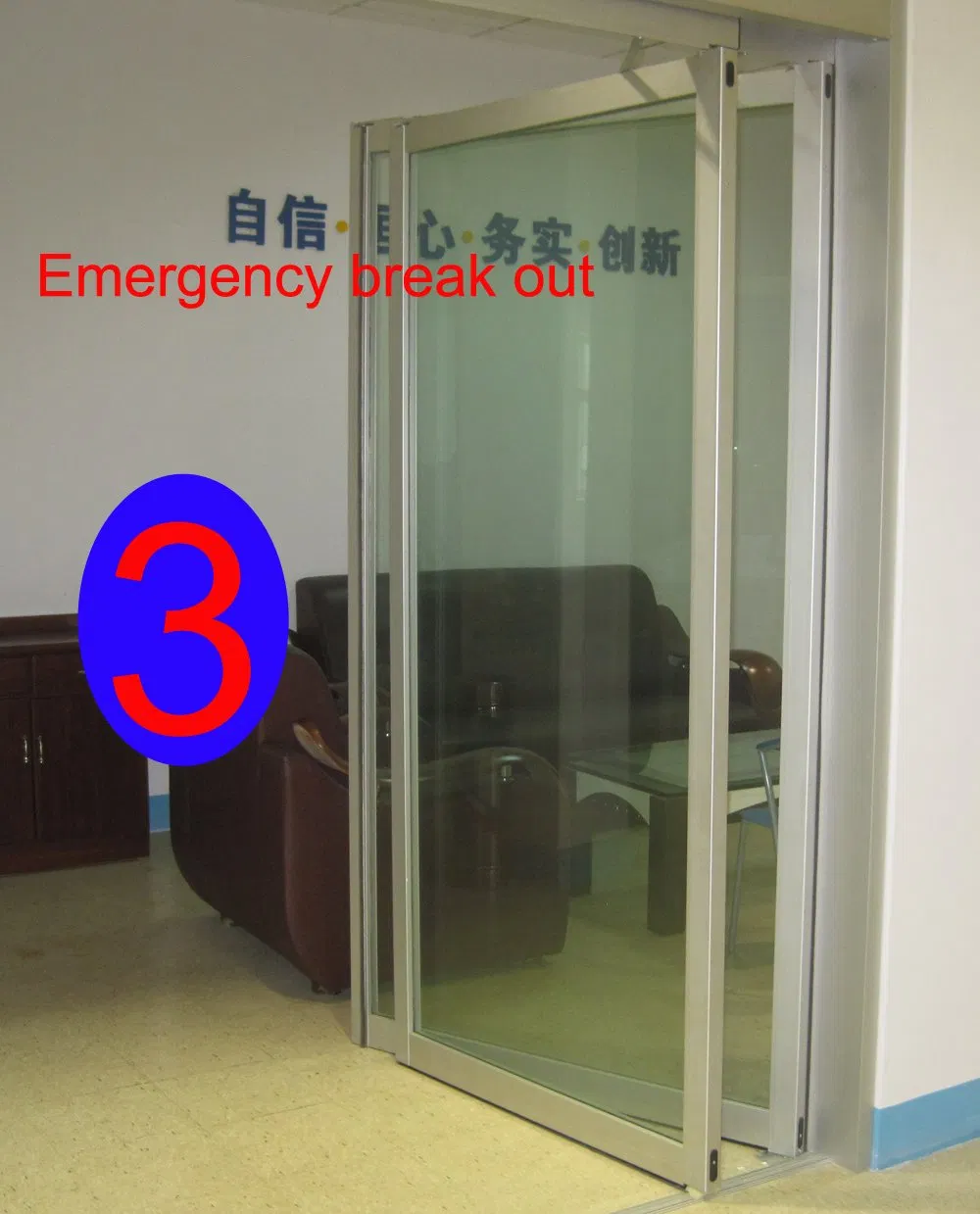

What is the "Breakout" function for this door system?
The breakout function allows the sliding doors to be pushed open manually in the direction of escape during emergencies, ensuring safe and quick evacuation.
How durable is the automatic sliding door motor?
The system utilizes a high-quality Dunkermotoren from Germany or a powerful brushless motor, which has passed 10 million cycles of durability testing.
What is the warranty period for the system?
We offer a 24-month warranty on this emergency breakout door system, covering standard operational failure.
Can the opening and closing speeds be adjusted?
Yes, the system features a 32-digital microprocessor controller that allows for easy adjustment of opening speeds (300-700mm/s) and closing speeds.
Is the door system energy efficient?
Extremely. It consumes only 68W while in operation and drops to 3W in leisure mode, significantly saving energy for commercial buildings.
What security trigger modes are available?
The system supports various triggering modes including microwave and infrared sensors, fingerprint readers, mechanical keys, and fire alarm integration.
