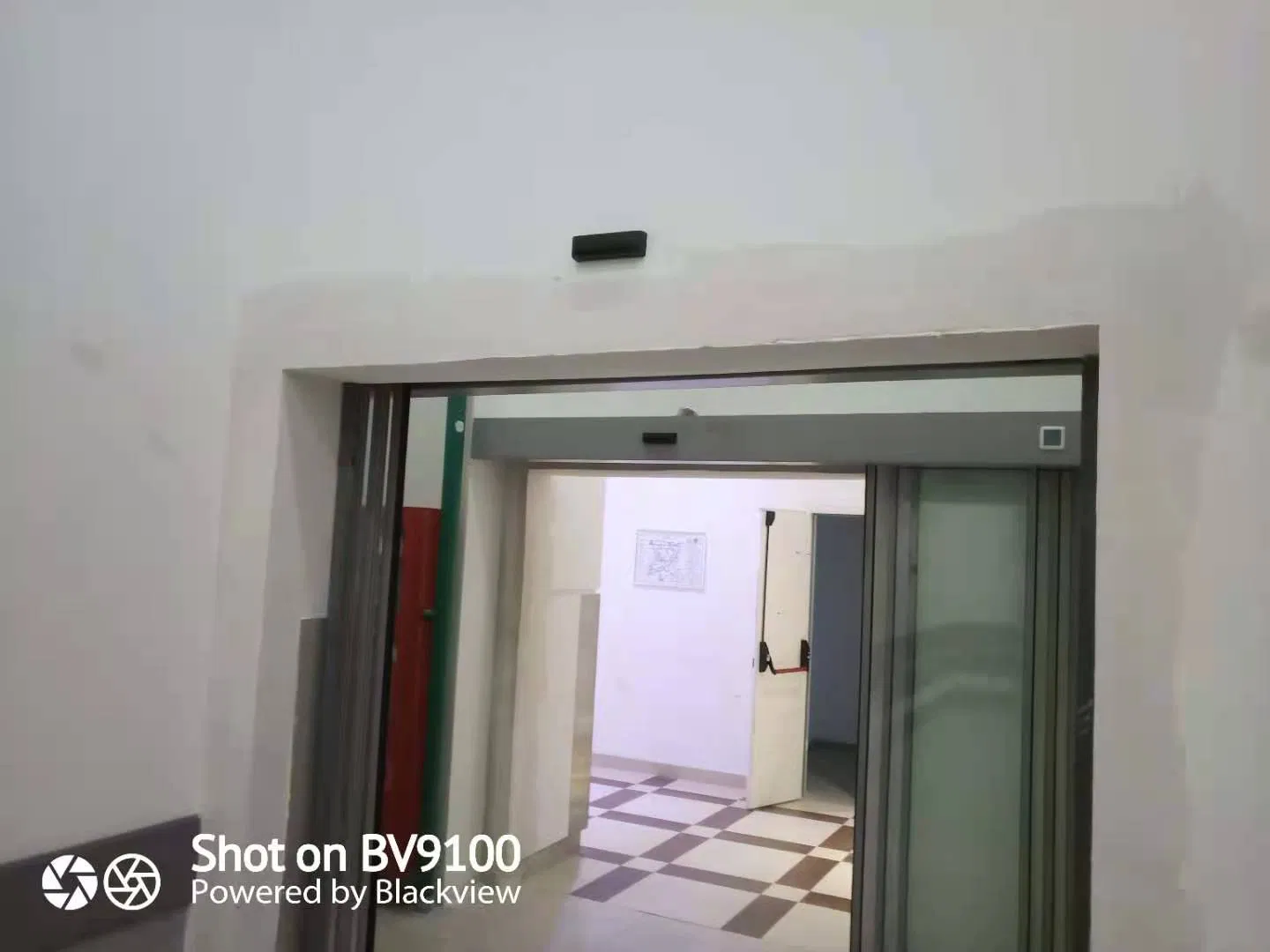

Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
1 / 5
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System

Automatic Telescopic Door System

Customization: Available
Warranty: 36monthes
Material: Aluminum Alloy
Send Inquiry

Product Description

Basic Information

Model NO.
Automatic telescopic door system
Type
Sliding
Open Style
Sliding
Certification
ISO9001, RoHS, CE
Motor
Dunkermotoren Germany
Power Supply
220V or 110V
Length
2000mm to 6000mm
Function
Works with Original Dorma Parts
Capacity
2000 sets Every Month

Product Description

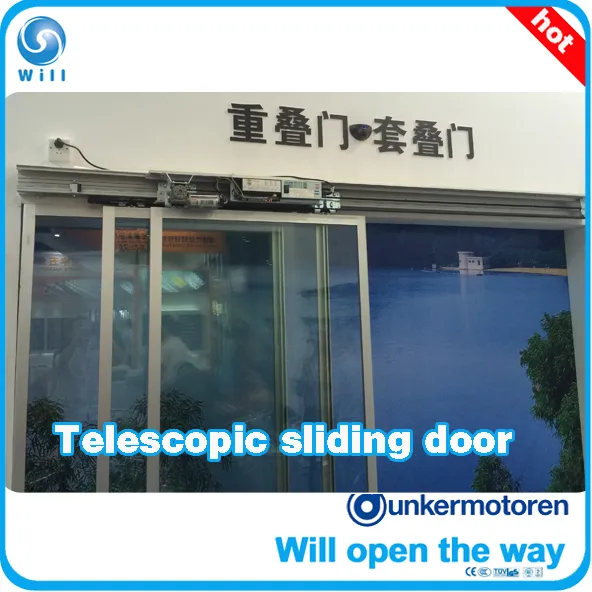

Telescopic Sliding Door System - Automatic Door Operator with Dunkermotoren

Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
Automatic Telescopic Door System
⚙

Key Features

  • Compatibility: Function 95% similar as KABA and compatible with original KABA components.
  • High Performance Motor: Equipped with Germany Dunkermotoren (99.5W), capable of bearing 2X160KG gates.
  • Easy Installation: Drive system is pre-installed before leaving the factory.
  • Advanced Programming: Users can adjust open width (20-90%), direction, and other parameters.
  • Safety: Obstacle detection with automatic return mechanism and CE approval.
Automatic Telescopic Door System

Standard Configuration & Specifications

  • Minidrive Unit
  • Germany Dunkermotor
  • Transformer & Decoder
  • Basic Control Module
  • Track & Carrier
  • Belt connection & Tensioning device
Automatic Telescopic Door System

Technical Specification (ES200 Easy)

Weight of GateSingle: 1X200KG / Bi-part: 2X120KG
Width of Gate900-6100MM
Master Controller32 digital microprocessor
Motor Spec99.5W 60VDC 2A IP50
Opening/Closing Speed300-700mm/s / 300-650mm/s
Power SupplyAC110V-250V 50/60HZ
Operating Temperature-15°C to +70°C
Noise LevelLow noise design (<40db)

Workshop & Production

Standard Configuration

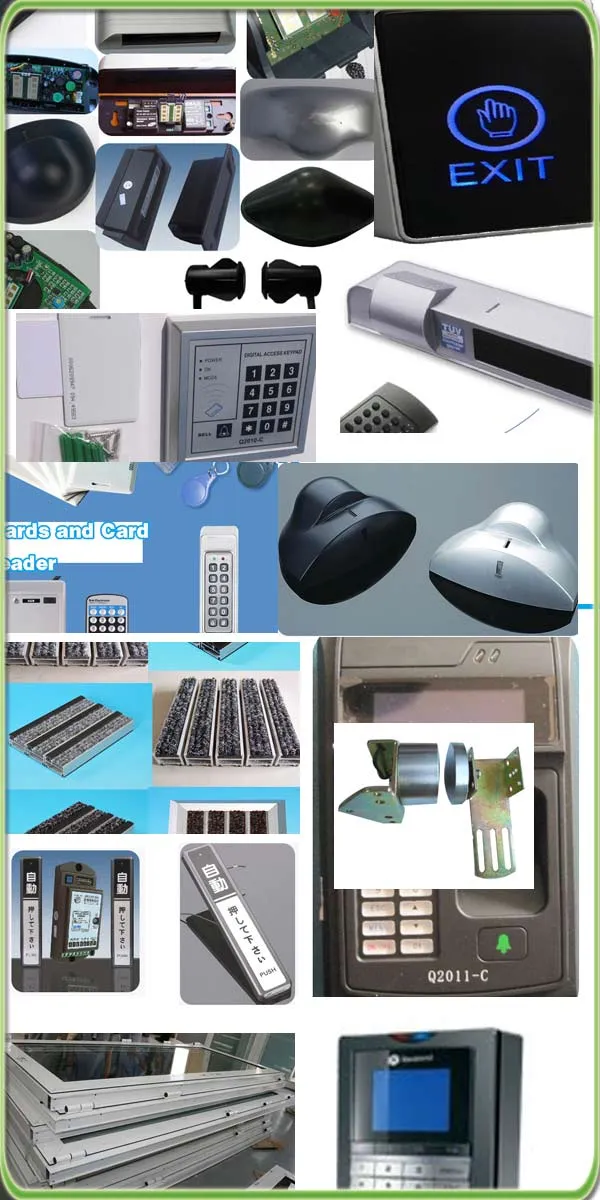

Workshop
Workshop

Frequently Asked Questions

Q1: What type of motor is used in this telescopic system?
The system features a high-quality Germany Dunkermotor (99.5W), known for its durability and powerful performance in automatic door operators.
Q2: Is the system compatible with KABA or Dorma parts?
Yes, the system is designed to be 95% similar to KABA systems and works efficiently with original KABA and Dorma parts.
Q3: What is the maximum gate weight the operator can handle?
The system is powerful enough to handle bi-parting doors up to 2 x 160kg or single doors with significant weight requirements.
Q4: Does the system include safety features for power failures?
Yes, it includes emergency opening functions in case of power failure (fail-safe) and obstacle detection with an automatic return mechanism.
Q5: What certifications does this product hold?
The product is fully certified with CE, ISO9001, and RoHS standards, ensuring international quality and safety compliance.
Q6: What is the warranty period for this door system?
We provide an 18-month warranty on this telescopic sliding door system, covering standard operational usage.
