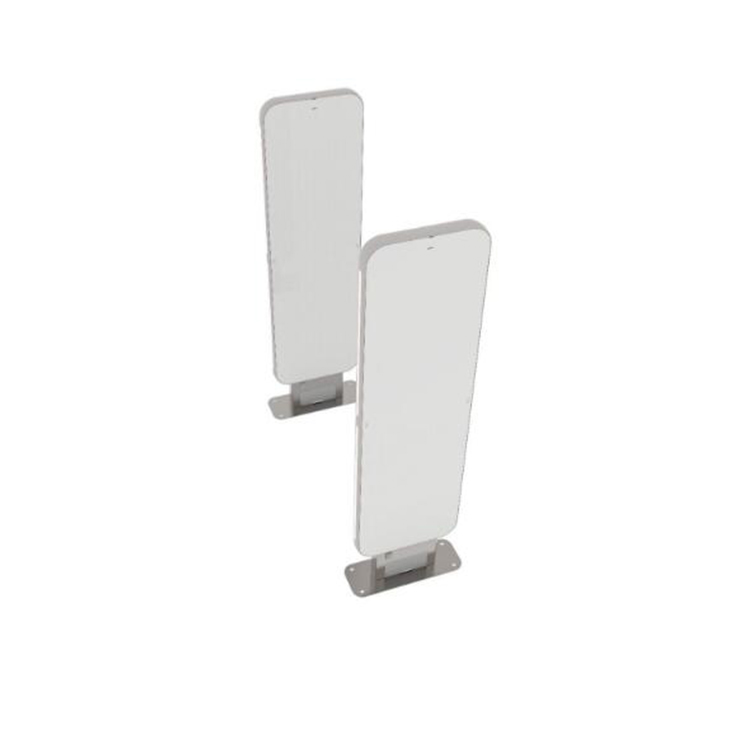

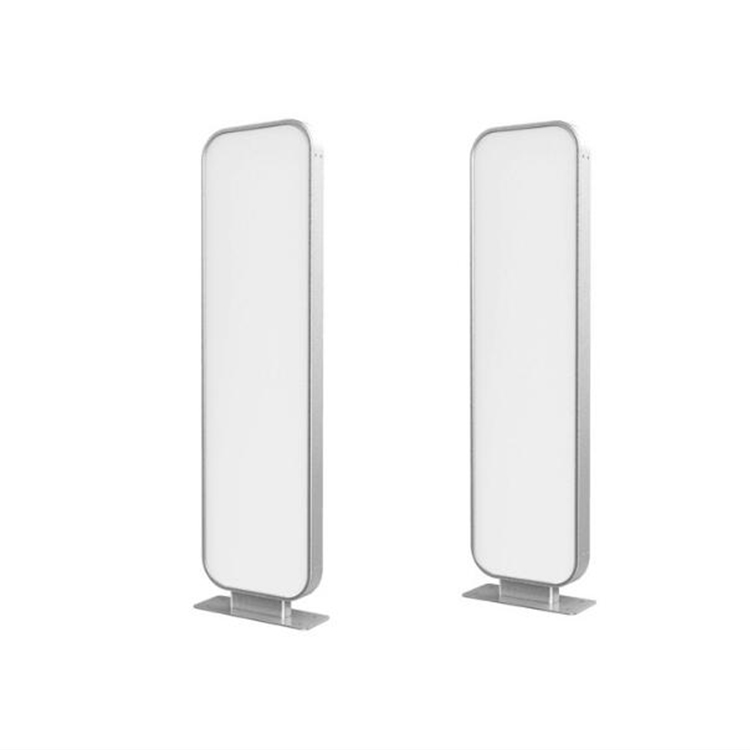

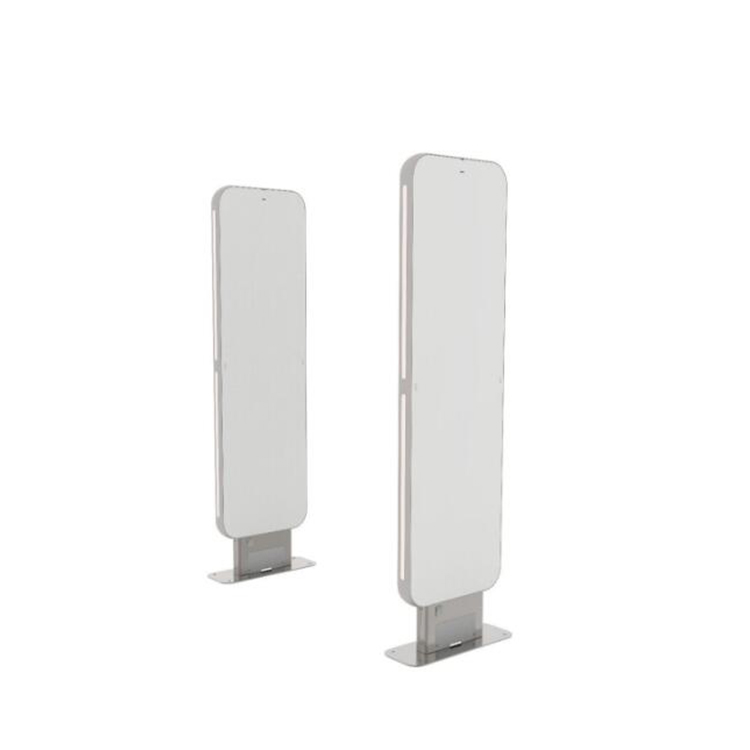

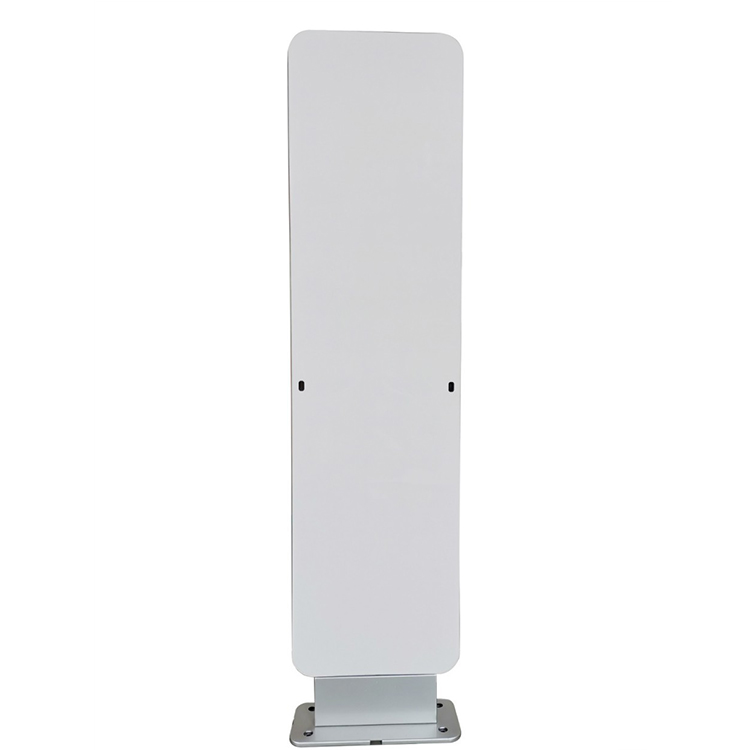

UHF Rfid Channel Door Radio Frequency Identification Warehouse Access Control Inbound and Outbound

Send Inquiry

Product Description

P/N	TD-03
Operating System	Linux
Network	Ethernet
RFID Module	R2000
RF Connectors	Integrated 4*9dbi ANT
Read Rate	300 tag/s
RF Power Output	+10 ~ +32dbm
Power	DC 220V
RFID Protocol Support	EPC Gen2/ISO180-6C
Frequency	• FCC (NA, SA) 902-928 MHz • SRRC-MII (P.R.China) 920-925 MHz
Standard accessories	AC Adaptor/RF cable 2M 2/ Omron photoelectric switch 4
Dust and water immunity	IP54
API Support	C, C# (.NET), Java
Humidity	5% to 95%, non-condensing
Operating Temp	-20℃ to +60℃
Storage Temp	-40℃ to +80℃
Dimensions( mm)	1400360116mm(LWH)
Weight(g)	26800
Certification	Ethernet

ℹ️ High-performance RFID Reader with Linux OS and R2000 Module.

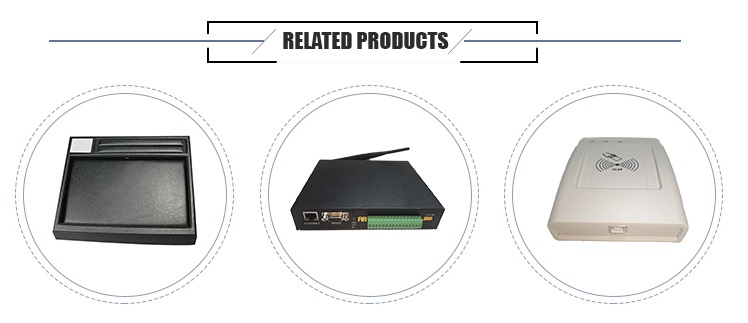

Related Products

Our Advantages

Development & Support

Payment & Delivery

Frequently Asked Questions

What is the maximum tag reading rate of this device?

The TD-03 RFID reader supports a high-speed read rate of up to 300 tags per second.

Which operating system does the RFID reader use?

This device runs on a Linux-based operating system for stable and efficient performance.

What is the environmental protection rating for this reader?

The reader features an IP54 rating, providing significant protection against dust and water splashes.

What frequencies are supported by the TD-03?

It supports FCC (902-928 MHz) for North and South America, as well as SRRC-MII (920-925 MHz) for China.

Which programming languages are supported by the API?

API support is available for C, C# (.NET), and Java, making it easy to integrate into various software environments.

What are the power requirements and dimensions?

The device operates on DC 220V and has physical dimensions of 1400*360*116mm.
