Warehouse Inventory Checking Pallet Tracking & UHF RFID Asset Tracking System
1. Introduction
Having taken into account the features of modern warehouse management, we put forward a warehouse management system (WMS) based on Radio Frequency Identification (RFID), and probe into the structure and operation flow of the system.
The WMS adopts RFID middleware as the support platform, covering goods entry, picking, checking, delivery, and many other operation flows. It efficiently collects, delivers, checks, and updates mass data on frequent warehouse entries and deliveries, significantly decreasing labor intensity and avoiding artificial errors such as fault scanning or miss scanning.
2. Structure of the RFID-based WMS
2.1. The Hardware System
The Hardware system consists of RFID tags, hand-held units, fixed antennas, and vehicle units:

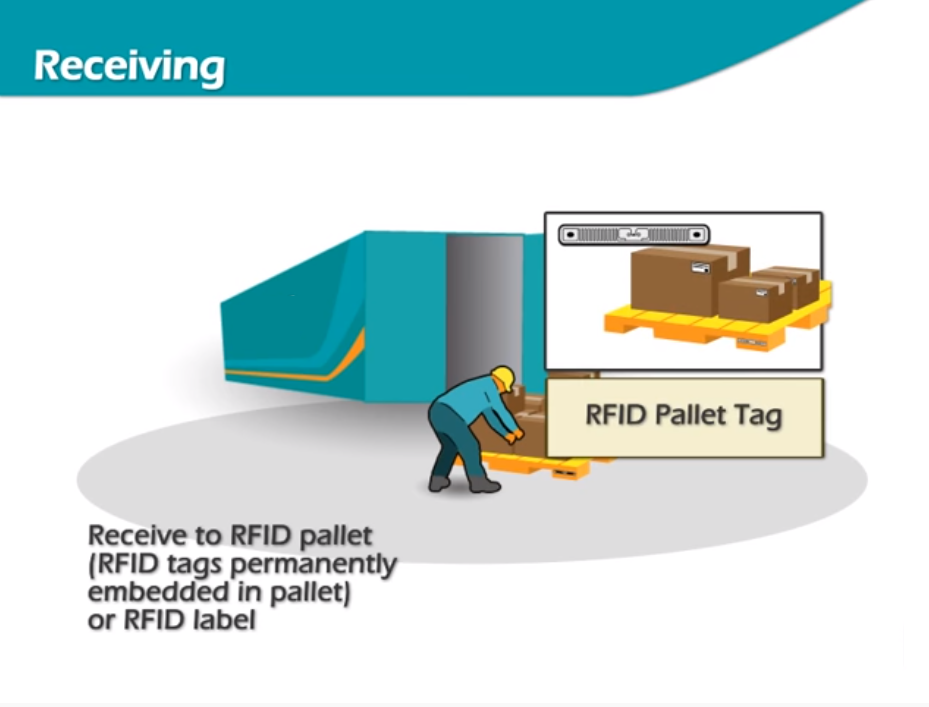

- RFID Tags: High frequency (HF) or ultra-high frequency (UHF) tags categorized into pallet tags, warehouse position tags, and goods tags.
- Hand-held Units: Integrated mobile devices that send data to the back-end system via wireless networks.

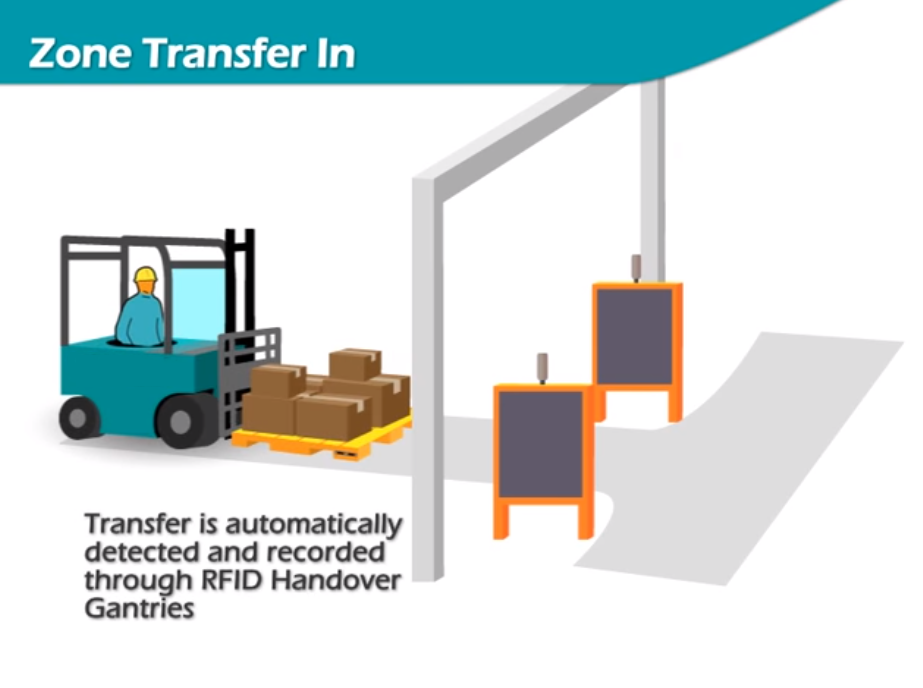

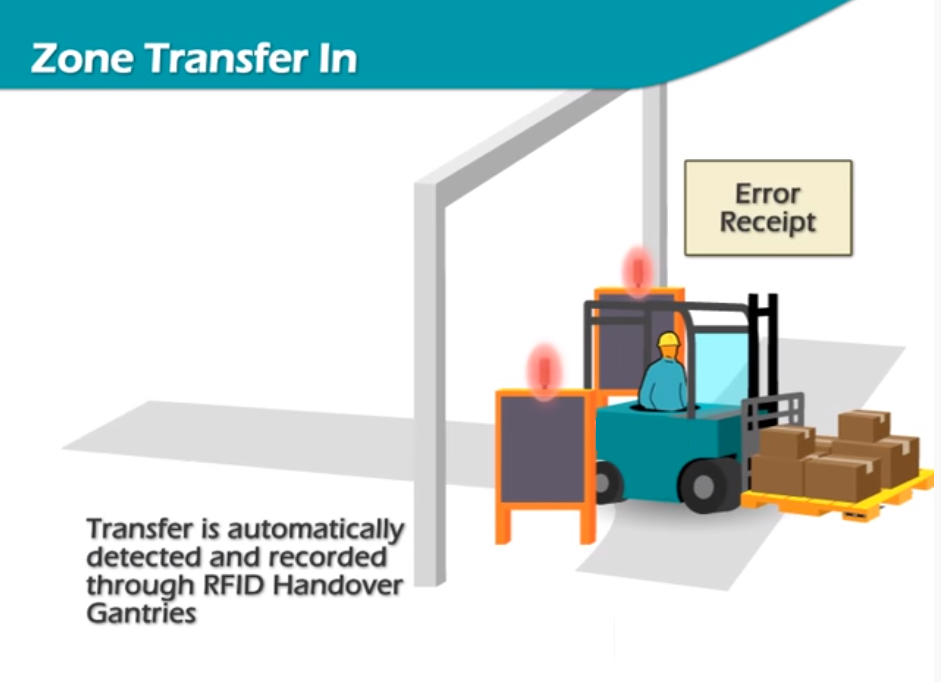

- Fixed Antennas: UHF omni-directional or plane antennas that magnify signals and eliminate blind areas.
- Vehicle Units: Computers, displays, and readers integrated for complex industrial environments to track vehicle movement.
2.2 The Software / Back-End System
The back-end system serves as the operation support, responsible for collecting, filtering, collating, and re-transmitting data. It integrates all function packages seamlessly, allowing data to flow smoothly across the platform. It can operate independently or exchange data with ERP and other external management systems.

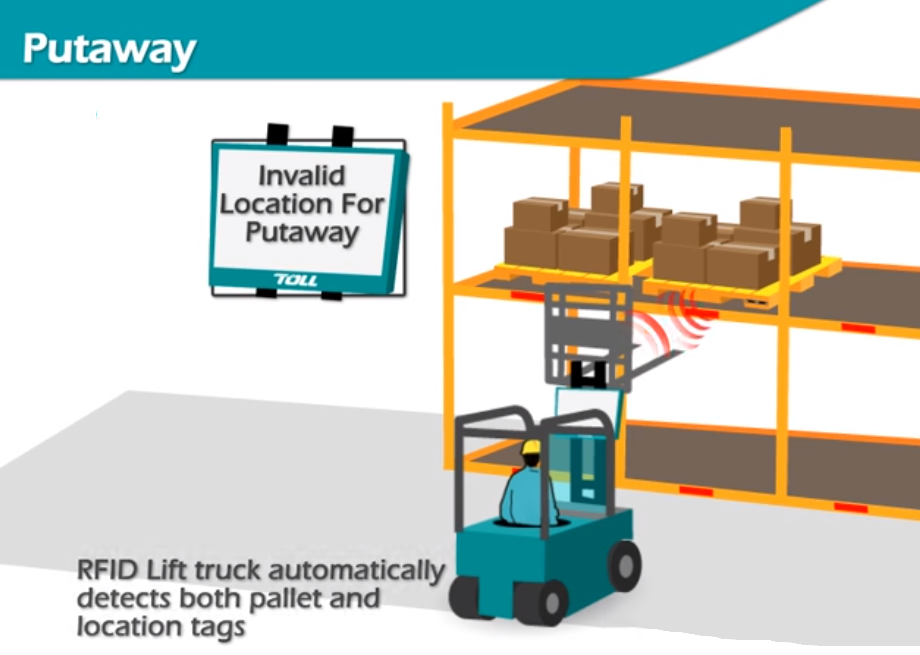

2.3. The Warehousing Facilities

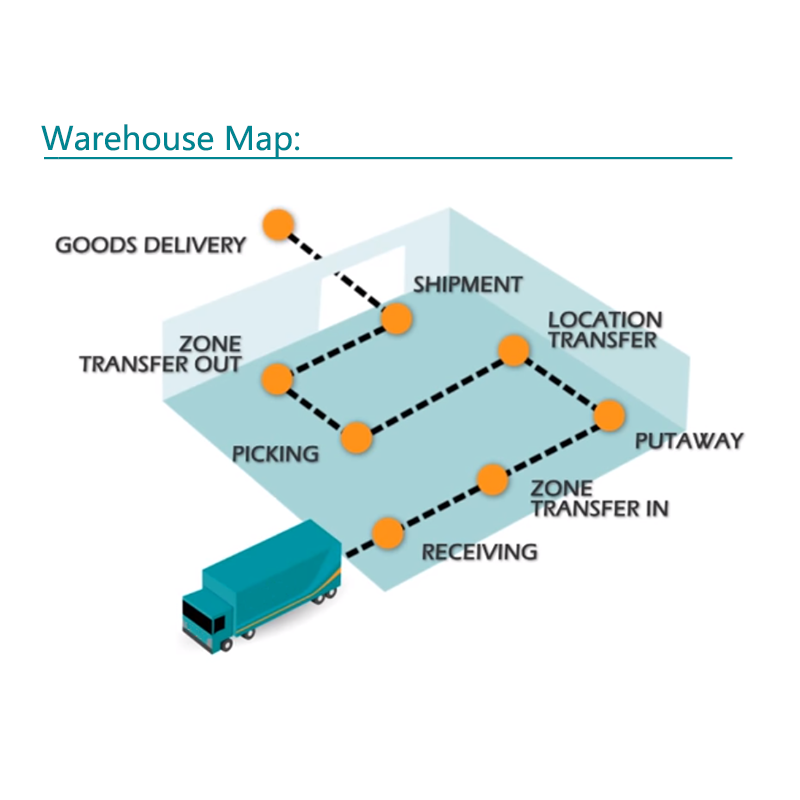

The warehouse is divided into specific zones with electronic codes, including warehouse name, area, rack, and independent storage areas. Electronic tags are placed at these locations to act as navigation indicators, all covered by a wireless LAN for rapid information sharing.
3. Conclusion
RFID technology allows for simultaneous collection of large quantities of data without precise positioning. This frees enterprises from repetitive manual operations. As technology costs decrease and standards unify, the combination of WMS and RFID has become a critical factor in improving supply chain efficiency and competitive power.
Frequently Asked Questions
What are the main benefits of an RFID-based WMS?
The system improves efficiency and accuracy by allowing simultaneous data collection of multiple items, reducing labor intensity and eliminating manual errors like miss-scanning.
What hardware is required for implementation?
Key hardware includes RFID tags (HF/UHF), handheld mobile units, fixed antennas for signal coverage, and vehicle units for forklifts or trucks.
How does the system handle massive amounts of data?
The back-end software acts as a support platform that filters, collates, and encapsulates data, ensuring smooth integration across all warehouse operation flows.
Can this system integrate with existing ERP software?
Yes, the software is designed as a connecting and data exchange platform that can seamlessly interface with ERP systems and other management information systems.
Are there different types of RFID tags for warehouse use?
Yes, tags are categorized by application, such as pallet tags, warehouse position tags, and specific goods tags, depending on whether HF or UHF is required.
Is the hardware suitable for harsh industrial environments?
The vehicle units and hardware components are specifically designed to adapt to complex and bad working environments, ensuring durability and consistent wireless communication.
